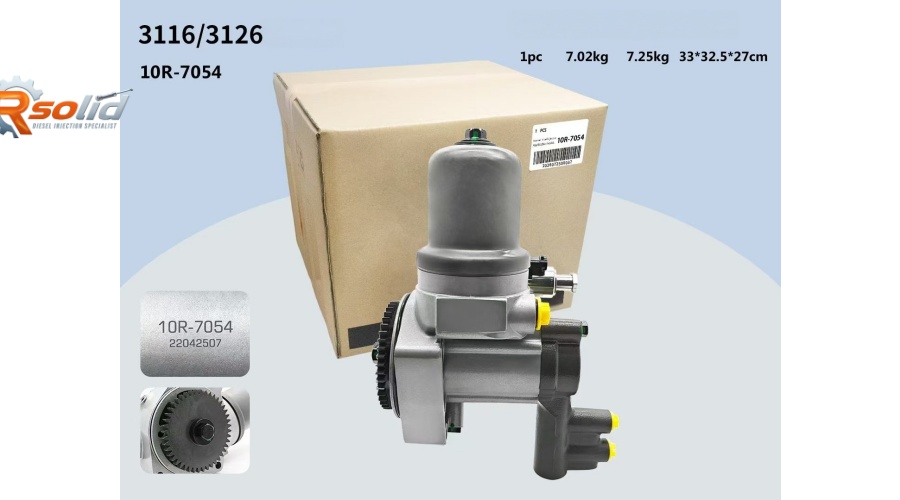

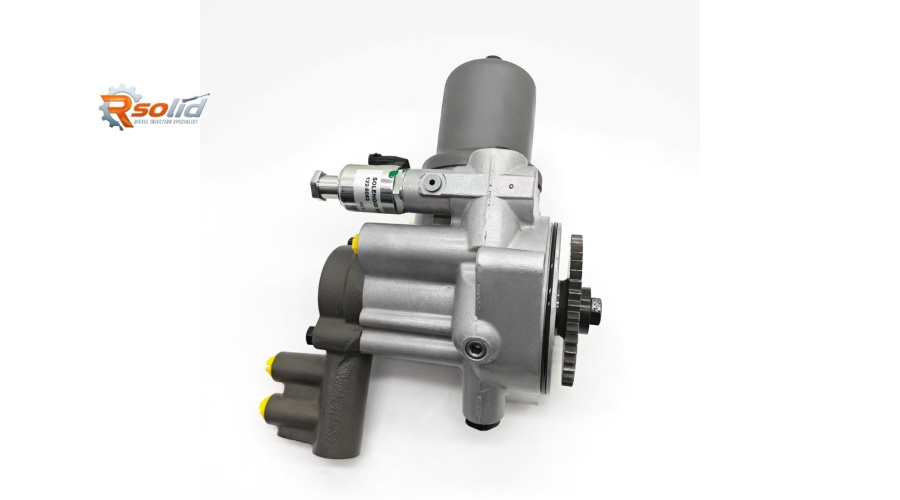

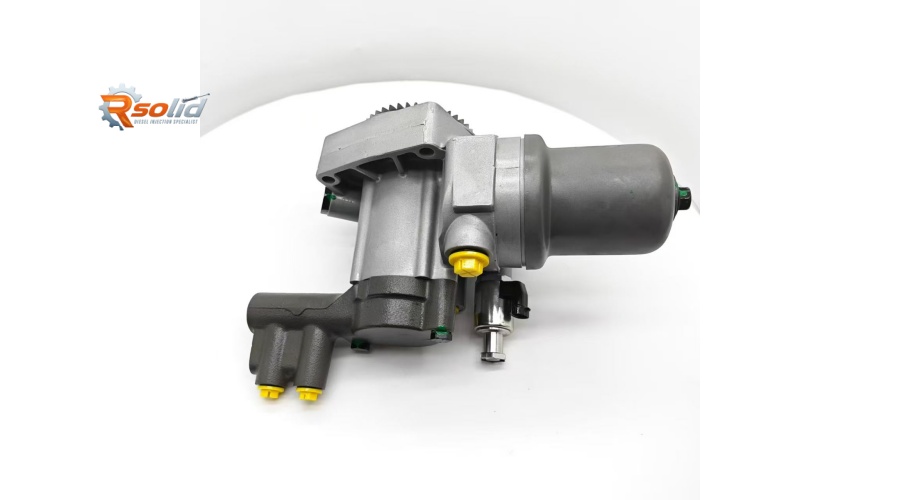

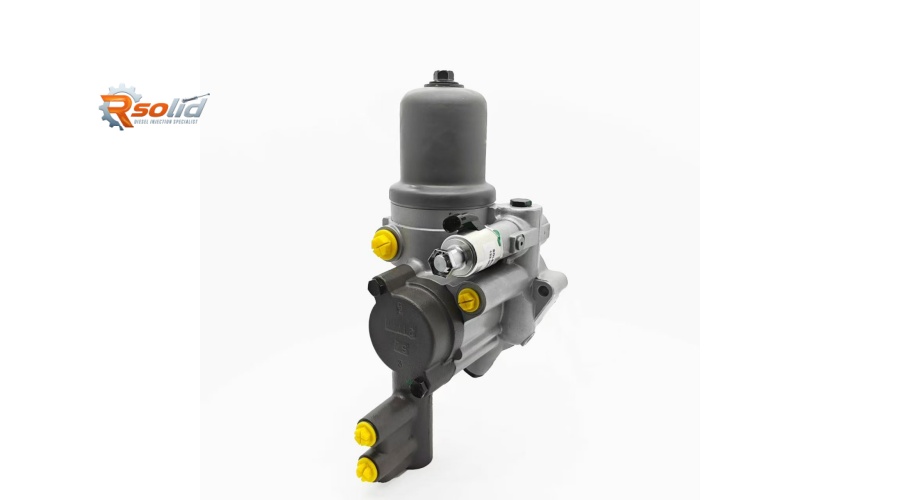

10R-7054 Hydraulic Pump – High-Performance Replacement for Caterpillar 3116 & 3126 Diesel Engines
For operators of Caterpillar 3116 and 3126 engines – whether in heavy‑duty trucks, construction equipment, or industrial machinery – the hydraulic pump is a vital component that powers steering, fan drives, work tools, and auxiliary hydraulic systems. The 10R-7054 hydraulic pump is a premium, OEM‑grade replacement engineered specifically for these engines, delivering reliable hydraulic flow, consistent pressure, and long service life. Designed to meet or exceed Caterpillar's original specifications, this pump ensures your equipment maintains optimal hydraulic performance, reducing downtime and improving productivity.
Available as a complete assembly, the 10R-7054 offers a direct drop‑in fit for a wide range of applications, from on‑highway trucks to off‑highway excavators and loaders. In this guide, we examine its robust construction, compatible engine models, common failure signs, professional installation best practices, and why Rsolid Engine Parts is the trusted global supplier for Caterpillar hydraulic components.
1. Structural Features & Advantages of the 10R-7054 Hydraulic Pump
The 10R-7054 is a high‑efficiency, gear‑type or piston‑type hydraulic pump (depending on the specific variant) designed to deliver the flow and pressure required by Cat 3116 and 3126 engine applications. Its engineering incorporates several heavy‑duty features:
High‑strength cast iron housing – The pump body is manufactured from robust cast iron, providing excellent rigidity and vibration damping. This ensures stable performance even under high‑load conditions and in harsh environments.
Precision‑ground gears or pistons – Internal pumping elements (whether gear pairs or axial pistons) are machined to micron‑level tolerances, ensuring consistent flow rates with minimal internal leakage. This translates to reliable hydraulic pressure for steering, fan drives, and auxiliary functions.
Hardened steel shafts and bearings – The drive shaft and internal bearings are heat‑treated and hardened to withstand continuous high‑speed rotation and varying load conditions, ensuring long‑term durability and resistance to wear.
High‑pressure capability – Designed to operate at pressures up to 200‑250 bar (depending on the specific application), this pump provides ample hydraulic power for demanding tasks, such as power steering, hydraulic fan drives, and small work tools.
Integrated relief valve (on selected variants) – Some configurations include a built‑in pressure relief valve to protect the system from overpressure, preventing damage to hoses, actuators, and other hydraulic components.
Direct‑mount design – The 10R-7054 is engineered to bolt directly to the engine's gear train or PTO drive, with the correct mounting flange and drive coupling configuration. This ensures a simple, trouble‑free installation with no modifications required.
Versatile port configuration – The pump features standard SAE or metric hydraulic ports, allowing compatibility with a wide range of hydraulic hoses and fittings commonly used in Caterpillar equipment.
High‑temperature seals – All O‑rings and shaft seals are made from FKM (Viton®) or equivalent materials to resist degradation from hot hydraulic oil and engine heat, ensuring leak‑free operation over thousands of hours.
Operational benefits for equipment owners and workshop technicians:
Restored hydraulic performance – A new pump ensures full steering response, proper fan speed, and reliable auxiliary hydraulic power, improving overall machine productivity.
Reduced system wear – Consistent pressure and flow reduce stress on other hydraulic components, such as motors, cylinders, and control valves.
Extended service intervals – High‑quality materials and precision manufacturing deliver long, reliable service, reducing unscheduled downtime.
Lower operating temperatures – Efficient pumping reduces oil shear and heat generation, extending hydraulic fluid life.
100% direct drop‑in fit – Identical to the original Caterpillar pump in all critical dimensions – no adapter plates or modifications required.
2. Compatible Engine Models & Typical Applications
The 10R-7054 hydraulic pump is specifically engineered for Caterpillar 3116 and 3126 diesel engines – two of Cat's most popular medium‑duty engine platforms, used in a wide variety of on‑highway and off‑highway equipment.
| Engine Model | Typical Applications |
|---|
| Caterpillar 3116 (175–275 hp) | Heavy‑duty trucks (Freightliner, Peterbilt, International), transit buses, fire trucks, motorhomes |
| Caterpillar 3126 (175–330 hp) | Class 6/7/8 trucks, construction equipment (excavators, wheel loaders, bulldozers), generator sets, marine auxiliary power |
| Industrial and agricultural equipment | Pumps, compressors, forklifts, agricultural tractors |
Critical cross‑reference: The 10R-7054 is the genuine Caterpillar part number for this hydraulic pump. It may be supplied as a gear pump or a piston pump depending on the specific application – always verify with your equipment serial number and existing pump part number before ordering. The pump is supplied as a complete assembly; new O‑rings and gaskets should be installed simultaneously.
3. Common Failure Modes & Installation/Replacement Recommendations
Typical Warning Signs That Your Hydraulic Pump Needs Replacement
Loss of hydraulic power – Reduced steering response, slow fan speed, or weak auxiliary functions indicate insufficient flow or pressure.
Excessive noise – Whining, growling, or knocking sounds from the pump area, especially under load, often indicate worn bearings, gear wear, or cavitation.
Hydraulic fluid leaks – Visible leaks from the pump shaft seal or housing joints, often accompanied by fluid puddles under the vehicle or equipment.
Overheating hydraulic system – A worn pump can generate excessive heat due to internal leakage, increasing oil temperatures and reducing system efficiency.
Metal particles in the hydraulic filter – Finding metallic debris in the oil or filter indicates internal wear and impending pump failure.
Erratic operation – Unstable steering, fan speed fluctuation, or jerky hydraulic movements can result from inconsistent pump output.
Professional Installation Best Practices
Hydraulic pump replacement requires cleanliness and precision. Follow these essential steps:
Clean the pump mounting area – Thoroughly clean the mounting surface and surrounding components to prevent debris from entering the hydraulic system.
Drain the hydraulic oil – Drain the oil from the system to avoid spills and to prevent contamination when the pump is removed.
Replace all seals and O‑rings – Install new O‑rings and gaskets supplied with the new pump or in a separate seal kit. Lubricate the O‑rings with clean hydraulic oil before installation.
Check the drive coupling – Inspect the coupling or spline between the pump and the engine drive gear for signs of wear. Replace if necessary.
Torque mounting bolts – Tighten the pump mounting bolts to Caterpillar's specified torque (typically 40‑50 N·m – consult your equipment manual). Follow a cross‑tightening pattern.
Reconnect hydraulic hoses – Ensure all connections are clean and secure. Tighten fittings to the specified torque.
Fill with clean hydraulic oil – Refill the hydraulic tank with the recommended oil grade and fill to the correct level.
Prime the pump – Before starting the engine, prime the pump by filling the suction line or using a priming pump to avoid dry running, which can cause immediate damage.
Start the engine and check for leaks – Start the engine and run at idle, checking for hydraulic leaks around the pump and fittings. Slowly cycle the steering and auxiliary functions to bleed air from the system.
Test under load – Operate the equipment under normal load conditions to verify that the pump delivers adequate flow and pressure and that all hydraulic functions operate smoothly.
4. Why Rsolid Engine Parts Is Your Preferred Global Supplier
Rsolid Engine Parts has been a premier supplier of Caterpillar, Cummins, and other heavy‑duty components for over 15 years, serving the trucking, construction, mining, and industrial sectors across six continents. Here is why the 10R-7054 hydraulic pump from Rsolid is the intelligent choice:
OEM‑equivalent manufacturing – Produced in ISO 9001:2015 and IATF 16949 certified facilities, using identical high‑grade materials, machining, and heat‑treatment processes as genuine Caterpillar pumps.
100% flow and pressure tested – Every pump is bench‑tested for flow rate, pressure output, and leak integrity before dispatch. Test reports are available upon request.
Complete installation kits – We offer the pump together with all required seals, O‑rings, and gaskets in a convenient kit – simplifying your maintenance.
Global inventory and rapid dispatch – Strategically warehoused in Asia, Europe, and North America, ensuring 3‑7 working day delivery to most international ports and airports.
Competitive wholesale pricing – Attractive volume discounts for workshops, fleet operators, and parts distributors. Enquire about our bulk order programme.
Free expert technical support – Our in‑house Caterpillar specialists provide installation guides, torque specifications, and troubleshooting via WhatsApp or email.
Solid warranty – 12 months / 2,000 operating hours against manufacturing defects and premature wear – with a straightforward return and replacement policy.
Contact Rsolid Engine Parts Today
📧 Email: amy@rinjector.com
📱 WhatsApp: +86 15975376778
Whether you need a single 10R-7054 hydraulic pump for a running repair or a bulk order for your fleet, Amy and her team will provide a detailed quotation, stock confirmation, and shipping schedule within 2 hours. We also supply complementary parts – hydraulic filters, hoses, and seal kits – for comprehensive hydraulic system maintenance.
Choose the 10R-7054 hydraulic pump from Rsolid – engineered to deliver consistent hydraulic power, reliable performance, and long service life for your Caterpillar 3116 and 3126 engines.
