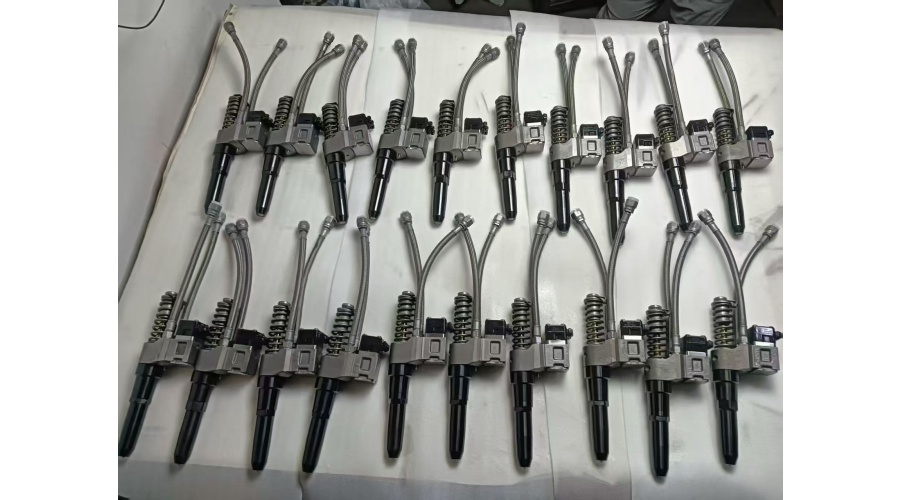

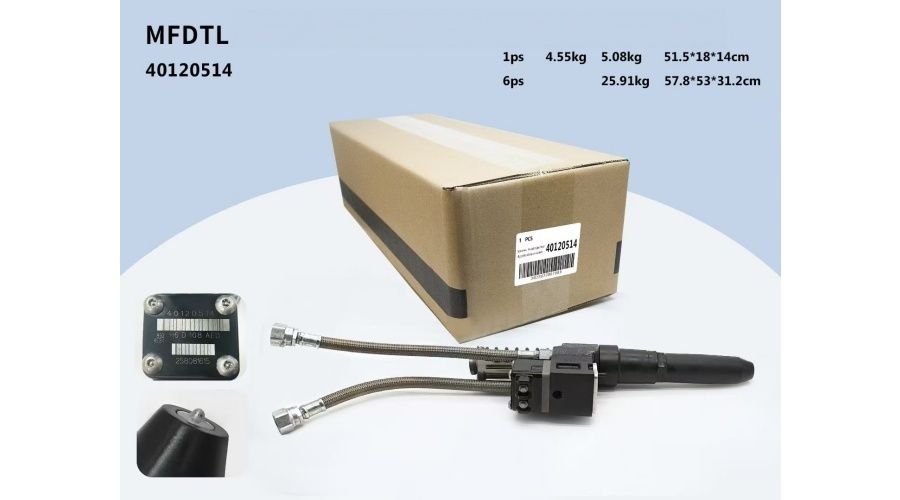

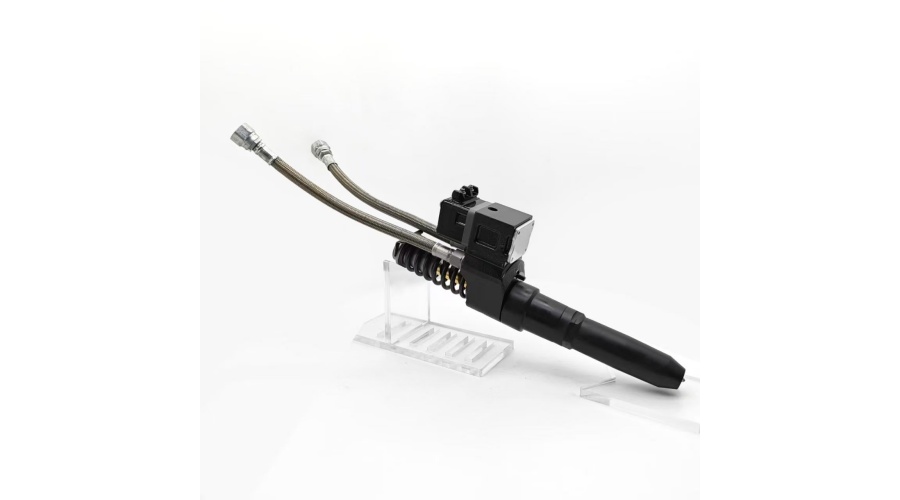

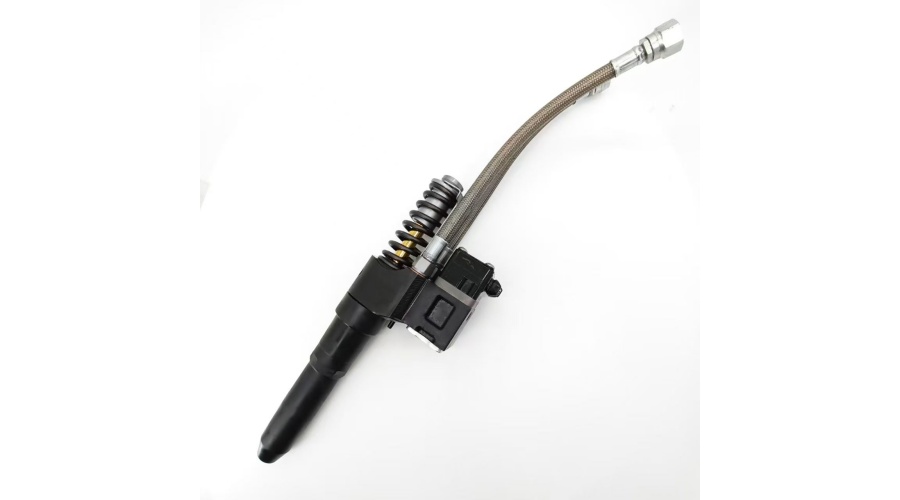

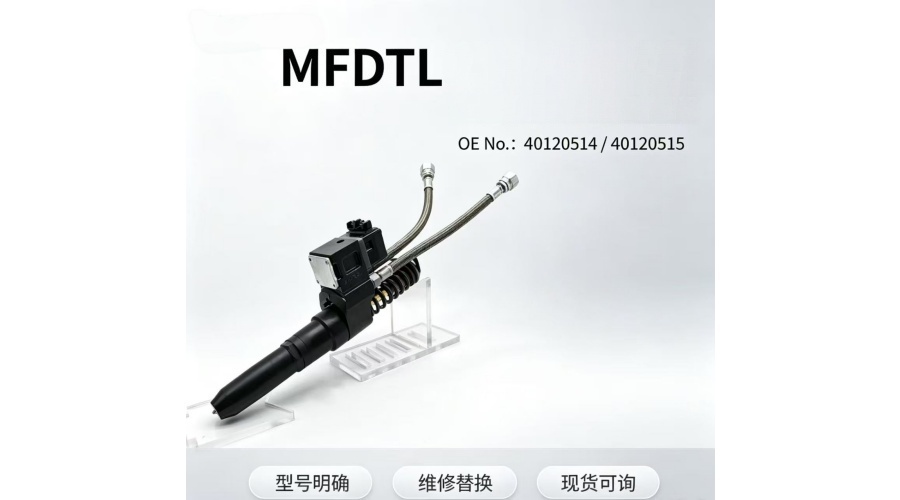

1. Structural Features & Advantages of the 40120514 MFDTL Injector
The 40120514 is a high‑precision electronic fuel injector designed for EMD's heavy‑duty diesel engines. Its engineering incorporates several advanced features to meet the demands of continuous, high‑load operation:
Electronically controlled unit injector (EUI) or common‑rail design – Depending on the specific EMD platform, the 40120514 is designed to integrate seamlessly with the engine's electronic control module (ECM), enabling precise control of injection timing, duration, and pressure. This results in optimal combustion, lower fuel consumption, and reduced emissions.
Precision‑machined plunger and barrel – The heart of the injector features a matched plunger‑and‑barrel set, lapped to sub‑micron tolerances. This ensures consistent fuel delivery across all cylinders, minimising cylinder‑to‑cylinder variation and reducing engine vibration – critical for large‑bore EMD engines.
High‑pressure capability – Designed to operate at injection pressures typically ranging from 1,200 to 1,800 bar (depending on the specific EMD model and application). This ultra‑high pressure ensures fine atomisation and complete combustion, resulting in improved fuel economy and reduced particulate emissions.
Multi‑hole nozzle with optimised spray pattern – The injector tip features carefully engineered laser‑drilled orifices (typically 8–12 holes, depending on the specific variant) with precisely angled spray patterns to match the EMD combustion bowl geometry. This ensures proper fuel penetration, optimal air‑fuel mixing, and minimal cylinder wall impingement, reducing soot formation and oil dilution.
High‑speed solenoid or piezoelectric actuator – Depending on the specific design, the injector incorporates a fast‑response solenoid or piezoelectric stack that provides rapid opening and closing times. This enables multiple injection events (pilot, main, post) for quieter operation, reduced NOx, and improved cold‑start performance.
Hardened alloy steel construction – Manufactured from premium, heat‑treated alloy steel with precision‑ground internal components (plunger, barrel, control valve, and needle). This ensures exceptional durability and resistance to wear, even with varying fuel quality and in the most demanding operating environments.
Integrated fine‑mesh inlet filter – A high‑efficiency inlet filter protects the sensitive nozzle and control valve from fuel‑borne debris, significantly extending service life and reducing the risk of injector sticking or premature wear.
OEM‑grade calibration with trim code – Each injector is factory‑calibrated to deliver the exact fuel quantity vs. energising time (IQ‑ET) curve required for EMD engine control units. A unique trim code is provided for precise programming into the engine's ECM.
MFDTL designation – The MFDTL suffix typically denotes specific calibration and performance characteristics for certain EMD engine families. Always verify that the injector matches your engine's fuel map and application.
Operational benefits for locomotive, marine, and industrial operators:
Fuel savings of 3‑6% compared to worn or low‑quality injectors, thanks to precise metering and optimised spray patterns.
Reduced exhaust emissions – Cleaner combustion helps meet EPA Tier 2/3/4, IMO, and other emissions standards.
Smoother idle and improved cold starting – Consistent pilot injection ensures reliable ignition in cold conditions.
Quieter engine operation – Multiple injection events reduce diesel knock and vibration, improving crew comfort.
Extended injector service life – High‑quality materials and precision manufacturing deliver long, reliable service.
100% direct drop‑in fit – Identical to the original EMD injector in all critical dimensions – no modifications required.
2. Compatible Engine Models & Typical Applications
The 40120514 MFDTL electronic fuel injector is used in various EMD series diesel engines, including both two‑stroke and four‑stroke platforms widely used in railway, marine, and industrial applications.
| Engine Model / Series | Typical Applications |
|---|
| EMD 645 Series (8, 12, 16, 20‑cylinder variants) | Railway locomotives (e.g., GP, SD series), marine propulsion, stationary power generation |
| EMD 710 Series (8, 12, 16, 20‑cylinder variants) | High‑horsepower locomotives, marine main engines, industrial generator sets |
| EMD 265 Series (four‑stroke) | Modern high‑speed locomotives, marine auxiliary power, compressor drives |
| EMD (two‑stroke and four‑stroke) Genset variants | Prime and standby power generation for data centres, hospitals, industrial plants |
Critical cross‑reference: The 40120514 is a genuine EMD part number. It is often associated with electronic unit injector (EUI) systems. Always verify your engine serial number (e.g., 645‑, 710‑) and the existing injector part number before ordering. This injector is supplied as a complete assembly; new sealing washers, O‑rings, and fuel fittings should be installed simultaneously.
3. Common Failure Modes & Installation/Replacement Recommendations
Typical Warning Signs That Your Injector Needs Replacement
Rough idle and engine misfire – Inconsistent fuel delivery from a sticking or worn injector causes cylinder imbalance, felt as a shaky idle or uneven running – particularly noticeable in large V‑configuration EMD engines.
Excessive black smoke under load – Over‑fuelling or poor atomisation leads to incomplete combustion, producing heavy soot and visible smoke.
Increased fuel consumption – A worn or incorrectly calibrated injector may over‑fuel, significantly increasing operating costs.
Hard starting / extended cranking – Residual pressure loss due to internal leakage makes cold starts difficult, especially in cold climates.
Fuel in engine oil (diesel smell on dipstick) – A leaking injector can allow fuel to run down the cylinder wall and contaminate the sump oil, risking bearing damage and engine failure.
Loss of power and high exhaust gas temperatures – A failed injector reduces cylinder contribution, resulting in a noticeable decrease in engine output and elevated EGTs.
Engine warning lights / fault codes – The ECM may trigger codes related to injector circuit malfunctions, fuel quantity deviations, or cylinder balance faults.
Professional Installation Best Practices
Proper installation is essential for performance and longevity. Follow these essential steps:
Clean the injector bore and surrounding area – Before removal, thoroughly clean the area around the injector to prevent debris from falling into the combustion chamber. After removing the old injector, use a specialised bore brush and vacuum to clean the injector sleeve and sealing seat in the cylinder head. The sealing seat must be perfectly clean and free of carbon deposits.
Replace all sealing components – Always install a new copper sealing washer and new O‑rings with the injector. These are single‑use items; reusing them will result in combustion gas leakage and poor heat transfer.
Lubricate O‑rings – Lightly coat the new O‑rings with clean diesel fuel or a specialised assembly lubricant. Never use silicone grease or petroleum jelly – these can cause O‑rings to swell, extrude, or degrade.
Install the injector carefully – Carefully insert the injector into the cylinder head bore, ensuring it seats squarely against the copper sealing washer. Do not force it – if it does not seat easily, check for debris, misalignment, or a damaged sealing seat.
Torque the hold‑down bolt – Tighten the retaining bolt to EMD's specified torque (typically 60‑80 N·m for many EMD applications – consult your engine manual for the exact value). Over‑tightening can distort the injector body; under‑tightening will cause combustion gas leakage.
Reconnect electrical connectors and fuel lines – Ensure all electrical connections are clean, dry, and securely fastened. Tighten fuel line fittings to the specified torque (typically 30‑40 N·m). Replace any high‑pressure line seals if required.
Program the injector trim code – Using EMD diagnostic software (or OEM‑approved service tools), enter the new injector's unique trim code into the ECM. This step is critical for correct fuel calibration.
Prime the fuel system – After installation, prime the fuel system to remove any trapped air. Use the hand primer pump or electric lift pump to circulate fuel until no air bubbles are visible.
Perform a leak test and cylinder cut‑out test – Start the engine and check for fuel leaks around the injector and fuel lines. Perform a cylinder cut‑out test to verify even fuel delivery across all cylinders – fuel rate deviations should be within ±3% of each other.
Load test and monitor – Apply load to the engine and monitor exhaust temperatures, power output, and fuel consumption to confirm correct operation.
4. Why Rsolid Engine Parts Is Your Preferred Global Supplier
Rsolid Engine Parts has been a premier supplier of EMD, Caterpillar, Cummins, and other heavy‑duty diesel components for over 15 years, serving the railway, marine, power generation, and industrial sectors across six continents. Here is why the 40120514 MFDTL injector from Rsolid is the intelligent choice:
OEM‑equivalent quality – Manufactured to ISO 9001:2015 and IATF 16949 standards, using identical high‑grade materials and calibration processes as genuine EMD injectors.
100% leak, flow, and spray tested – Every injector undergoes stringent bench testing for internal leakage, opening pressure, spray pattern, and fuel delivery accuracy. Test reports are available upon request.
Complete installation kits – We offer the injector together with new copper washers, O‑rings, and seals in a convenient kit – simplifying your ordering and ensuring you have all necessary components.
Global stock and rapid dispatch – Strategically warehoused in Asia, Europe, and North America, ensuring 3‑7 working day delivery to most international ports and airports.
Competitive wholesale pricing – Attractive volume discounts for workshops, fleet operators, and parts distributors. Enquire about our bulk order programme for large locomotive or marine fleets.
Free expert technical support – Our in‑house diesel engineers provide trim code programming advice, torque specs, and troubleshooting via WhatsApp or email.
Solid warranty – 12 months / 2,000 operating hours against manufacturing defects and premature wear – with a straightforward return and replacement policy.
Contact Rsolid Engine Parts Today
📧 Email: amy@rinjector.com
📱 WhatsApp: +86 15975376778
Whether you need a single 40120514 injector for a running repair or a complete set (8, 12, 16, or 20 injectors) for a full EMD engine overhaul, Amy and her team will provide a detailed quotation, stock confirmation, and shipping schedule within 2 hours. We also supply complementary parts – injector hold‑downs, copper washers, O‑rings, and complete fuel system components – for comprehensive engine rebuilds.
Choose the 40120514 MFDTL electronic injector from Rsolid – engineered to deliver precise fuel metering, lower emissions, and reliable power for your EMD series diesel engine.
