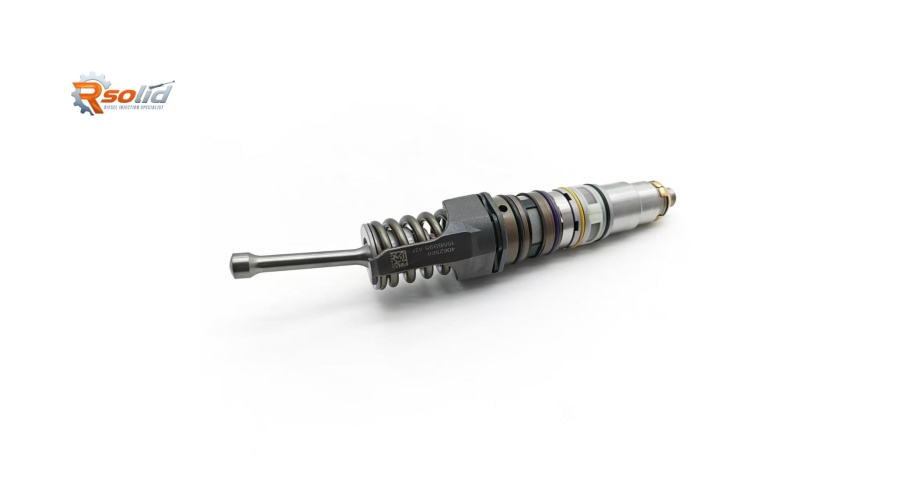

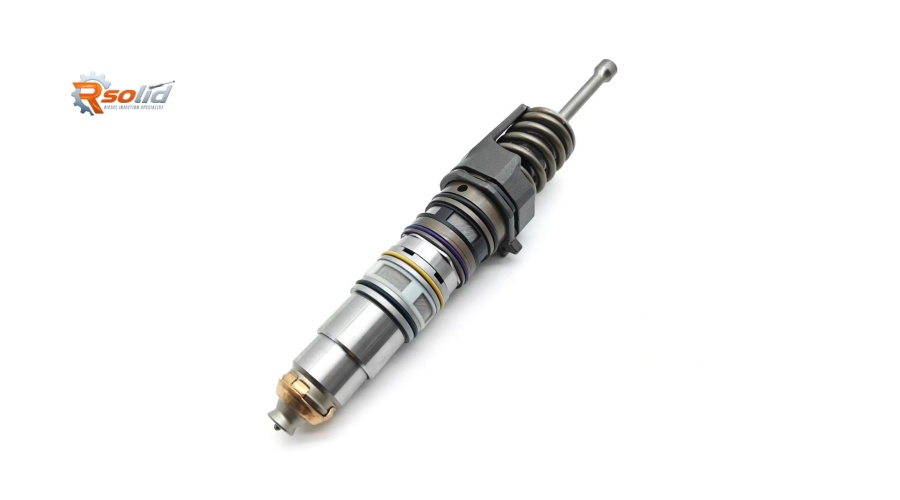

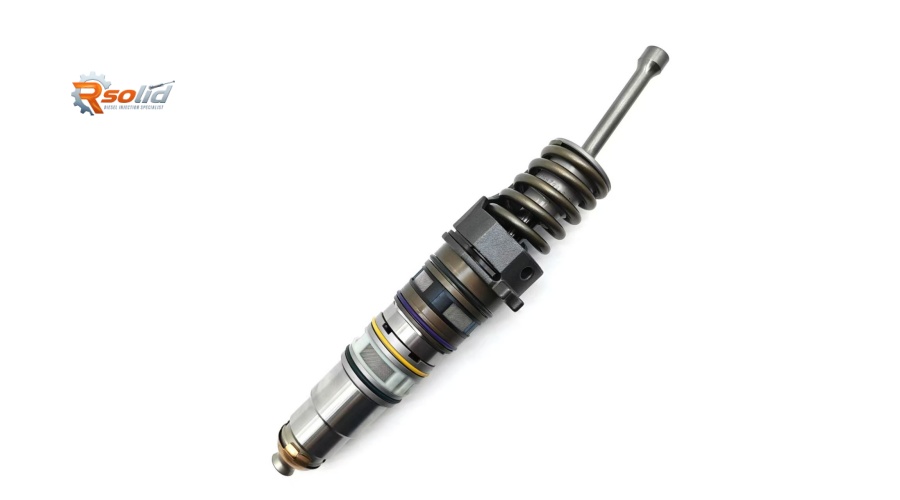

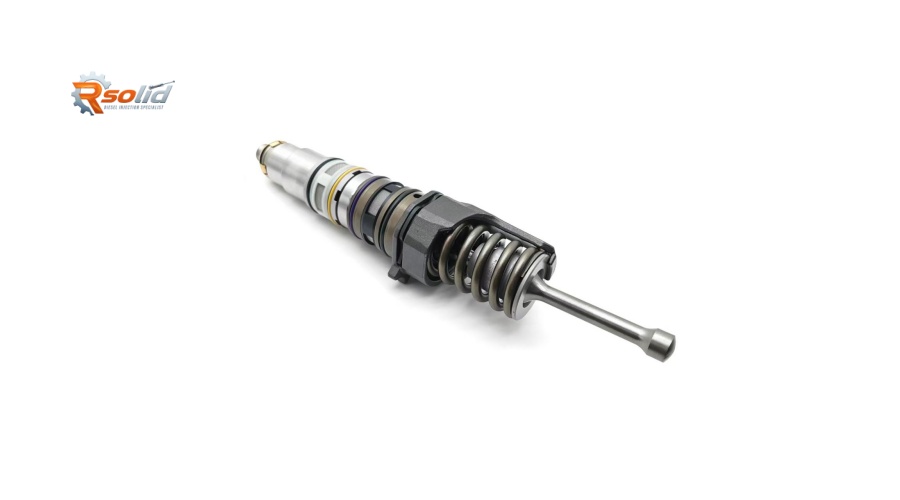

For operators of Cummins QSX15 engines – whether in heavy-duty trucks, construction equipment, marine propulsion, or industrial power generation – the fuel injector is the heart of the combustion system. The 4088665 OEM diesel injector is a factory-specification replacement engineered specifically for the QSX15 platform, delivering precise fuel metering, optimised spray patterns, and consistent performance under the most demanding conditions. This injector is a critical component for maintaining power output, fuel efficiency, and emissions compliance in Cummins' 15‑litre heavy‑duty workhorse.
Available as a bare injector or as part of a complete set, the 4088665 is designed to meet or exceed original Cummins specifications, ensuring a direct drop‑in fit with no modifications required. In this guide, we examine its advanced engineering, compatible engine models, common failure signs, professional installation best practices, and why Rsolid Engine Parts is the global supplier you can trust for Cummins fuel injection components.
1. Structural Features & Advantages of the 4088665 Injector
The 4088665 is not a generic aftermarket injector – it is a precision‑engineered component developed specifically for Cummins’ QSX15 high‑pressure common‑rail (HPCR) fuel system. Its design incorporates several advanced features to meet the demands of continuous high‑load operation:
High‑pressure common‑rail design – The 4088665 is a solenoid‑actuated injector designed for operating pressures up to 1,800 bar, delivering precise fuel quantities at the exact timing required for optimal combustion. This results in improved power density, lower fuel consumption, and reduced particulate emissions.

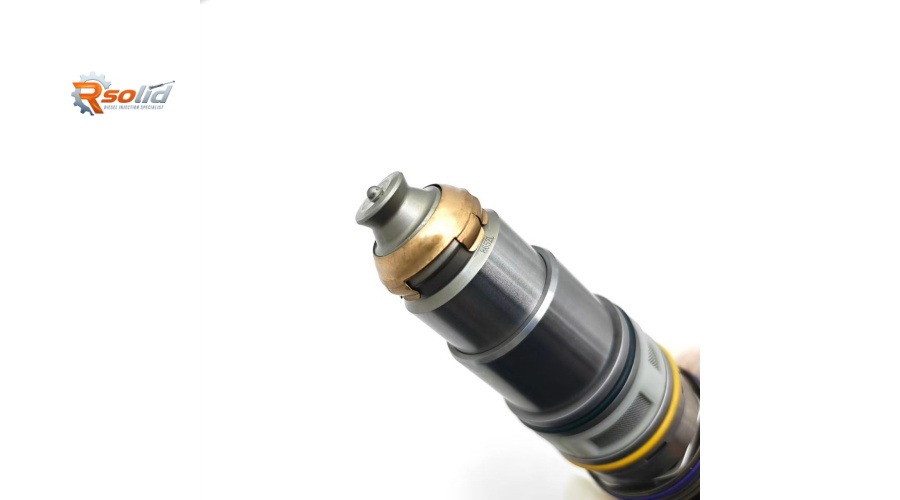

Precision‑machined nozzle with multi‑hole geometry – The injector tip features multiple laser‑drilled orifices (typically 8‑10 holes) with carefully engineered spray angles to match the QSX15 combustion bowl. This ensures fine atomisation, complete air‑fuel mixing, and reduced soot formation, leading to cleaner exhaust and longer DPF life.
Fast‑response solenoid actuator – The electronic solenoid provides rapid opening and closing times, allowing multiple injection events per cycle (pilot, main, post) for quieter combustion, lower NOx, and improved cold‑start performance.
Hardened alloy steel construction – Manufactured from high‑grade, corrosion‑resistant steel with precision‑ground internal components (plunger, barrel, needle). This ensures consistent fuel delivery over thousands of hours, even with varying fuel quality.
Integrated bore‑style design – The injector is designed for direct installation into the cylinder head with a clamping bolt, ensuring perfect alignment and sealing. The hydraulic tappet and adjustment screw allow for precise valve lash settings (when applicable) to maintain accurate injection timing.
Advanced filtration and flow control – Internal filters and metering orifices protect the sensitive nozzle and valve from fuel‑borne debris, extending service life and reducing the risk of sticking or clogging.
OEM‑grade calibration – Each injector is factory‑calibrated to deliver the exact fuel quantity vs. energising time (IQ‑ET) curve required for QSX15 engine control modules (ECMs). This ensures seamless integration with the engine’s electronic control unit without the need for custom tuning.
Operational benefits for fleet operators and plant engineers:
Fuel savings of up to 5% compared to worn or low‑quality injectors, thanks to precise metering and optimised spray patterns.
Reduced exhaust smoke and particulate emissions – Cleaner combustion helps meet Tier 3 / Tier 4 emissions standards.
Smoother idle and improved cold starting – Consistent pilot injection reduces combustion noise and ensures reliable ignition in cold conditions.
Extended service intervals – High‑quality materials and precise manufacturing reduce wear on moving parts, extending injector life.
100% direct drop‑in fit – Identical to the original Cummins injector in all critical dimensions – no adapters or modifications required.
2. Compatible Engine Models & Typical Applications
The 4088665 diesel injector is specifically engineered for the Cummins QSX15 series – a family of 6‑cylinder, inline, 4‑stroke, turbocharged, heavy‑duty diesel engines with a displacement of 15 litres. These engines are widely used in on‑highway, off‑highway, marine, and industrial applications.
| Engine Model | Typical Applications |
|---|
| Cummins QSX15 (Tier 2 / Tier 3) | Heavy‑duty trucks, construction equipment (excavators, wheel loaders), mining haul trucks |
| Cummins QSX15 (Marine) | Marine propulsion for workboats, fishing vessels, auxiliary power |
| Cummins QSX15 (Genset) | Prime and standby power generation for data centres, hospitals, industrial plants |
| Cummins QSX15 (Industrial) | Compressor drives, pumping stations, drilling rigs |
Critical cross‑reference: The 4088665 is the genuine Cummins part number for this injector. It is commonly associated with CE‑type fuel systems and may be superseded by later numbers – always confirm with your engine serial number (e.g., QSX15‑****) and existing injector part number before ordering. This injector is typically supplied as a bare unit; sealing washers, O‑rings, and hold‑down bolts are ordered separately or as part of a complete installation kit.
3. Common Failure Modes & Installation/Replacement Recommendations
Typical Warning Signs That Your Injector Needs Replacement
Rough idle and engine misfire – Inconsistent fuel delivery from a worn or sticking injector causes uneven firing, especially noticeable at low RPM.
Excessive black smoke under load – A leaking or poorly atomising injector results in incomplete combustion, producing heavy soot.
Increased fuel consumption – A worn injector may over‑fuel or under‑fuel, both of which negatively impact BSFC.
Hard starting or long cranking times – Loss of residual injection pressure due to internal leakage makes cold starts difficult.
Fuel dilution of engine oil – A leaking injector can allow fuel to run down the cylinder walls and contaminate the sump oil, reducing its lubricating properties and risking bearing damage.
High exhaust gas temperature (EGT) and power loss – Incomplete combustion leads to afterburning in the exhaust manifold, elevating EGTs and reducing available torque.
Professional Installation Best Practices
Injector replacement requires meticulous cleanliness and precision. Follow these essential steps:
Clean the injector bore – Before removal, clean the area around the injector to prevent debris from falling into the combustion chamber. After removing the old injector, use a specialised bore brush and vacuum to clean the injector sleeve and sealing seat in the cylinder head. The seat must be perfectly clean and free of carbon deposits.
Inspect and replace sealing components – Always install a new copper sealing washer and new O‑rings with the injector. These are single‑use items; reusing them will result in combustion gas leakage and poor heat transfer. Also replace the hold‑down bolt and washer (if specified by Cummins).
Lubricate O‑rings – Lightly coat the new O‑rings with clean engine oil or a specialised assembly lubricant. Never use silicone grease or petroleum jelly – these can cause O‑rings to swell or extrude.
Install the injector – Carefully insert the injector into the cylinder head bore, ensuring it seats squarely against the copper sealing washer. Do not force it – if it does not seat easily, check for debris or misalignment.
Torque the hold‑down bolt – Tighten the retaining bolt to Cummins’ specified torque (typically 70 – 90 N·m – consult your engine manual for the exact value for QSX15). Over‑tightening can distort the injector body; under‑tightening will cause combustion gas leakage.
Set the valve lash / injector adjustment – For mechanical or electronically controlled injectors with an adjustment screw, set the valve lash to the specified clearance (e.g., 0.20 – 0.30 mm for intake/exhaust and injector rocker – verify with your manual). Use a feeler gauge for accuracy.
Reconnect electrical connectors and fuel lines – Ensure all connections are clean and secure. Replace any high‑pressure fuel line seals if required.
Prime the fuel system – After installation, prime the fuel system to remove any trapped air. Use the hand primer pump or electric lift pump to circulate fuel until no air bubbles are visible.
Perform a leak test and ECM calibration – Start the engine and check for fuel leaks around the injector. If the ECM allows, enter the new injector’s trim code (or use the injector’s individual calibration data) to ensure precise fueling.
Break‑in and validation – Run the engine at idle for 5‑10 minutes, then perform a cylinder cut‑out test to verify even fuel delivery across all cylinders. Monitor fuel rate deviations – they should be within ±3% of each other.
4. Why Rsolid Engine Parts Is Your Preferred Global Supplier
Rsolid Engine Parts has been a trusted supplier of Cummins, Caterpillar, Mitsubishi, and Yanmar diesel components for over 15 years, serving heavy‑duty trucking, marine, power generation, and industrial sectors across six continents. Here is why the 4088665 injector from Rsolid is the intelligent choice:
OEM‑equivalent manufacturing – Produced to ISO 9001:2015 and IATF 16949 standards, using identical alloy steel, solenoid designs, and calibration processes as genuine Cummins injectors. Every batch is tested for flow, spray pattern, and electrical response.
100% leak and performance tested – Each injector undergoes stringent bench testing for internal leakage, opening pressure, and fuel delivery at multiple energising times. We provide test reports upon request.
Complete installation kits – We offer the injector together with the required copper sealing washers, O‑rings, and hold‑down bolts in a convenient kit, simplifying your ordering process.
Global inventory and rapid dispatch – Strategically warehoused in Asia, Europe, and North America, ensuring 3‑7 working day delivery to most international ports and airports.
Competitive wholesale pricing – Attractive volume discounts for workshops, fleet operators, and parts distributors. Enquire about our bulk order programme.
Free expert technical support – Our in‑house diesel engineers provide installation torque guides, valve lash settings, and troubleshooting advice via WhatsApp or email.
Solid warranty – 12 months / 2,000 operating hours against manufacturing defects, premature wear, and material failures – with a straightforward return and replacement policy.
Contact Rsolid Engine Parts Today
📧 Email: amy@rinjector.com
📱 WhatsApp: +86 15975376778
Whether you need a single 4088665 injector for a running repair or a full set for a complete Cummins QSX15 overhaul, Amy and her team will provide a detailed quotation, stock confirmation, and shipping schedule within 2 hours. We also supply complementary parts – injector harnesses, fuel filters, seal kits, and complete fuel system components – for comprehensive engine rebuilds.
Choose the 4088665 OEM injector from Rsolid – engineered to deliver precise fuel metering, lower emissions, and reliable power for your Cummins QSX15 engine.
