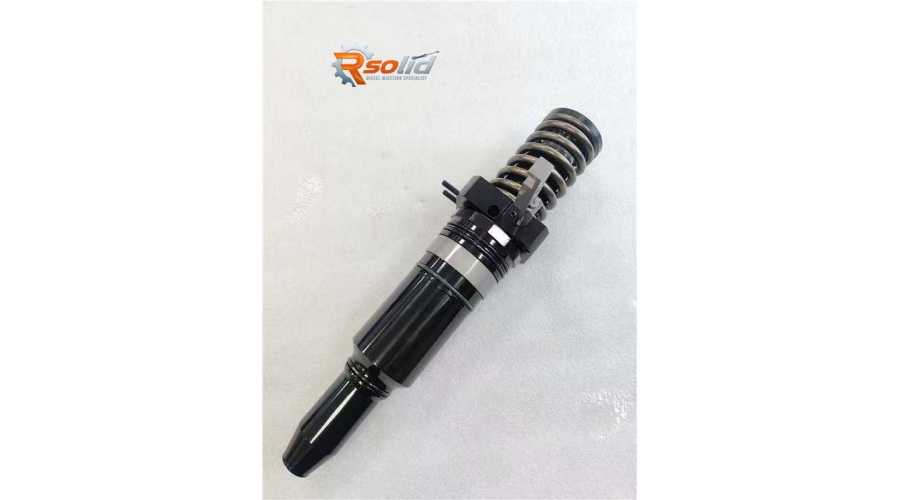

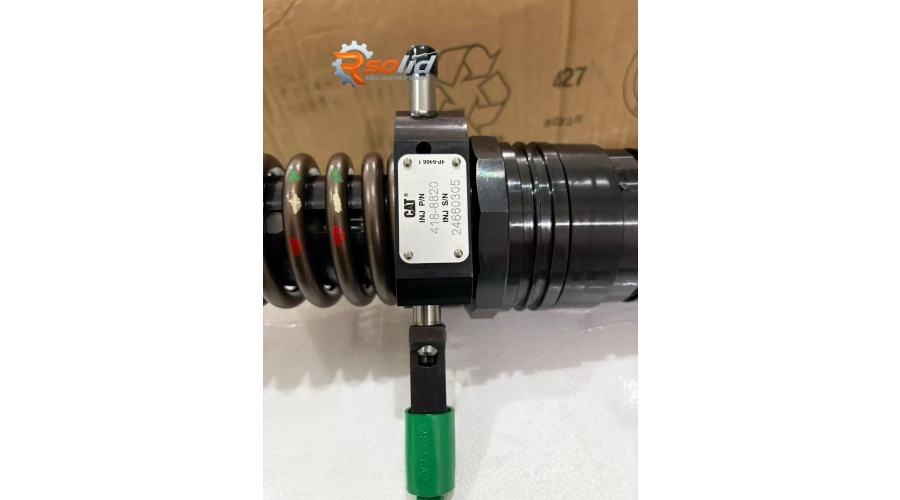

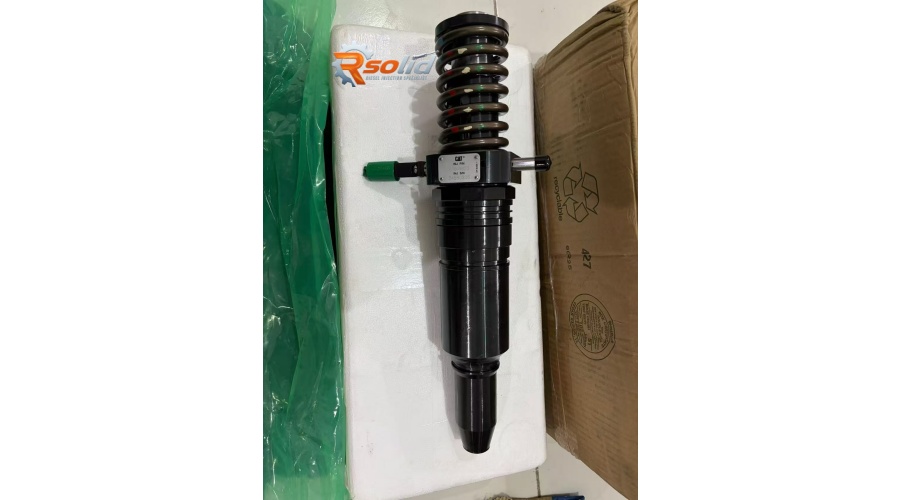

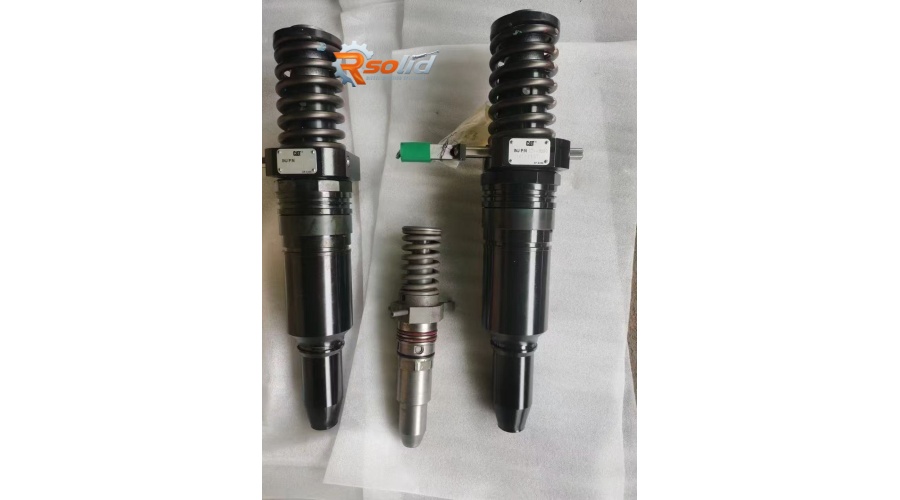

418-8820 Diesel Injector for Caterpillar 3600 Series – Performance, Reliability, and Expert Support
When it comes to heavy-duty marine, power generation, and mining applications, the Caterpillar 3600 series engines are legendary for their durability and raw power. At the heart of these workhorses lies the fuel injection system – and the 418-8820 diesel injector is a critical component that directly impacts combustion efficiency, fuel economy, and overall engine longevity.
1. Structural Features & Advantages of the 418-8820 Injector
The 418-8820 injector (also referenced as Caterpillar 418-8820 or 4188820) is a precision-engineered unit injector designed specifically for the high-pressure common-rail and mechanical unit injector systems used in Cat 3600 series. Its key design highlights include:
Multi‑hole nozzle geometry – Optimized spray pattern ensures finer atomization, leading to more complete combustion, reduced soot, and lower specific fuel consumption.
Hardened alloy steel body – Withstands extreme cylinder pressures (up to 2,000+ bar) and thermal cycling, minimising distortion over extended service intervals.
Precision‑ground plunger and barrel – Matched sets guarantee consistent fuel metering and injection timing, reducing cylinder‑to‑cylinder variation.
Integrated pilot and main injection stages – Smoother combustion noise and lower NOx emissions, meeting IMO Tier II/III compliance with proper tuning.
Corrosion‑resistant internal coatings – Protect against low‑sulphur fuel and water ingress, extending service life in harsh marine environments.
Advantages for operators:
Up to 5% fuel savings compared to worn or aftermarket low‑quality injectors.
Improved cold‑start performance and stable idle.
Reduced exhaust smoke and extended DPF/SCR catalyst life.
Direct OEM‑grade interchangeability – no adapter or modification required.
2. Compatible Engine Models (Caterpillar 3600 Series)
The 418-8820 injector is widely used across the following Caterpillar 3600 engine families:
| Engine Series | Typical Applications |
|---|
| Cat 3606 | Marine propulsion, auxiliary gensets |
| Cat 3608 | Offshore supply vessels, dredgers |
| Cat 3612 | Power generation (prime/standby), compressor drives |
| Cat 3616 | Large mining haul trucks, locomotive, stationary power |
| Cat 3618 | High‑output marine and industrial (custom builds) |
Note: Always verify your engine serial number (prefixes like 7SM, 8RB, 9NL, etc.) and current injector part number before ordering. The 418-8820 directly replaces earlier numbers such as 139-8530, 197-7898, and 256-6718 in many applications.
3. Common Failures & Installation/Replacement Recommendations
Typical Failure Modes
Sticking plunger – Caused by fuel contamination, water, or degraded lubricity. Symptoms: erratic idle, misfire, or no‑start.
Nozzle hole erosion – From high‑pressure fuel over time; leads to black smoke, power loss, and increased EGT.
O‑ring and copper seal leaks – Result in fuel dilution of engine oil, lower rail pressure, and hard starting.
Electrical/actuator faults (for electronic versions) – Trigger diagnostic codes (e.g., 164-11) and derate.
Replacement Best Practices
Use only high‑quality replacement parts – Always choose OEM or premium aftermarket like Rsolid’s 418-8820, which meets or exceeds Caterpillar specifications.
Cleanliness is paramount – Flush fuel lines, change primary/secondary filters, and use lint‑free cloths during installation.
Lubricate O‑rings – Use clean diesel or light oil; never use grease (can cause hydraulic lock).
Torque to spec – Injector hold‑down bolt: 135 ± 10 N·m (consult your engine manual). Over‑torquing distorts the injector body.
Reset injector trim codes – If your ECM supports it, input the new injector’s calibration code using Cat ET (Electronic Technician) for optimal performance.
Prime the fuel system – Bleed air thoroughly before starting to avoid dry‑run damage.
Test after installation – Run a cylinder cut‑out test and compare fuel rate variations to ensure even distribution.
4. Why Choose Rsolid Engine Parts as Your Supplier?
Rsolid Engine Parts is a globally recognized supplier of diesel fuel injection components, with over 15 years of experience serving marine, power, and industrial sectors. Here’s what makes us different:
100% tested inventory – Every 418-8820 injector undergoes flow‑bench calibration and leak testing before dispatch.
OEM‑tier manufacturing partners – We source from ISO 9001/TS 16949 facilities, ensuring metallurgy and tolerances identical to genuine Cat parts.
Competitive wholesale pricing – Volume discounts for fleets, workshops, and distributors.
Fast worldwide shipping – Stock available from our warehouses in Asia, Europe, and the USA – typical delivery 3‑7 working days.
Technical support – Our engineers provide free installation guidance, fault‑code diagnostics, and cross‑reference assistance.
Warranty – 12‑month / 2,000‑hour warranty against manufacturing defects, with hassle‑free returns.
Contact Rsolid Engine Parts Today
📧 Email: amy@rinjector.com
📱 WhatsApp: +86 15975376778
Whether you need a single injector or a full set of 12/16/18 units, Amy and her team are ready to quote you within 2 hours. We also supply complementary parts – nozzles, plungers, delivery valves, and seal kits – for complete fuel system overhauls.
