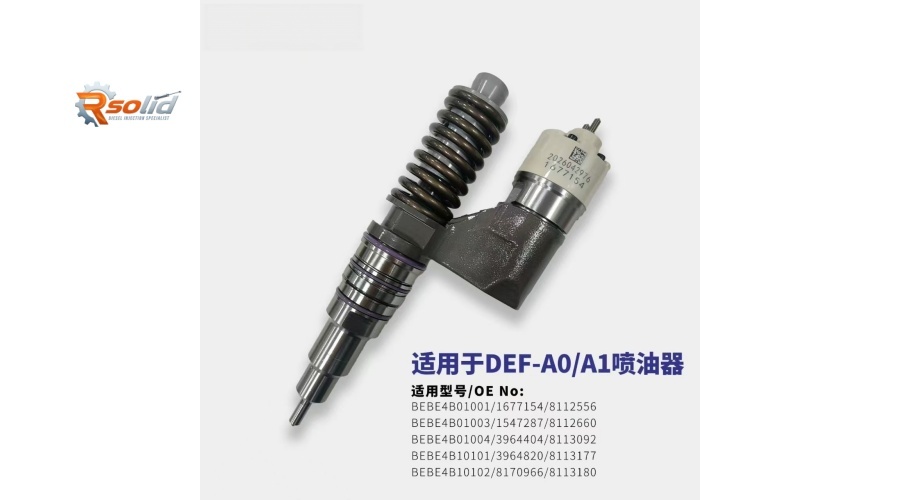

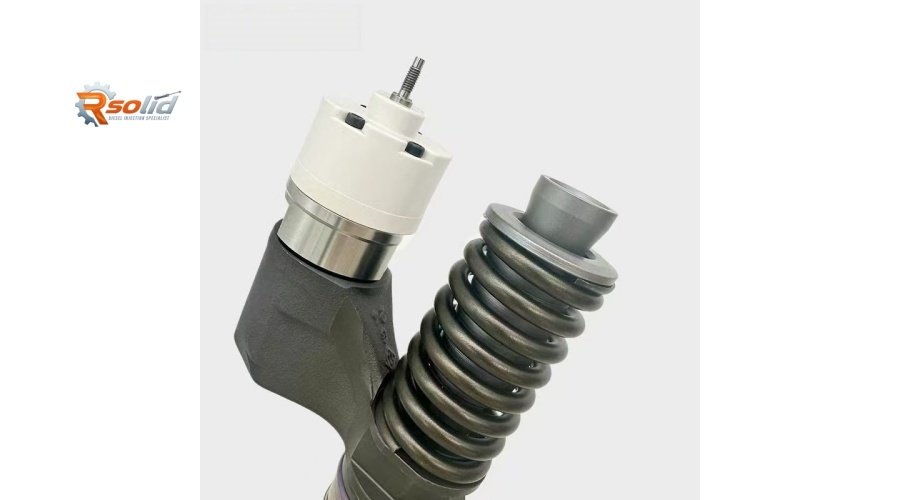

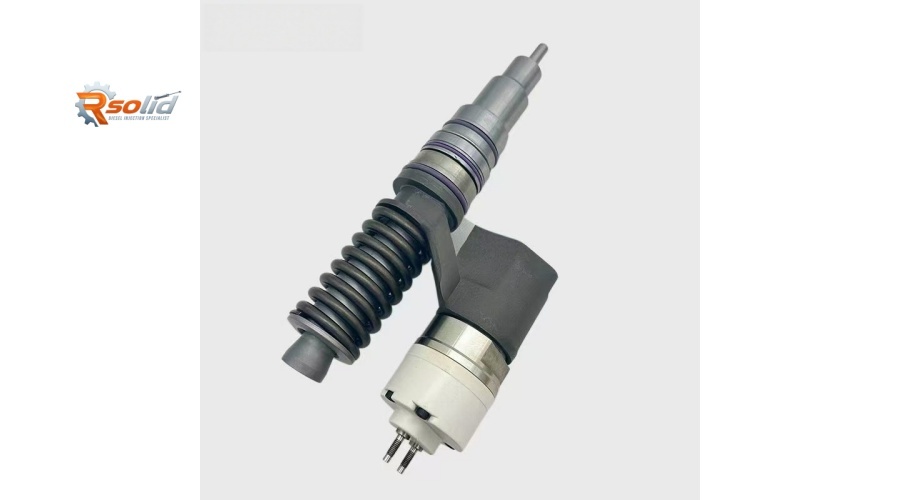

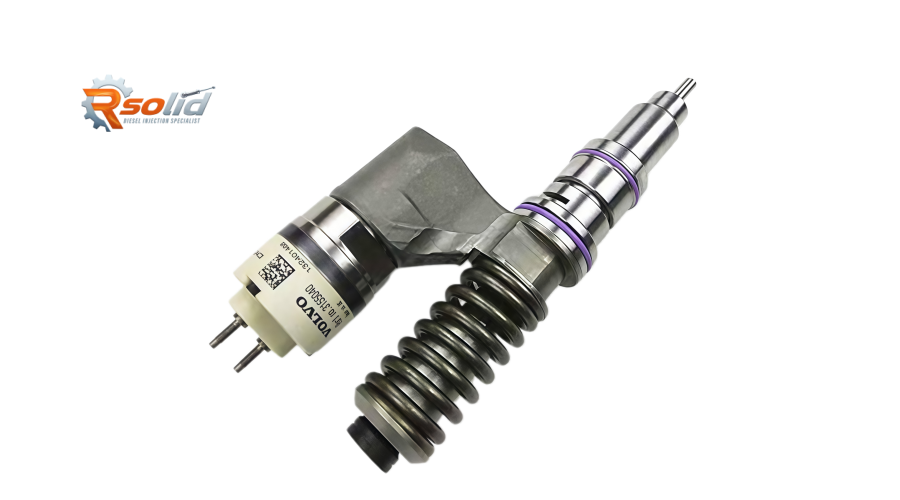

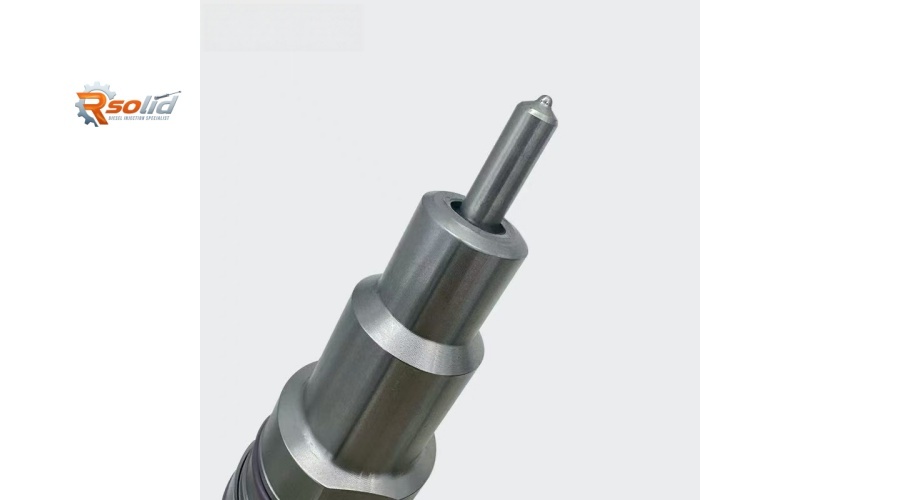

If you operate or maintain a Volvo FH12, FL12, or FM12 heavy‑duty truck with the legendary D12A engine, you have likely encountered the Delphi BEBE4B01001 – a robust Electronic Unit Injector (EUI) that delivers the high injection pressures these Volvo workhorses demand.
This injector is a critical component of Volvo‘s Euro 2‑compliant PDE/UIS (Pump‑Nozzle) system, where the injection pump and nozzle form a single unit mounted directly into the cylinder head. In this guide, we cover everything from basic identification and vehicle fitment to technical parameters, common failure modes, replacement do’s and don’ts, and why Rsolid Engine Parts is your trusted global partner for this injector.
1. Basic Information – What is BEBE4B01001?
The BEBE4B01001 is a genuine Delphi A‑Series EUI (Electronic Unit Injector) – also referred to as a PDE/UIS injector. Unlike common rail injectors that rely on a high‑pressure pump feeding a shared rail, this unit integrates the pumping element and the injector nozzle into one assembly. It is driven directly by the engine‘s camshaft, allowing injection pressures of up to 220 MPa (approx. 2200 bar) without the need for a separate common rail system.
Each unit is controlled by the engine ECU via a high‑pressure solenoid valve, which governs injection timing and quantity. The injector carries multiple cross‑reference numbers, including 1677154 and 8112556, which are Volvo OE equivalents.
2. Common Vehicle & Engine Applications
This injector is widely used in Volvo‘s D12A engine platform, fitted to the following truck models across various power outputs:
| Volvo Model | Engine | Power Output | Production Years |
|---|
| FH12 | D12A 12.1L | 250 kW – 338 kW | 08/1996 – 08/1999 |
| FL12 | D12A380 / D12A420 | 279 kW – 309 kW | 09/1995 – 09/1998 |
| FM12 | D12A 12.1L | 250 kW – 338 kW | 08/1996 – 08/1999 |
The injector is also compatible with Volvo 9900 and 9700 coach/bus applications, as well as Volvo VHD and VN trucks in North American markets. Always verify the OE number (1677154 or 8112556) on your old unit before purchasing.
3. Key Technical Specifications
Below is a quick‑reference table of the most critical parameters. (The HTML table code for your CMS is provided after the article.)
| Parameter | Specification |
|---|
| Part Number | BEBE4B01001 (Delphi A‑Series EUI) |
| Type | Electronic Unit Injector (PDE/UIS) – pump & nozzle integrated |
| Max Injection Pressure | Up to 220 MPa (approx. 2200 bar) |
| Drive Mechanism | Camshaft‑actuated, OHC engine compatible |
| Control | High‑pressure solenoid valve, ECU‑controlled |
| Cross‑Reference Numbers | 1677154, 8112556, HRE103, HRE108, 212224 |
| OE Volvo Numbers | 8112556, 1677154 |
| Weight | Approx. 1.25 kg per unit |
| Common Applications | Volvo FH12, FL12, FM12 (D12A engine), 9900/9700 coaches |
| Emissions Standard | Euro 2 |
4. Common Faults & Symptoms
Based on real‑world troubleshooting of the A‑series injectors (including BEBE4B01001, BEBE4B01003, and BEBE4B01004), the most frequent issues include:
Hard starting – the engine cranks longer than usual before firing.
Rough idle – uneven running at low RPM, often accompanied by vibration.
Reduced fuel efficiency – increased fuel consumption without a corresponding increase in power.
Loss of power – sluggish acceleration, especially under load.
Nozzle coking & carbon deposits – poor fuel atomisation caused by degraded fuel quality or extended service intervals.
Actuator failure – a failing control valve in the injection pump can cause poor efficiency, reduced power, and increased emissions.
If you experience any of these symptoms, injector testing on a specialised EUI bench is strongly recommended before replacement.
5. Repair & Replacement Guidelines
Use genuine or high‑quality remanufactured units – Delphi authorised repairers use only genuine control valves and nozzles. Non‑genuine parts can significantly increase back‑leak flow and temperature, generating ECU fault codes and potentially damaging the engine.
Complete overhaul kits are available – Delphi Big Repair Kits include all components needed to address leaks, poor spray patterns, sticking needles, and wear‑related malfunctions.
Test before fitting – remanufactured units should come with a test station protocol confirming spray pattern, flow rate, and leak‑tight performance.
Match cross‑reference numbers – ensure your old unit‘s part number matches BEBE4B01001, 1677154, or 8112556 before purchasing.
Professional installation – EUI injectors are precision‑engineered components. Improper installation can lead to immediate failure. Always follow Volvo‘s service manual for torque specifications and mounting procedures.
6. Why Choose Rsolid Engine Parts as Your Global Supplier?
Rsolid Engine Parts specialises in high‑quality diesel fuel injection components, and we are a trusted source for the Delphi BEBE4B01001 injector. Here‘s what sets us apart:
Genuine & OEM‑grade availability – we supply new, original‑spec injectors with full OE cross‑reference numbers (1677154 / 8112556), as well as premium remanufactured units tested on advanced EUI test benches.
Strict quality control – every injector is leak‑tested, spray‑pattern checked, and solenoid‑validated before shipment.
Competitive pricing & fast delivery – with global logistics, we serve workshops, fleets, and distributors worldwide.
Technical support – our team provides installation guidance, troubleshooting advice, and cross‑reference verification – no matter where you are.
Bulk & wholesale options – we can meet large orders with consistent batch quality.
Contact us today via WhatsApp at +86 15975376778 for quotes, stock availability, or any technical questions. We speak English and are ready to help 24/7.
