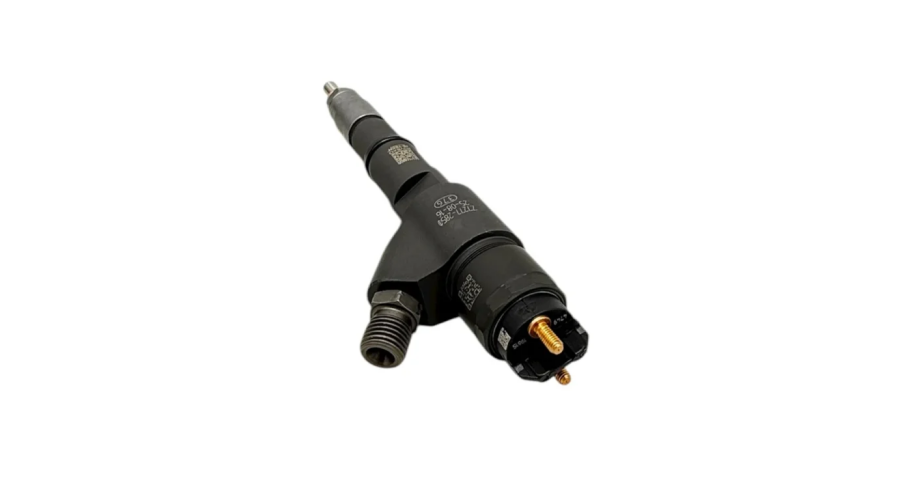

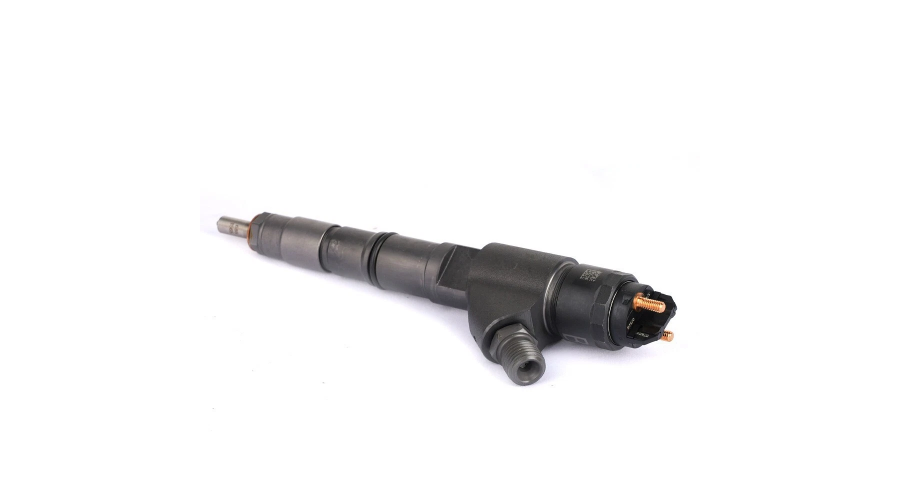

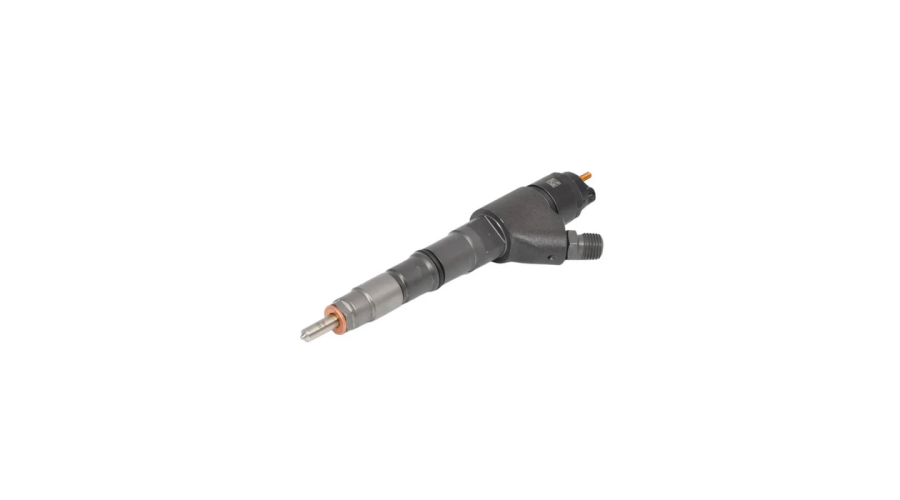

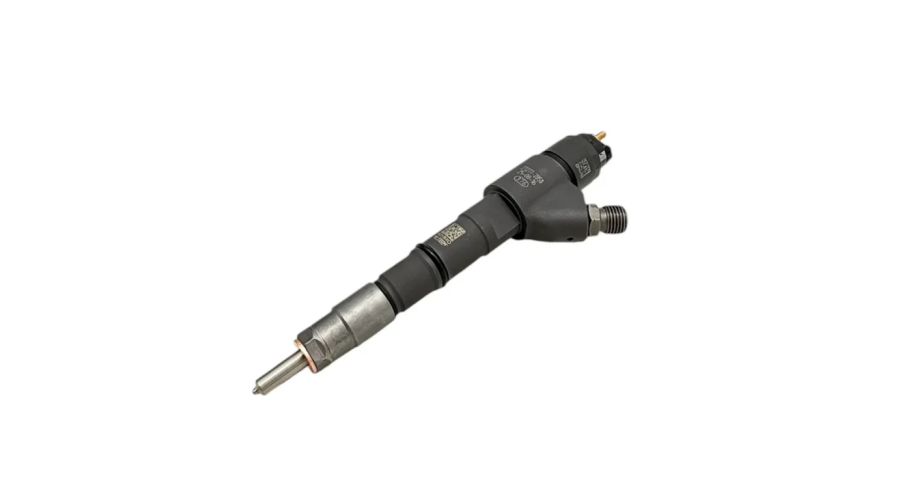

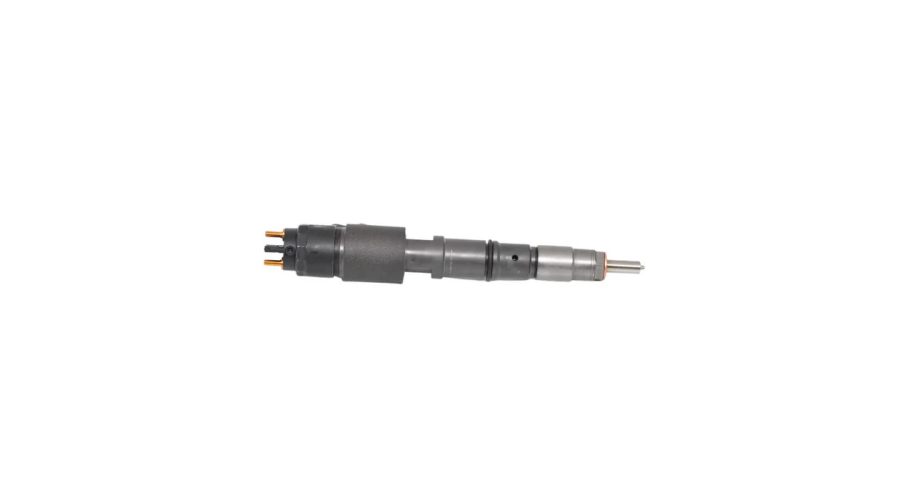

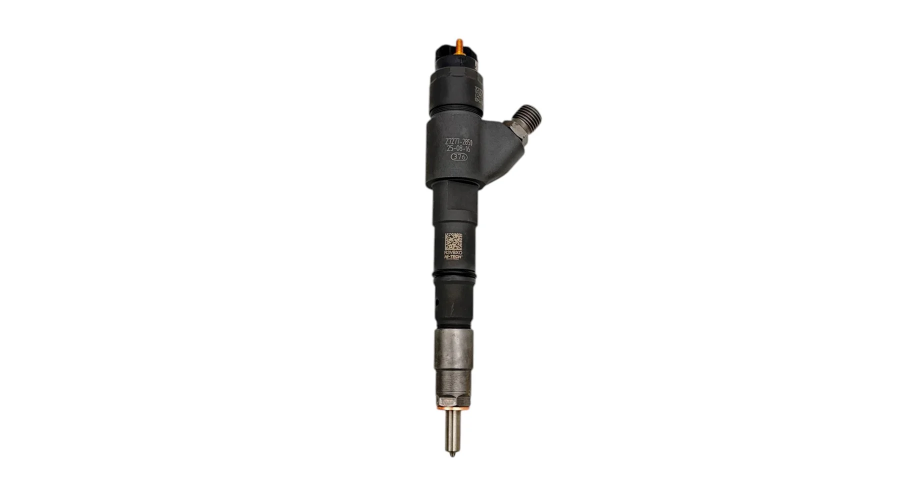

The Bosch fuel injector with part number 0 986 435 548 is a well-known and commonly used injector for various Deutz diesel engines, particularly those in the 1011F and 2011 series.
Here are the key details and cross-reference information for this injector:
Key Specifications
Brand: Bosch (Original Equipment)
Bosch Part Number: 0 986 435 548
Type: Multi-hole nozzle holder (often referred to as a "Pencil Injector" due to its slim shape).
Nozzle Type: DN0SD (typically a 4-hole nozzle).
Pressure Setting: Typically set to 250 bar (+/- 5 bar) for most Deutz applications.
Common Deutz OEM Part Numbers
If you are looking for a replacement, Deutz sells this injector under several different part numbers depending on the specific engine variant and the parts catalog revision. It crosses to:
Deutz: 0414 6055
Deutz: 0414 6056
Deutz: 0414 6057
Deutz: 0418 5774
Deutz: 0418 6387
Typical Applications (Engines)
This injector is most commonly used in the following Deutz engine models:
Deutz 1011F Series: F2L1011F, F3L1011F, F4L1011F (often found in generators and industrial pumps).
Deutz 2011 Series: F2M2011, F3M2011, F4M2011 (commonly found in agricultural tractors (e.g., Agrotron), construction equipment (road rollers), and forklifts).
Deutz D2011 L02 / L03
Important Installation Tips
Heat Shields (Washers): These injectors usually require a copper heat shield (gasket) at the base where they seat into the cylinder head. Do not reuse old heat shields. They crush upon installation to create a seal.
Torque: It is critical to torque these injectors correctly (usually between 20–25 Nm, but always check your specific engine manual). Over-tightening can distort the injector body or the seat in the cylinder head.
Nozzle Differences: While the holder (the body) is 0 986 435 548, if you are just servicing the tip, ensure the nozzle matches your engine's horsepower rating (the number of holes and spray angle can vary slightly for emissions/tuning).
Rsolid is a professional diesel injector manufacturer that relies on the precision manufacturing capabilities of its own factories to provide high-quality solutions for the global commercial vehicle, construction machinery, marine, and agricultural diesel engine markets. Rsolid's business model typically includes maintaining a diverse and comprehensive OEM and high-end aftermarket parts inventory, and providing cross compatibility options to meet the needs of various applications and global customers, from individual workshops to large fleet operators. If you are looking for diesel injectors or OEM engine injectors, please feel free to contact us at any time.
