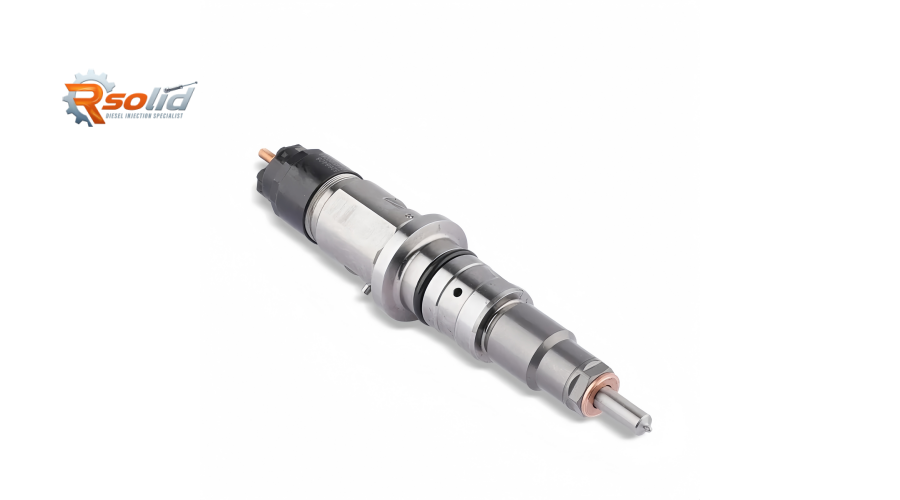

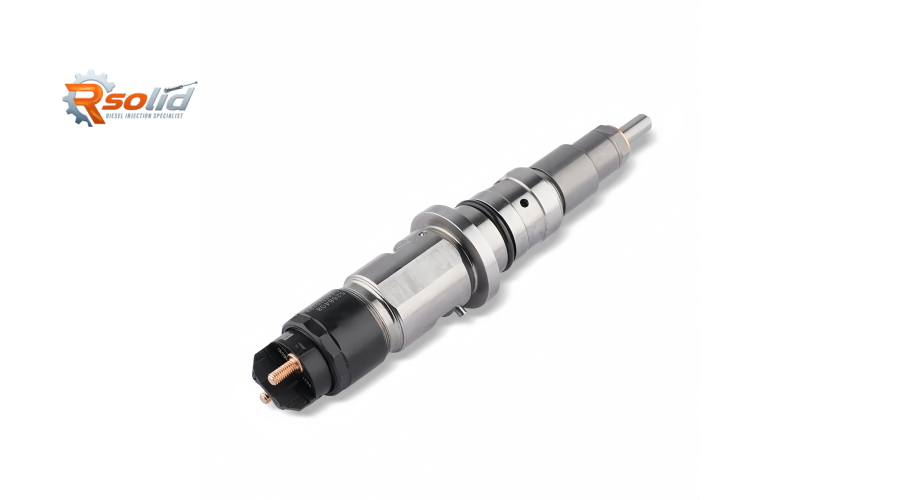

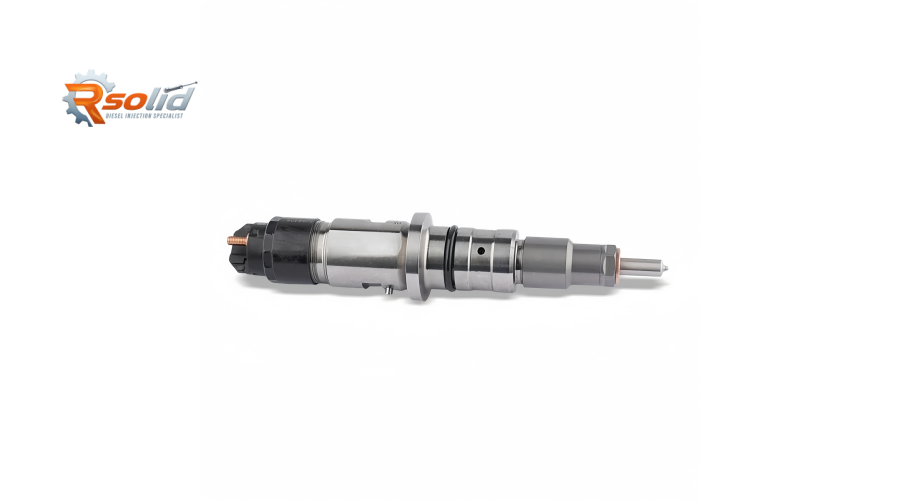

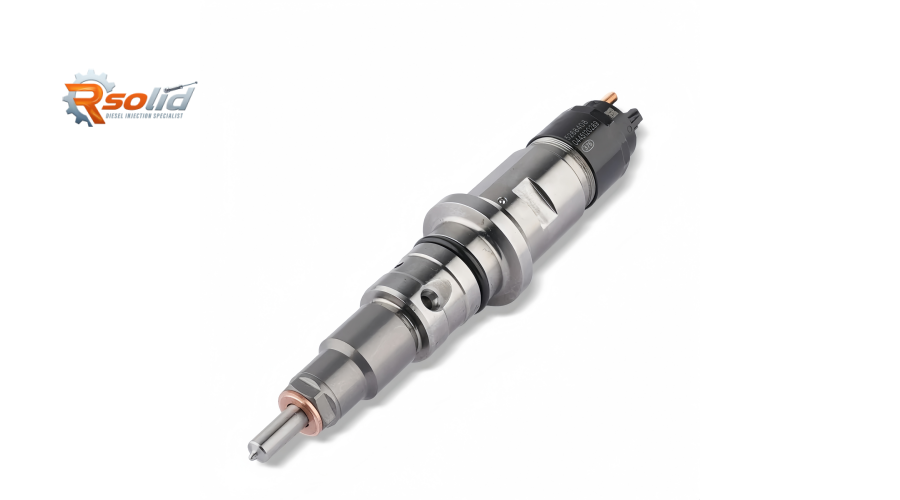

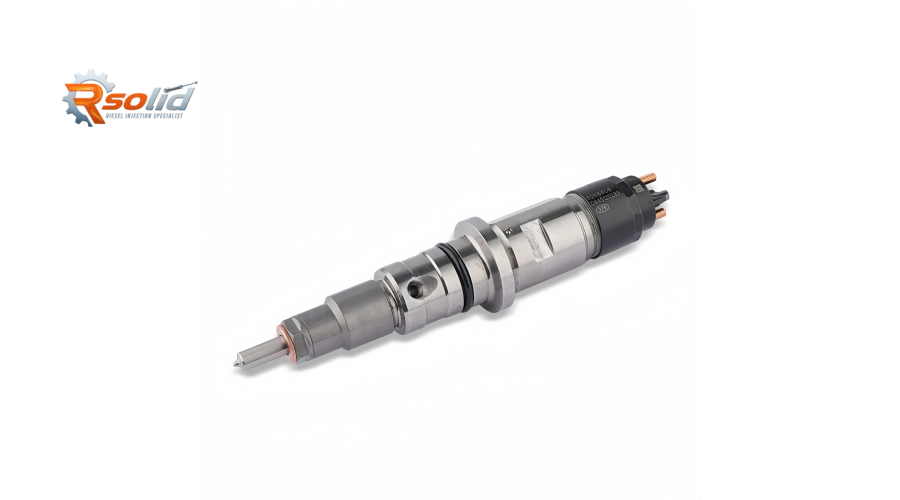

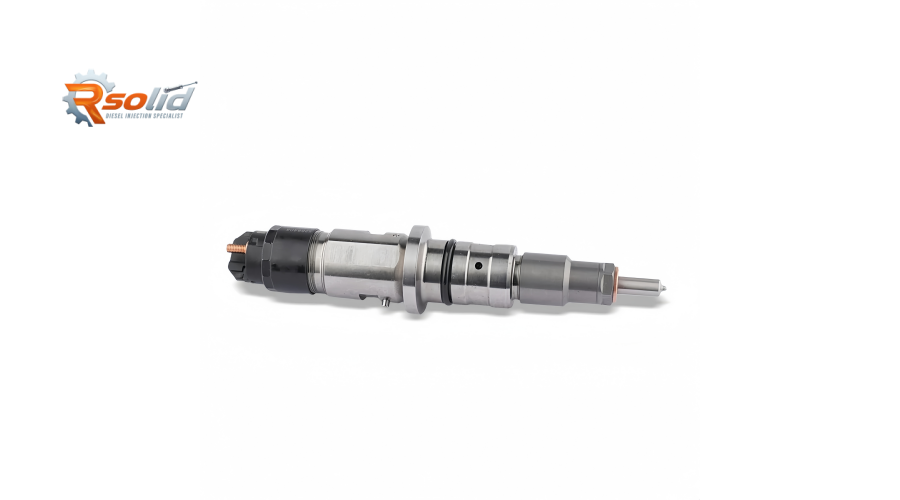

Modern diesel engines meeting Euro 3 (EU3) and ISDE (Intelligent Smart Diesel Engine) standards demand precise, reliable fuel injection. The CRIN2-16 injector (part number 0445120289) , fully compatible with Bosch systems, delivers the exact fuel quantity and timing required for cleaner combustion, lower noise, and consistent power output. Whether you maintain a commercial truck, a bus, or agricultural machinery, this injector helps your engine perform at its best while reducing harmful emissions.

1. Structural Features & Advantages

The 0445120289 is a second‑generation Common Rail injector (CRIN2-16) engineered with advanced solenoid technology. Its key structural benefits include:

• Compact CRIN2-16 design – Shorter body than earlier versions, allowing easier installation in tight engine bays and reducing vibration stress.

• Bosch OE compatibility – Manufactured to exact Bosch dimensions and hydraulic flow rates for plug‑and‑play replacement in EU3 and ISDE systems.

• High‑precision control valve – Uses a balanced servo‑hydraulic system for ultra‑fast opening/closing, reducing injection variation by up to 40% compared to standard aftermarket units.

• Wear‑resistant nozzle – Nickel‑plated needle and hardened seat withstand high injection pressures (up to 1,600 bar) and lower‑quality diesel fuels.

• Integrated damping feature – Minimises secondary injection events, which lowers combustion noise and particulate emissions.

These features translate into smoother idling, faster throttle response, reduced soot build‑up, and extended injector life – critical for Euro 3 fleets still in active service.

2. Compatible Vehicle & Engine Applications

The 0445120289 injector is widely used across EU3 and early‑generation ISDE diesel engines. It is a direct replacement for original Bosch injectors in:

Always confirm your injector’s laser‑etched number before ordering. The 0445120289 is NOT interchangeable with later CRIN3 or CRIN4 injectors.

3. Common Failures & Replacement Recommendations

Typical failure signs on EU3/ISDE engines:

• Lag or hesitation under load – Worn solenoid plunger reduces lift.

• White or black smoke at startup – Nozzle tip cracking or leakage.

• Fuel in engine oil – Internal seal failure between injector body and return port.

• Engine knocking on one cylinder – Excessive pilot injection due to stuck control valve.

• Poor coast‑down emissions (opacity spikes) – Sac volume leakage.

Installation & replacement tips (CRIN2-16 specific):

1. Clean the injector bore – Use a injector seat cleaning tool; carbon build‑up on the sealing cone is a common cause of gas blow‑by.

2. Replace copper sealing washer – Always use a new washer; annealed copper only (not stainless steel).

3. Tighten in two stages – Follow OEM torque (typically 40‑50 Nm + 90° angle). Over‑torqueing deforms the injector body.

4. Bleed the fuel rail – For EU3 systems with a mechanical high‑pressure pump, crank the engine with injector connectors disconnected for 10 seconds before first start.

5. Code the injector (if required) – Some ISDE ECUs need the injector trim code (6‑digit) programmed via diagnostic tool. The 0445120289 usually has an IQA code laser‑marked on the body.

6. Replace leak‑off hoses – Deteriorated return hoses often cause air ingress, mimicking injector failure.

Why Choose Rsolid Engine Parts?

Rsolid Engine Parts provides high‑quality CRIN2-16 injectors that match Bosch performance without the dealer premium.

• Tested for EU3 & ISDE calibration – Every injector is run on a Hartridge Common Rail test bench, checking minimal quantity deviation (±2 mm³/stroke).

• 100% new solenoid and nozzle – No remanufactured turds; we use original‑spec components.

• 12‑month unlimited‑mileage warranty – Covers all manufacturing defects.

• Fast global delivery – Stock in Europe, Asia, and Americas.

• Technical help line – Need fitment confirmation? Contact our diesel specialists.

📧 amy@rinjector.com – For wholesale quotes, sample orders, or installation advice.
