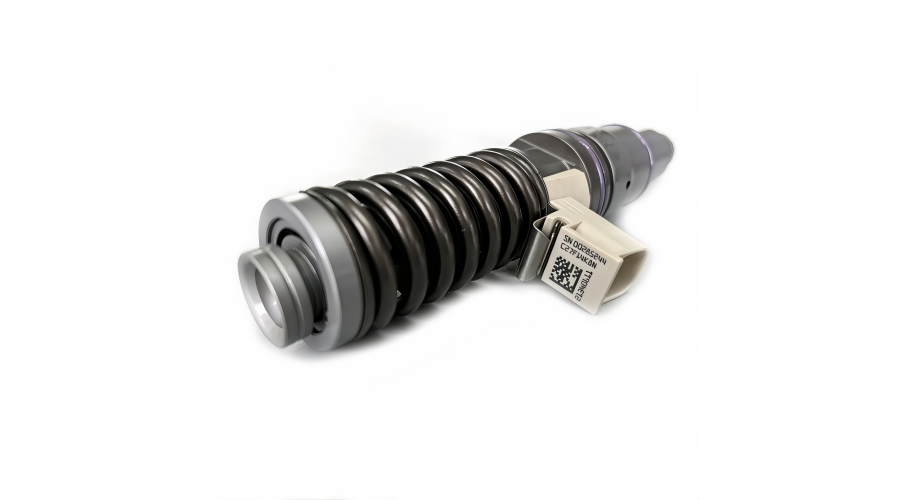

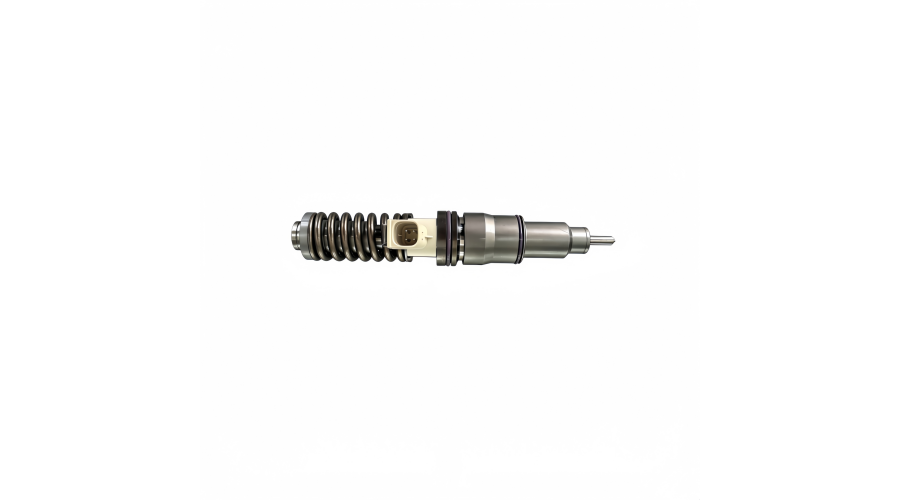

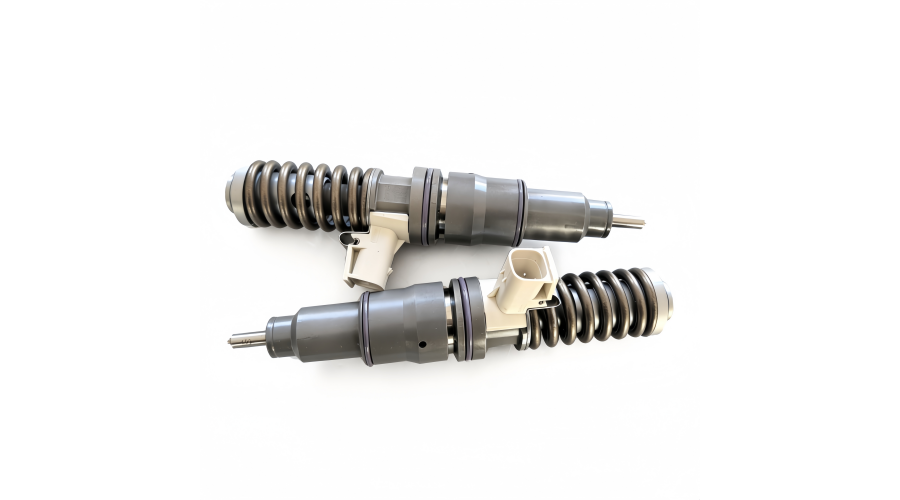

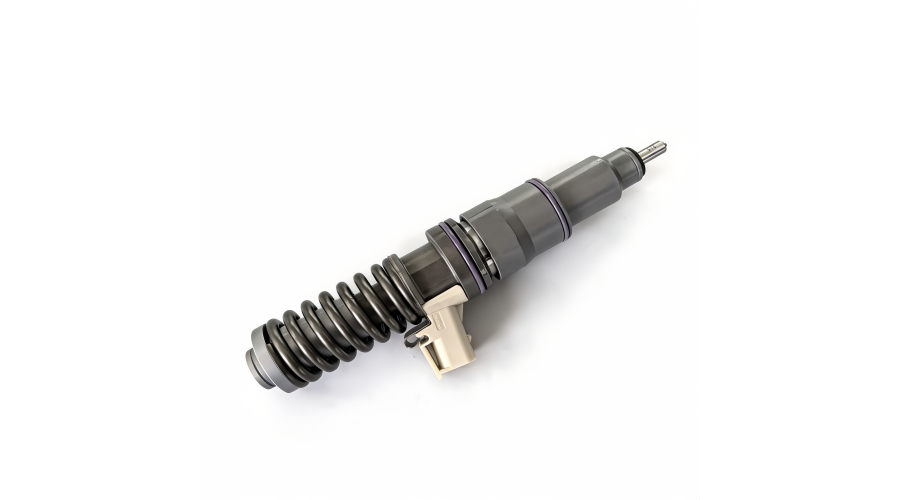

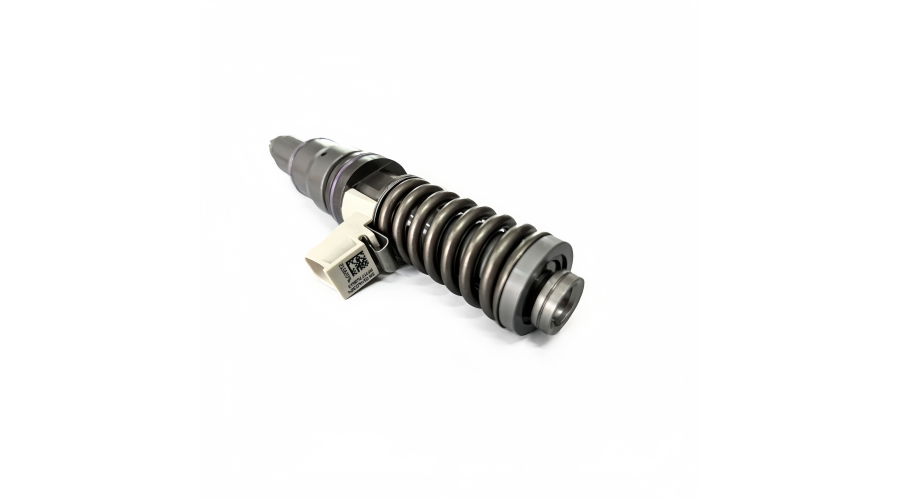

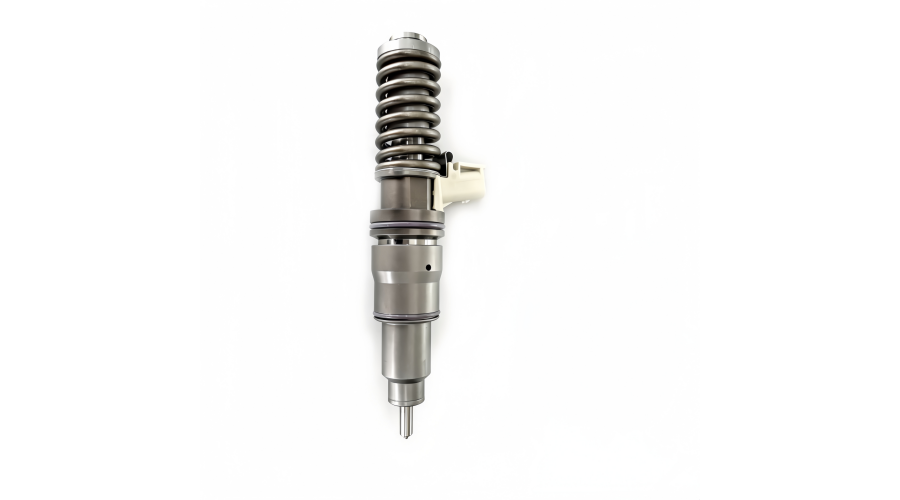

The Delphi Diesel EUI (Electronic Unit Injector) with the part number BEBE4D24001 is a critical component for the Volvo D12C and D12D engines, typically found in the Volvo FH and FM trucks produced between approximately 2005 and 2012.
Here is the detailed technical breakdown and critical information regarding this injector:
1. Application & Compatibility
Engine Types: Volvo D12C (Euro 3) and D12D (Euro 4/5).
Vehicle Models: Volvo FH12, FH16, FM, FMX.
Displacement: 12.8 Liters.
Years: Approximately 2005–2012 (Note: D12 production ended around 2012, replaced by the D13).
2. Technical Specifications
Type: Heavy-Duty Electronic Unit Injector (EUI).
Nozzle: Typically features a 7-hole sac-less nozzle design for efficient combustion.
Solenoid: High-force solenoid for precise injection timing and quantity control.
3. Critical Identification (The Trim Code)
When replacing Delphi injectors on the Volvo D12 engine, it is absolutely vital to understand the Injector Trim Code (also called the Calibration Code or IAS Code).
The Part Number is not enough. While BEBE4D24001 is the base part, each injector is manufactured with slight flow tolerances.
The Sticker: Every new Delphi injector comes with a small sticker containing an alphanumeric code (e.g., "A1", "B2", "C3", or a longer string).
Programming: This code must be programmed into the engine's ECU (Electronic Control Unit) using diagnostic software (like Volvo Tech Tool or VCAD). If the codes are not entered, the engine will run rough, smoke, and have low power because the ECU won't know exactly how much fuel each specific cylinder is delivering.
