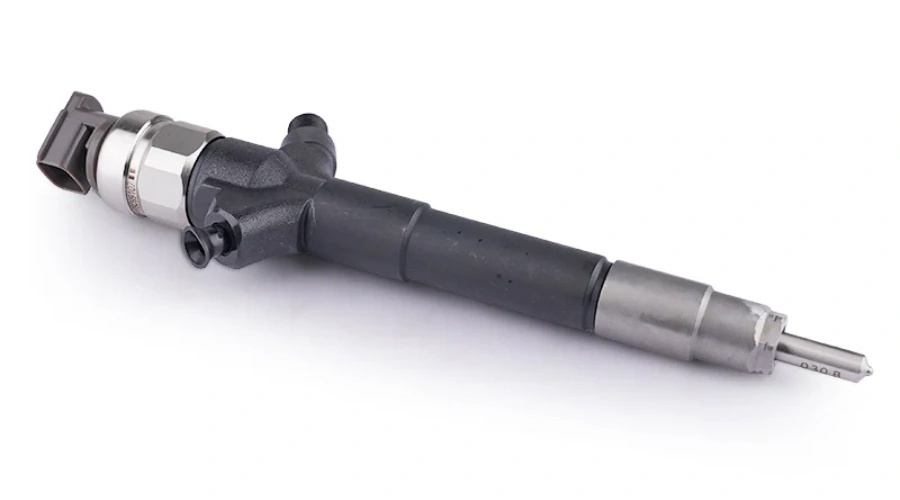

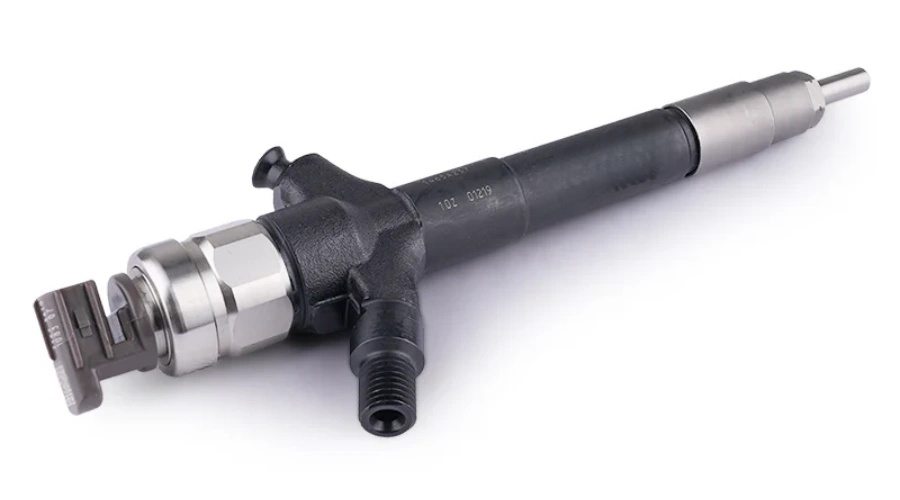

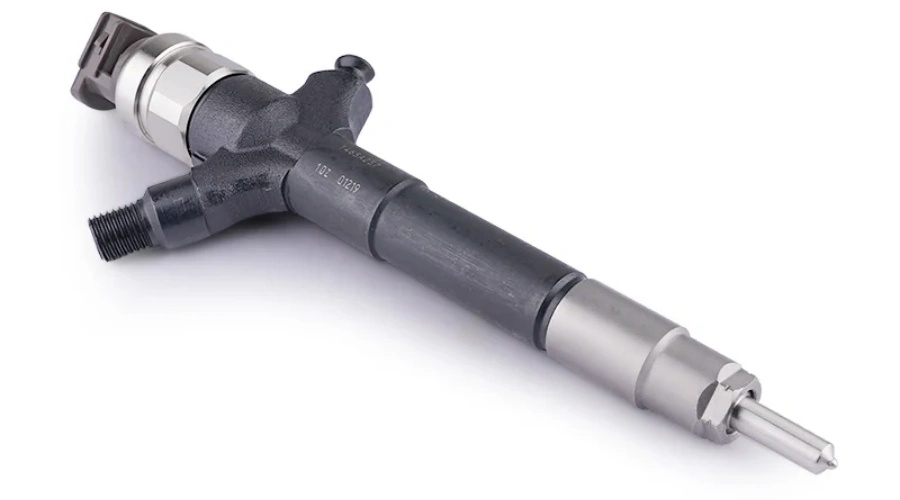

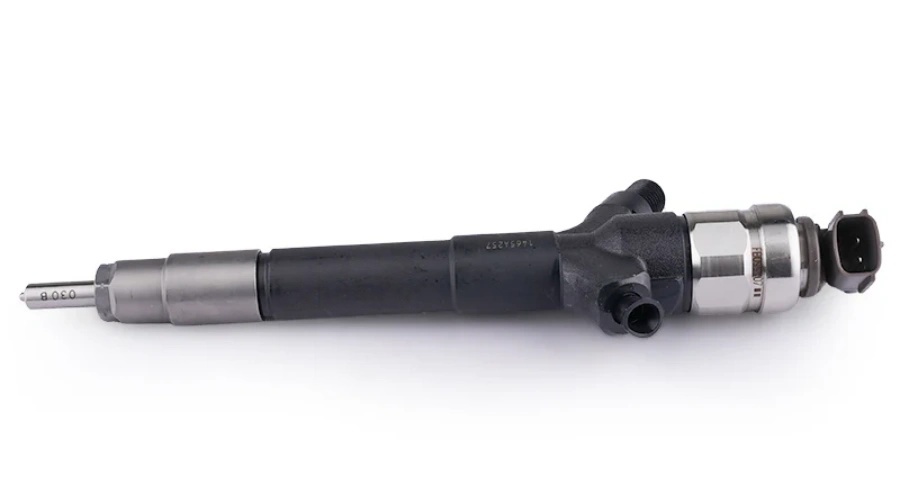

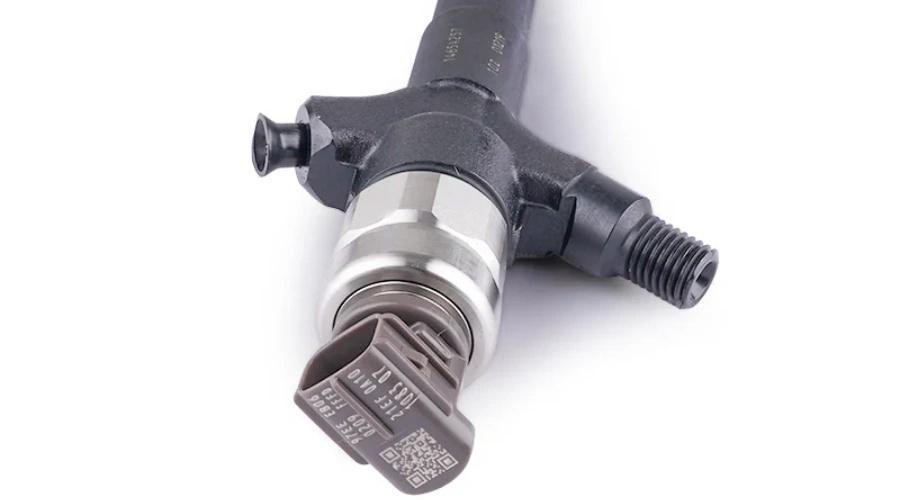

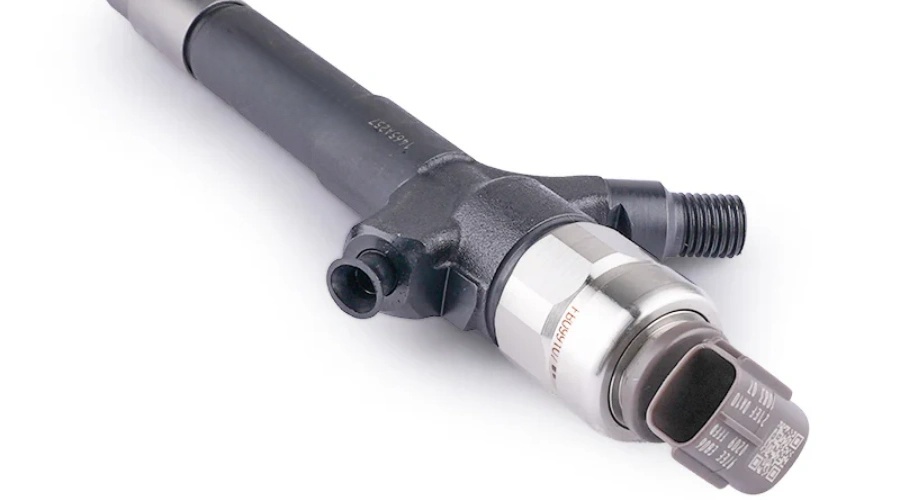

Denso Automotive Fuel Injector 095000-9560: Comprehensive Technical Overview

Structural Characteristics and Technical Advantages

The Denso 095000-9560 fuel injector represents a significant advancement in fuel delivery system technology, incorporating sophisticated engineering solutions that establish new benchmarks for precision, durability, and performance. This injector features an innovative multi-orifice nozzle assembly manufactured from specially formulated tungsten-based alloys that provide exceptional resistance to both wear and cavitation erosion, even when operating at the extreme pressures encountered in modern common rail systems. The nozzle design incorporates precisely calibrated micro-orifices created through advanced laser drilling techniques, ensuring optimal fuel spray patterns and superior atomization characteristics. The internal mechanism employs a diamond-like carbon (DLC) coated needle valve moving within a guide sleeve manufactured to tolerances within 2 microns, guaranteeing consistent operation and minimal friction throughout the injector's extended service life. The electromagnetic actuation system represents a breakthrough in response technology, incorporating a dual-winding solenoid design capable of achieving actuation times under 0.3 milliseconds, facilitated by optimized magnetic circuit geometry and advanced temperature-resistant electrical winding materials. The injector's construction includes a comprehensive multi-stage filtration approach, with a primary sintered stainless steel filter at the fuel inlet and secondary internal nano-filtration, providing unparalleled protection against particulate contamination that could compromise performance and longevity.

The technical advantages derived from this sophisticated structural design are both comprehensive and significant. The precision fuel metering system demonstrates exceptional accuracy, maintaining injection quantity variances of less than 1.5% across all operating conditions, contributing to outstanding cylinder-to-cylinder consistency and optimized combustion efficiency. This injector exhibits remarkable durability characteristics, engineered to maintain specified performance parameters through more than 350 million actuation cycles under normal operating conditions, substantially exceeding industry standards for heavy-duty applications. The advanced nozzle technology produces exceptionally fine fuel droplet sizes averaging 8-15 microns, dramatically enhancing the air-fuel mixing process and enabling near-complete combustion. This refined combustion process typically results in fuel economy improvements of 10-18% compared to previous generation injectors while simultaneously reducing particulate emissions by 25-35% and nitrogen oxide emissions by 20-30%. The injector's advanced thermal management system ensures consistent operation across an extensive temperature range from -45°C to +150°C, maintaining precision performance in the most challenging environmental conditions. The sophisticated electronic control interface enables ultra-precise injection timing and complex multiple injection strategies per cycle, including pre-injections, main injections, and post injections, providing engine manufacturers unprecedented flexibility to optimize combustion strategies for specific application requirements and emissions standards.

Application Environments and Primary Implementation Domains

The Denso 095000-9560 fuel injector finds its primary implementation in next-generation high-pressure common rail diesel systems powering heavy-duty commercial vehicles and industrial equipment. This injector demonstrates particular compatibility with Isuzu 6WG1-TCS and 6WU1-TCS engine platforms, where it serves as a critical component in meeting and exceeding Euro VI emissions standards while delivering exceptional power density and operational efficiency. The operational parameters make it ideally suited for long-haul transportation vehicles, heavy construction equipment, mining machinery, and specialized utility vehicles requiring uncompromising performance reliability across the most demanding operating conditions. The injector's design characteristics specifically address the challenges encountered in extreme duty cycles, including sustained high-load operation, frequent rapid load variations, and extended maintenance intervals, while maintaining precise fuel metering and emissions compliance.

Beyond its primary automotive applications, the 095000-9560 has established significant utility in marine propulsion systems, stationary power generation, and specialized industrial applications. The injector's robust construction and consistent performance characteristics have led to its adoption in auxiliary power units for marine vessels, stationary generators in the 200-800 kVA range, and main propulsion systems for commercial workboats and small commercial vessels. In agricultural applications, specifically in high-horsepower tractors and combine harvesters with large-displacement diesel engines, the 095000-9560 provides the reliability, precision, and durability necessary for continuous operation under varying load conditions and potentially challenging fuel quality environments. The injector's calibration characteristics make it particularly suitable for applications requiring precise fuel metering across widely varying load conditions, with specialized variants employed in construction machinery, mining equipment, and industrial power units where operational demands are extreme and maintenance intervals may be extended. Additionally, this injector platform has demonstrated exceptional performance in cold climate applications, with specialized Arctic variants maintaining reliable operation at temperatures approaching -50°C, making it suitable for oilfield operations, forestry equipment, and remote power generation in extreme environments.

OEM Cross-Reference Compatibility Information

The Denso 095000-9560 fuel injector maintains comprehensive cross-reference compatibility with numerous OEM part numbers across different vehicle manufacturers and global markets. Primary direct equivalents include Isuzu components 8-94288-392-0 and 8942883920, representing genuine OEM replacements for applications in Isuzu C&E series trucks and related heavy commercial platforms. Additional compatibility exists with General Motors Global A parts catalog listings including 12669745 and 12678562, reflecting the injector's implementation in GM-designed heavy-duty platforms sharing common powertrain architectures. For Asian market applications, significant cross-reference compatibility exists with Hino components 23678-1700 and 236781700, particularly in Hino 600 Series trucks equipped with the NO7C-T engine variant. European market applications demonstrate compatibility with Bosch reference numbers 0445110452 and Delphi identifiers DCR100210, though specific application validation is strongly recommended due to significant calibration variations between manufacturers and potential differences in electrical characteristics that could impact performance.

Aftermarket equivalents include notable references such as Standard Motor Products FJ445 and Niehoff Automotive FU92, though these secondary market alternatives frequently exhibit substantial variations in materials, manufacturing quality, and performance characteristics compared to genuine Denso components. Comprehensive application verification using VIN-specific lookup tools or direct consultation with Denso technical resources is absolutely essential to ensure proper compatibility, as subtle differences in electrical characteristics, flow rates, calibration data, and physical dimensions can profoundly impact performance, emissions compliance, and system reliability. Additional references may include Toyota components 23275-0E040 and Nissan parts 16604-VD230 for specific regional applications, though thorough verification is essential before implementation. For certain specialized industrial and marine applications, additional cross-references include Volvo Penta components 22428981 and Caterpillar references 285-2912, though these typically require specific calibration data and mounting hardware variations. It is strongly recommended that technicians always verify specific application data through official Denso channels or authorized distributors before purchasing or installing these components to ensure optimal performance and prevent potential damage to sophisticated common rail systems.

Routine Preventive Maintenance Guidelines

Implementing a rigorous and systematic preventive maintenance program is absolutely critical for maximizing the service life and maintaining the peak performance characteristics of the Denso 095000-9560 fuel injector. Fuel quality management represents the most crucial maintenance consideration, with emphasis on sourcing ultra-low sulfur diesel fuel meeting ASTM D975 specifications with lubricity characteristics complying with ISO 12156-1 standards, specifically requiring HFRR wear scar diameters of 450 microns or less. The presence of metallic additives, particularly sodium, potassium, calcium, or zinc in fuel must be strictly avoided, as these compounds rapidly contribute to injector deposit formation and potential failure. Regular fuel filter replacement at intervals not exceeding 20,000 kilometers or 12 months is mandatory, with particular attention to proper filter installation procedures, including correct priming and sealing, to prevent bypass conditions that could allow particulate contamination to reach the injector's精密 components. For applications operating in challenging environments with potential fuel contamination concerns, more frequent filter replacement at 15,000-kilometer intervals is strongly recommended.

Periodic injector performance evaluation using manufacturer-approved diagnostic equipment should be conducted at 40,000-kilometer intervals, with specific attention to return flow rates, pressure hold characteristics, and electrical current waveforms. These sophisticated diagnostic procedures can identify developing issues before they progress to complete injector failure, potentially saving substantial repair costs and preventing secondary damage to other fuel system components. Every 80,000 kilometers, comprehensive injector removal for professional cleaning and testing is strongly recommended, utilizing specialized ultrasonic cleaning methodologies with solvents specifically formulated for common rail injector components, followed by precise calibration verification using certified test equipment. Following cleaning procedures, injector flow matching should be performed to ensure within 2% variance between all injectors in the system, as greater variances can significantly impact engine balance, performance, and emissions. Electrical system maintenance is equally critical, with particular attention to battery condition and charging system performance, as voltage fluctuations below 10.8 volts or above 15.2 volts can significantly impact injector operation and potentially cause permanent damage to the sophisticated solenoid assembly. Injector connector integrity should be verified during every routine service interval, with immediate replacement of any connectors showing evidence of thermal degradation, corrosion, or compromised sealing properties. The implementation of these comprehensive maintenance practices, combined with strict adherence to manufacturer-recommended service intervals, typically enables the 095000-9560 injector to achieve its designed service life while maintaining optimal emissions performance and fuel efficiency throughout its operational lifespan. Additional critical considerations include regular monitoring of engine crankcase ventilation systems to prevent oil contamination that could lead to carbon deposits on injector surfaces, ensuring proper fuel tank ventilation to prevent moisture accumulation that promotes microbial growth and fuel system corrosion, and implementing regular fuel system priming procedures to prevent air ingress that can impact injection precision and potentially cause abnormal combustion conditions.
