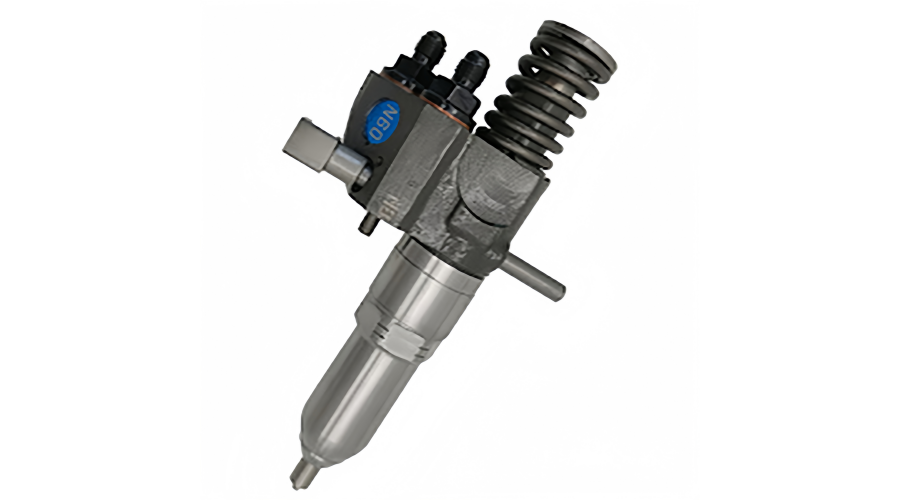

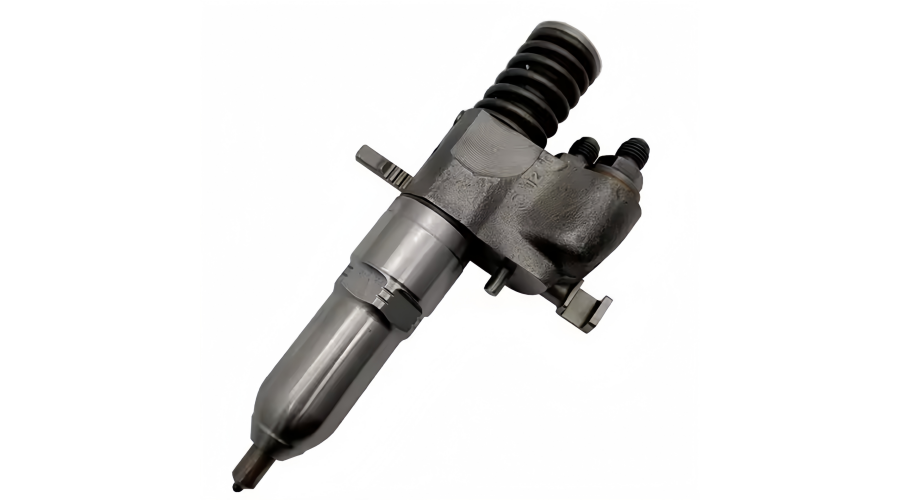

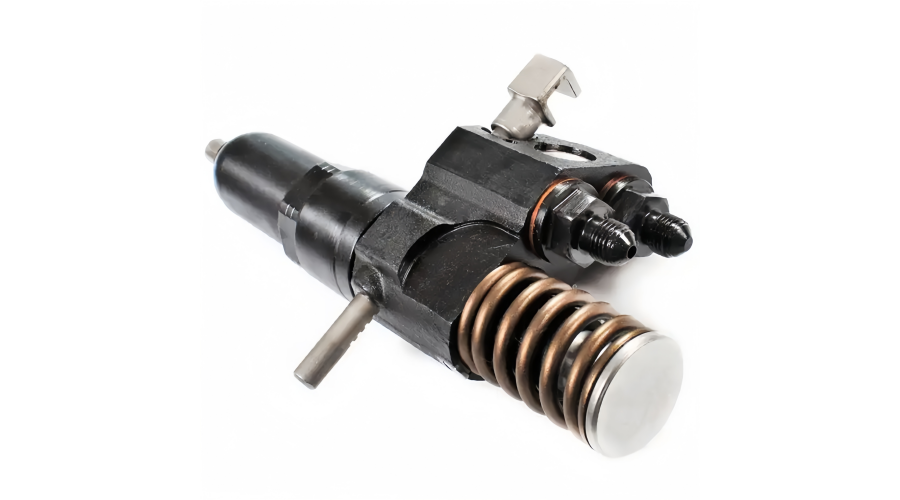

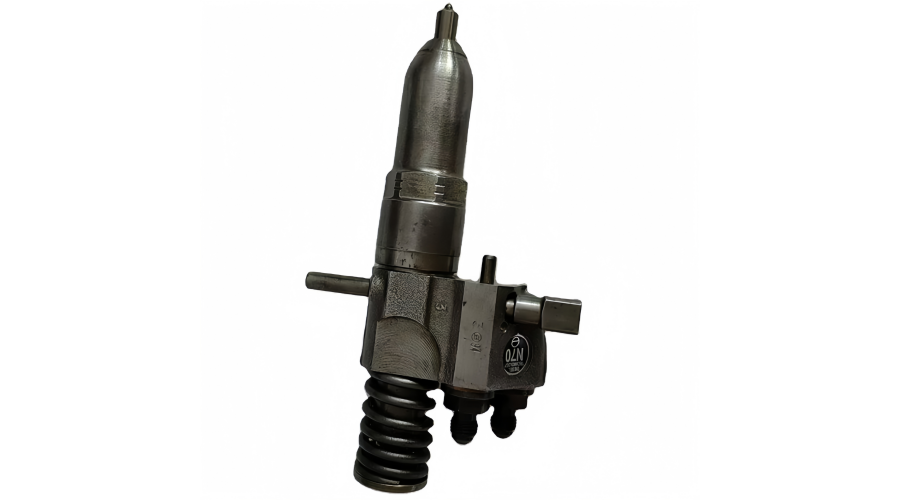

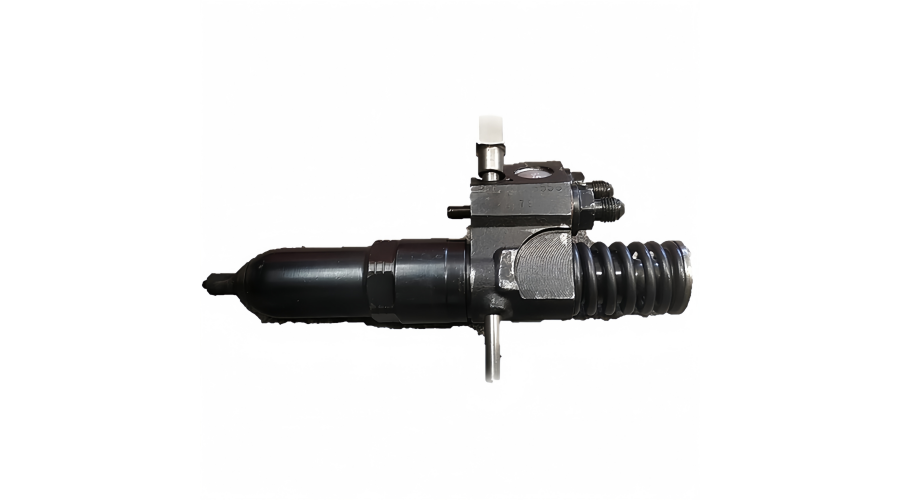

Let's break down the Fuel Injector R-3006556 for the Detroit Diesel 71 Series Engine, specifically for the N60 model.

1. Part Identification & Application

• Part Number: R-3006556 is a genuine Detroit Diesel (DDC) / Detroit Diesel Allison (DDA) part number. It is also widely cross-referenced to other manufacturers' numbers.

• Engine Application: This injector is designed for the Detroit Diesel 71 Series engine, specifically in the N60 configuration.

• What is an N60? The "N" stands for "Naturally Aspirated," and "60" indicates 60 Series cylinders. So, an N60 is a 6-cylinder, naturally aspirated Detroit 71 Series engine. It's a common variant used in many medium and heavy-duty trucks from the 1960s through the 1980s (e.g., in many Kenworth, Peterbilt, and other chassis).

2. Technical Specifications & Function

• Type: This is a mechanical, unit injector (often called a "jerk pump" injector). Unlike modern common-rail systems, each cylinder has its own injector that combines the fuel pumping and atomizing functions in one unit. It is actuated by a camshaft lobe on the engine's injector cam.

• Function: It meters a precise amount of fuel, raises it to extremely high pressure, and atomizes it directly into the combustion chamber at the correct time.

• Setting: These injectors must be individually calibrated and "set" to a specific pop-off pressure using a bench tester. Incorrect settings lead to poor performance, smoking, and engine damage.

• Nozzle: It contains a replaceable nozzle tip. Overhauls often involve replacing just the nozzle (part number like DBNR-453S or similar) if the injector body is still good.

3. Importance of Quality & Matching

• Balance is Crucial: For smooth engine operation and optimal performance, all injectors in a 6-cylinder engine should be matched and set to the same pop-off pressure. It's highly recommended to service or replace them as a complete set of 6.

• OEM vs. Aftermarket: Genuine Detroit, Bosch (the original designer), and high-quality aftermarket brands like Ambac (American Bosch) are preferred. Avoid cheap, no-name injectors, as poor fuel atomization can cause severe engine damage.

• N vs. Turbo Models: While physically similar, injectors for naturally aspirated (N) and turbocharged (T) engines often have different flow rates or nozzle configurations. Using the wrong type leads to incorrect power output, excessive smoke, or high exhaust temperatures.

4. Common Symptoms of a Failing R-3006556 Injector

• Hard Starting or misfiring.

• Loss of Power and poor acceleration.

• Excessive Black or White Smoke from the exhaust.

• Increased Fuel Consumption.

• Knocking or Uneven Engine Sound (a "dead" cylinder).

• Fuel Dilution in Engine Oil (from a leaking injector).

5. Cross-References & Purchasing

The R-3006556 crosses to many other manufacturer numbers. Always confirm with your supplier.

• Bosch: 0432172027

• Ambac: 21537, 101-21537

• Stanadyne: DBPN-453S (often refers to the nozzle tip)

• Common Aftermarket Numbers: 65-003-06, 9-10541

Technical Advantages of the Detroit 71 Series Unit Injector (R-3006556 type)

This design, originally engineered by Bosch and perfected by Detroit Diesel/Ambac, is known for its simplicity, durability, and serviceability.

1. High Injection Pressure & Excellent Atomization:

• Self-Generating Pressure: As a unit injector, it uses the engine's camshaft to generate extremely high fuel pressure (upwards of 20,000 psi / 1,380 bar) internally and immediately before injection. This creates a fine, uniform fuel spray for near-complete combustion.

• Advantage: Efficient burning, good fuel economy (for its era), and acceptable emissions when properly tuned.

2. Elimination of High-Pressure Fuel Lines:

• In a traditional pump-line-nozzle system, long high-pressure lines can cause pressure waves and lag. The unit injector design integrates the pump and nozzle, driven by a pushrod from the cam.

• Advantage: More precise injection timing, reduced risk of hydraulic lock, and elimination of dangerous high-pressure line failures ("diesel leak" fires).

3. Robustness & Durability:

• Built with heavy-duty materials to withstand the harsh environment inside a diesel engine. The design is mechanically simple with strong components.

• Advantage: Legendary longevity. With regular maintenance (nozzle changes), these injectors can last for hundreds of thousands of miles. They are tolerant of less-than-perfect fuel filtration compared to modern electronic injectors.

4. Ease of Diagnosis & Field Serviceability:

• A failing injector is relatively easy to diagnose with a manual "cut-out" test. Each injector is individually accessible on the engine's side.

• Advantage: Mechanics can identify a bad cylinder quickly. The injectors can be removed, replaced, or swapped without complex tools. They can also be rebuilt and recalibrated multiple times, which is a huge cost advantage over modern, disposable electronic injectors.

5. Independence & Balance:

• Each cylinder has its own complete fuel metering and injection system. One failing injector does not directly affect the operation of the others (unlike a failed common-rail pump).

• Advantage: The engine can often run, albeit poorly, on 5 cylinders to "limp home." Setting all injectors to the same pop-off pressure ensures smooth, balanced engine operation.

6. No External Dependencies:

• The system is 100% mechanical. It requires no electrical power, no Engine Control Unit (ECU), and no complex sensors to operate.

• Advantage: Ultimate reliability and the ability to run in any condition. This made it the gold standard for military, marine, and industrial applications where "run-ability" is critical.




  Main Application Equipment & Models (N60 Focus)

  The N60 (6-cylinder, Naturally Aspirated 71 Series) was a workhorse engine. The R-3006556 injector was used in a vast array of equipment, primarily from the 1960s through the early 1990s.

  1. On-Highway Trucks:

  This was the most common application. The N60 provided a reliable ~210-235 horsepower, perfect for regional hauling and heavy-duty vocational work.

  Kenworth: W900, K100 Aerodyne (common spec)

  Peterbilt: 359, 379 (early models, often as a base engine)

  Freightliner: FLD, Conventional (various models)

  International Harvester: Transtar, Paystar, S-Series

  Mack: Though Mack used their own engines, some glider kits or repowers used Detroit 71s.

  Ford: L-Series "Louisville" heavies.

  2. Off-Highway & Vocational Equipment:

  Construction: Crane carriers, off-road dump trucks, bulldozers (as a power unit).

  Agriculture: Large irrigation pumps, older combines and harvesters.

  Oil & Gas: Well-servicing rigs (frac pumps, cement trucks).
