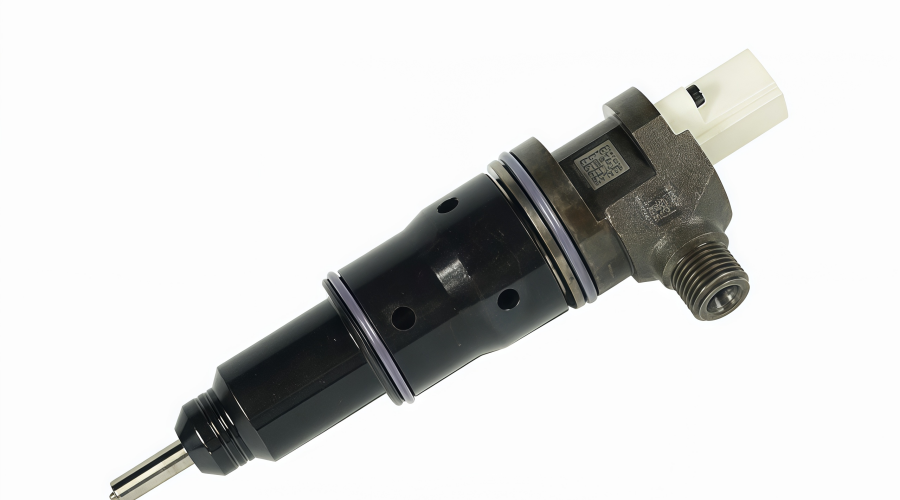

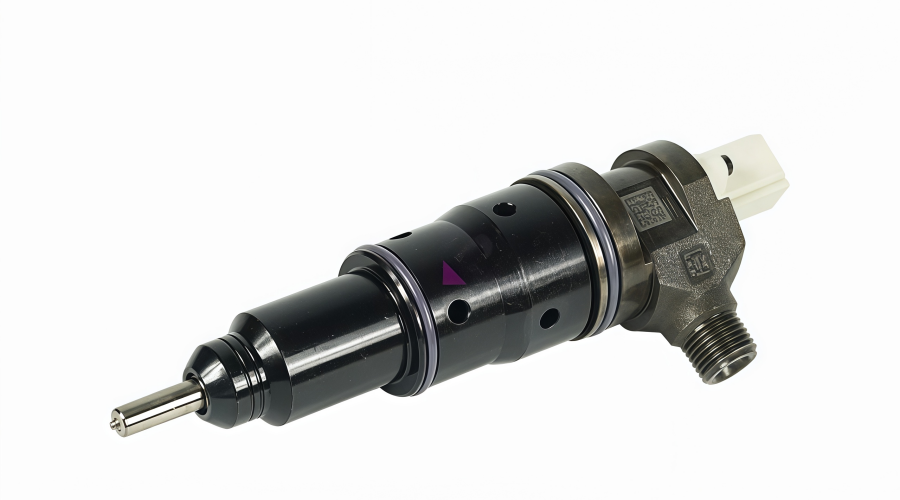

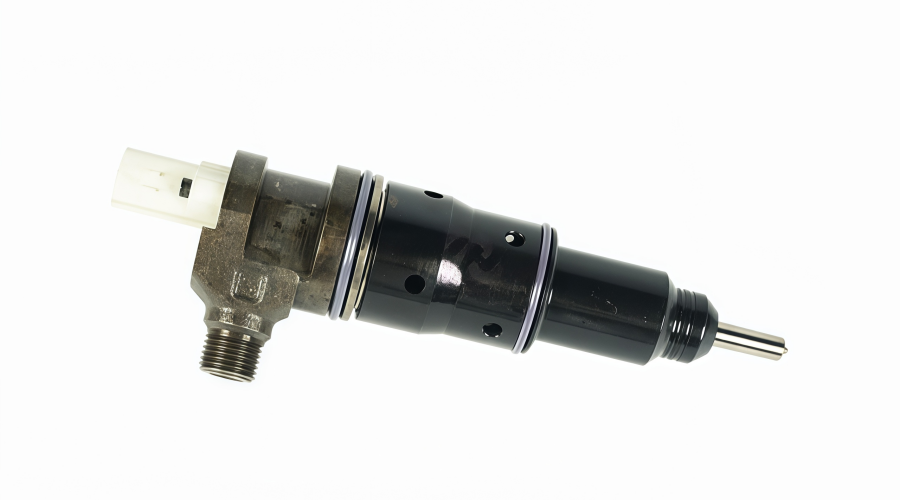

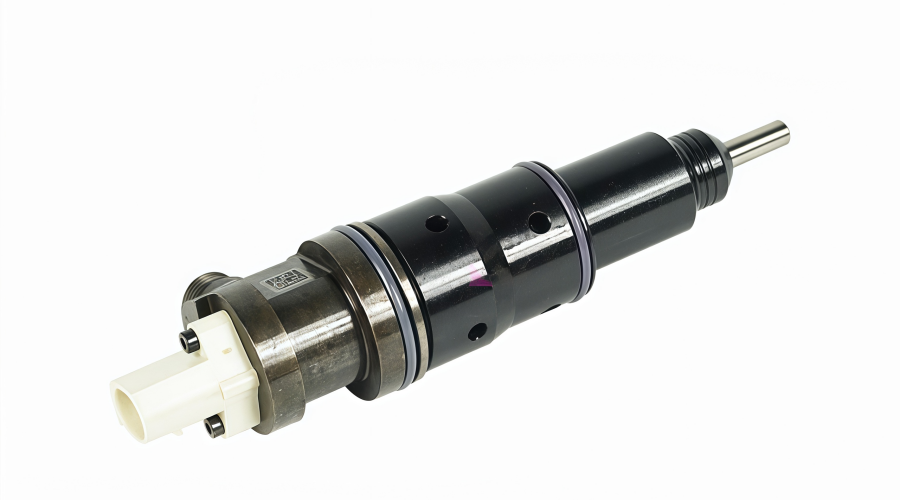

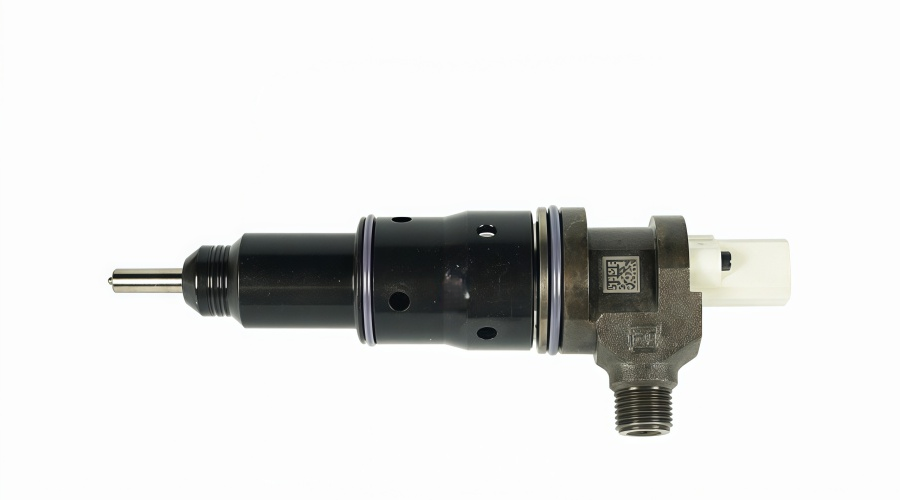

Product Analysis: Diesel Fuel Injector 22282199 for Cummins Truck Engines

1. Basic Specifications & Parameters

The Diesel Fuel Injector 22282199 is a high‑performance solenoid‑type unit designed for Cummins heavy‑duty truck engines, particularly those using the Cummins XPI (Extreme Pressure Injection) common rail fuel system. This injector is a direct OEM replacement that delivers precise fuel metering at extremely high pressures to maximize combustion efficiency, power output, and emissions compliance.

Key technical parameters:

• Part Number: 22282199 (also referenced as 22282199, 22282199NX, or Cummins 22282199)

• OEM / System Brand: Cummins XPI common rail system (also compatible with certain Bosch CP3‑based systems on Cummins engines – verify application)

• Injector Type: Solenoid‑controlled common rail injector (high flow, high pressure)

• Engine Application: Cummins ISX, ISX12, ISX15, X15, and some QSX industrial engines

• Number of Nozzle Holes: 8 – 10 holes (exact count varies by emission level; typically 8 for Euro 5 / EPA 10, 9 or 10 for later engines)

• Nozzle Hole Diameter: 0.132 – 0.148 mm (micro‑drilled, wear‑resistant)

• Maximum Injection Pressure: 2,500 bar (36,260 psi) – supports XPI system capability

• Static Flow Rate (nominal) : 900 – 1,100 cc/30 sec at 100 bar (depending on calibration)

• Coil Resistance: 0.75 – 1.10 Ω (at 20°C)

• Actuation voltage: 12V DC (peak & hold, specific to Cummins ECM)

• Peak current: 25 – 30 A (initial opening), hold current 10 – 15 A

• Body Material: High‑strength alloy steel, black oxide or manganese phosphate coated

• Seal design: Direct injection tip with threaded nozzle (not a copper washer seal – uses a precision ground seat on cylinder head)

• Return fuel flow (max, idle) : ≤ 0.8 cc/min (due to high flow rate)

• High‑pressure connection: M20 x 1.5 threaded inlet with conical sealing (common to Cummins XPI)

• Low‑pressure return: Banjo bolt fitting (M14 x 1.5) with O‑ring seal

• Mounting: Double clamp with two M8 bolts, torque 35 – 40 Nm (ensure flat clamp contact)

• Injector length (overall) : 178 mm (typical for ISX application)

• Sealing / tip gasket: Copper gasket (doughnut shape) for some engines; others rely on ground conical seat – check original.

Quality control (performed at Rsolid):

• 100% test on a high‑pressure common rail test bench (up to 2,500 bar).

• Coil inductance and resistance verification.

• High‑pressure internal and external leakage (no drop below 2,400 bar).

• Flow linearity across 6 points (300, 600, 900, 1200, 1600, 2000 bar).

• Return flow measurement (idle and full load conditions).

• Spray pattern imaging (8–10 plumes, equal distribution, no tail dribble).

• Pilot and main injection timing accuracy measured.

2. Compatible Engines & Applications

The 22282199 injector is designed for Cummins heavy‑duty on‑highway truck engines using the XPI common rail fuel system, primarily in North America and Europe. It also fits some off‑road and industrial versions.

Specific engine models:

• Cummins ISX – 15L inline 6‑cylinder (2007–2016 models) – ISX15 (EPA 2010, GHG14)

• Cummins ISX12 – 12L variant (2009–2016)

• Cummins X15 – successor to ISX15 (2016–present, early models use same injector)

• Cummins QSX15 – industrial / off‑road version of ISX (genset, mining, oil & gas)

• Cummins ISXe5 – Euro 5 emission version (European market)

• Cummins ISZ – 13L engine for Asian markets (some variants share injector design)

Vehicle / equipment applications:

• Class 8 heavy‑duty trucks:

• Kenworth T660, T680, T880, W900

• Peterbilt 386, 387, 388, 389, 567, 579

• Freightliner Cascadia, Columbia, Coronado

• Volvo VNL, VNR (with Cummins engine option)

• International ProStar, LoneStar, LT series

• Western Star 4700, 4800, 4900, 5700, 6900

• Vocational trucks: dump trucks, concrete mixers, refuse trucks

• Motorcoaches / buses: with Cummins ISX or ISX12 engines

• Industrial applications:

• Generator sets (prime/standby, 450–600 kW range)

• Mining haul trucks and heavy equipment

• Oil & gas fracturing pumps

• Marine propulsion (smaller workboats with QSX engines)

Important compatibility notes:

• The 22282199 injector is specific to Cummins XPI systems and is not interchangeable with earlier Cummins CAPS (Cummins Accumulator Pump System) or HPI (High Pressure Injection) injectors.

• Always verify your engine’s part number printed on the current injector. Many ISX/X15 injectors have a calibration code or CPL (Critical Parts List) number – matching CPL is essential for proper fuel trim.

• For EPA 2007–2009 ISX engines (with EGR only, no SCR), this injector may be a direct fit but requires ECU recalibration – consult Rsolid support.

• For GHG17 and newer (2017+) X15 engines with higher injection pressure (2,600 bar), a different injector is used (e.g., 5288324). Do not substitute.

• Injector coding is required for most Cummins ECMs (CM2250, CM2350, CM2450, etc.). An injector trim code (a multi‑digit alphanumeric code) must be entered using Cummins Insite or a compatible diagnostic tool. Without coding, the engine will have rough idle, misfire, poor fuel economy, and potentially DTCs (P0262–P0265 range).

3. Performance Advantages & Functional Improvements

Replacing old or failed injectors with a premium aftermarket 22282199 injector from Rsolid Engine Parts delivers significant benefits for heavy‑duty truck operators:

• Restored Full Horsepower & Torque – Worn injectors lose flow accuracy, opening speed, and spray quality, resulting in low power, poor throttle response, and reduced engine braking. New injectors restore the engine’s factory rating (e.g., 400–600 hp, 1,450–2,050 lb‑ft torque). Owners report 15–25% power recovery on high‑mileage trucks (500,000+ miles).

• Fuel Economy Improvement – XPI injectors are sensitive to internal leakage and needle wear. Our precision‑manufactured injectors reduce return flow to ≤0.8 cc/min (vs. >3 cc/min on worn units), reducing fuel waste. Real‑world fleet data shows 4–8% fuel savings, which translates to thousands of dollars annually per truck (e.g., at 6.5 mpg and 120,000 miles/year, saving 700–1,400 gallons).

• Elimination of Black Smoke & Reduced Regeneration – Worn injectors cause incomplete combustion, smoke, and higher soot loading in the DPF, leading to frequent parked regenerations. Our injectors provide excellent atomization (SMD < 22 μm), reducing smoke opacity to near zero and extending DPF cleaning intervals by 30–50%.

• Smoother Idle & Reduced Cab Vibration – Poor injector balance causes rough idle, especially noticeable in trucks at traffic lights. New injectors with correct trim codes restore smooth, quiet idle.

• Reliable Starting in All Weather – Weak solenoid or leaky needle seat causes extended crank time, especially in cold weather. Our injectors maintain tight sealing and fast actuation, ensuring start in <3 seconds even at -20°C.

• Longer Engine Life – Precise injection timing and quantity reduce cylinder washdown (fuel dilution of oil), preserving bearings and rings. Prevents piston overheating and crown cracking – common on high‑mileage ISX engines with failing injectors.

• Elimination of Common Cummins XPI Injector Problems:

• High return flow – causes low rail pressure, crank no‑start, engine derate.

• Sticking solenoid – intermittent misfire, surging, or cylinder cutout.

• Nozzle coking – ragged spray pattern, white/black smoke, poor combustion.

• Internal fuel leak – fuel in oil, oil level rising.

• Tip erosion – hot combustion gas leaking past needle seat, destroying injector and potentially piston.




Installation & Coding Guide (Crucial for success):

1. Safety: Relieve fuel pressure (Cummins Insite OR disconnect fuel pump relay, crank engine).

2. Remove old injectors, clean bores thoroughly – carbon deposits on tip seat cause improper sealing.

3. Install new injectors with new sealing gaskets (copper or conical – verify type).

4. Torque clamp bolts in 2 stages: first to 20 Nm, then final 35–40 Nm. Use a torque wrench in a cross pattern.

5. Reassemble fuel lines (new high‑pressure lines recommended if old lines have been removed).

6. Prime system: use manual primer pump or crank with ECM disconnected to fill rails.

7. Injector coding via Cummins Insite (or aftermarket tool like JPRO, Nexiq, Autel):

• Connect to the ECM (CM2250, CM2350, etc.).

• Navigate to “Injector Trim Codes” (or “Injector Calibration Codes”).

• Each new injector has a 7‑to‑10 digit code printed on the body. Enter this code for the corresponding cylinder.

• Without proper coding, the engine may run, but with imbalance, excessive smoke, and potential DTCs.

8. Clear adaptation values if available (some ECMs learn; forcing a reset may help).

9. Start engine, check for leaks, and perform a “cylinder cutout test” to verify each injector’s contribution.

10. Relearn drive: Drive the truck under varying loads for 20–30 minutes to allow ECM to adapt fuel trims.
    If you lack diagnostic tools, we recommend professional installation. However, Rsolid support can guide you via WhatsApp.

4. Why Choose Rsolid Engine Parts for This Injector?

Rsolid Engine Parts (www.rinjector.com) is a trusted global supplier of diesel fuel injection components, including heavy‑duty truck injectors. When you purchase the 22282199 injector from us, you get:

• Premium Aftermarket Quality – Manufactured in an IATF 16949 / ISO 9001:2015 certified facility using Cummins XPI‑compatible specifications. 100% new – never used, rebuilt, or counterfeit.

• Full Test Validation – Each injector is bench‑tested on a high‑pressure common rail test rig (up to 2,500 bar). We provide test reports on request – including flow curve, return flow, and spray pattern images.

• Exact OEM Form & Fit – Our injectors match Cummins 22282199 in all critical dimensions, connector type, and fuel flow characteristics. They are direct replacements with no modification.

• Trim Code Provided – Every injector comes with its unique injector trim (calibration) code printed on the body. We also record it in our system for reference.

• Competitive Pricing – Direct sourcing allows us to offer 40–65% savings compared to genuine Cummis dealer prices. Bulk discounts for fleets and rebuild shops.

• Fast Global Shipping – Large stock across all common Cummins injectors. Same‑day dispatch available. Expedited shipping via DHL, FedEx, UPS (3–7 days worldwide).

• Expert Technical Support – Not sure if 22282199 fits your particular CPL? Need help with coding or installation? Our engine specialists are available 24/7 via WhatsApp: +8615975376778. We support fleets and owner‑operators with practical advice.

• Warranty – 12‑month or 200,000 km (120,000 miles) warranty against manufacturing defects, solenoid failure, or nozzle blockage under normal use with proper fuel filtration.

• Complete solution – We also supply sealing washers, return line kits, and high‑pressure fuel pumps for Cummins XPI systems.

Visit www.rinjector.com to explore our full catalog of Cummins injectors (part numbers 22282199, 4326874, 4955616, 5288324, etc.), as well as injectors for Detroit, Volvo, Paccar, and more. For urgent fleet needs or to place an order, WhatsApp +8615975376778 now.
