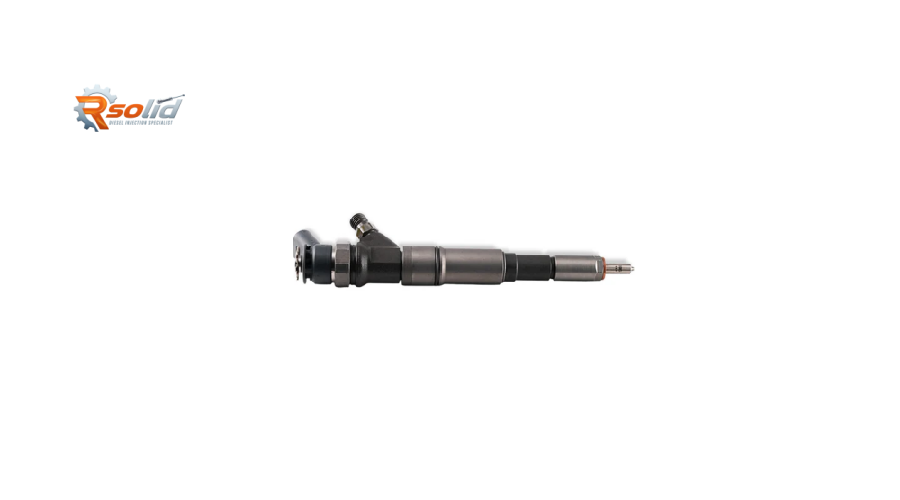

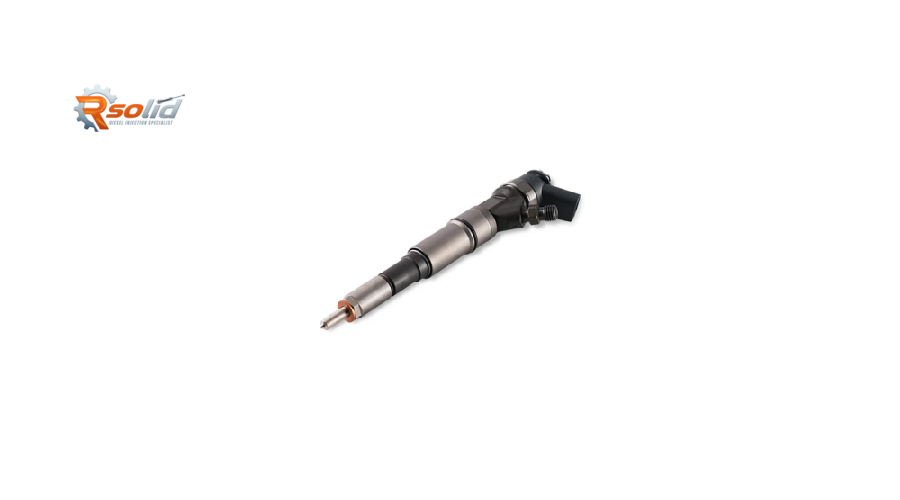

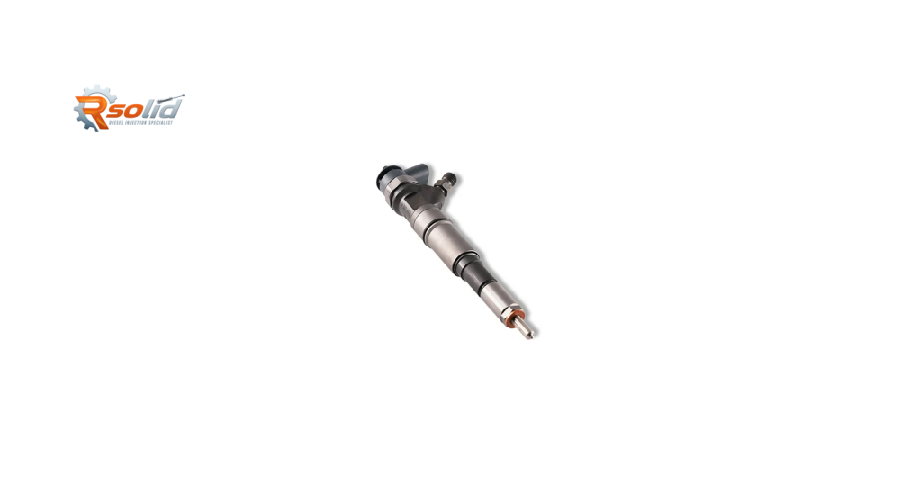

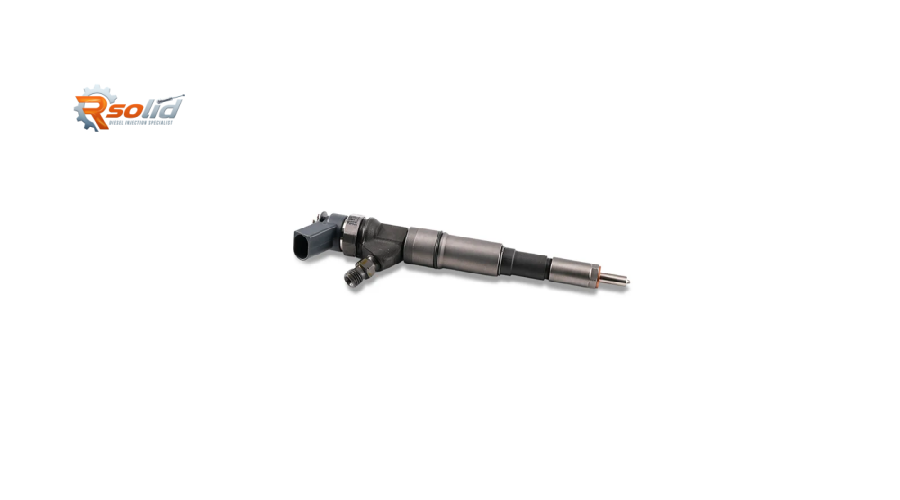

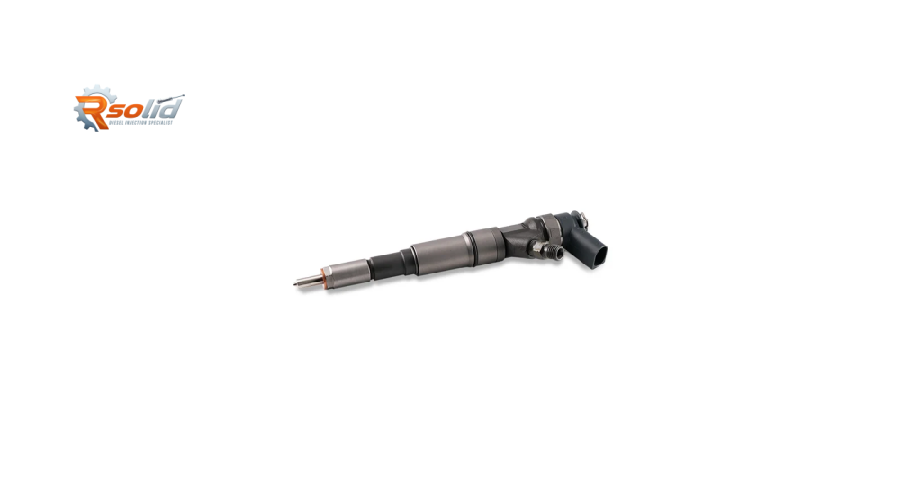

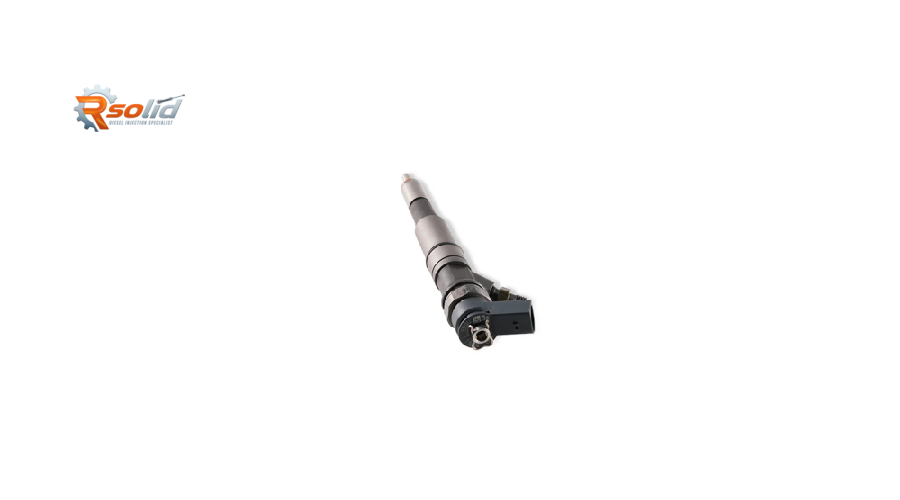

0445110216 Fuel Injector – Bosch Compatible Common Rail Injector for 204D4 Diesel Engine
The 0445110216 is a high‑performance common rail solenoid injector manufactured to Bosch specifications, specifically calibrated for the 204D4 engine – a widely used 2.0L – 2.2L diesel powerplant found in light commercial vehicles, SUVs, and passenger cars. This injector plays a critical role in achieving Euro 4 / Euro 5 emission standards while maintaining fuel efficiency and drivability. Below we examine its design advantages, exact engine compatibility, common wear indicators, step‑by‑step installation guidance, and why Rsolid engine parts is the preferred supplier.
1. Structural Advantages of the 0445110216 Injector
The 0445110216 belongs to Bosch’s CRI2‑20 family of solenoid injectors. Its construction delivers measurable benefits over earlier designs:
Two‑spring hydraulic servo – Unlike single‑spring designs, this injector uses a dual‑spring mechanism that provides more stable needle lift at varying rail pressures, reducing injection quantity drift over time.
Laser‑drilled 6‑hole nozzle with micro‑sac geometry – The sac volume is minimized (typically < 0.5 mm³), drastically reducing hydrocarbon emissions during idle and post‑injection events.
Hardened chromium‑plated plunger – Extends wear life when using ULSD (Ultra Low Sulfur Diesel) which has lower lubricity. The plating reduces friction against the injector body.
Integrated damping orifice – Suppresses pressure waves inside the injector, allowing the ECU to perform up to 5 injection events per cycle (pilot, pre, main, after, post) without cross‑talk between cylinders.
C44 magnetic circuit – Provides a fast magnetic decay time, ensuring the solenoid closes completely before the next injection event even at high engine speeds (above 4,000 rpm).
These engineering features translate to quieter cold starts, lower soot accumulation in the DPF, and consistent power output across the engine’s service life.
2. Compatible Engine & Vehicle Fitment (Detailed)
The 204D4 engine is a 2.0L (1,997 – 2,153 cc) common rail diesel used in several vehicle platforms. Below is the verified compatibility list:
| Engine Code | Displacement | Fuel System | Typical Applications |
|---|
| 204D4 | 2.0L (1997 cc) | Bosch CP1H / CP3 (1,600 bar) | Chinese light trucks (JAC, Foton, Dongfeng), SUVs (Great Wall, Landwind), some European vans |
Known vehicle models using the 204D4 engine with 0445110216 injectors:
JAC T6 / T8 diesel pickup (2.0 CTI)
Foton Tunland (2.0L diesel)
Great Wall Wingle 5 / 6 (2.0L GW4D20 engine – variant 204D4)
Dongfeng Rich series
Landwind X5 / X8 (2.0L diesel)
Zotye T600 (2.0L diesel version)
Always confirm – Remove one injector and check the 8‑digit Bosch number stamped on the body. Cross‑compatible part numbers include 0445110215, 0445110279, and 0445110338 (all require proper calibration and coding).
3. Common Failure Modes & Advanced Installation Advice
Specific failure patterns for the 0445110216 on 204D4 engines:
Coking of the nozzle tip – Caused by short trips without regeneration. Symptoms: white smoke on cold start, rough idle until warm. A professional ultrasonic cleaning may restore function, but replacement is safer.
Piezoelectric drift (not applicable – this is solenoid type) – No drift issues, but solenoid coils can develop intermittent shorts, triggering P0201–P0204 codes.
Leaking copper washer – Leads to combustion gas entering the fuel return system, causing hard starting after the engine sits overnight (air in fuel).
Return fuel line blockage – The 204D4 uses a cascade return system. A clogged banjo bolt filter (if fitted) can cause excessive back pressure, making injectors appear faulty.
Incorrect injector coding – The 0445110216 requires a 10‑character code. Using the wrong code (e.g., from a different injector) will cause cylinder imbalance > 5 mg/stroke, noticeable as vibration at 1,200–1,800 rpm.
Step‑by‑step replacement best practices tailored to the 204D4:
Disconnect battery negative – Prevents accidental cranking during work.
Remove fuel rail pressure sensor (optional) – Helps depressurize the rail. Wrap with a rag to catch diesel.
Clean around injectors – Use compressed air and brake cleaner to remove dirt before removing old injectors.
Remove old injectors – Use a slide hammer puller designed for common rail injectors. Never pry against the cylinder head.
Clean injector bores – Use a 14mm or 16mm injector seat reamer (depending on your 204D4 head). Rotate by hand only.
Install new copper washer – Apply a tiny amount of high‑temperature anti‑seize to the washer’s bottom (optional but helpful).
Lubricate O‑rings with clean diesel – Insert injector and hand‑tighten.
Torque injector clamp – For 204D4, typical 25 Nm (some variants 28 Nm). Never reuse clamp bolts – they are torque‑to‑yield.
Reconnect fuel return lines – Replace all crush washers on banjo bolts. Torque to 18 Nm.
Prime fuel system – Operate the hand primer (if fitted) until firm, or use a scan tool to run the lift pump for 30 seconds.
Code the injector – Using a diagnostic tool (e.g., Launch X431, Autel MaxiSys), go to “Injector Coding” and enter the 10‑digit IMA code from the injector label.
Start engine – It may crank longer than usual (air bleeding). Let idle for 2 minutes, then check for leaks.
Perform adaptation – Run engine at 2,500 rpm for 30 seconds, then idle. Clear any fault codes.
4. Why Rsolid Engine Parts Stands Out
Choosing Rsolid means you receive more than just a spare part:
New build, not remanufactured – All 0445110216 injectors are newly manufactured to Bosch specifications, not reconditioned units with unknown history.
Calibration certificate included – Each injector comes with a flow test report showing balance across multiple pressure points (±2% tolerance).
Ready‑to‑code packaging – The 10‑character IMA code is clearly laser‑marked and also supplied on a separate sticker for easy scanning.
Direct support for 204D4 owners – Our technical team has specific knowledge of Chinese 2.0L common rail engines.
Volume discounts for fleets – Contact us for pricing on sets of 4 injectors.
12‑month, no‑hassle warranty – Covers any manufacturing defect or premature leakage.
