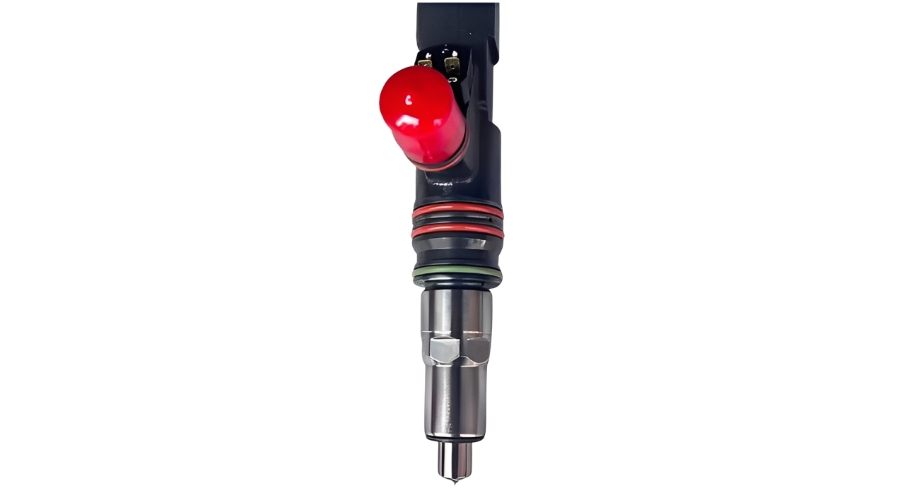

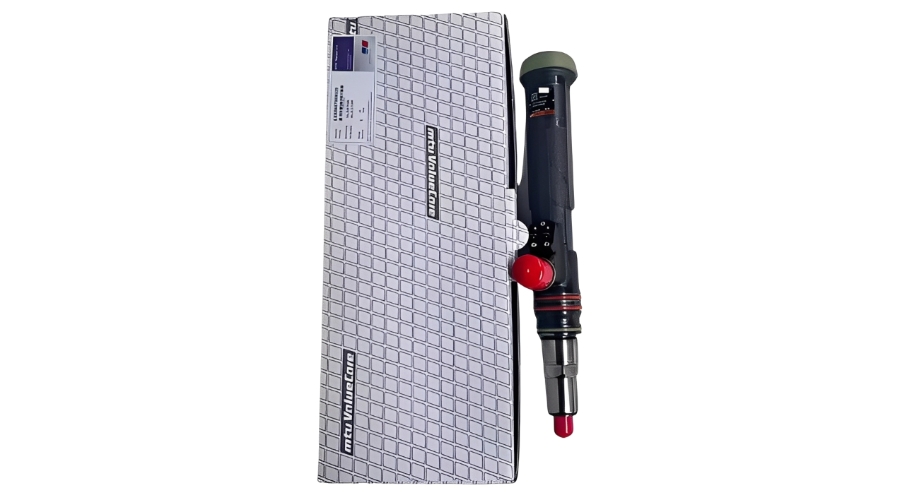

Application: MTU 12V4000 G23 / G43
This confirms the injector is designed for the 12-cylinder, V-configuration, Series 4000 engine from MTU.
12V4000: The engine model (12 cylinders, V-configuration, 4000 series).
G23 / G43: These are specific engine rating codes. These codes define the engine's power output, torque curve, and application (e.g., marine propulsion, marine auxiliary, power generation). An injector for a G23/G43 rating is calibrated for the specific performance and emissions requirements of that rating.
It is critical to use the injector specified for your engine's exact rating. An injector from a different rating (e.g., G61, G62) may not function correctly and can cause serious engine damage.
Key Features and Specifications
Type: This is a Unit Injector, specifically a Bosch EUI (Electronic Unit Injector) or a similar generation. The fuel pumping and injection are combined into a single unit, controlled by the engine's ECM (Electronic Control Module).
Compatibility: While it fits the 12V4000 engine physically, it is calibrated for the G23/G43 ratings. It is not necessarily interchangeable with other 12V4000 ratings without an ECM recalibration.
Critical Note: When replacing unit injectors, it is often required to also replace the high-pressure solenoid valve (a part of the injector) and sometimes the injector hold-down clamp. Furthermore, the engine's ECM may need to be reprogrammed with calibration codes specific to each new injector—a process known as "coding" or "trimming." This work must be performed by a qualified technician.
What to Do Next / Important Considerations
Verify Your Engine's Nameplate: Double-check the full engine model and rating code on your engine's nameplate. It should read something like "12V 4000 G23" or "12V 4000 G43".

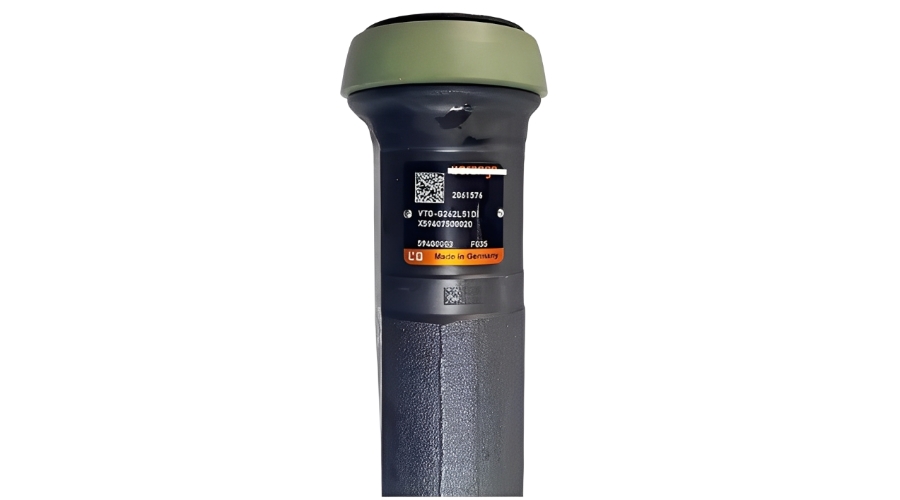

Check the Old Injector: The part number X59407500020 or the Bosch number 0445110376 is often stamped or printed on the injector body itself.

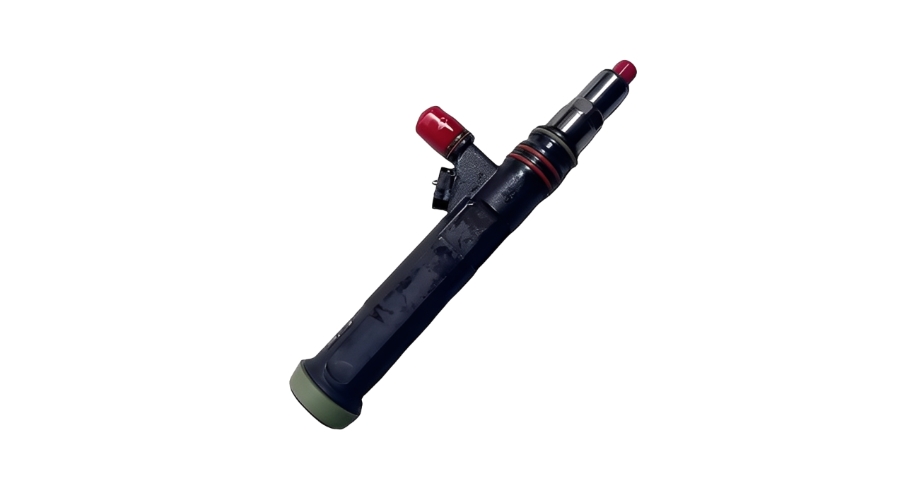

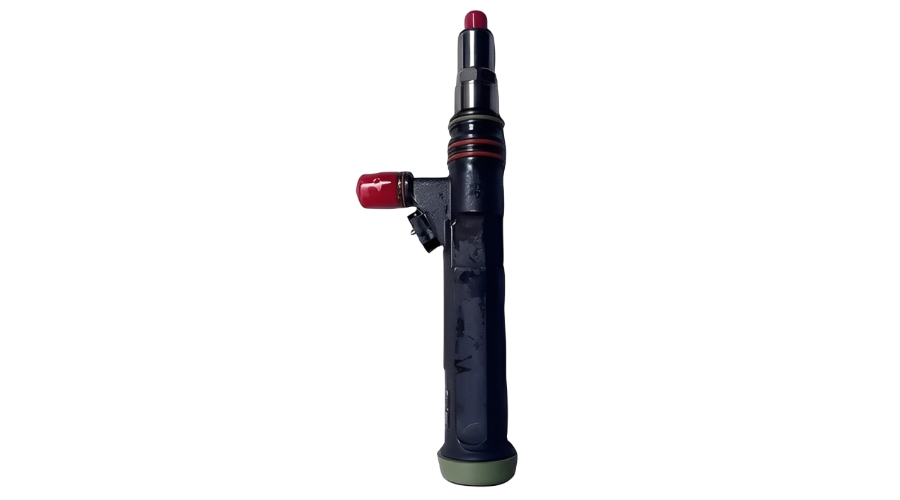

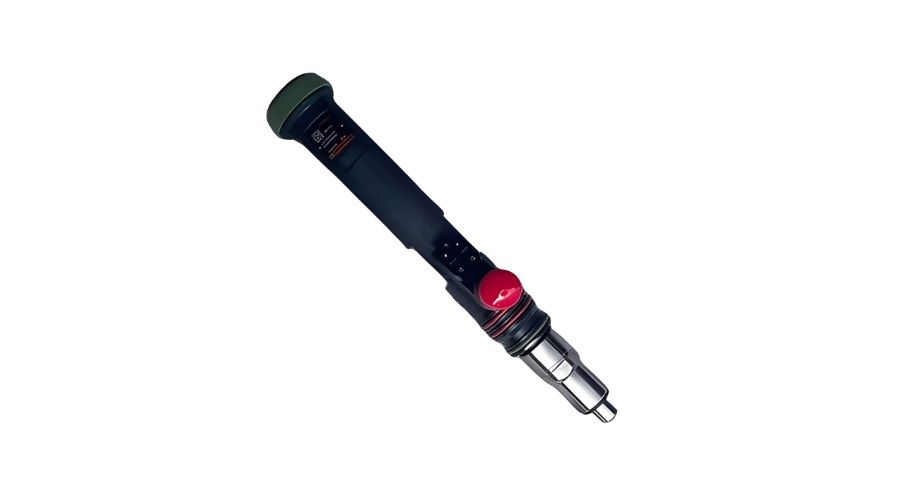

Here is a brief description of the structural characteristics and advantages of the MTU X59407500020 fuel injector (a Bosch EUI type).
Structural Characteristics
Integrated Unit Design: The injector combines the high-pressure pump and the injection nozzle into a single, compact unit. This eliminates the need for a separate high-pressure fuel pump and long high-pressure lines.
Solenoid-Valve Controlled: It features a high-speed electromagnetic solenoid valve at the top. This valve precisely controls the timing and duration of the injection event based on electronic signals from the engine's control unit (ECM).
Camshaft-Driven Actuation: The injector's internal pump plunger is actuated by a dedicated lobe on the engine's camshaft. This provides the very high mechanical force needed to generate injection pressures.
Multi-Hole Nozzle: The tip uses a precision-machined nozzle with several microscopic holes (e.g., 6-8 holes) that atomize the fuel into a fine mist for optimal combustion.
Key Advantages
Very High Injection Pressure: By generating pressure directly at the cylinder, it achieves extremely high pressures (up to 2,500+ bar), leading to superior fuel atomization.
Precise Electronic Control: The ECM can independently and precisely control the exact timing and amount of fuel for each cylinder, optimizing performance for every operating condition.
Reduced Hydraulic Losses: Eliminating long high-pressure fuel lines reduces pressure losses and the risk of pressure waves, ensuring more consistent fuel delivery.
High Efficiency and Low Emissions: The combination of high pressure and precise control results in cleaner, more complete combustion, which improves fuel economy and significantly reduces particulate matter and NOx emissions.
