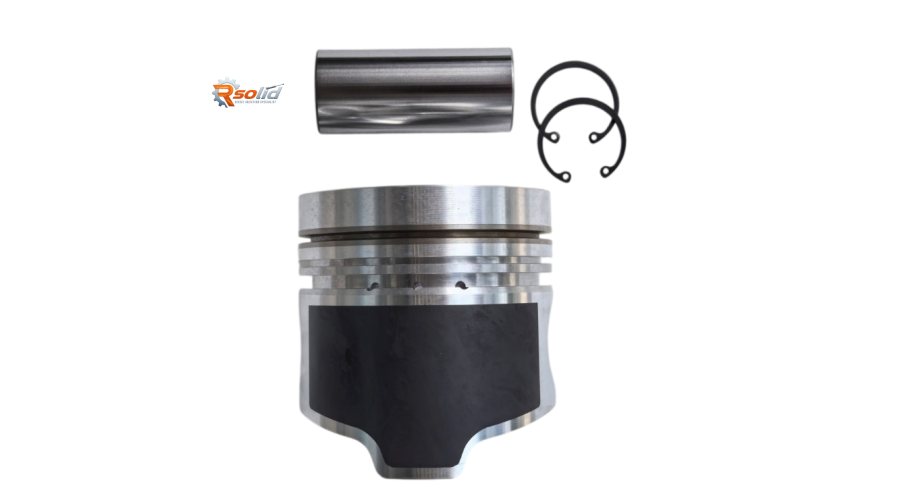

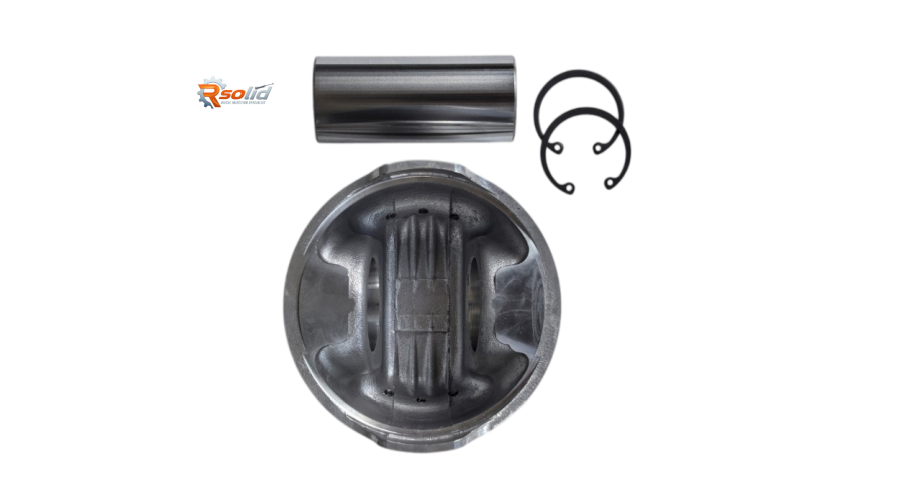

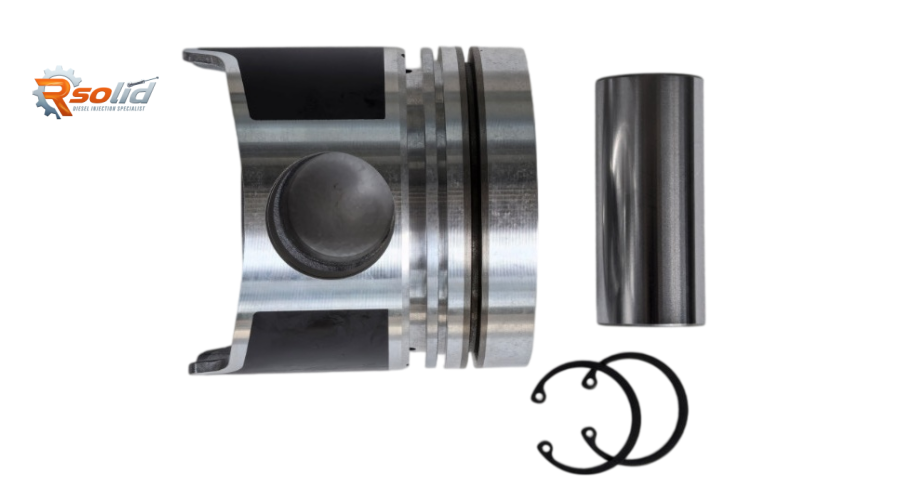

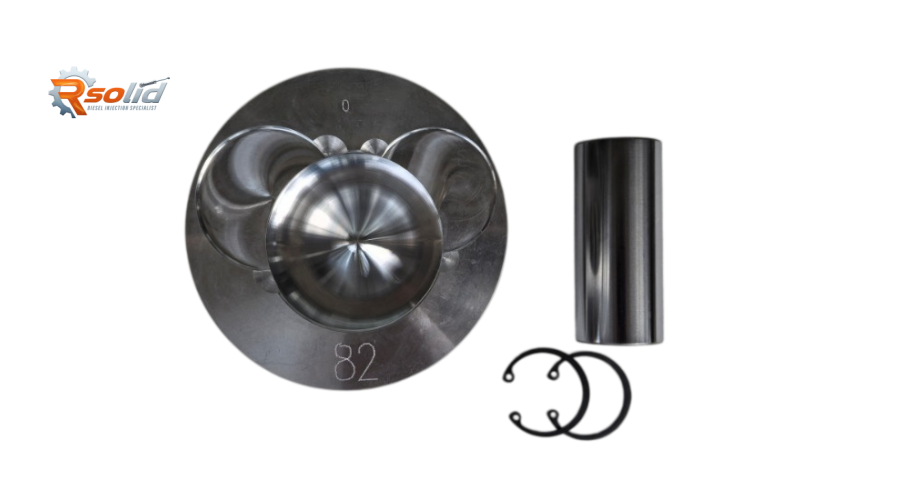

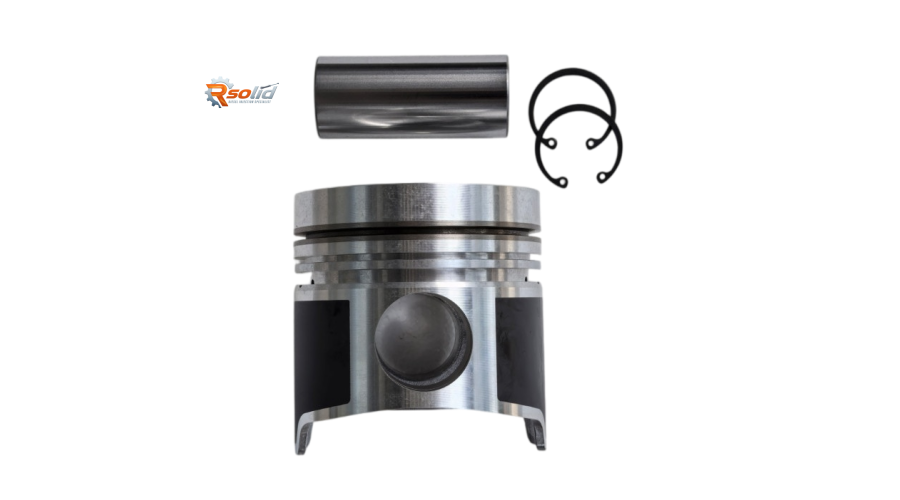

For operators of Hino W04CT engines – whether in light‑duty trucks, buses, construction equipment, or industrial power generation – a major overhaul demands components that deliver reliability, durability, and precise fitment. The 13211-2141 piston is a premium, OEM‑grade replacement engineered specifically for the W04CT platform, delivering exceptional strength, precise dimensional accuracy, and the performance required for long‑term service.
As a 4‑cylinder inline engine, the W04CT is known for its compact design, fuel efficiency, and dependable power delivery – making the quality of replacement components critical to maintaining these characteristics. Available as a bare piston or as part of a complete overhaul kit, this piston is designed to meet Hino's exacting standards. In this comprehensive guide, we examine its advanced construction, compatible engine variants, common failure signs, professional installation best practices,
1. Structural Features & Advantages of the 13211-2141 Piston
The 13211-2141 is a precision‑engineered piston incorporating several advanced design features to withstand the demands of W04CT duty cycles:
Premium aluminium‑silicon alloy – Manufactured from a high‑grade eutectic aluminium‑silicon alloy (Al‑Si12CuMgNi), this material provides an exceptional balance of lightweight construction, high thermal conductivity, and low thermal expansion. The elevated silicon content (12‑13%) offers outstanding scuff resistance, preventing piston‑to‑cylinder galling during cold starts and sudden load changes.
Ni‑Resist® austenitic ring groove insert – The top compression ring groove is reinforced with a high‑nickel cast iron insert that resists micro‑welding and groove wear at peak firing temperatures (exceeding 2,000°C). This critical feature maintains proper ring seating and combustion sealing over thousands of operating hours, preventing costly blow‑by and power loss.
Optimised skirt profile with anti‑friction coating – The piston skirt features a computer‑modelled ovality and barrel shape to accommodate thermal expansion uniformly. It is coated with a molybdenum disulphide (MoS₂) or graphite‑based solid lubricant layer, which reduces friction during the initial break‑in period, minimises scuffing risk, and promotes rapid ring seating for immediate oil control.
Integral cooling gallery (oil‑cooled crown) – An enclosed oil channel is cast directly beneath the piston crown. During operation, pressurised engine oil is sprayed from the connecting rod jets into this gallery, actively dissipating combustion heat. This reduces the piston crown temperature by as much as 25‑30°C, significantly extending fatigue life and reducing the risk of thermal cracking.
Precision‑weight matched sets – Each piston is machined to a strict weight tolerance of ±5 grams within a factory‑matched set. This ensures perfect dynamic balance across all four cylinders, reducing crankshaft torsional vibration, minimising bearing wear, and delivering smoother operation.
Premium piston pin compatibility – The pin bore is precision‑honed to accept a fully floating piston pin (sold separately). Some variants include a bronze or tin‑indium bushing to provide an additional bearing surface, reducing pin noise and ensuring long‑term durability.
Direct drop‑in fit – The 13211-2141 is dimensionally identical to the original Hino piston, requiring no block machining or custom modifications for installation.
Operational benefits for equipment owners and engineers:
Reduced oil consumption – Optimised ring groove geometry and anti‑wear coatings minimise oil bypass past the rings.
Improved fuel economy – Restored compression ratios and precise crown height translate to better thermal efficiency and lower specific fuel consumption.
Extended overhaul intervals – With proper fuel, air filtration, and coolant maintenance, this piston reliably delivers extended service life.
Smoother, quieter operation – Weight‑matched sets and the anti‑scuff skirt coating reduce engine vibration and mechanical noise.
100% direct drop‑in fit – Identical to the original Hino piston in all critical dimensions – no modifications required.
2. Compatible Engine Models & Typical Applications
The 13211-2141 piston is specifically engineered for the Hino W04CT engine – a 4‑cylinder, inline, 4‑stroke, water‑cooled diesel engine widely used in light‑duty and medium‑duty applications.
| Engine Model | Configuration | Typical Applications |
|---|
| Hino W04CT | 4‑cylinder inline | Light‑duty trucks, buses, construction equipment, agricultural machinery |
| Hino W04CT (Genset variants) | 4‑cylinder inline | Prime and standby power generation |
| Hino W04CT (Industrial) | 4‑cylinder inline | Compressor drives, pumping stations, material handling equipment |
Engine Specifications (W04CT):
Cylinder configuration: 4 in‑line
Method of operation: 4‑cycle, water‑cooled, direct injection, turbocharged
Bore x stroke: OEM standard – verify with engine manual
Typical power output: 80‑130 HP (depending on variant)
Critical cross‑reference: The 13211-2141 is a genuine Hino service part number for standard‑size pistons in the W04CT series. Oversize pistons may be available (+0.25mm, +0.50mm) – confirm your cylinder liner bore measurement and engine serial number before ordering. This piston is typically supplied as a bare unit; piston rings, pin, and circlips are ordered separately or as part of a complete overhaul kit.
3. Common Failure Modes & Installation/Replacement Recommendations
Typical Warning Signs Your Piston Needs Replacement
Excessive blow‑by – Pressurised gases escaping into the crankcase, causing oil mist from the breather tube and reduced engine power.
High oil consumption with blue exhaust – Continuous blue smoke at operating temperature indicates worn ring grooves, a scored skirt, or a cracked ring land allowing oil to enter the combustion chamber.
Piston slap / metallic knocking – A hollow, metallic tapping noise, especially noticeable during cold starts, points to excessive piston‑to‑cylinder clearance due to skirt wear or ovality.
Loss of compression / hard starting – Difficulty starting the engine, rough idle, and reduced load‑carrying capacity signal a cracked piston crown or severely worn rings.
Metal particles in the oil – Finding aluminium or iron debris in the oil filter or sump indicates a piston in the early stages of catastrophic failure – immediate investigation is required.
Professional Installation Best Practices
Installing a new 13211-2141 piston requires meticulous preparation and precise execution. Follow these essential steps:
Thorough cylinder bore inspection – Before installation, measure the cylinder liner bore at top, middle, and bottom positions (both in the thrust and non‑thrust axes) using a dial bore gauge. Verify that the bore is within service limits and that the correct oversize piston matches the existing bore.
Piston ring end‑gap verification – Install the new rings into the cylinder bore (without the piston) and measure the ring end gaps using a feeler gauge. If the gap is too small, carefully file the ends with a ring filing tool. Never file rings on a used piston – always use the rings intended for the new piston.
Ring installation – Use a proper ring expander to fit the rings onto the piston. Never roll the rings over the piston skirt – this can scratch the MoS₂ coating. Ensure the ring markings face upward. Stagger the ring gaps at 120° intervals, ensuring they are positioned away from the thrust sides of the piston.
Lubrication – Coat the piston skirt, rings, and cylinder bore with clean engine oil or a high‑quality assembly lubricant. Lightly lubricate the piston pin and pin bore as well.
Connecting rod assembly – Attach the piston to the connecting rod using the piston pin. If using a fully floating pin, install new circlips and ensure they are fully and securely seated. Never reuse circlips.
Piston installation into cylinder – Use a high‑quality ring compressor to uniformly compress all rings. Gently tap the piston into the cylinder bore using a soft‑faced mallet. The piston should slide smoothly – if excessive force is required, stop and check for ring misalignment or incorrect ring gap.
Connecting rod bolt torque – Tighten the connecting rod bolts to the manufacturer's specified torque. Always use a calibrated torque wrench and angle gauge for accuracy.
Break‑in procedure – After complete reassembly, start the engine and run at low idle (no load) for 15‑20 minutes. Gradually apply load over the next 8‑10 hours. Change the engine oil and filter after the initial break‑in period.
4. Why Rsolid Engine Parts Is Your Preferred Global Supplier
Rsolid Engine Parts has been a trusted supplier of Hino, Mitsubishi, Yanmar, and Caterpillar diesel components for over 15 years, serving fleets, power plants, and workshops across six continents. Here is why the 13211-2141 piston from Rsolid is the intelligent choice:
OEM‑equivalent manufacturing – Sourced from ISO 9001:2015 and IATF 16949 certified foundries, using identical materials and processes as genuine Hino service pistons.
100% dimensional and weight inspection – Every piston is measured and weight‑matched to guarantee perfect engine balance.
Complete repair kit options – We offer this piston as a bare unit, with premium ring sets, or as a full overhaul kit.
Global inventory and rapid dispatch – Strategically warehoused in Asia, Europe, and North America, ensuring 3‑7 working day delivery to most international ports and airports.
Competitive wholesale pricing – Attractive volume discounts for workshops, fleet operators, and parts distributors.
Free expert technical support – Our in‑house engineers provide installation guides, torque specifications, and troubleshooting via WhatsApp or email.
Solid warranty – 12 months / 2,000 operating hours against casting defects, premature wear, and material failures.
Contact Rsolid Engine Parts Today
📧 Email: amy@rinjector.com
📱 WhatsApp: +86 15975376778
Whether you need a single 13211-2141 piston for a running repair or a full set of four pistons for a complete Hino W04CT overhaul, Amy and her team will provide a detailed quotation, stock confirmation, and shipping schedule within 2 hours. We also supply complementary parts – piston rings, cylinder liners, connecting rods, bearing shells, and gasket sets – for comprehensive engine rebuilds.
