37517-18100 Piston Pin Suit for Mitsubishi S6R / S12R / S16R Diesel Engines
Structural Features and Advantages

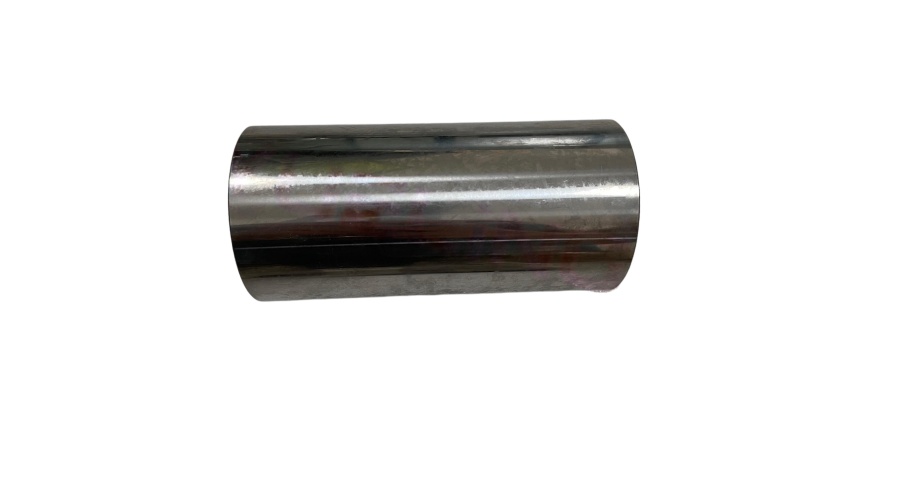

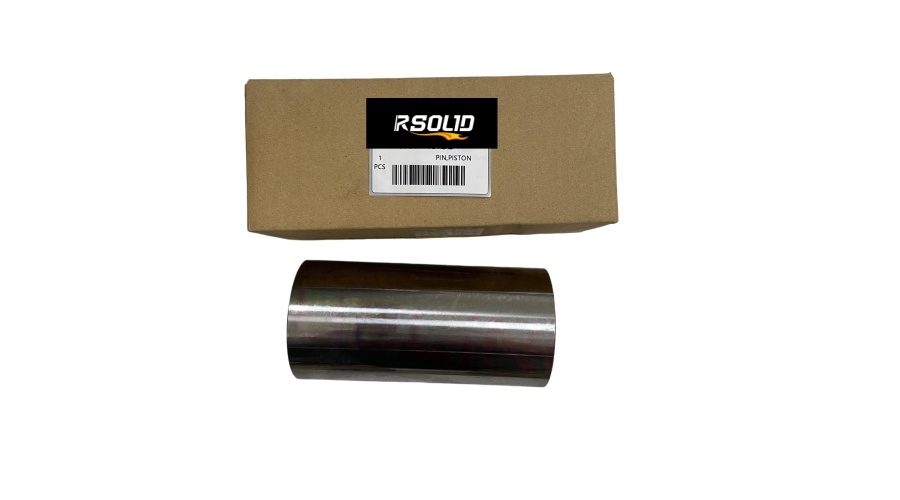

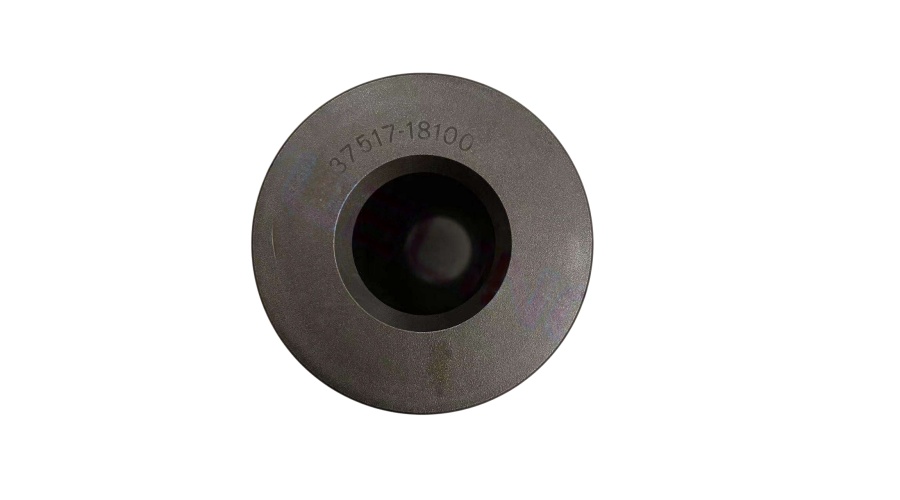

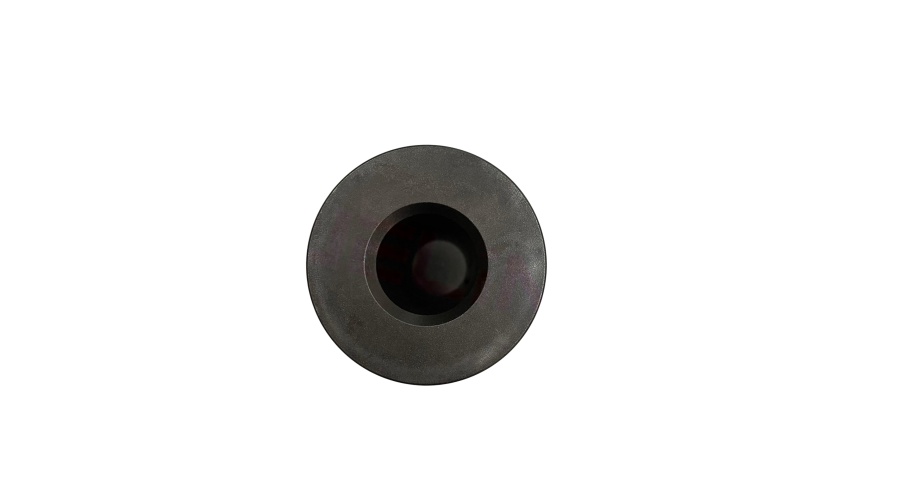

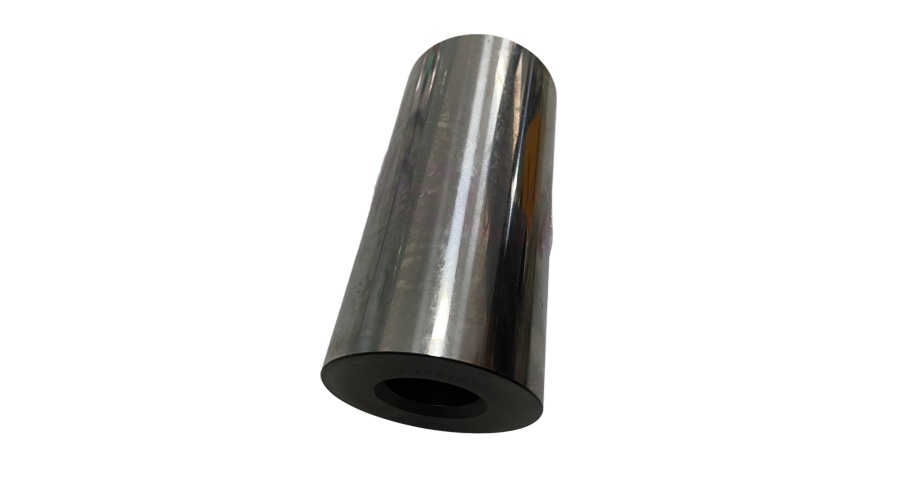

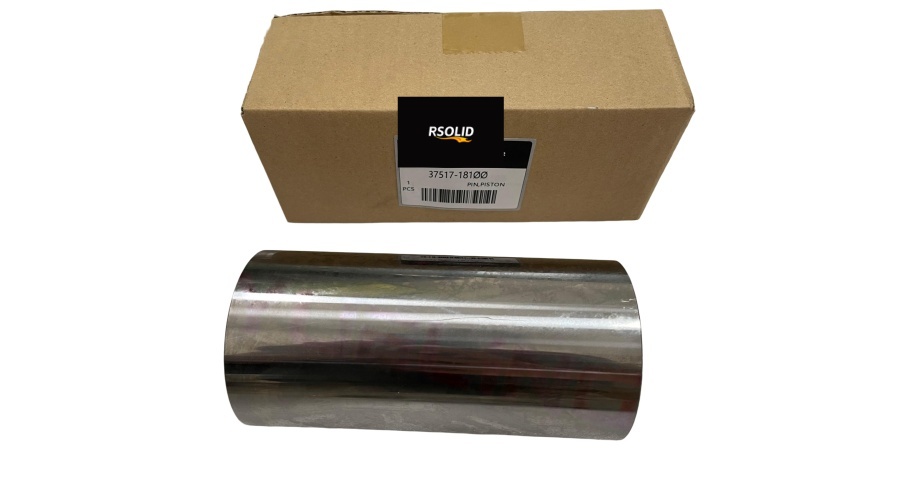

The 37517-18100 piston pin suit (also known as a wrist pin or gudgeon pin) is a precision-engineered component designed for the high-performance Mitsubishi S6R, S12R, and S16R heavy-duty diesel engine families. This suit typically includes the piston pin (fully floating type) and a pair of retaining rings (circlips) for secure axial retention. Structurally, the pin is manufactured from case-hardened nickel-chromium-molybdenum alloy steel (similar to SAE 8620 or 9310) with a deep carburized layer of 0.8–1.2 mm and a core hardness of 30–36 HRC, providing exceptional resistance to bending fatigue and surface pitting. The outer diameter is precision ground to a mirror finish (Ra ≤ 0.2 μm) and features a slight barrel shape (crowned profile) to distribute contact pressure evenly across the piston pin bore and connecting rod small-end bushing. Internal construction is often a tapered hollow bore or stepped diameter to reduce reciprocating mass without sacrificing strength. Key advantages of the 37517-18100 piston pin suit include: reduced friction and wear due to hydrodynamic lubrication capability, elimination of piston pin noise (cold slap) because of optimized clearance, and compatibility across three different engine displacements (14L S6R to 65L S16R) – a major benefit for fleet operators who can stock a single pin part number for multiple engine rebuilds.
Core Working Principle
The piston pin serves as the critical articulation point between the piston and the connecting rod, converting the reciprocating motion of the piston into rotational motion of the crankshaft via the connecting rod. In the S6R, S12R, and S16R engines, the 37517-18100 pin operates in a fully floating configuration: it rotates both within the piston pin bore and within the connecting rod small-end bushing during engine operation. During the power stroke, the downward force from combustion (exceeding 15 tons of peak load on the S16R piston) is transmitted through the pin to the connecting rod. The hardened surface of the pin rides on a thin oil film supplied through a drilled passage in the connecting rod and small-end bushing (or via splash lubrication in some variants). The barrel profile ensures that the highest contact pressure occurs at the center of the pin, minimizing edge loading and preventing micro-welding under high-temperature, high-load conditions. The two retaining circlips limit axial movement to approximately 0.2–0.5 mm, preventing contact with the cylinder wall. Because the same basic pin design works across all three engine families (only the connecting rod small-end width changes, accommodated by different circlip groove positions), the 37517-18100 maintains consistent bearing area and load capacity from 6 to 16 cylinders.
Main Application Equipment
The 37517-18100 piston pin suit is used in engine rebuilds and repairs for Mitsubishi S6R, S12R, and S16R diesel engines found in:
Heavy-duty generator sets (300 kW to over 2000 kW) for mining operations, data centers, and oil & gas facilities.
Marine main propulsion systems for tugboats, ferries, coastal cargo vessels, offshore supply vessels (OSV), and yacht auxiliary power units.
Railway locomotives for freight and passenger service in regional networks.
Large construction machinery such as hydraulic excavators (90–120 ton class), bulldozers, and wheel loaders powered by S6R or S12R engines.
Agricultural irrigation pumps and drainage stations requiring continuous duty for months.
Gas compression stations driving reciprocating compressors in natural gas pipeline networks.
Crushers, screens, and asphalt plants with stationary S12R or S16R engines.
Because the S6R, S12R, and S16R engines share the same piston diameter (170 mm for many S-series variants) and pin diameter, the 37517-18100 is specified as a common repair part for hundreds of equipment models worldwide.
Common Failure Symptoms & Repair/Replacement Guidelines
Failure symptoms indicating a worn or damaged 37517-18100 piston pin in an S6R/S12R/S16R engine:
Knocking noise that decreases as engine warms – Classic piston pin knocks (a sharp, double rapping sound) that is most audible during idle or light load and often disappears or reduces at higher RPM.
Intermittent metallic tapping at specific engine speeds, caused by excessive pin-to-bushing clearance (beyond 0.08 mm).
Scuffing or galling marks on the pin surface found during teardown – indicates oil starvation or excessive clearance leading to metal-to-metal contact.
Broken or displaced retaining rings – Can lead to axial pin movement causing scoring of the cylinder liner and eventual catastrophic failure.
Engine vibration at all speeds due to uneven reciprocating weight if pins have been mixed from different sources without weight matching.
Repair and replacement points:
Always replace the 37517-18100 piston pin suit as a complete set with new retaining rings – never reuse old circlips as they lose spring tension.
Before installation, measure the pin outer diameter and the piston pin bore ID (factory specification: pin OD = 60.00 mm ±0.004 mm, piston bore = 60.025 – 60.045 mm). Clearance should be 0.025–0.045 mm for floating pins.
Inspect the connecting rod small-end bushing. Replace the bushing if pin-to-bushing clearance exceeds 0.06 mm. The bushing must be reamed or honed to final size after pressing into the rod.
Verify that the pin surface is free of scratches, rust, or heat discoloration. Even minor surface defects can become crack initiation points under the cyclic loads of an S16R engine.
When installing the piston into the cylinder, use a protective sleeve over the connecting rod bolts to prevent bolt threads from damaging the pin or cylinder wall.
Circlip installation method: insert one circlip into the piston groove first, then position the pin, then install the second circlip. Use circlip pliers; never stretch the circlip beyond its elastic limit.
After full engine assembly, rotate the crankshaft by hand to ensure no binding. A slight “clunk” when reversing rotation is normal for floating pin designs.
Why Choose Rsolid Engine Parts for the 37517-18100 Piston Pin Suit
Rsolid Engine Parts (www.rinjector.com) offers OE-quality 37517-18100 piston pin suits for Mitsubishi S6R, S12R, and S16R engines, manufactured to exacting Japanese industrial standards. Competitive advantages of sourcing from Rsolid include:
Exact material certification – Each pin is supplied with a material test report (MTR) showing chemical composition, case depth, and core hardness, traceable to the heat lot.
Precision ground profile – The barrel shape and surface finish are verified with profilometers to ensure proper lubrication retention.
Weight matched sets – Pins are sorted to ±1 gram for use in multi-cylinder engines (S12R and S16R require tight reciprocating mass balance).
Genuine-style retaining rings – Spring steel circlips with chamfered edges for easy installation and secure retention in deep-groove pistons.
Ready inventory – Hundreds of units in stock; same-day shipping for most orders received before 2 PM (GMT+8).
Technical support – Free guidance on measuring clearances, selecting correct bushings, and torque sequencing via WhatsApp.
Purchase the 37517-18100 piston pin suit for your Mitsubishi S6R, S12R, or S16R engine overhaul directly from Rsolid Engine Parts. Contact WhatsApp: +8615975376778 or visit www.rinjector.com to request a quote.
