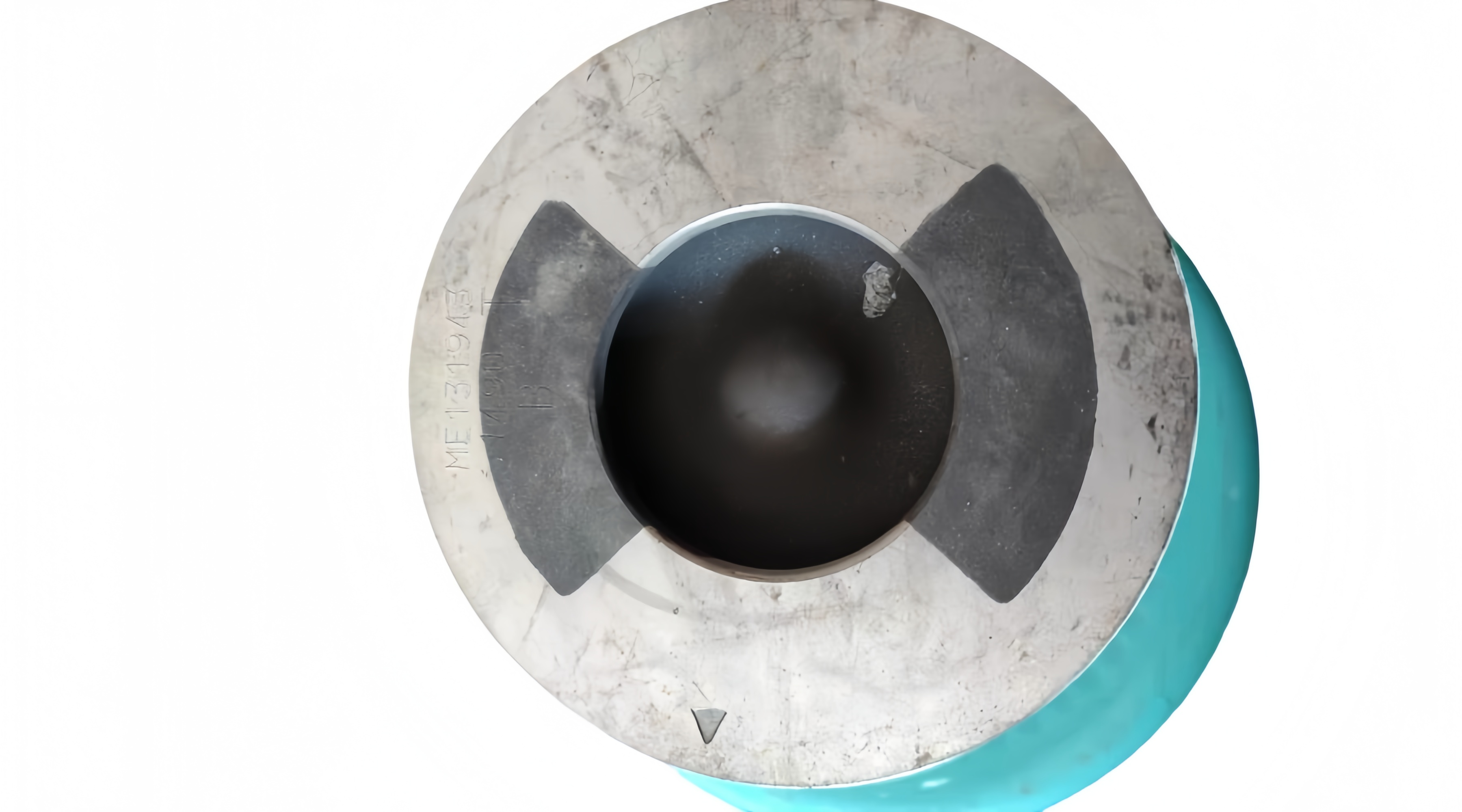

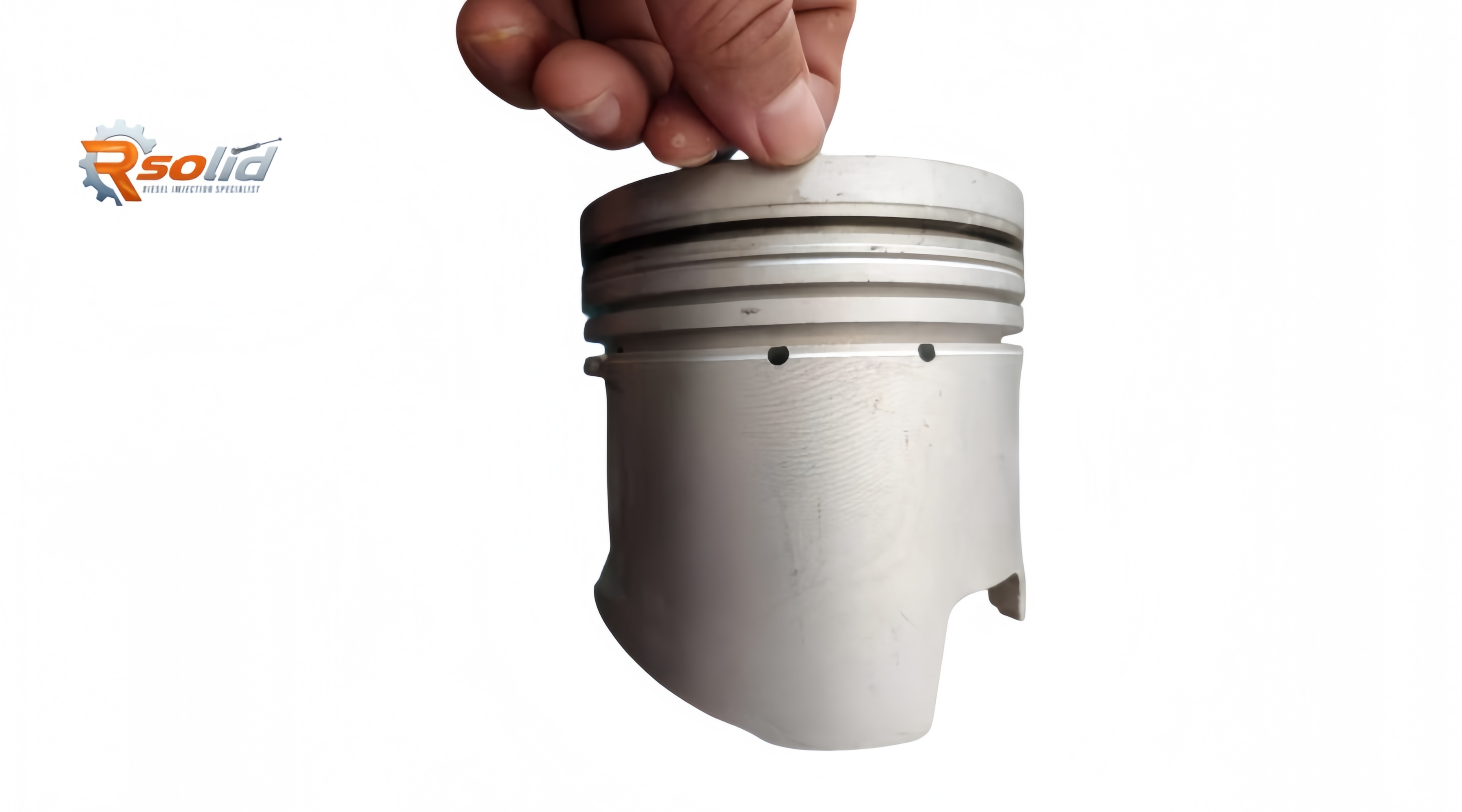

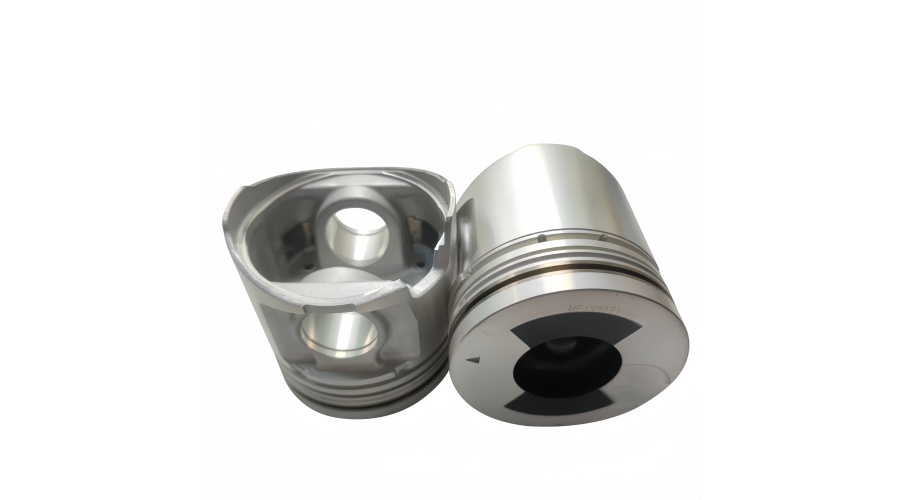

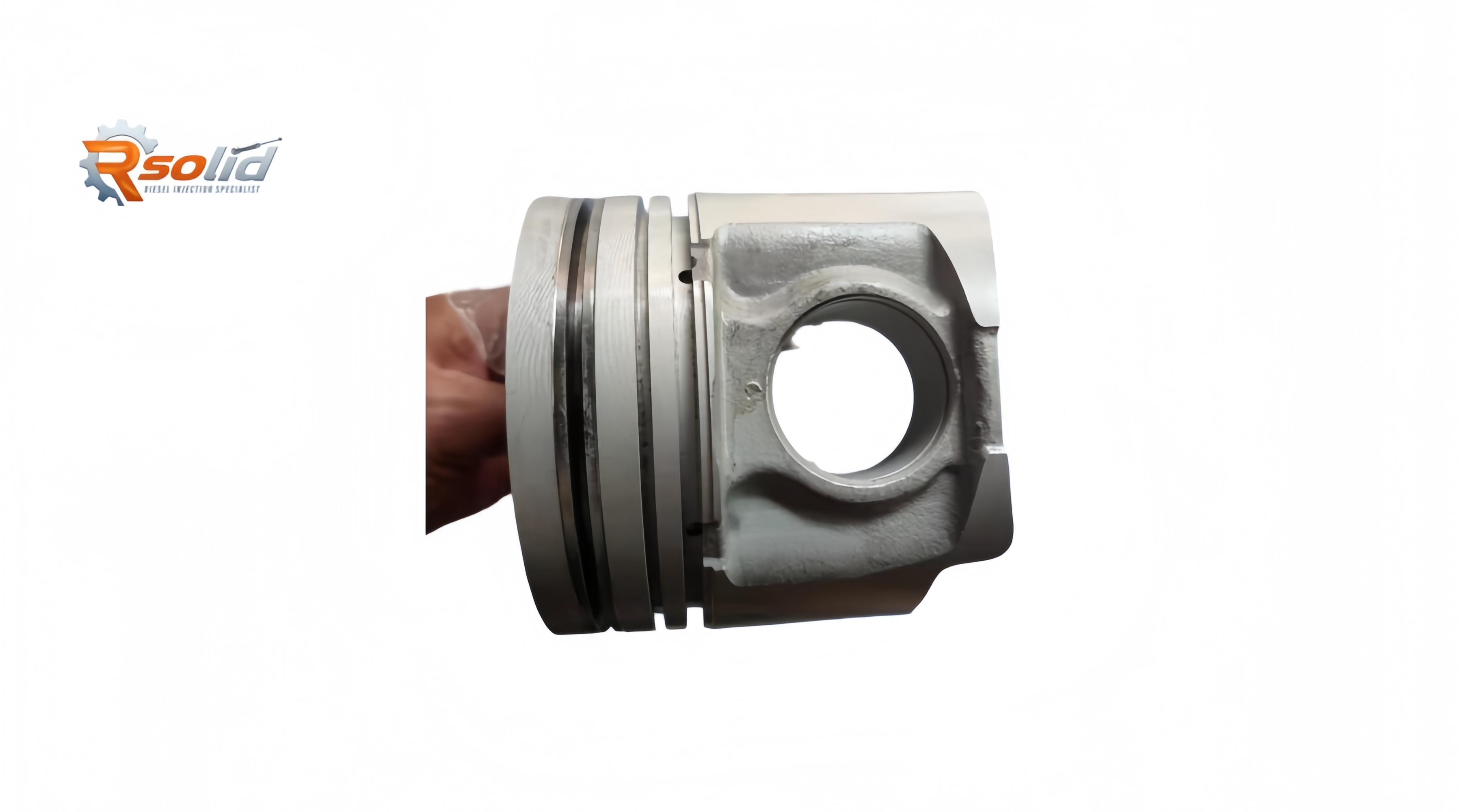

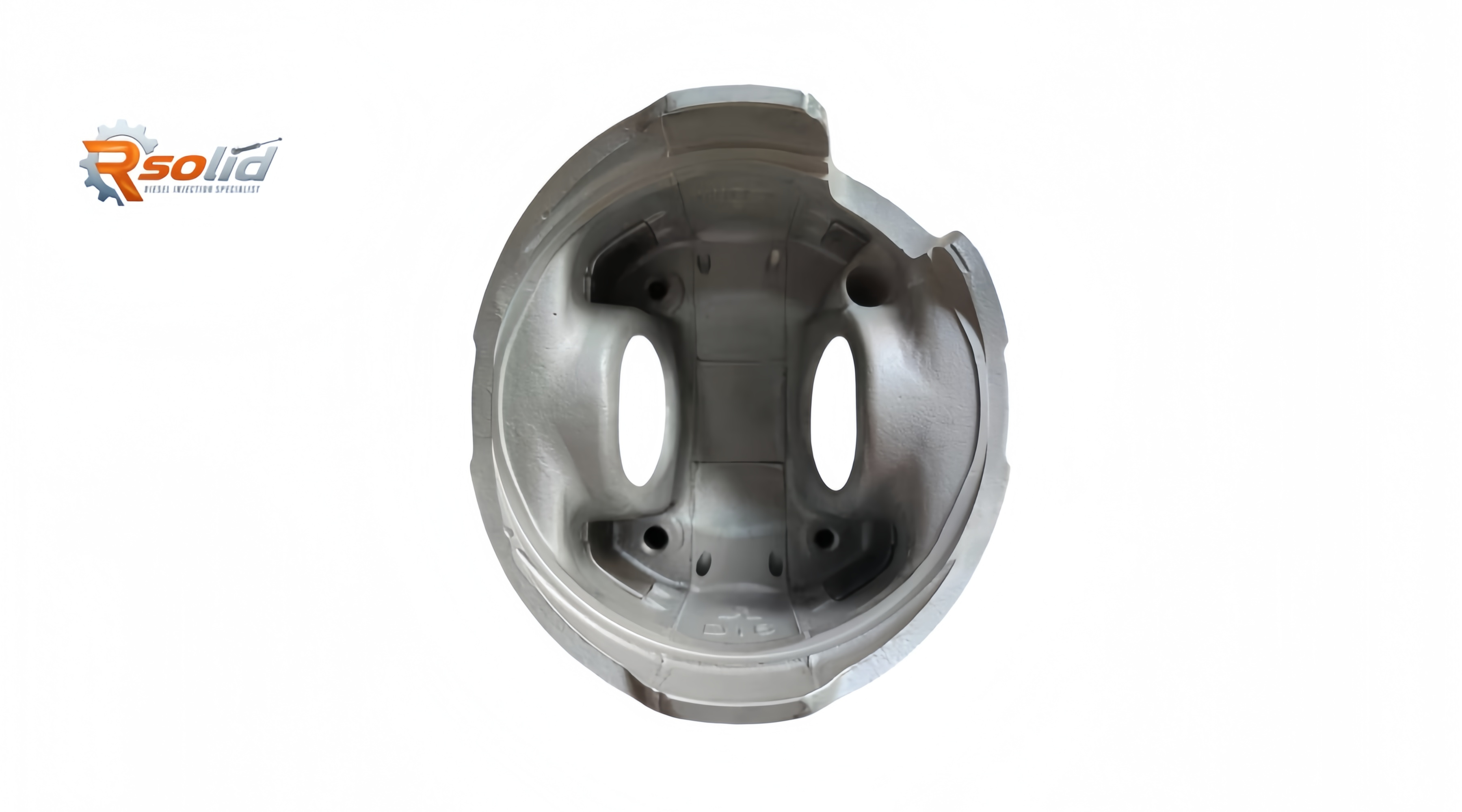

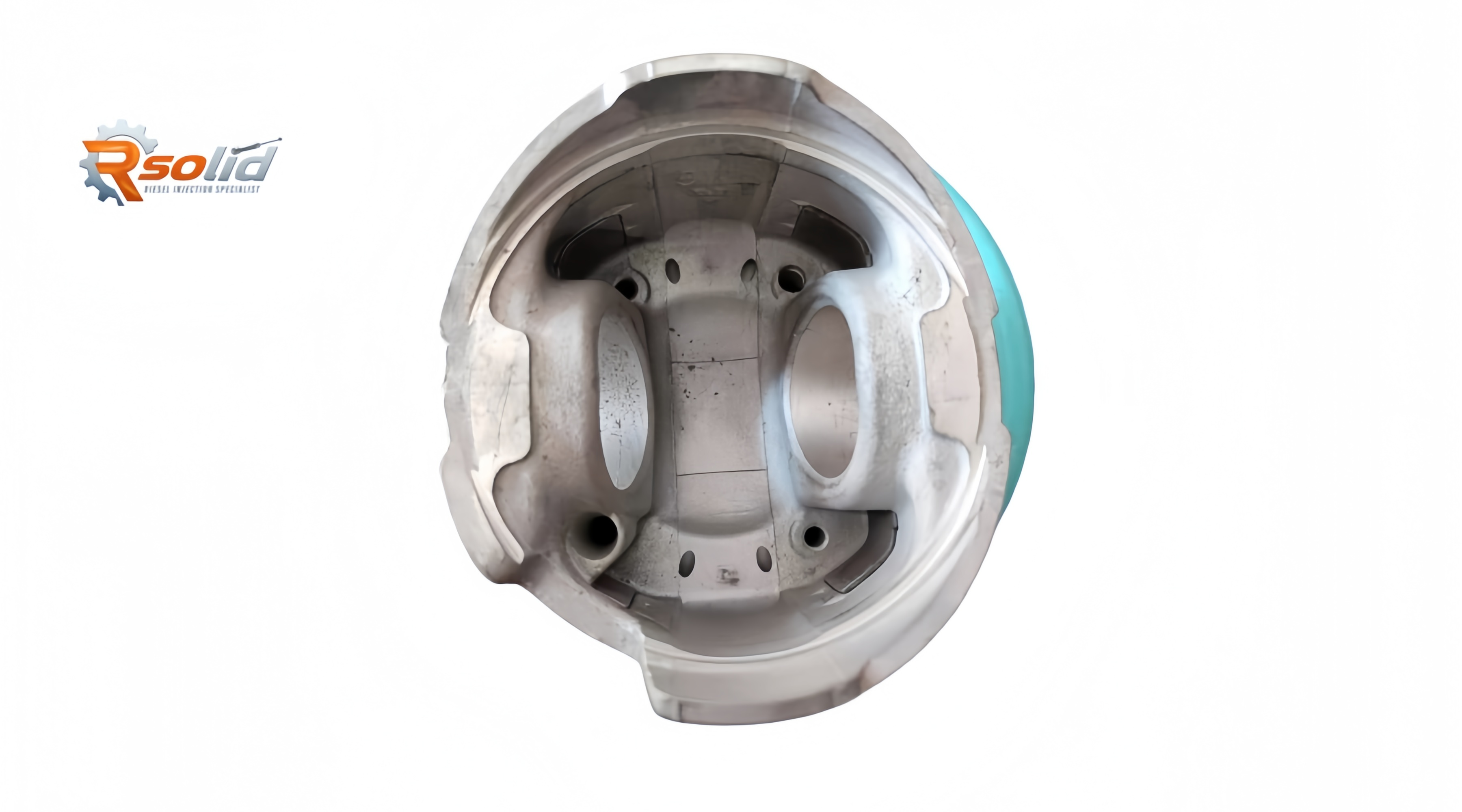

Me131940 Piston – OEM-Quality Replacement for Mitsubishi 6M60 Diesel Engine
For operators of Mitsubishi 6M60 engines – whether in heavy-duty trucks, construction equipment, buses, or industrial power generation – the piston is one of the most critical components in the combustion chamber. It must withstand extreme cylinder pressures, intense thermal cycling, and continuous reciprocating motion – all while maintaining a perfect seal and efficient heat transfer. The Me131940 piston is a premium, OEM-grade replacement engineered specifically for the 6M60 diesel engine, delivering exceptional durability, precise dimensional accuracy, and a direct drop-in fit.
Available as a bare piston or as part of a complete overhaul kit, this piston is designed to meet Mitsubishi Heavy Industries' exacting standards. In this comprehensive guide, we examine its advanced construction, compatible engine variants, common failure signs, professional installation best practices, and why Rsolid Engine Parts is the preferred global supplier for Mitsubishi engine components.
1. Structural Features & Advantages of the Me131940 Piston
The Me131940 is a precision-engineered piston incorporating several advanced design features to withstand the high-load demands of 6M60 duty cycles:
Premium aluminium-silicon alloy – Manufactured from a high-grade eutectic aluminium-silicon alloy (typically Al-Si12CuMgNi), this material provides an exceptional balance of lightweight construction, high thermal conductivity, and low thermal expansion. The elevated silicon content (12-13%) offers outstanding scuff resistance, preventing piston-to-cylinder galling during cold starts and sudden load changes – a common challenge in heavy-duty applications.
Ni-Resist® austenitic ring groove insert – The top compression ring groove is reinforced with a high-nickel cast iron insert that resists micro-welding and groove wear at peak firing temperatures (exceeding 2,000°C). This critical feature maintains proper ring seating and combustion sealing over thousands of operating hours, preventing costly blow-by and power loss.
Optimised skirt profile with anti-friction coating – The piston skirt features a computer-modelled ovality and barrel shape to accommodate thermal expansion uniformly. It is coated with a molybdenum disulphide (MoS₂) or graphite-based solid lubricant layer, which reduces friction during the initial break-in period, minimises scuffing risk, and promotes rapid ring seating for immediate oil control.
Integral cooling gallery (oil-cooled crown) – An enclosed oil channel is cast directly beneath the piston crown. During operation, pressurised engine oil is sprayed from the connecting rod or crankcase jets into this gallery, actively dissipating combustion heat. This reduces the piston crown temperature by as much as 25-30°C, significantly extending fatigue life and reducing the risk of thermal cracking – particularly important in sustained high-load applications.
Precision-weight matched sets – Each piston is machined to a strict weight tolerance of ±5 grams within a factory-matched set. This ensures perfect dynamic balance across all six cylinders, reducing crankshaft torsional vibration, minimising bearing wear, and delivering smoother operation – a critical advantage for generator sets requiring stable frequency output.
Premium piston pin compatibility – The pin bore is precision-honed to accept a fully floating piston pin (sold separately). Some variants include a bronze or tin-indium bushing to provide an additional bearing surface, reducing pin noise and ensuring long-term durability.
Direct drop-in fit – The Me131940 is dimensionally identical to the original Mitsubishi piston, requiring no block machining or custom modifications for installation.
Operational benefits for equipment owners and engineers:
Reduced oil consumption – Optimised ring groove geometry and anti-wear coatings minimise oil bypass past the rings.
Improved fuel economy – Restored compression ratios and precise crown height translate to better thermal efficiency and lower specific fuel consumption.
Extended overhaul intervals – With proper fuel, air filtration, and coolant maintenance, this piston reliably delivers extended service life.
Smoother, quieter operation – Weight-matched sets and the anti-scuff skirt coating reduce engine vibration and mechanical noise.
100% direct drop-in fit – Identical to the original Mitsubishi piston in all critical dimensions – no modifications required.
2. Compatible Engine Models & Typical Applications
The Me131940 piston is specifically engineered for the Mitsubishi 6M60 series – a family of 6-cylinder, inline, 4-stroke, water-cooled diesel engines widely used in heavy-duty truck, bus, and industrial applications.
| Engine Model | Typical Applications |
|---|
| Mitsubishi 6M60 | Heavy-duty trucks (Fuso Canter, Shogun), construction equipment, buses |
| Mitsubishi 6M60 (Genset variants) | Prime and standby power generation |
| Mitsubishi 6M60 (Industrial) | Compressor drives, pumping stations, agricultural equipment |
Engine Specifications (6M60 series):
Cylinder configuration: 6 in-line
Displacement: Approximately 7.5 litres (verify with engine manual)
Bore x stroke: OEM standard – verify with engine manual
Method of operation: 4-cycle, water-cooled, direct injection, turbocharged
Critical cross-reference: The Me131940 is a genuine Mitsubishi service part number for standard-size pistons in the 6M60 series. Oversize pistons may be available (+0.25mm, +0.50mm) – confirm your cylinder liner bore measurement and engine serial number before ordering. This piston is typically supplied as a bare unit; piston rings, pin, and circlips are ordered separately or as part of a complete repair kit.
3. Common Failure Modes & Installation/Replacement Recommendations
Typical Warning Signs Your Piston Needs Replacement
Excessive blow-by – Pressurised gases escaping into the crankcase, causing oil mist from the breather tube and reduced engine power.
High oil consumption with blue exhaust – Continuous blue smoke at operating temperature indicates worn ring grooves, a scored skirt, or a cracked ring land allowing oil to enter the combustion chamber.
Piston slap / metallic knocking – A hollow, metallic tapping noise, especially noticeable during cold starts, points to excessive piston-to-cylinder clearance due to skirt wear or ovality.
Loss of compression / hard starting – Difficulty starting the engine, rough idle, and reduced load-carrying capacity signal a cracked piston crown or severely worn rings.
Metal particles in the oil – Finding aluminium or iron debris in the oil filter or sump indicates a piston in the early stages of catastrophic failure – immediate investigation is required.
Professional Installation Best Practices
Installing a new Me131940 piston requires meticulous preparation and precise execution. Follow these essential steps:
Thorough cylinder bore inspection – Before installation, measure the cylinder liner bore at top, middle, and bottom positions (both in the thrust and non-thrust axes) using a dial bore gauge. Verify that the bore is within service limits and that the correct oversize piston matches the existing bore.
Piston ring end-gap verification – Install the new rings into the cylinder bore (without the piston) and measure the ring end gaps using a feeler gauge. If the gap is too small, carefully file the ends with a ring filing tool. Never file rings on a used piston – always use the rings intended for the new piston.
Ring installation – Use a proper ring expander to fit the rings onto the piston. Never roll the rings over the piston skirt – this can scratch the MoS₂ coating. Ensure the ring markings face upward. Stagger the ring gaps at 120° intervals, ensuring they are positioned away from the thrust sides of the piston.
Lubrication – Coat the piston skirt, rings, and cylinder bore with clean engine oil or a high-quality assembly lubricant. Lightly lubricate the piston pin and pin bore as well.
Connecting rod assembly – Attach the piston to the connecting rod using the piston pin. If using a fully floating pin, install new circlips and ensure they are fully and securely seated. Never reuse circlips.
Piston installation into cylinder – Use a high-quality ring compressor to uniformly compress all rings. Gently tap the piston into the cylinder bore using a soft-faced mallet. The piston should slide smoothly – if excessive force is required, stop and check for ring misalignment or incorrect ring gap.
Connecting rod bolt torque – Tighten the connecting rod bolts to the manufacturer's specified torque. Always use a calibrated torque wrench and angle gauge for accuracy.
Break-in procedure – After complete reassembly, start the engine and run at low idle (no load) for 15-20 minutes. Gradually apply load over the next 8-10 hours. Change the engine oil and filter after the initial break-in period.
4. Why Rsolid Engine Parts Is Your Preferred Global Supplier
Rsolid Engine Parts has been a trusted supplier of Mitsubishi, Yanmar, and Caterpillar diesel components for over 15 years, serving fleets, power plants, and workshops across six continents. Here is why the Me131940 piston from Rsolid is the intelligent choice:
OEM-equivalent manufacturing – Sourced from ISO 9001:2015 and IATF 16949 certified foundries, using identical materials and processes as genuine Mitsubishi service pistons.
100% dimensional and weight inspection – Every piston is measured and weight-matched to guarantee perfect engine balance.
Complete repair kit options – We offer this piston as a bare unit, with premium ring sets, or as a full overhaul kit.
Global inventory and rapid dispatch – Strategically warehoused in Asia, Europe, and North America, ensuring 3-7 working day delivery to most international ports and airports.
Competitive wholesale pricing – Attractive volume discounts for workshops, fleet operators, and parts distributors.
Free expert technical support – Our in-house engineers provide installation guides, torque specifications, and troubleshooting via WhatsApp or email.
Solid warranty – 12 months / 2,000 operating hours against casting defects, premature wear, and material failures.
Contact Rsolid Engine Parts Today
📧 Email: amy@rinjector.com
📱 WhatsApp: +86 15975376778
Whether you need a single Me131940 piston for a running repair or a full set for a complete Mitsubishi 6M60 overhaul, Amy and her team will provide a detailed quotation, stock confirmation, and shipping schedule within 2 hours. We also supply complementary parts – piston rings, cylinder liners, connecting rods, bearing shells, and gasket sets – for comprehensive engine rebuilds.
Choose the Me131940 piston from Rsolid – engineered for uncompromised durability, reduced oil consumption, and reliable power for your Mitsubishi 6M60 engine.
