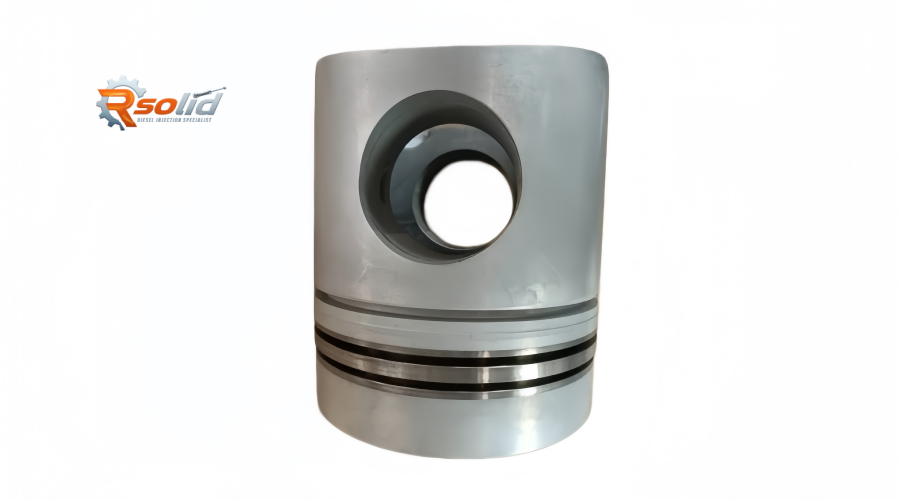

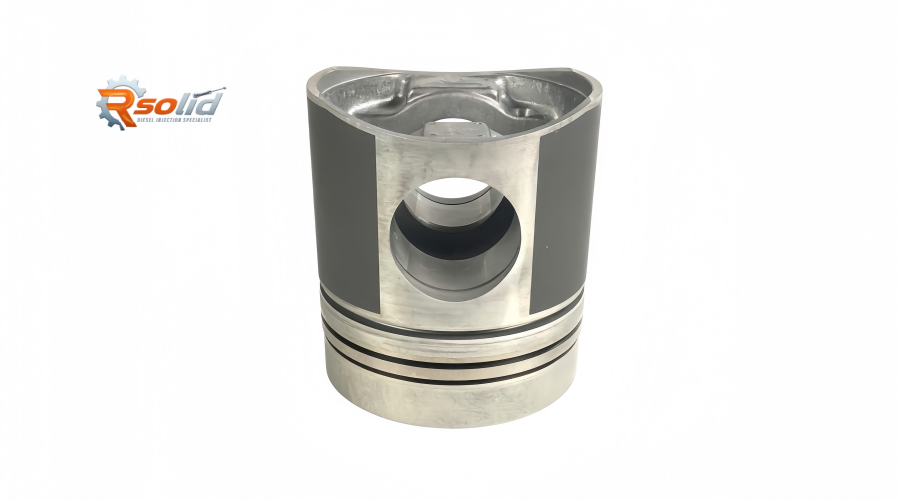

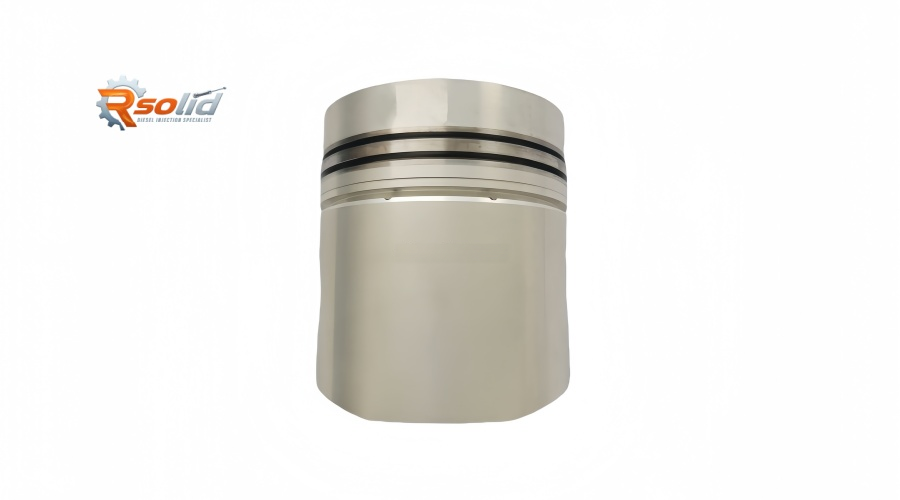

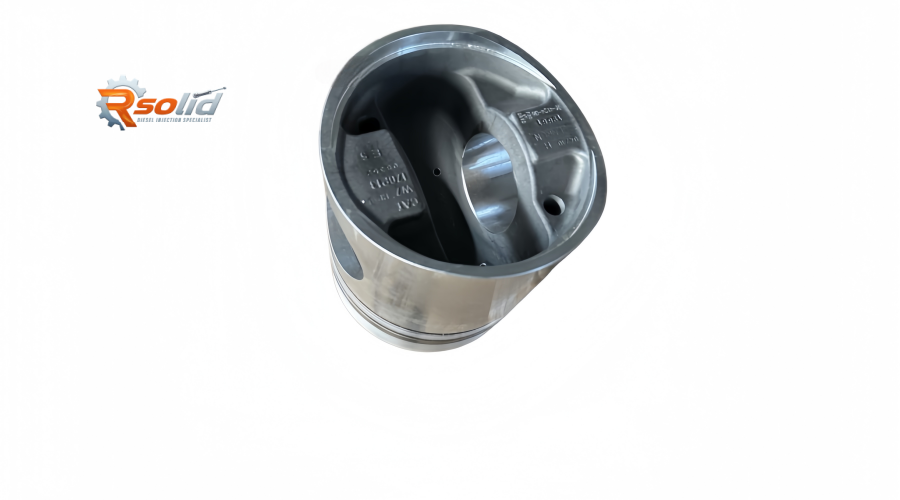

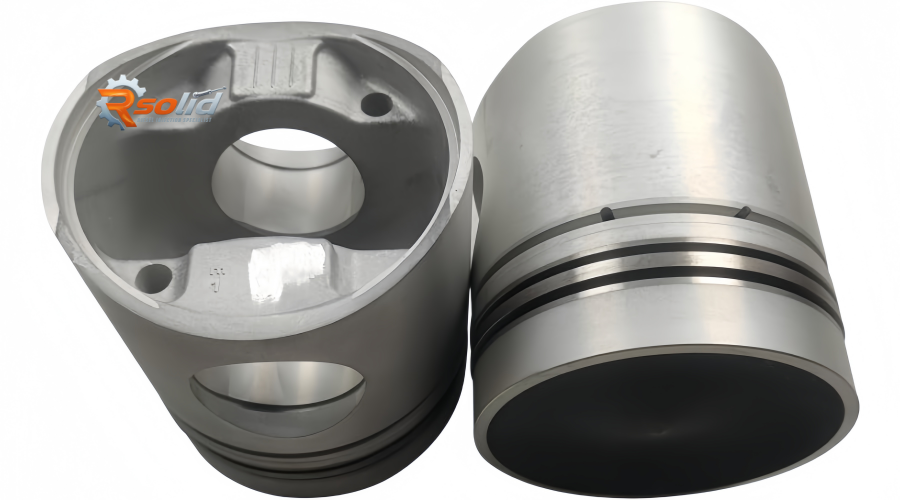

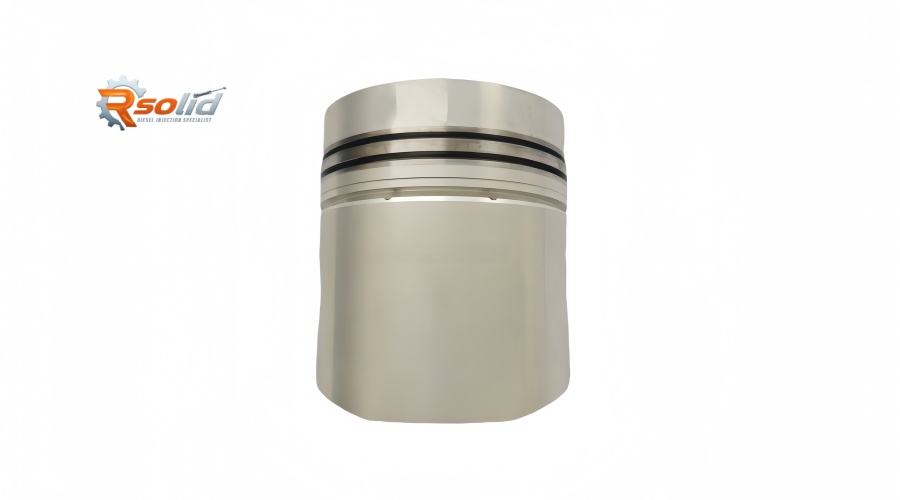

For operators of Caterpillar 3500 series engines – whether in mining haul trucks, offshore power generation, marine propulsion, or industrial compressor stations – the 9Y4124 piston is a critical component that directly influences combustion efficiency, oil consumption, and overall engine longevity. This OEM‑grade replacement piston is engineered to withstand the extreme cylinder pressures and thermal loads characteristic of Cat’s legendary 3508, 3512, and 3516 platforms, delivering factory‑fresh compression, reduced blow‑by, and extended service intervals.
Available as a bare piston or as part of a comprehensive overhaul kit, the 9Y4124 is designed to meet or exceed Caterpillar’s original specifications, ensuring a direct drop‑in fit with no modifications required. In this guide, we examine its robust construction, compatible engine models, common failure signs, professional installation best practices, and why Rsolid Engine Parts is the global supplier you can trust for Cat 3500 series components.
1. Structural Features & Advantages of the 9Y4124 Piston
The 9Y4124 is not a generic aftermarket casting – it is a precision‑engineered component developed specifically for Caterpillar’s high‑horsepower 3500 family. Its design incorporates several heavy‑duty features to meet the demands of continuous, high‑load operation:
Premium two‑piece articulated steel piston – Unlike conventional aluminium pistons, the 9Y4124 features a steel crown with an aluminium skirt (or a fully forged steel design, depending on the specific variant). This articulated construction offers superior strength at elevated temperatures, reducing the risk of crown cracking and ring groove deformation under peak firing pressures exceeding 200 bar. The steel crown also provides excellent heat resistance, while the aluminium skirt ensures low friction and rapid warm‑up.
Hardened ring groove insert – The top ring groove is equipped with a high‑nickel austenitic cast iron or plasma‑sprayed wear ring, specifically designed to resist micro‑welding and groove wear caused by the high‑temperature, high‑pressure combustion environment. This feature maintains proper ring seating, minimises blow‑by, and extends the service life of both the piston and the rings.
Optimised combustion bowl geometry – The piston crown features a precisely machined combustion bowl that is carefully contoured to match the fuel spray pattern from Cat’s EUI (Electronic Unit Injector) system. This geometry promotes complete air‑fuel mixing, reducing soot formation and improving fuel efficiency by 3‑5% compared to worn or non‑genuine pistons.
Internal cooling gallery (oil‑cooled crown) – An enclosed cooling gallery is cast or machined into the piston crown. During operation, pressurised engine oil is directed from the connecting rod or crankcase jets into this gallery, actively dissipating combustion heat. This reduces the piston crown temperature by as much as 30‑40°C, significantly extending fatigue life and preventing thermal cracking – a critical advantage for sustained high‑load applications such as marine propulsion and prime power generation.
Precision‑weight matched sets – Each 9Y4124 piston is machined to a strict weight tolerance of ±5 grams within a factory‑matched set. This ensures perfect dynamic balance across all cylinders (V8, V12, or V16), reducing crankshaft torsional vibration, minimising main and connecting rod bearing wear, and delivering smoother engine operation – particularly important for generator sets requiring stable frequency output.
Premium piston pin and bushing – The piston pin bore is precision‑honed and fitted with a tin‑indium or bronze bushing to provide a low‑friction bearing surface for the fully floating piston pin. This design minimises pin noise, reduces wear, and ensures long‑term durability under high‑speed, high‑load conditions.
Advanced anti‑scuff skirt coating – The aluminium skirt is coated with a molybdenum disulphide (MoS₂) or graphite‑based solid lubricant layer, which reduces friction during the initial break‑in period, minimises scuffing risk, and promotes rapid ring seating for immediate oil control.
Operational benefits for fleet operators and plant engineers:
Reduced oil consumption – The optimised ring groove geometry, combined with the anti‑scuff coating and precision bore fit, cuts oil consumption by up to 20% compared to worn or low‑quality aftermarket pistons.
Improved fuel economy – Restored compression ratios and precise combustion bowl geometry translate to better thermal efficiency and lower BSFC (Brake Specific Fuel Consumption).
Extended overhaul intervals – With proper fuel, air filtration, and coolant maintenance, the 9Y4124 piston reliably delivers 12,000 – 18,000 hours of service life, depending on the application.
Smoother, quieter operation – Weight‑matched sets and the anti‑scuff skirt coating reduce engine vibration and mechanical noise, enhancing operator comfort and reducing stress on ancillary components.
100% direct drop‑in fit – Identical to the original Caterpillar piston in all critical dimensions – no block machining, connecting rod modification, or custom shimming required.
2. Compatible Engine Models & Typical Applications
The 9Y4124 piston is specifically engineered for Caterpillar’s 3500 series – a family of V‑configuration, 4‑stroke, water‑cooled diesel engines renowned for their durability and high power density in heavy‑duty applications.
| Engine Model | Configuration | Typical Applications |
|---|
| Caterpillar 3508 | V8, 17.5L – 26.5L (depending on variant) | Mining haul trucks, marine propulsion, industrial compressor drives, land‑based generator sets |
| Caterpillar 3512 | V12, 26.0L – 34.5L | Offshore supply vessels, prime power generation, large mining equipment, locomotive propulsion |
| Caterpillar 3516 | V16, 34.5L – 46.0L | Marine main engines, heavy‑duty power plants, oil & gas pumping stations |
| Caterpillar 3516B / 3516C | High‑horsepower V16 variants | Emergency standby power for data centres, marine propulsion for large vessels |
Critical cross‑reference: The 9Y4124 is the genuine Caterpillar service part number for standard‑size pistons in the 3500 series. It may also be listed under alternative numbers such as 9Y4125 (oversize) or 9Y4126 depending on the exact bore size and compression ratio. Oversize pistons (+0.25mm, +0.50mm, +0.75mm, +1.00mm) are available with corresponding part number suffixes – confirm your cylinder liner bore measurement and engine serial number (e.g., 7TA, 8RB, 9NL prefixes) before ordering. This piston is typically supplied as a bare unit; piston rings, pin, and circlips are ordered separately or as part of a complete repair kit.
3. Common Failure Modes & Installation/Replacement Recommendations
Typical Warning Signs That Your Piston Needs Replacement
Excessive blow‑by – Pressurised gases escaping into the crankcase, causing oil mist from the breather tube and reduced engine power – often indicated by elevated crankcase pressure readings.
High oil consumption with blue exhaust – Continuous blue smoke at operating temperature indicates worn ring grooves, a scored skirt, or a cracked ring land allowing oil to enter the combustion chamber.
Piston slap / metallic knocking – A hollow, metallic tapping noise, especially noticeable during cold starts, points to excessive piston‑to‑cylinder clearance due to skirt wear or ovality – common in high‑hour 3500 engines.
Loss of compression / hard starting – Difficulty starting the engine, rough idle, and reduced load‑carrying capacity signal a cracked piston crown or severely worn rings.
Metal particles in the oil – Finding aluminium or steel debris in the oil filter or sump indicates a piston in the early stages of catastrophic failure – immediate investigation is required.
Elevated exhaust gas temperatures (EGT) – Incomplete combustion due to poor piston sealing can lead to afterburning in the exhaust manifold, raising EGTs and risking turbocharger and valve damage.
Professional Installation Best Practices
Installing a new 9Y4124 piston in a Cat 3500 engine requires precision and meticulous attention to detail. Follow these essential steps:
Thorough cylinder bore inspection – Before installation, measure the cylinder liner bore at top, middle, and bottom positions (both in the thrust and non‑thrust axes) using a dial bore gauge. Verify that the bore is within service limits and that the correct oversize piston matches the existing bore. The piston‑to‑cylinder clearance for the 3500 series is typically 0.12 – 0.20 mm – confirm with your engine manual (Cat publication SENR or RENR).
Piston ring end‑gap verification – Install the new rings into the cylinder bore (without the piston) and measure the ring end gaps using a feeler gauge. Typical compression ring gap is 0.40 – 0.60 mm for 3500 series engines. If the gap is too small, carefully file the ends with a ring filing tool. Never file rings on a used piston – always use the rings intended for the new piston.
Ring installation – Use a proper ring expander to fit the rings onto the piston. Never roll the rings over the piston skirt – this can scratch the MoS₂ coating. Ensure the ring markings (such as "TOP", a dot, or a coloured stripe) face upward towards the combustion chamber. Stagger the ring gaps at 120° intervals, ensuring they are positioned away from the thrust sides of the piston.
Lubrication – Coat the piston skirt, rings, and cylinder bore with clean engine oil or a high‑quality assembly lubricant (e.g., Cat specified Lubri‑plate). Lightly lubricate the piston pin and pin bore as well. For steel pistons, ensure proper lubricant application to avoid galling during the initial start‑up.
Connecting rod assembly – Attach the piston to the connecting rod using the piston pin. For Cat 3500 series, the pin is typically retained by circlips – install new circlips and ensure they are fully and securely seated in their grooves. Never reuse circlips – they lose their tension after removal.
Piston installation into cylinder – Use a high‑quality ring compressor to uniformly compress all rings. Gently tap the piston into the cylinder bore using a soft‑faced mallet or a wooden hammer handle. The piston should slide smoothly – if excessive force is required, stop and check for ring misalignment or incorrect ring gap.
Connecting rod bolt torque – Tighten the connecting rod bolts to Caterpillar's specified torque. For 3500 series, typical torque is 80 – 100 N·m plus a 120° angle‑tighten (confirm with your manual – Cat uses a torque‑to‑yield procedure). Always use a calibrated torque wrench and angle gauge.
Break‑in procedure – After complete reassembly, start the engine and run at low idle (no load) for 15‑20 minutes to allow the rings to seat. Gradually apply load over the next 8‑10 hours, avoiding prolonged full‑load operation. Change the engine oil and filters after the initial break‑in period to remove any assembly debris. Follow Caterpillar's recommended break‑in schedule for 3500 series engines.
4. Why Rsolid Engine Parts Is Your Preferred Global Supplier
Rsolid Engine Parts has been a trusted supplier of Caterpillar, Mitsubishi, Yanmar, and other heavy‑duty diesel components for over 15 years, serving mining, marine, power generation, and industrial sectors across six continents. Here is why the 9Y4124 piston from Rsolid is the intelligent choice:
OEM‑equivalent manufacturing – Produced in ISO 9001:2015 and IATF 16949 certified foundries, using the identical steel forging, aluminium alloy, and heat‑treatment processes as genuine Caterpillar service pistons. Our manufacturing partners use Cat‑approved materials and casting techniques to ensure identical performance.
100% dimensional and weight inspection – Every piston is measured for diameter, ovality, ring groove height, and weight using advanced CMM equipment. We supply pistons in weight‑matched sets (typically within ±5g) to guarantee perfect engine balance and smooth operation – critical for V8, V12, and V16 engines.
Complete repair kit options – We offer this piston as a bare unit, with premium ring sets (German or Japanese steel), or as a full overhaul kit including pistons, rings, pins, circlips, connecting rod bearings, and gaskets – saving you time and sourcing hassle.
Global inventory and rapid dispatch – Strategically warehoused in Asia, Europe, and North America, ensuring 3‑7 working day delivery to most international ports and airports. We stock both standard and oversize variants.
Competitive wholesale pricing – Attractive volume discounts for workshops, fleet operators, and parts distributors. Enquire about our bulk order programme and consolidated shipping options for large mining or marine fleets.
Free expert technical support – Our in‑house diesel engineers (with direct Caterpillar 3500 experience) provide illustrated installation guides, torque specifications, ring gap calculations, and troubleshooting advice via WhatsApp or email.
Solid warranty – 12 months / 2,000 operating hours against casting defects, premature wear, and material failures – with a straightforward return and replacement policy.
Contact Rsolid Engine Parts Today
📧 Email: amy@rinjector.com
📱 WhatsApp: +86 15975376778
Whether you need a single 9Y4124 piston for a running repair or a full set for a complete Cat 3508, 3512, or 3516 overhaul, Amy and her team will provide a detailed quotation, stock confirmation, and shipping schedule within 2 hours. We also supply complementary parts – piston rings, cylinder liners, connecting rods, bearing shells, and full gasket sets – for comprehensive engine rebuilds.
Choose the 9Y4124 piston from Rsolid – engineered for uncompromised durability, reduced oil consumption, and reliable power for your Caterpillar 3508 / 3512 / 3516 engines.
