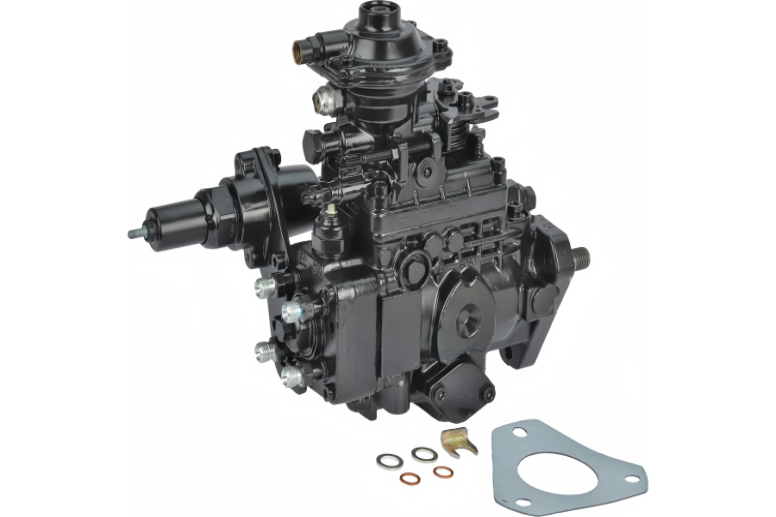

Complete Guide to 2855392 Bosch VE 6 Cylinder Injection Pump for Case Diesel Engine

What is 2855392 Bosch VE 6 Cylinder Injection Pump?

The 2855392 Bosch VE 6 Cylinder Injection Pump is a mechanical, distributor-type fuel injection pump manufactured by Bosch, specifically designed for 6-cylinder diesel engines used in Case agricultural and construction equipment. Unlike modern common rail systems, the VE pump is a mechanically governed, inline distributor pump that delivers precisely metered fuel to each cylinder in the correct firing order. The 2855392 is a direct OEM replacement part, engineered to meet the original specifications of Case diesel engines, including the 6T-590 and related platforms. It is a critical component of the fuel system, responsible for pressurizing and distributing fuel to the injectors with accurate timing and quantity, ensuring reliable engine performance in demanding applications.

How Does 2855392 Bosch VE 6 Cylinder Injection Pump Work?

The 2855392 Bosch VE 6 Cylinder Injection Pump operates on the distributor pump principle, combining a low-pressure supply pump, a high-pressure pumping plunger, and a distributor mechanism in a single housing. The pump is driven by the engine’s timing gears, which rotate a cam plate inside the pump. As the cam plate rotates, it moves a single axial plunger back and forth. On the intake stroke, fuel is drawn into the pumping chamber through a metering valve. On the compression stroke, the plunger forces fuel at high pressure (typically 400–800 bar) through a central passage to a rotating distributor head. The distributor head directs the pressurized fuel to individual outlet ports in the correct firing order, which connect to the fuel injectors. A mechanical governor (either mechanical or pneumatic) adjusts the fuel metering valve to control engine speed under varying loads. An automatic timing advance mechanism adjusts injection timing based on engine RPM for optimal combustion efficiency.

Advantages of 2855392 Bosch VE 6 Cylinder Injection Pump

Choosing the 2855392 Bosch VE 6 Cylinder Injection Pump for your Case diesel engine offers several key benefits:

• Mechanical Reliability: As a fully mechanical pump, the VE system is immune to electrical failures, making it ideal for harsh agricultural and construction environments where electronics may be vulnerable to dust, moisture, and vibration.

• Precise Fuel Distribution: The distributor design ensures equal fuel delivery to all six cylinders, resulting in smooth engine operation, reduced vibration, and balanced power output.

• Built-in Governor: The integrated mechanical governor automatically adjusts fuel delivery to maintain consistent engine speed under varying loads, simplifying operation and reducing operator fatigue.

• Timing Advance Mechanism: The automatic timing advance optimizes injection timing across the RPM range, improving fuel economy and reducing exhaust smoke.

• Serviceability: The VE pump is widely understood by diesel technicians, and replacement parts are readily available, making repairs and overhauls straightforward.

• Bosch Quality: Manufactured to Bosch’s stringent standards, the pump offers long service life and consistent performance when properly maintained.

Application of 2855392 Bosch VE 6 Cylinder Injection Pump

The 2855392 Bosch VE 6 Cylinder Injection Pump is specifically designed for Case diesel engines that utilize the Bosch VE mechanical fuel system. Common applications include:

• Case IH Tractors: Used in various models including the 2096, 2294, 2394, 2594, 4494, 4694, and 4894 series, as well as the Magnum series with 6-cylinder engines.

• Case Construction Equipment: Found in backhoe loaders, excavators, and wheel loaders powered by Case 6-cylinder diesel engines.

• Case Combine Harvesters: Applied in combines requiring reliable fuel delivery for extended harvest seasons.

• Industrial Engines: Used in stationary power units, generators, and pumps powered by Case 6-cylinder diesel platforms.

• Aftermarket Replacement: Suitable for any Case diesel engine originally equipped with the Bosch VE pump part number 2855392 or cross-referenced equivalents.

Specifications (Types) of 2855392 Bosch VE 6 Cylinder Injection Pump

The 2855392 Bosch VE 6 Cylinder Injection Pump is a distributor-type mechanical injection pump from the Bosch VE series. Key specifications include:

• Pump Type: Distributor-type mechanical fuel injection pump (Bosch VE series).

• Number of Cylinders: 6-cylinder applications.

• Maximum Injection Pressure: Typically 400–800 bar (5,800–11,600 psi), depending on engine calibration.

• Drive Configuration: Flange-mounted, driven by engine timing gears.

• Governor Type: Mechanical, all-speed governor with idle and maximum speed control.

• Timing Control: Automatic hydraulic or pneumatic timing advance mechanism.

• Fuel Metering: Mechanically controlled metering valve actuated by the governor.

• Inlet Port: Low-pressure fuel inlet with banjo bolt fitting (typically 12mm).

• Outlet Ports: 6 high-pressure outlet ports (typically with delivery valves) connecting to individual injectors.

• Lubrication: Engine oil lubricated via the drive housing; internal pump components are fuel-lubricated.

• Compatibility: OEM replacement for Case diesel engines including 6T-590, 504BDT, and related platforms.

• Common Failures: Wear of the distributor head, plunger, or cam plate due to contaminated fuel; governor spring fatigue; delivery valve leakage; symptoms include hard starting, uneven running, black smoke, or loss of power.

Supplier of 2855392 Bosch VE 6 Cylinder Injection Pump

Sourcing the 2855392 Bosch VE 6 Cylinder Injection Pump from a trusted supplier is essential to ensure proper fitment, reliable performance, and long service life for your Case diesel engine. Rsolid engine parts has established itself as a premier provider of high-quality fuel injection components, specializing in Bosch VE and other mechanical injection systems for agricultural, construction, and industrial diesel engines.

Rsolid engine parts distinguishes itself through an unwavering commitment to quality control. Every 2855392 injection pump is rigorously inspected and tested to ensure it meets or exceeds original equipment specifications. This includes calibration on a diesel injection pump test stand to verify fuel delivery, governor response, timing advance, and pressure output across the full RPM range. For exchange units, the company follows a complete remanufacturing process that includes disassembly, ultrasonic cleaning, inspection, and replacement of all wear components—including plungers, distributor heads, cam plates, seals, and bearings—with new OEM-grade parts.

In addition to product excellence, Rsolid engine parts offers comprehensive technical support to assist customers in verifying compatibility by engine model, tractor serial number, and OEM part number. Their team understands that precise calibration and matching are critical for achieving proper engine performance, especially in heavy-duty applications where downtime is costly. With a robust inventory and efficient global logistics, Rsolid engine parts minimizes downtime for farmers, contractors, and equipment owners. By choosing Rsolid engine parts as your supplier for the 2855392 Bosch VE 6 Cylinder Injection Pump, you benefit from competitive pricing, warranty-backed assurance, and the expertise of a dedicated diesel fuel system specialist.
