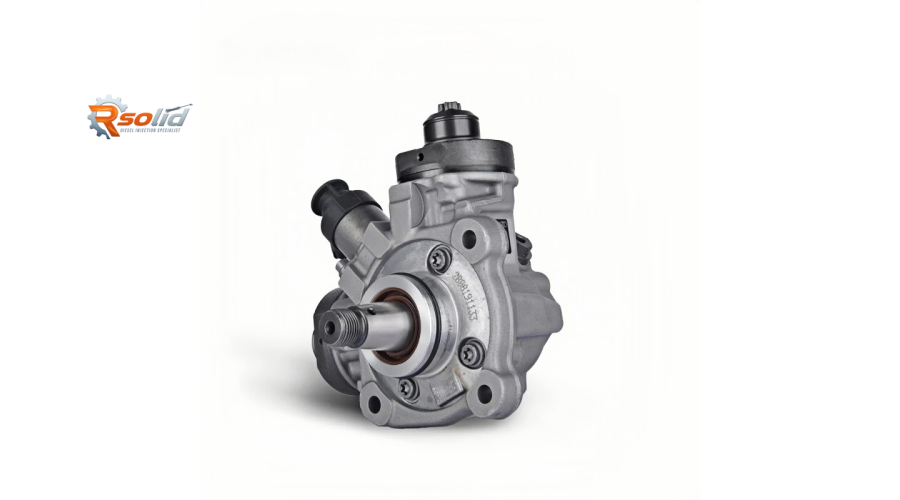

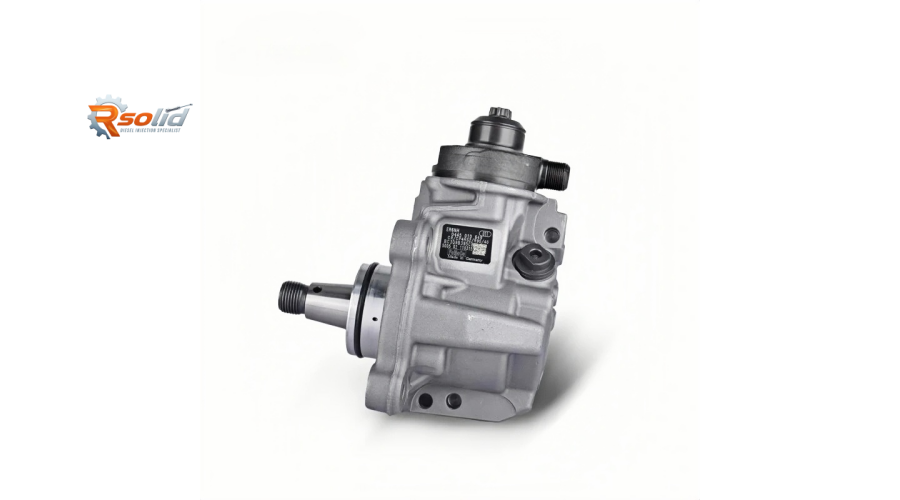

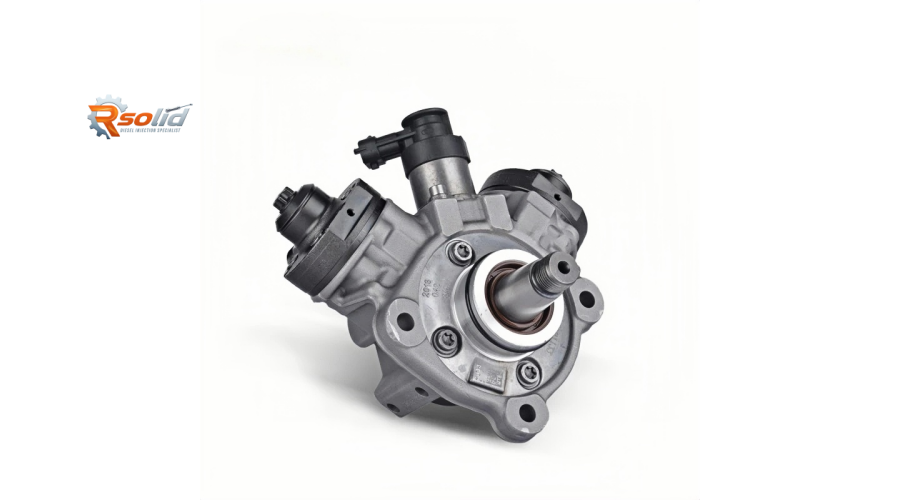

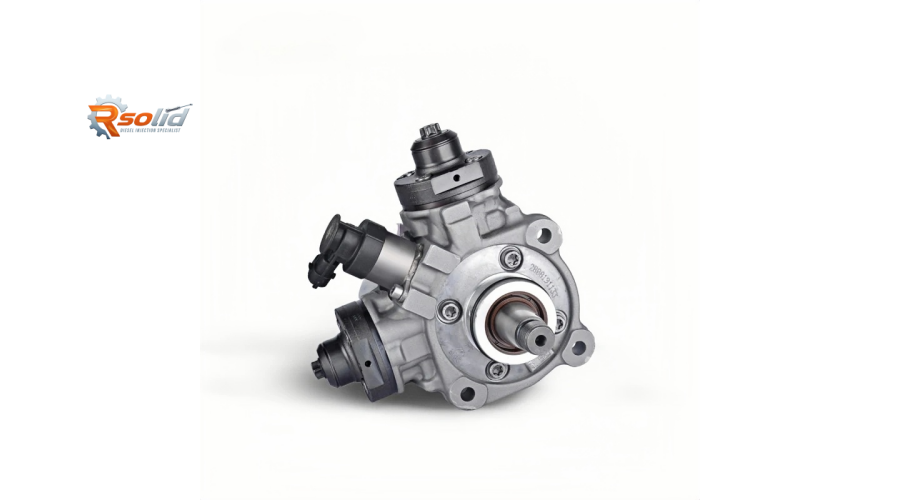

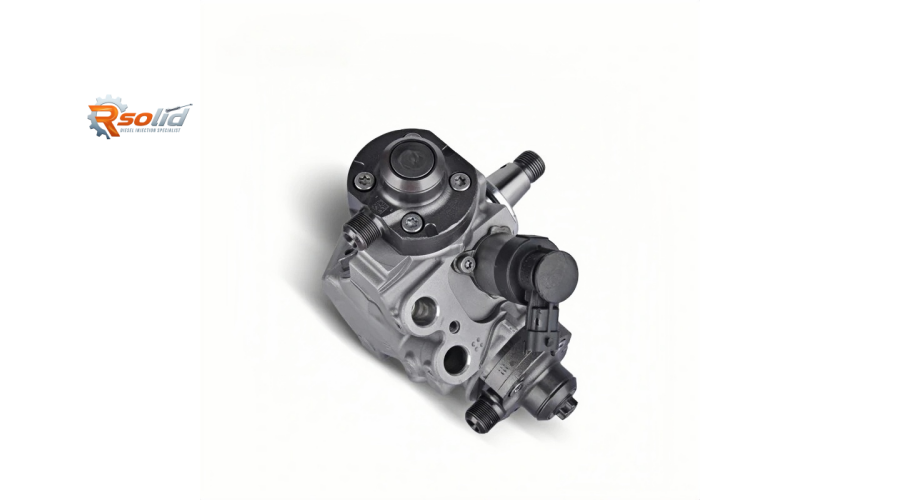

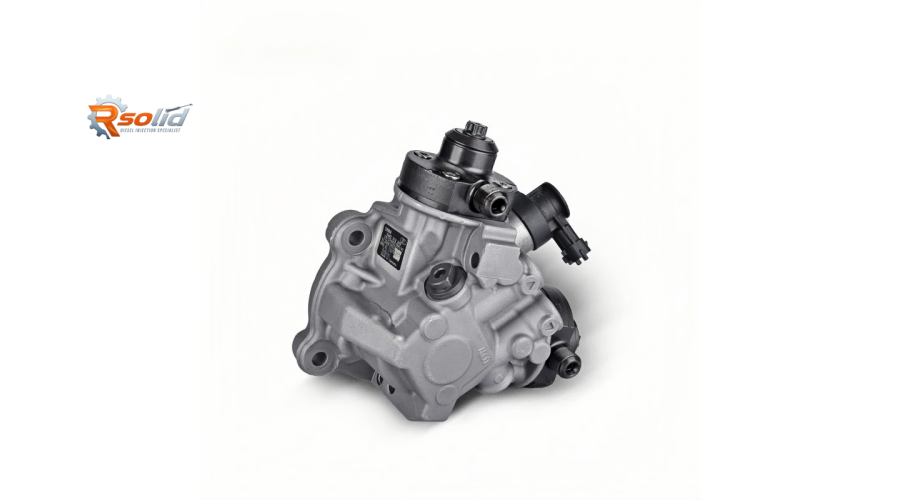

0445010851 High Pressure Common Rail Diesel Pump – Bosch Compatible for Ford Diesel Engines | Rsolid Engine Parts

For Ford diesel engines that demand precise fuel metering and reliable high-pressure injection, the 0445010851 common rail pump – fully compatible with Bosch CP1 or CP3 architecture – delivers outstanding performance. Whether you are maintaining a Ford Transit, Mondeo, or Ranger, this replacement pump ensures OEM fit, improved cold start behavior, and consistent rail pressure under load. Rsolid engine parts supplies this critical component with rigorous bench testing and a 12-month warranty.

1. Structural Advantages of the 0445010851 Common Rail Pump

The 0445010851 pump is engineered to match or surpass original Bosch standards. Its key structural benefits include:

• High-Efficiency Radial Piston Design – Three plungers arranged radially deliver a continuous, high-volume fuel flow to the common rail, minimizing pressure ripple and ensuring stable injection even at low engine speeds.

• Hardened Cam Ring & Roller Shoes – Precision-ground surfaces reduce wear over extended service intervals, a common weak point on lower-grade aftermarket pumps.

• Integrated Flow Control Valve (ZME) – Electronically controlled by the ECU to regulate inlet metering, providing exact fuel quantity for each injection event, which reduces fuel consumption and emissions.

• Durable Aluminum Housing with Anti-Corrosion Coating – Resists oxidation and diesel fuel degradation, especially important for vehicles operating in humid or coastal environments.

• Direct Bosch Compatibility – Identical mounting flange, gear drive interface, and high-pressure outlet ports as the original Bosch 0445010851 – no harness modifications or adapter plates needed.

2. Compatible Ford Diesel Models (≤5)

This pump is specifically calibrated for Ford Duratorq (TDCi) and Ford-PSA DW engines. Common applications include:

• Ford Transit 2.2 TDCi (2006–2014, engine code Puma 2.2)

• Ford Mondeo 2.0 TDCi (2007–2014, DW10 / DW12)

• Ford Ranger 2.2 / 3.2 TDCi (2011–2019, Duratorq ZSD)

• Ford Focus 2.0 TDCi (2008–2011, DW10C)

• Ford Galaxy 2.0 TDCi (2006–2015, DW12)

⚠️ Always confirm your Ford engine code and original Bosch pump number. Cross-reference with 0445010851 (Bosch) before ordering.

3. Common Failures & Installation/Replacement Advice

Typical Symptoms of a Faulty 0445010851 Pump:

• Long cranking time before start – Especially after overnight parking.

• Limp mode with P0087 (fuel rail pressure too low) – Common diagnostic code.

• Metal particles in the fuel system – Indicates internal wear; requires full system cleaning.

• Harsh idle or stalling – Often worse when fuel tank is low.

• Fuel leaking from the pump body – Usually from the drive shaft seal or the outlet valve.

Professional Installation & Replacement Recommendations:

• Never install a new pump without replacing the fuel filter – Contaminated filters kill common rail pumps. Use a genuine Ford or high-quality aftermarket filter.

• Flush all fuel lines and the fuel tank – Debris from a failed old pump will destroy a new one within minutes.

• Inspect injector return rates – High return flow can indicate stuck injectors; repair them first to prevent repeat pump failure.

• Lubricate the pump internals before installation – Fill the inlet port with clean diesel or specialized assembly lubricant to prevent dry start scoring.

• Use a proper priming tool – Air in the high-pressure system can damage plungers. Vacuum-prime the low-pressure side until bubble-free fuel exits the return line.

• Torque high-pressure connections carefully – Over-tightening the M14 × 1.5 outlet can crack the rail fitting. Use 35–40 Nm with a crowfoot wrench.

• Reset adaptation values – After replacement, use a professional diagnostic tool (Ford IDS or equivalent) to clear learned fuel trim values and perform a "high pressure pump learn" routine.

• Test for leaks – Run the engine at idle and at 2,500 RPM, checking all unions with a mirror and soap solution.

💡 Pro Tip: Common rail pump failures often send microscopic metal fragments to injectors. For a durable repair, also replace the fuel pressure regulator (on the rail) and consider having the injectors flow-tested.

4. Why Source from Rsolid Engine Parts?

• Bosch-Compatible Guarantee – Full dimensional and functional interchangeability.

• 100% Calibration Tested – Every pump is run on a Bosch EPS 200 or similar test bench, with printout available upon request.

• 12-Month Warranty – No-hassle coverage against manufacturing defects.

• Competitive Fleet Pricing – Discounts available for 2+ units.

• Fast Worldwide Shipping – Stock held in multiple warehouses for quick dispatch.

• Direct Technical Support – Our diesel specialists help with fitment, troubleshooting, and installation videos.
