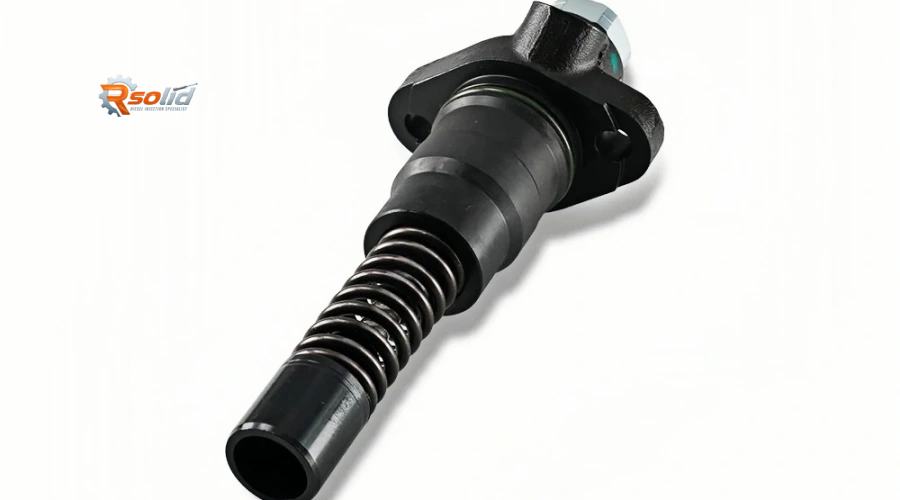

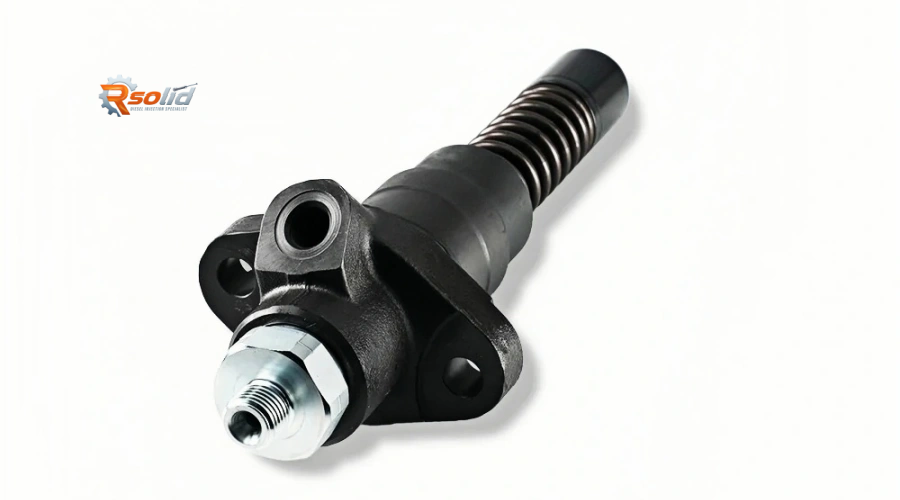

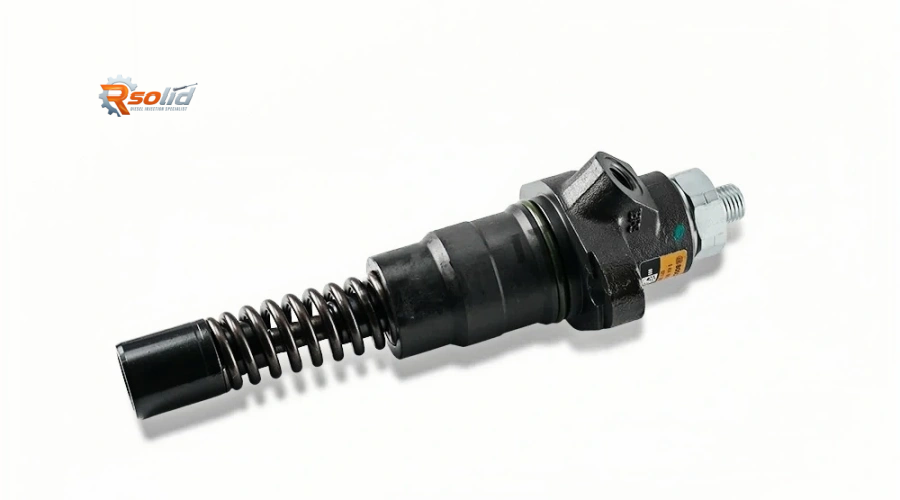

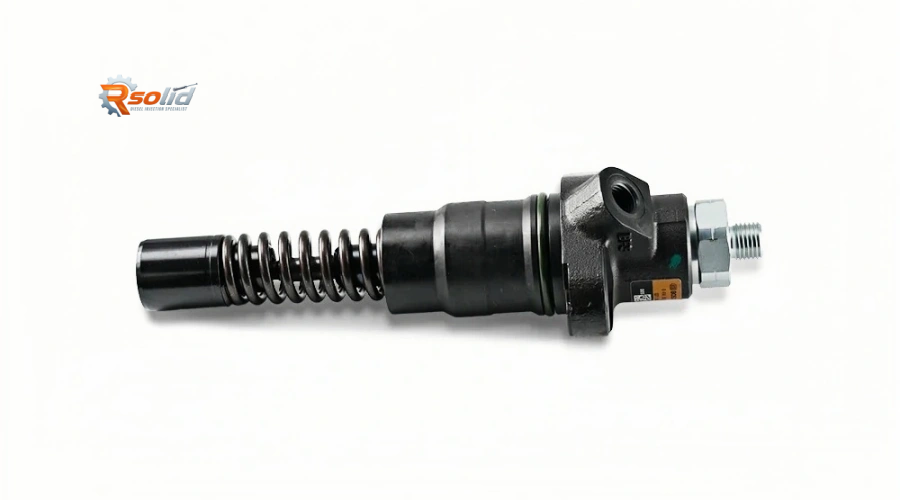

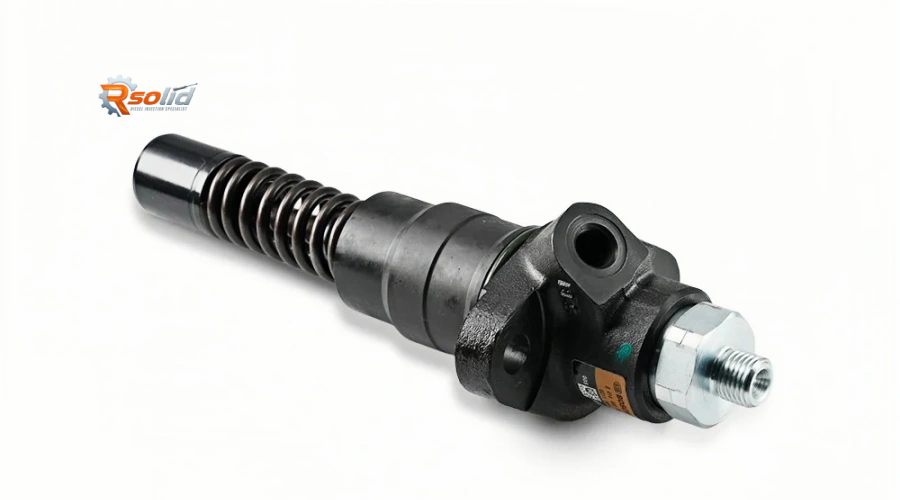

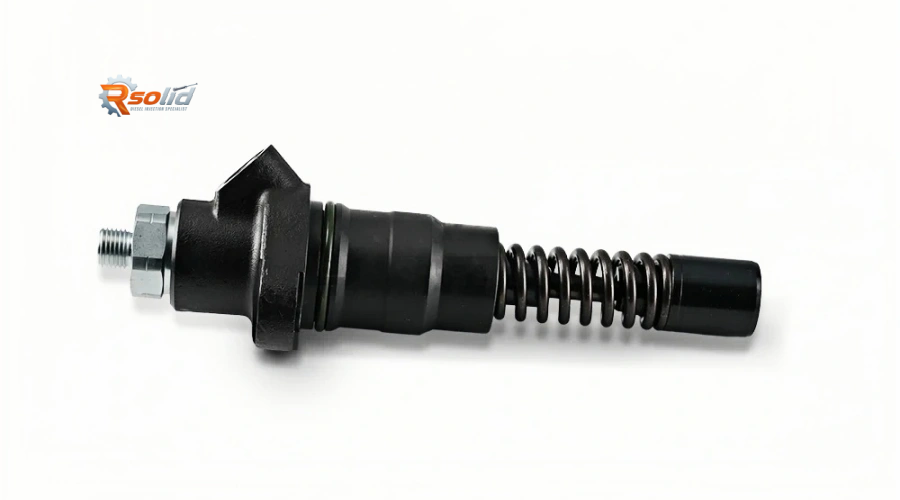

Volvo EC240B and EC290B excavators are renowned for their durability and hydraulic power, but the electronic unit pumps (EUPs) on the Volvo D7D engine are precision components that eventually wear out. The 0414693005 electronic unit pump – fully compatible with Bosch EUP architecture – is a direct OE replacement for these excavators. Unlike common rail pumps, each cylinder has its own individual pump, and replacing a faulty EUP restores proper fuel delivery, eliminates misfires, and recovers lost engine performance. Rsolid engine parts supplies this pump with factory calibration and a 12‑month warranty.
1. Structural Advantages of the Electronic Unit Pump 0414693005
The 0414693005 is a Bosch‑compatible electronic unit pump (EUP) designed for heavy‑duty off‑highway engines:
Individual Cylinder Fuel Delivery – Each cylinder has its own dedicated pump unit, mounted directly on the engine block and driven by the camshaft. This design allows independent electronic control of injection timing and duration for each cylinder, optimizing combustion and reducing emissions.
High‑Pressure Plunger & Barrel Assembly – Precision‑machined plunger and barrel deliver injection pressures up to 1,600 bar, ensuring fine fuel atomization for complete combustion – critical for excavators operating under varying loads.
Integrated Solenoid Valve – High‑speed solenoid (typically 12V or 24V) receives signals from the engine ECU to control the start and end of injection. Fast response time (under 0.5 ms) enables multiple injection events per cycle.
Reinforced Housing with Wear‑Resistant Coating – Designed to withstand the high mechanical stress of camshaft-driven operation, with hardened roller tappets and anti‑scuff coating on the plunger.
Direct Bosch Compatibility – Identical mounting flange, plunger diameter, solenoid connector (Deutsch or AMP), and fuel connection ports as the original Bosch 0414693005. True plug‑and‑play for Volvo D7D engines.
2. Compatible Volvo Excavator Models (≤5)
The 0414693005 EUP is specifically calibrated for the Volvo D7D engine (6.7L, 6‑cylinder, electronic unit injection). Compatible Volvo excavators include:
Volvo EC240B (D7D engine, 2007–2012)
Volvo EC290B (D7D engine, 2007–2012)
Volvo EC240B LC (Long Carriage, same D7D)
Volvo EC290B LC (Long Carriage)
Volvo EC210B (some variants with D7D – verify engine code)
✅ Always confirm your engine code (Volvo D7D) and the original EUP part number. The 0414693005 is typically stamped on the pump body. A full set of 6 pumps is required for complete engine overhaul, but individual pumps can be replaced as needed.
3. Common Failures & Installation/Replacement Advice
Typical Symptoms of a Failing Electronic Unit Pump (0414693005):
Misfiring or rough idle – One or more cylinders not firing properly.
Loss of engine power – Excavator struggles to dig or lift, especially under load.
Excessive black or white smoke – Unburnt fuel due to incorrect injection timing or quantity.
Engine knocking (nailing sound) – Over‑fueling or incorrect timing on a specific cylinder.
DTCs related to specific cylinder – ECU codes like “Cylinder X contribution/balance” or “Injector circuit fault”.
Hard starting or extended cranking – Multiple faulty EUPs reduce overall fuel delivery.
Fuel in the engine oil – Internal seal failure allows diesel to leak into the crankcase.
Professional Installation & Replacement Recommendations:
Use a diagnostic tool (Volvo VCADS or equivalent) – Perform a cylinder contribution test to identify which EUP(s) are faulty. Replacing all six at once is recommended for high‑hour machines (over 8,000 hours).
Replace all fuel filters – Install new primary (water separator) and secondary filters.
Clean the fuel system – Flush supply and return lines. EUP systems are less sensitive than common rail, but debris can still damage new pumps.
Replace the engine oil and filter – If diesel has leaked into the oil (failed seal), change the oil before running the new pump.
Inspect the camshaft and roller tappets – Worn cam lobes or tappets will destroy a new EUP quickly. Measure cam lift and inspect for pitting.
Lubricate the pump before installation – Apply clean engine oil to the plunger and roller tappet. Insert carefully to avoid damaging the camshaft.
Torque the hold‑down bolts to spec – Typically 25–30 Nm for M8 bolts (consult Volvo manual). Over‑torquing distorts the pump body.
Tighten high‑pressure fuel lines – Use a flare nut crowfoot wrench. Typical torque for the line nut at the EUP outlet: 25–30 Nm.
Connect the solenoid electrical connector – Ensure clean, dry contacts. Use dielectric grease.
Perform a leak test – Crank the engine (fuel disabled) to prime the system, then start and idle. Inspect all EUP bases, fuel line fittings, and solenoid seals for wetness.
Reset adaptation values – Using Volvo VCADS, perform an “EUP learn” or “fuel system adaptation” routine. Clear any pending DTCs.
Run a cylinder balance test – After installation, verify that all cylinders contribute evenly.
💡 Pro Tip: Electronic unit pumps are sensitive to low battery voltage. Always use a fully charged battery or a booster pack when troubleshooting. Low voltage can cause erratic solenoid operation and false DTCs.
4. Why Choose Rsolid Engine Parts?
Exact Bosch EUP Compatibility – Direct replacement for Volvo D7D engine EUP 0414693005.
100% Tested – Each EUP is solenoid‑tested for resistance, response time, and leak‑free operation. Test report available.
12‑Month Warranty – Full coverage against manufacturing defects, even for off‑highway use.
Competitive Pricing – Affordable alternative to Volvo‑branded pumps. Buy individual or full sets of 6.
Fast Worldwide Shipping – Stock ready for export to Asia, Africa, Europe, the Americas, and the Middle East.
Direct Technical Support – Our diesel specialists help with diagnostic identification, installation, and calibration via WhatsApp or email.
