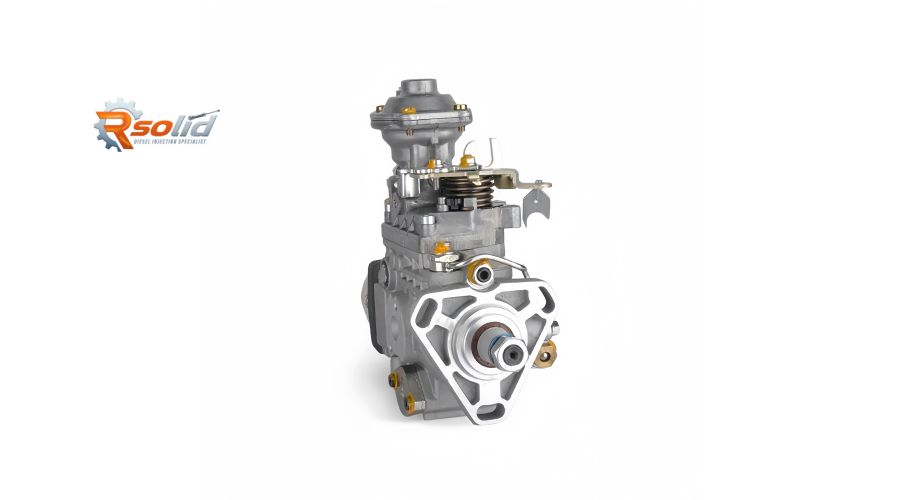

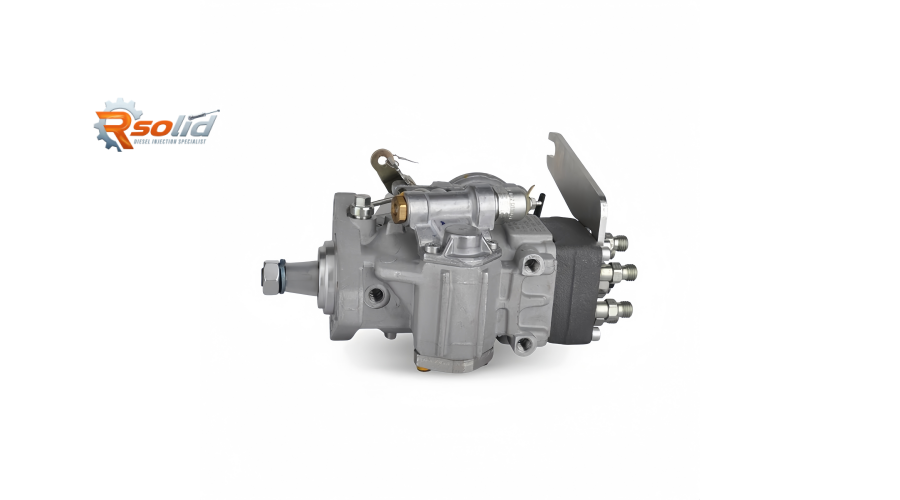

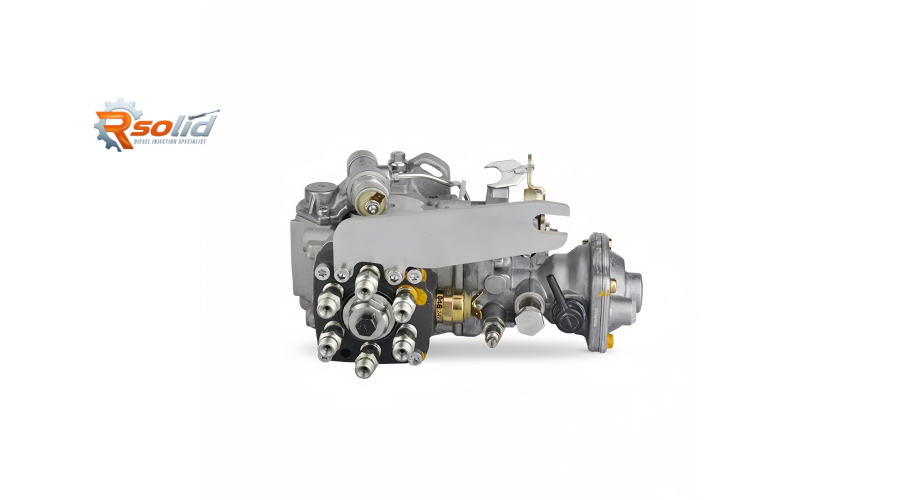

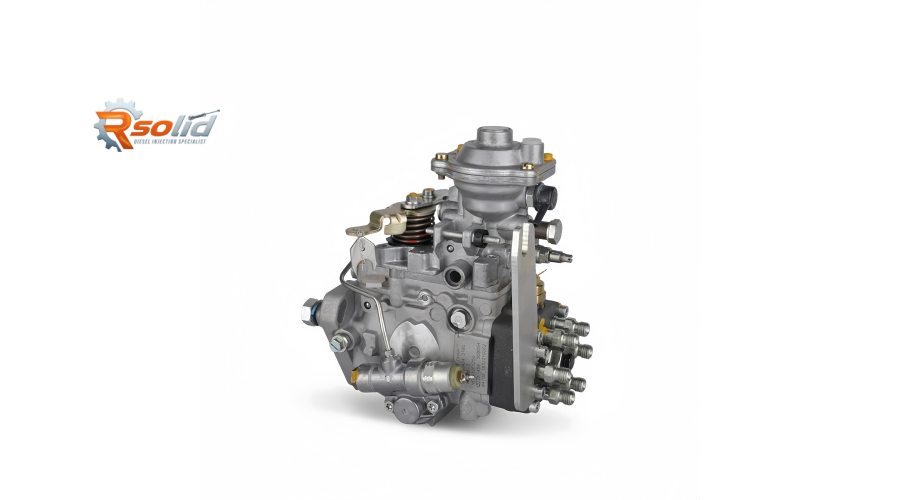

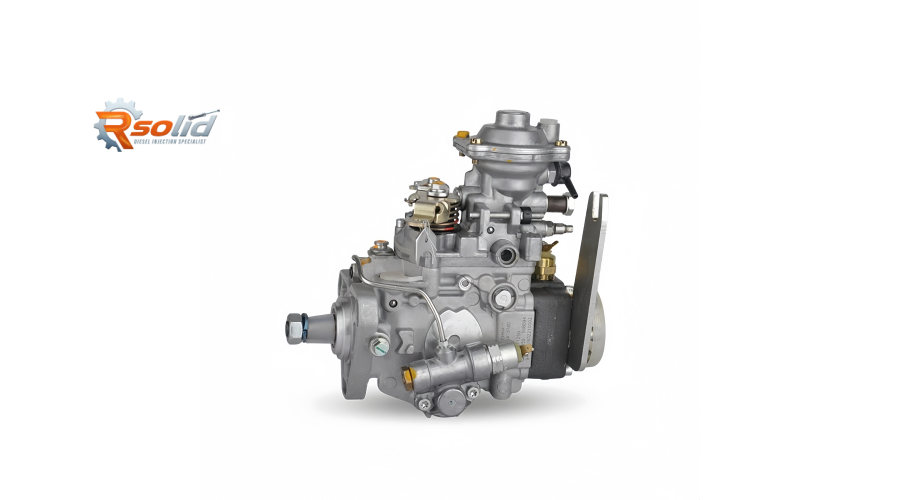

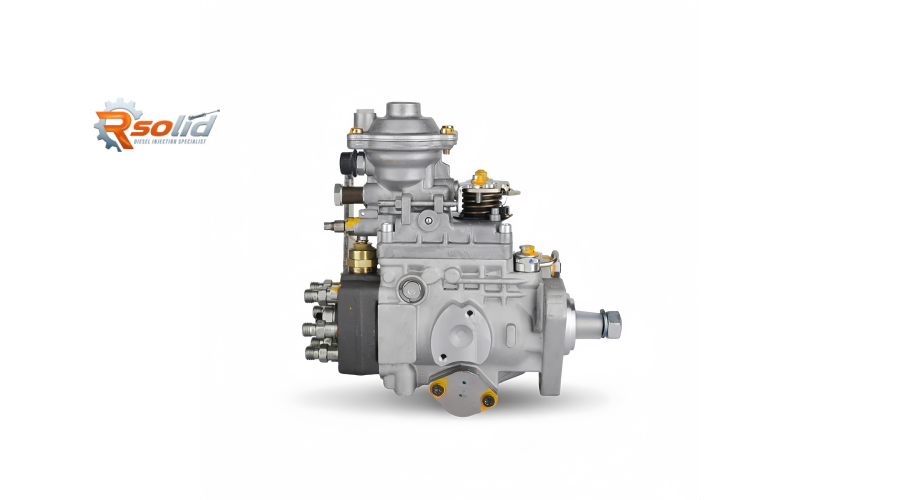

0460424376g Fuel Injection Pump – Bosch Compatible for Perkins Diesel Engines | Rsolid Engine Parts
Perkins diesel engines power a vast range of industrial, agricultural, and construction equipment – from telehandlers and excavators to generator sets and agricultural tractors. The 0460424376g high-pressure fuel injection pump – fully compatible with Bosch common rail architecture – is a direct replacement for Perkins engines equipped with Bosch CP3 or similar systems. This pump ensures precise fuel metering, stable rail pressure, and reliable performance even under the most demanding operating conditions. Rsolid engine parts supplies this critical component with 100% calibration testing and a 12‑month warranty.
1. Structural Advantages of the 0460424376g Injection Pump
The 0460424376g is engineered to meet or exceed Bosch OEM standards. Its design is optimized for the durability requirements of off‑highway Perkins engines:
Three‑Plunger Radial Piston Design – Three plungers arranged radially around an eccentric cam deliver exceptionally smooth, high‑volume fuel flow with minimal pressure ripple, reducing stress on the common rail and injectors.
High‑Efficiency Vane-Type Transfer Pump – Integrated low‑pressure vane pump draws fuel from the tank and supplies it to the high‑pressure plungers, ensuring consistent inlet pressure even when the lift pump is weak or the fuel filter is partially clogged.
Reinforced Drive Shaft & Bearings – Designed to handle the higher torque loads of industrial 4‑ and 6‑cylinder Perkins engines, with heavy‑duty bearings and a truncated keyway for precise timing.
Cast Iron Housing with Corrosion Protection – Resists vibration, thermal cycling, and exposure to moisture, chemicals, and dust common in construction and agricultural environments.
Direct Bosch Compatibility – Identical mounting flange, drive gear interface, high‑pressure outlet ports, and electrical connector as the original Bosch 0460424376. No modifications or adapters required.
2. Compatible Perkins Engine & Equipment Models (≤5)
This pump is specifically calibrated for Perkins common rail diesel engines in the 1100 Series and 1200 Series families. Typical applications include:
Perkins 1104D‑44TA (4.4L turbo, used in JCB, CAT, and Manitou telehandlers)
Perkins 1106D‑70TA (6.6L turbo, used in generator sets and agricultural tractors)
Perkins 1204E‑44TA (4.4L Stage IIIB / Tier 4 Interim)
Perkins 1206E‑70TTA (6.6L Stage IV / Tier 4 Final)
Perkins 854E‑34T (3.4L, used in small excavators and skid steers)
⚠️ Always verify your Perkins engine serial number and original Bosch pump number. The 0460424376 (sometimes marked with a “g” suffix for a specific calibration variant) is usually stamped on the pump nameplate.
3. Common Failures & Installation/Replacement Advice
Typical Symptoms of a Failing 0460424376g Pump:
Loss of power under load – Machine struggles to lift, dig, or maintain PTO speed.
Hard starting, especially when cold – Extended cranking time.
Black or white smoke from exhaust – Incomplete combustion due to low rail pressure.
Engine surging or unstable idle – Often accompanied by DTCs P0087, P0088, or P0191.
Fuel leakage from pump body – Usually from the drive shaft seal or the fuel pressure regulator base.
Professional Installation & Replacement Recommendations:
Always replace all fuel filters – Perkins engines have primary (water separator) and secondary filters. Install new OEM‑quality filters before running the new pump.
Flush the entire fuel system – Remove and clean the fuel tank, all supply and return lines, and the common rail. Use compressed air and clean diesel. Debris from a failed pump will destroy the new unit.
Inspect and clean injectors – Have the injectors professionally flow‑tested. High return flow indicates injector issues that must be resolved before pump installation.
Prime the low‑pressure circuit – Use a hand vacuum pump on the return line to pull fuel through the transfer pump and filter until bubble‑free fuel appears.
Fill the pump with clean diesel – Remove the outlet fitting and pour clean, lubricious diesel into the pump housing to prevent dry start scoring.
Torque all connections to specification – High‑pressure outlet to rail (M14 × 1.5 cone seat): 40–45 Nm. Low‑pressure inlet and return: 25 Nm. Drive gear retaining nut: consult Perkins workshop manual (typically 100–120 Nm).
Use Perkins Electronic Service Tool (EST) or equivalent – After installation, clear learned fuel adaptations and perform a “high‑pressure pump learn” routine.
Run a leak test – Idle the engine for 5 minutes, then inspect all fuel unions and the pump mounting flange for wetness.
💡 Pro Tip: Perkins common rail systems are very sensitive to water contamination. Always drain the water separator daily in wet or humid climates. Consider adding a water‑in‑fuel sensor if not already equipped.
4. Why Choose Rsolid Engine Parts?
Exact Bosch Compatibility – Direct replacement for Perkins 1100/1200 series engines.
100% Calibration Tested – Each pump is run on a Bosch EPS 200 test bench to verify delivery volume, rail pressure control, and regulator response. Test report available.
12‑Month Warranty – Full coverage against manufacturing defects.
Competitive Fleet & Dealer Pricing – Volume discounts for workshops, rental companies, and parts distributors.
Fast Global Shipping – Stock ready for export with tracking.
Expert Support – Our diesel technicians provide pre‑purchase fitment checks and post‑sale guidance via WhatsApp or email.
