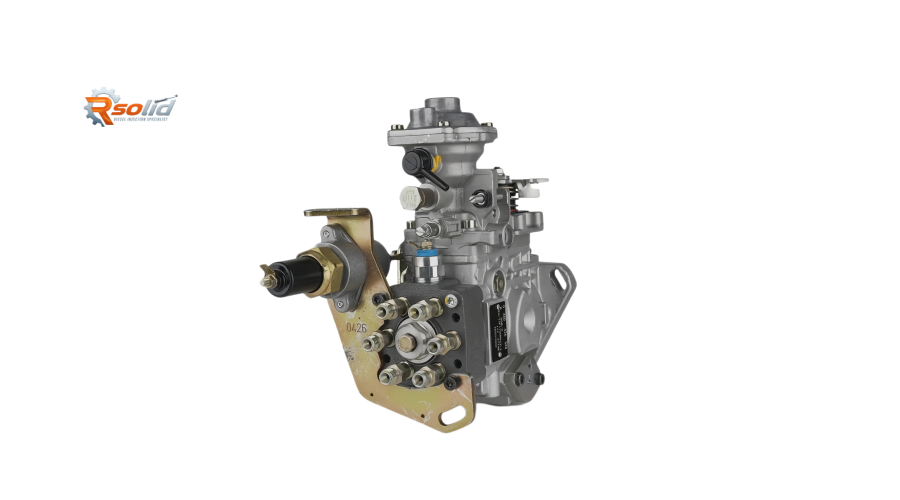

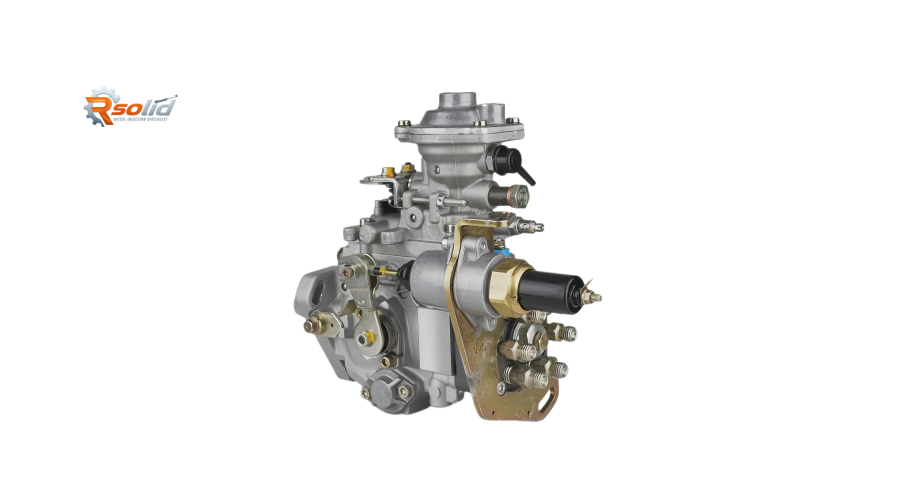

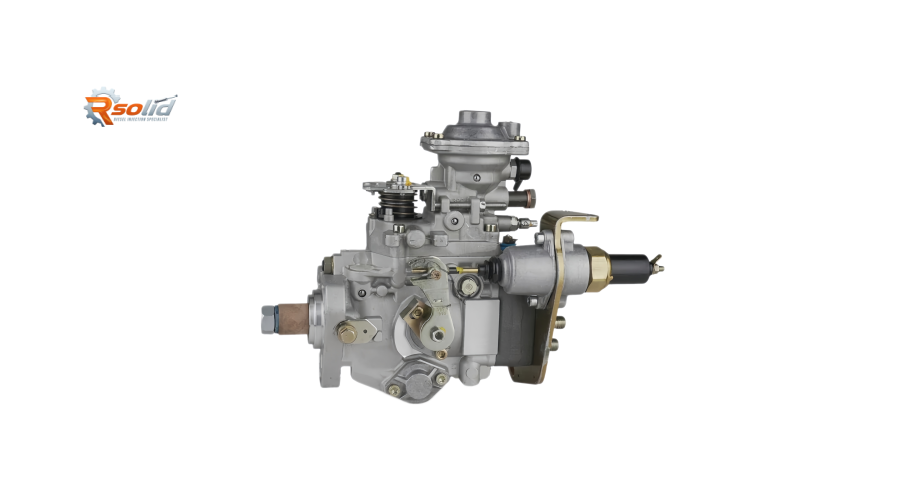

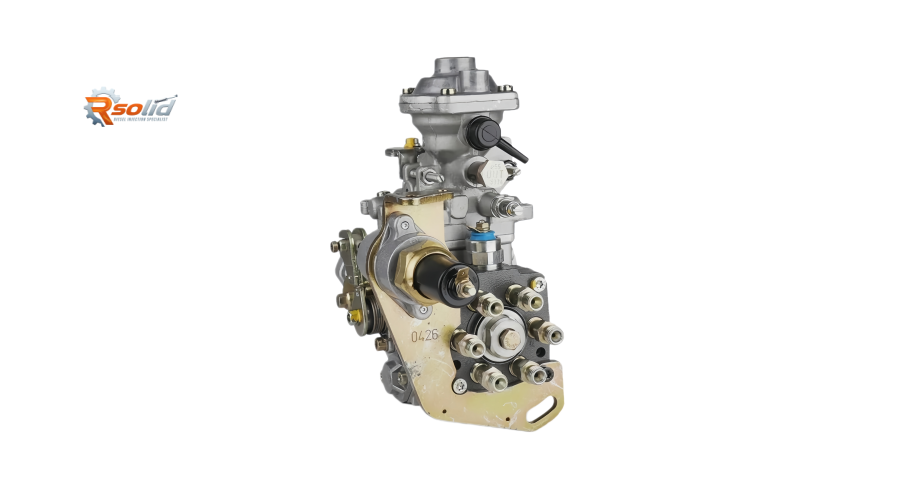

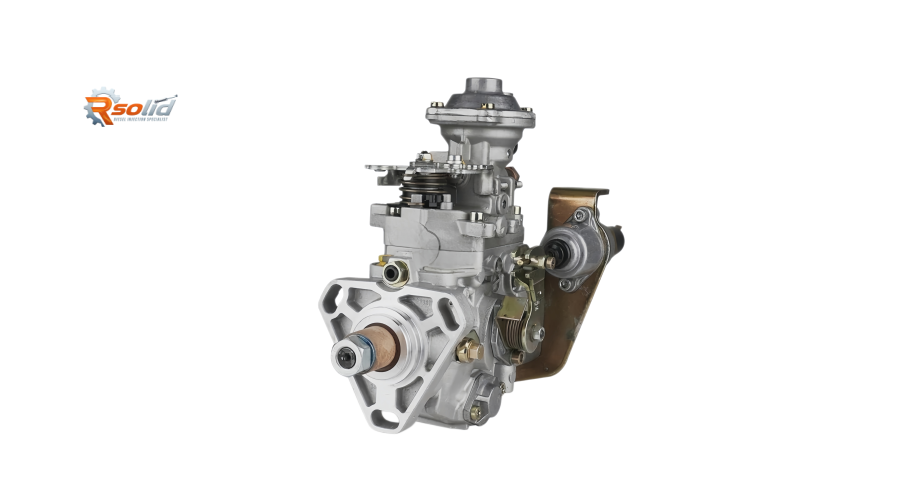

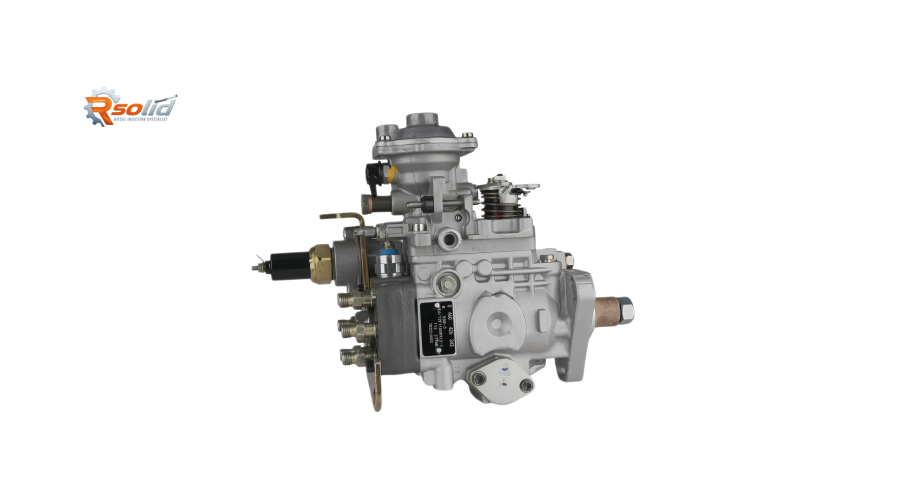

For older and mid‑range diesel engines used in agricultural tractors, industrial machinery, and light commercial vehicles, the Bosch VE distributor‑type pump remains a trusted fuel injection solution. The 0460426343 common rail VE pump (often referred to as a VE rotary pump with electronic control – similar to Bosch VP30/VP44 architecture) is fully compatible with Bosch systems and serves as a direct replacement for select Case IH, Ford, and New Holland diesel engines.
This pump combines mechanical pump simplicity with electronic governor control, offering reliable fuel delivery, improved cold starting, and consistent performance across varying load conditions. Rsolid Engine Parts supplies the 0460426343 with factory calibration, 100% bench testing, and a 12‑month warranty.
1. Structural Advantages of the 0460426343 VE Pump
The Bosch VE family (including electronic variants like VP30/VP44) is one of the most widely used distributor pump designs in the world. The 0460426343 variant offers the following engineering benefits:
Distributor‑Type Rotary Design – A single plunger both pressurises and distributes fuel to individual cylinders in sequence. This compact design reduces weight and moving parts compared to inline pumps, improving reliability in agricultural and industrial environments.
Integrated Vane‑Type Supply Pump – A built‑in low‑pressure vane pump draws fuel from the tank and supplies the high‑pressure chamber, eliminating the need for an external lift pump on most applications.
Electronic Governor & Timing Control – Unlike purely mechanical VE pumps, this variant incorporates electronic solenoid valves (often a timing actuator and a shut‑off/quantity actuator) that allow the ECU to adjust injection timing and fuel delivery based on engine load, speed, and temperature. This provides smoother idle, better fuel economy, and lower emissions.
Cold Start Enrichment – Integrated cold start device automatically increases fuel delivery during cranking when engine temperature is low, dramatically improving winter starting performance.
High‑Pressure Fuel Lubrication – All moving internal parts (plunger, roller ring, cam plate) are lubricated by diesel fuel, simplifying installation and eliminating external oil lines.
Reinforced Housing for Off‑Highway Use – Cast iron or high‑strength aluminum housing designed to withstand vibration, thermal cycling, and exposure to dust, mud, and moisture common on farms and construction sites.
Direct Bosch Compatibility – Identical mounting flange, drive shaft taper (typically 1:10 with Woodruff key), fuel inlet/outlet ports, and electrical connectors as the original Bosch 0460426343. Plug‑and‑play replacement with no modifications.
2. Compatible Equipment Models (≤5)
The 0460426343 VE pump is calibrated for specific 4‑cylinder diesel engines used in Case IH, Ford (New Holland), and related agricultural machinery. Compatible models include:
Case IH 4230 / 4240 / 4250 tractors (with 3.9L or 4.2L diesel engines, typically the 4‑cylinder version of the Case‑IH family)
Ford 5640 / 6640 / 7740 Series tractors (Ford‑New Holland 4‑cylinder diesel, engine codes like Ford BSD or New Holland Genesis)
New Holland TL70 / TL80 / TL90 tractors (4‑cylinder common rail or mechanical pump versions, verify original pump number)
Case CX80 / CX100 / CX110 tractors (with Iveco or Case 4‑cylinder engines)
Fordson / New Holland 40 Series industrial engines (used in forklifts, compressors, and light plant)
✅ Important Fitment Note – This pump is often used as a service replacement for earlier VE pumps on Ford / New Holland 4‑cylinder tractors (e.g., 4.4L or 4.5L engines). Always verify the original Bosch number on your pump (stamped on the nameplate). Cross‑reference numbers may include 0 460 426 343, 0460426343 (Bosch), or OEM numbers from Case / New Holland.
3. Common Failures & Installation/Replacement Advice
3.1 Typical Symptoms of a Failing VE Pump (0460426343)
Hard starting, especially when cold – Cold start device may be stuck, or internal wear reduces cranking pressure.
Engine runs but lacks power under load – Tractor struggles to pull implements or maintain PTO speed. Worn plunger or delivery valve.
Erratic idling or surging – Electronic governor malfunction or stuck control sleeve.
Black or white smoke at all RPMs – Over‑fueling due to incorrect calibration or worn components.
External fuel leaks – From drive shaft seal, head retaining bolts, throttle shaft, or timing actuator housing.
Fuel in the engine oil – Failed drive shaft seal allows diesel to leak into timing case (on engines where the pump is flange‑mounted to the timing cover).
DTCs related to fuel system – On electronic VE pumps, fault codes for timing actuator, fuel quantity actuator, or engine speed sensor.
3.2 Professional Installation & Replacement Recommendations
Diagnose before replacing – Use a diagnostic tool (e.g., Bosch KTS, New Holland EST, or generic diesel scanner) to read fault codes and live data. Check fuel pressure, timing deviation, and actuator response.
Replace all fuel filters – Install new primary (water separator) and secondary filters. VE pumps are sensitive to dirt and water.
Flush the fuel system – Drain and clean the fuel tank. Blow out supply and return lines with compressed air. VE pumps have tight tolerances; even fine debris will cause scoring.
Inspect and test injectors – Worn or sticking injectors (especially nozzle needle valves) will cause poor starting, smoke, and can damage the new pump. Have injectors pop‑tested and replaced if necessary.
Replace engine oil and filter – If diesel has contaminated the oil (rising level or diesel smell), change oil and filter before running the new pump.
Set engine to timing marks – Bring cylinder #1 to TDC (compression stroke). Align timing marks on the pump drive gear or shaft per the workshop manual.
Lubricate the pump before installation – Fill the pump inlet and return ports with clean diesel or light assembly oil. Rotate the drive shaft by hand to distribute oil.
Use new O‑rings and gaskets – Replace the mounting flange gasket, shaft seal (if not pre‑installed), and any banjo fitting washers.
Torque connections to spec – Mounting nuts: 25–30 Nm. High‑pressure outlet fittings (to injector lines): 25–30 Nm. Inlet and return banjo bolts: 25 Nm.
Bleed the fuel system – Loosen injector lines at the injectors. Crank the engine until solid fuel appears, then tighten. VE pumps are self‑bleeding but may require patience, especially after filter changes.
Check static timing (spill timing or dial indicator) – For mechanical VE pumps, use a dial indicator on the pump delivery valve holder to set the correct timing (typically 8–12° BTDC). For electronic VP pumps, use a diagnostic tool to verify timing deviation.
Perform a leak test – Idle the engine for 10 minutes, then inspect all fuel unions, the pump mounting flange, and the drive shaft seal for wetness.
Reset adaptation values (electronic variants) – Use a diagnostic tool to clear learned fuel trims and perform a “pump adaptation” or “actuator learn” routine.
💡 Pro Tip – VE pumps are sensitive to water. Always drain the water separator daily. If the tractor has been sitting for months, manually prime the system using the hand primer on the lift pump (if equipped) before cranking.
4. Why Choose Rsolid Engine Parts as Your Supplier
✅ Exact Bosch VE Compatibility – Direct replacement for 0460426343 on Case IH, Ford, and New Holland 4‑cylinder diesel engines.
✅ 100% Calibration Tested – Each pump is run on a Bosch diesel calibration bench to verify delivery volume, governor response, timing advance, and electronic actuator function. Test reports available.
✅ 12‑Month Warranty – Full coverage against manufacturing defects, even for agricultural and off‑highway use.
✅ Competitive Pricing for Dealers & Workshops – Volume discounts for tractor repair shops, parts distributors, and agricultural cooperatives.
✅ Fast Worldwide Shipping – Stock ready for export to Europe, Africa, Asia, the Americas, and the Middle East.
✅ Expert Technical Support – Our diesel specialists provide pre‑purchase fitment checks, timing procedures, and installation guidance via WhatsApp or email.
