Overview

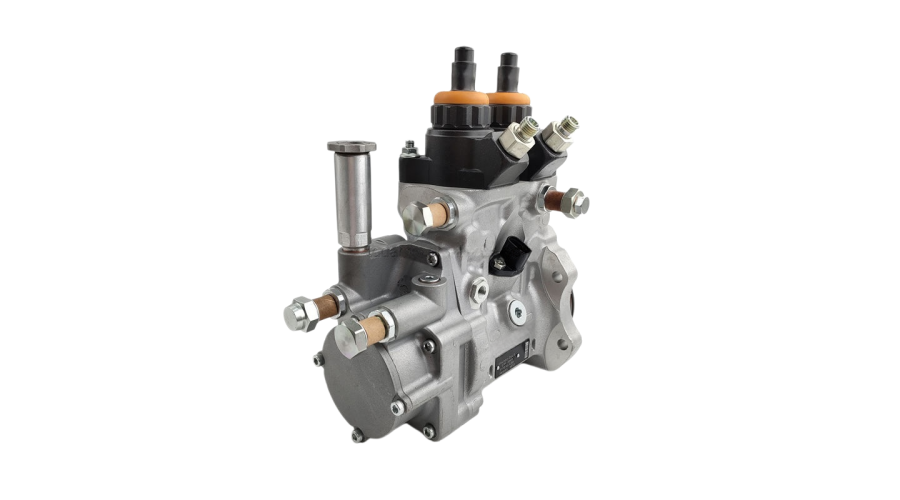

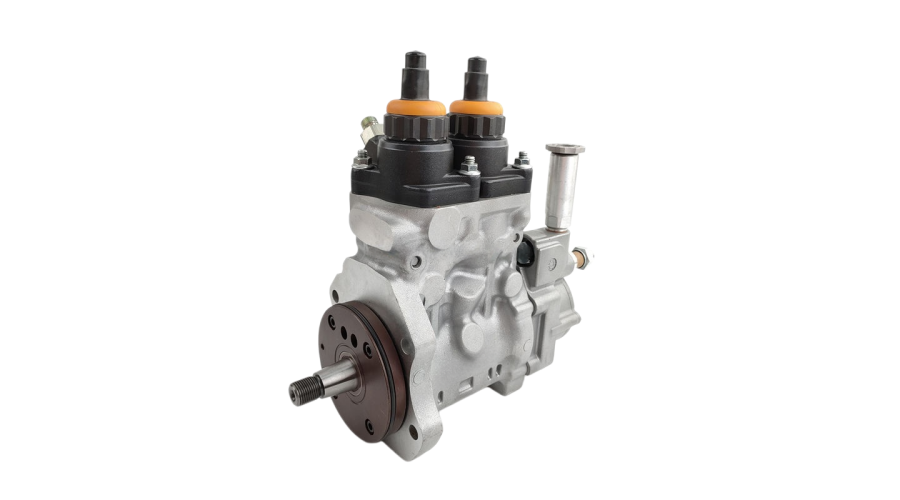

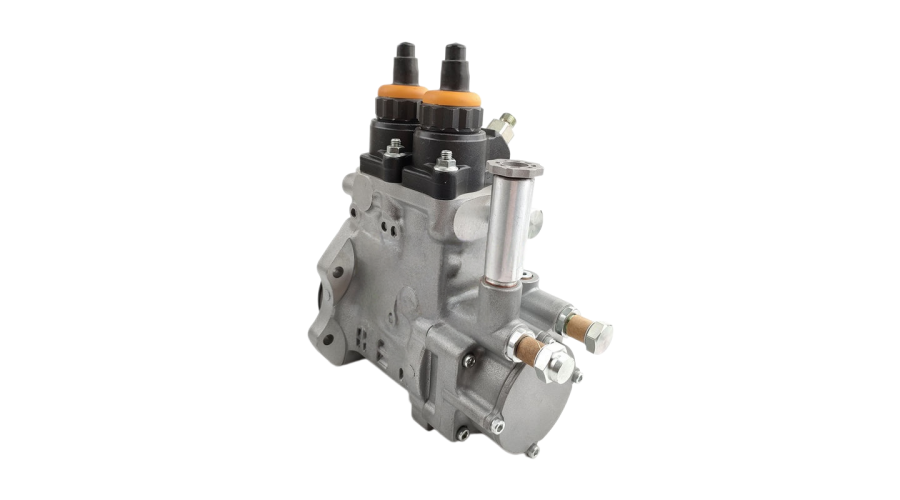

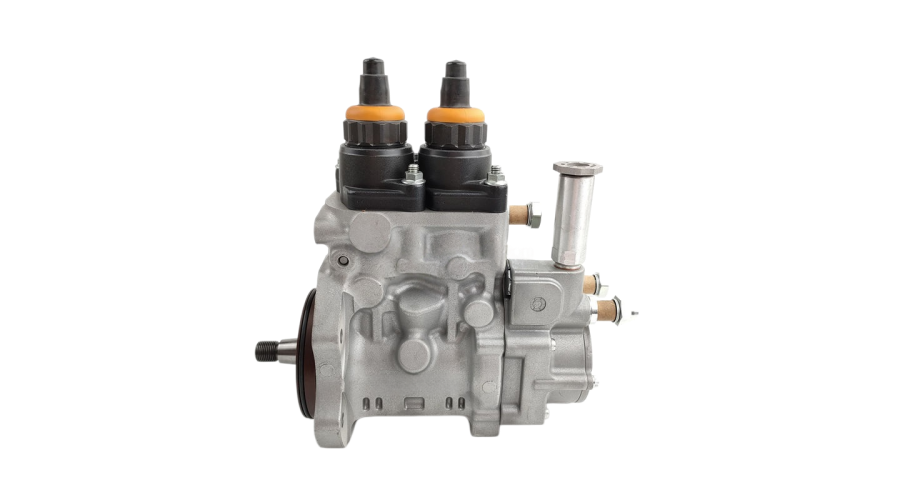

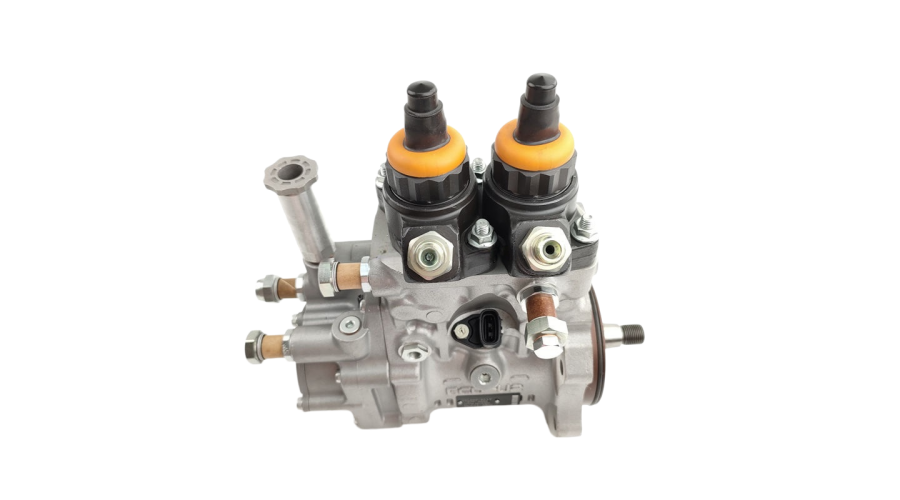

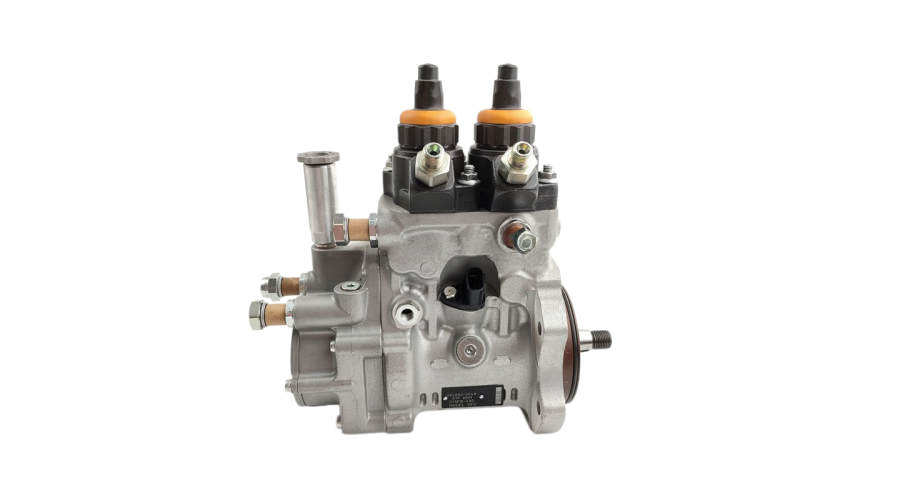

The 094000-0540 fuel injection pump (also known as injection pump or FIE pump) is a high-precision unit engineered for the XiChai CA6DL-32 engine, which is widely used in FAW heavy-duty trucks. This pump ensures accurate fuel metering, optimal atomization, and reliable high-pressure delivery to the injectors. Manufactured to meet or exceed OEM specifications, the Rsolid engine parts version provides outstanding performance and longevity.
Structural Features
The 094000-0540 injection pump incorporates several well-engineered design elements:
| Feature | Description |
|---|
| Pump Type | In-line, 6-cylinder distributor-type / plunger pump (based on OEM design) |
| Plunger & Barrel Assembly | Hardened and precision-ground plungers (ø11 mm) with matched barrels for consistent fuel delivery |
| Delivery Valve | High-pressure delivery valves with damping elements to prevent secondary injection |
| Governor | Mechanical all-speed governor (RSV type) with torque control and idle stabilization |
| Feed Pump | Integrated vane-type feed pump to supply low-pressure fuel from the tank |
| Housing Material | High-strength cast iron with anti-corrosion coating for thermal stability and durability |
| Camshaft | Single camshaft with three-lobe or six-lobe profile (depending on configuration) to drive plungers sequentially |
| Control Rack & Pinion | Rack-and-pinion mechanism for precise fuel quantity regulation across all engine speeds |
| Mounting Flange | SAE standard flange compatible with CA6DL-32 front gear train |
These structural characteristics ensure reliable operation under heavy loads and harsh conditions typical of long-haul trucks.
Technical Advantages
When you choose the 094000-0540 fuel injection pump from Rsolid engine parts, you benefit from:
1. Precise Fuel Metering
The high-tolerance plunger and barrel set (clearance within 1.5–2.5 µm) delivers consistent fuel volume per stroke, reducing cycle-to-cycle variation.
2. Improved Fuel Efficiency
Optimized cam profile and injection timing reduce parasitic losses and improve combustion efficiency, leading to lower specific fuel consumption (typically 5–8% better than worn pumps).
3. Higher Reliability
All critical components are induction-hardened and super-finished. The pump withstands continuous operation at rated speeds up to 2500 rpm and peak injection pressures exceeding 1200 bar.
4. Cold Start Performance
The integrated mechanical advance mechanism and high-cranking-speed feed pump enable reliable starting down to -25°C without external aids.
5. Easy Maintenance
Modular design allows replacement of individual plunger/barrel sets without disturbing the entire pump. Adjustable idle and max speed screws simplify calibration.
6. OEM Compatibility
Manufactured to exact dimensions and performance curves as the original 094000-0540, ensuring drop-in fit for XiChai CA6DL-32 engines without modification.
Application Equipment
The Fuel Injection Pump 094000-0540 is primarily used in:
FAW J6 Series Trucks – J6P, J6L heavy-duty tractor heads and cargo trucks
FAW V8 Series Trucks – Older models equipped with XiChai CA6DL-32 engines
XiChai CA6DL-32 Engine – 6-cylinder, 7.7–8.6L displacement, 320 hp @ 2200 rpm, common in construction and logistics fleets
Off-highway equipment – Some wheel loaders and excavators using the CA6DL-32 derivative (check OEM specs)
Typical vehicle models: FAW J6 420HP (some variants), FAW J5, FAW Jiefang with 6DL series engines.
Always verify your engine serial number and injection pump code before purchase. The original pump code 094000-0540 is stamped on the pump nameplate.
Common Failures & Symptoms
Even a robust pump can develop issues over time. Recognizing early signs helps avoid costly downtime.
| Failure Mode | Typical Symptoms | Root Cause |
|---|
| Plunger/barrel wear | Hard starting, loss of power, rough idle, black smoke | Fuel contamination (water/abrasives), lack of lubrication |
| Sticking delivery valve | After-dribble, knocking noise, uneven cylinder firing | Carbon deposits, varnish from degraded fuel |
| Governor spring fatigue | Unstable idle, hunting/surging at low speed, overspeed on no-load | Age, vibration, incorrect adjustment |
| Feed pump failure | Air ingress, fuel starvation at high load, engine stalling | Worn vane seals or cracked diaphragm |
| Control rack sticking | Erratic acceleration, no response to throttle, runaway risk (rare) | Gum formation, rust, foreign particles |
| Camshaft lobe wear | Reduced injection pressure, weak cylinder contribution | Insufficient oil in pump housing, extreme mileage |
Preventive tip: Most pump failures (over 70%) are caused by contaminated fuel or clogged filters. Always use high-quality diesel and replace fuel filters at recommended intervals.
Maintenance Recommendations
To maximize the service life of your 094000-0540 injection pump, follow these guidelines:
✅ Regular Inspection (Every 20,000 km or 500 hours)
Check for external fuel leaks (especially at delivery valve holders and governor cover).
Inspect drive coupling and mounting bolts for tightness.
Listen for abnormal knocking or irregular idling.
✅ Scheduled Service (Every 80,000 km or 2,000 hours)
Replace fuel filters (primary + secondary) without fail.
Drain water sediment from the fuel tank and pump inlet screen.
Test and adjust injection timing using a dial gauge (CA6DL-32 spec: 6°–8° BTDC at rated speed).
Calibrate max fuel screw and idle speed (OEM: idle 600–650 rpm, max speed 2500±50 rpm).
✅ Lubrication & Fuel Quality
Use diesel with sulfur content ≤500 ppm (low-sulfur fuels require additive lubrication – consider a fuel conditioner).
Ensure the pump housing has clean engine oil (for pumps with oil-filled camshaft chambers – check your engine manual).
✅ Long-term Storage
⚠️ When to Replace
If the pump fails calibration (out-of-spec delivery or timing) even after adjustment.
Visible scoring on plungers or rust inside the pump housing.
Excessive end play in the camshaft (>0.15 mm).
Proactive replacement every 500,000–600,000 km (or 12,000–15,000 hours) for heavy-duty applications is recommended to avoid unexpected breakdowns.
Why Choose Rsolid Engine Parts?
Rsolid engine parts has established itself as a reliable aftermarket supplier for diesel injection components. Here is what you get when you purchase the 094000-0540 fuel injection pump from us:
OEM-grade manufacturing – Precision-ground plungers, genuine-grade delivery valves, and high-temperature seals.
100% test before shipment – Every pump is run on a Hartridge or Bosch EPS test bench to verify fuel delivery, timing, governor response, and leak-free operation.
Ready-to-run – Each pump is pre-calibrated to XiChai CA6DL-32 specifications; no need for risky on-site adjustments.
Competitive pricing – Up to 40% lower than dealer prices, with identical performance.
12-month warranty – Free replacement or repair for any manufacturing defect.
Fast global shipping – Warehouses in Asia, Europe, and Americas. Express delivery for urgent orders.
Technical support – Our diesel specialists help with identification, installation tips, and troubleshooting.
Ordering Information
Part number: 094000-0540
OEM cross references: 094000-0540 (original), also compatible with 094000-0541 (some later revisions – please confirm).
