For medium- and heavy-duty diesel engines equipped with Denso common rail systems, the 094000-1270 HP0 fuel injection pump is a critical component that ensures precise fuel delivery at extreme pressures. This pump is widely used in Japanese and Chinese truck engines, including Hino J08E, Isuzu 6HK1/6HH1, and several other diesel powerplants.
Overview – 094000-1270 HP0 Pump

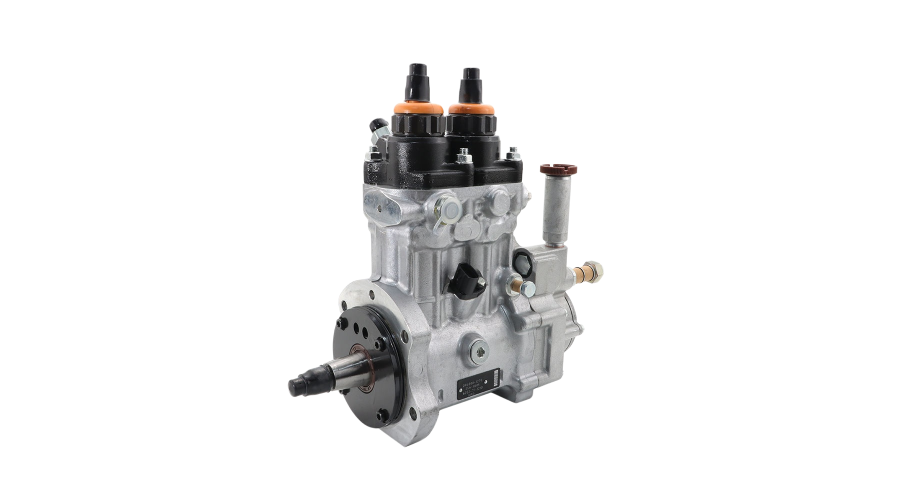

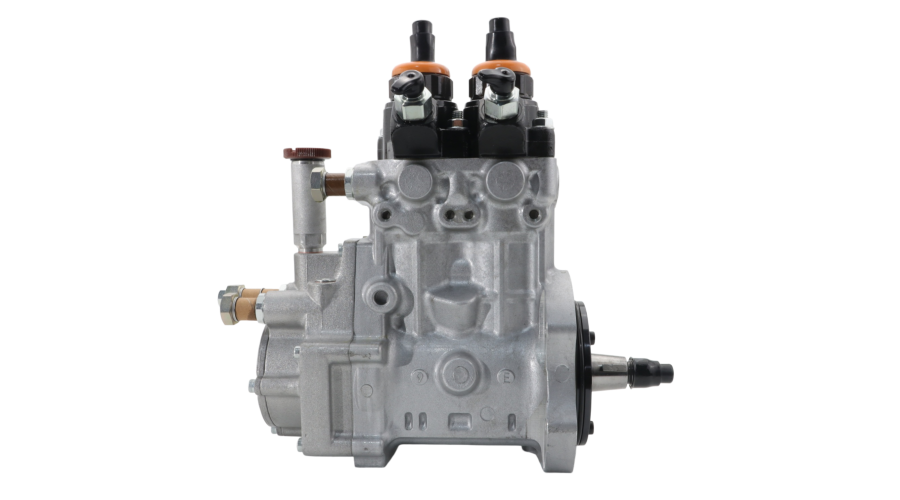

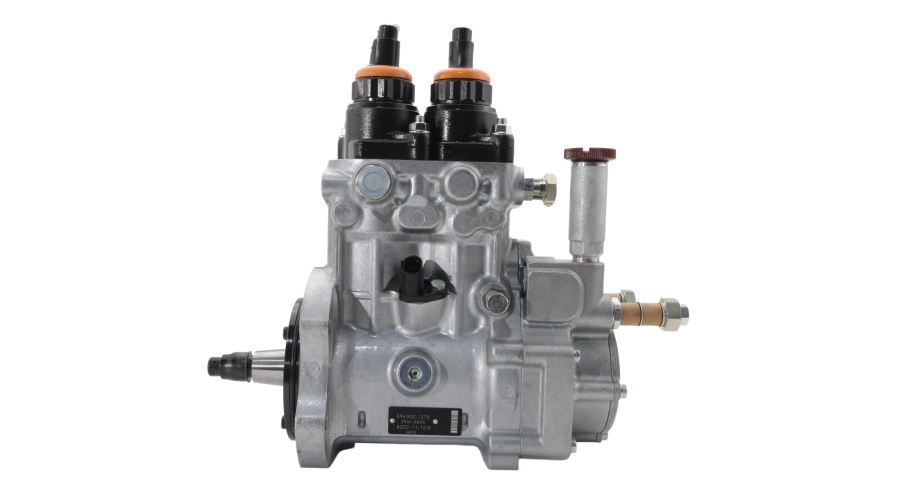

The 094000-1270 is a Denso HP0-series high-pressure supply pump, designed for common rail diesel injection systems. It operates on the radial plunger principle, delivering fuel at up to 1800 bar to the common rail. This pump is known for its durability, quiet operation, and precise electronic metering via an integrated Suction Control Valve (SCV). It is a direct OEM replacement for engines originally fitted with Denso HP0 pumps bearing the same part number.
Rsolid engine parts offers this pump as a brand-new, bench-tested unit that matches or exceeds original specifications, ensuring your engine returns to peak performance.
Structural Features
The 094000-1270 HP0 pump incorporates advanced engineering tailored for demanding diesel applications:
| Feature | Description |
|---|
| Pump Type | Radial plunger high-pressure supply pump (Denso HP0 architecture) |
| Plunger Configuration | Three radial plungers set at 120° intervals, driven by an internal cam ring |
| Suction Control Valve (SCV) | Built-in proportional solenoid valve (12V) that regulates fuel intake based on ECU demand |
| Low-Pressure Stage | Internal trochoid gear pump (feed pump) draws fuel from the tank and supplies the high-pressure section |
| High-Pressure Head | Forged steel head with two outlet ports to the common rail |
| Cam Ring | Hardened steel ring with precision-ground cam lobes acting on roller followers |
| Housing | Die-cast aluminum alloy with anti-corrosion coating, lightweight yet rigid |
| Drive Connection | Splined shaft (typically 12-tooth or 14-tooth – confirm with your engine) |
| Pressure Relief Valve | Integrated internal relief valve (set ~2000 bar) for system protection |
| Fuel Temperature Sensor Port | Optional threaded port for sensor feedback to the ECU |
The radial-piston design provides smoother flow, lower noise, and higher volumetric efficiency compared to older distributor or in-line pumps.
Technical Advantages
Choosing the Rsolid 094000-1270 HP0 pump delivers measurable benefits for your diesel engine:
1. Ultra-High Injection Pressure – Up to 1800 bar
Enables extremely fine fuel atomization, leading to more complete combustion, reduced soot emissions, and lower fuel consumption (typically 3–7% improvement over a worn pump).
2. Precise Electronic Fuel Control
The SCV responds in milliseconds to ECU signals, adjusting fuel delivery from idle to full load. This eliminates mechanical governor lag and provides smoother acceleration and better throttle response.
3. Denso HP0 Compatibility – Drop-In Fit
Exact dimensional and electrical match to the original 094000-1270 pump. No modifications, adapters, or recalibration needed – simply remove the old pump and install this unit.
4. Excellent Cold Start Performance
The internal feed pump combined with SCV control ensures reliable starting down to -30°C when used with proper fuel and battery condition.
5. Quiet & Low Vibration
The radial plunger design significantly reduces pumping noise and vibration compared to older mechanical pumps – a major benefit for driver comfort and reduced component fatigue.
6. Long Service Life
With clean fuel and regular maintenance, this pump can last 500,000 – 700,000 km (or 8,000–12,000 operating hours) in typical line-haul or construction truck applications.
7. New – Not Remanufactured
Rsolid supplies brand new pumps. No hidden wear, no core charge, no risk of premature failure due to poorly rebuilt components.
Application Equipment – Compatible Diesel Engines
The 094000-1270 HP0 pump is found on a range of medium- and heavy-duty diesel engines, primarily in Asian trucks and buses. Below is a detailed compatibility table:
| Engine Family | Specific Engine Models | Typical Vehicle Applications |
|---|
| Hino J08E | J08E-TI, J08E-UT, J08E-VB, J08E-VC | Hino 300 Series (Dutro), Hino 500 Series (Ranger), Hino 700 Series |
| Hino J05E | J05E-TI, J05E-UT (some variants) | Hino 300 Series light-duty trucks |
| Isuzu 6HK1 | 6HK1-TC, 6HK1-TCN, 6HK1-TCS | Isuzu F-Series (FRR, FSR, FTR), Giga, and heavy-duty trucks |
| Isuzu 6HH1 | 6HH1 (common rail versions) | Isuzu C/E series (some markets) |
| UD Trucks (Nissan Diesel) | GH8, GH9 (some common rail variants) | UD Quon, Condor (select models) |
| Chinese Engines (Denso-licensed) | Weichai WP10 (common rail), Yuchai YC6L, Dongfeng Cummins ISDe (rare) | Various Chinese trucks – always verify original pump number |
Important verification: The original pump part number 094000-1270 is stamped on the pump nameplate. Some engines may use a visually similar HP0 pump but with different SCV calibration or flow rating. Always check your existing pump number before ordering.
How to confirm compatibility on your truck:
Locate the fuel injection pump (usually driven by the gear train at the front of the engine).

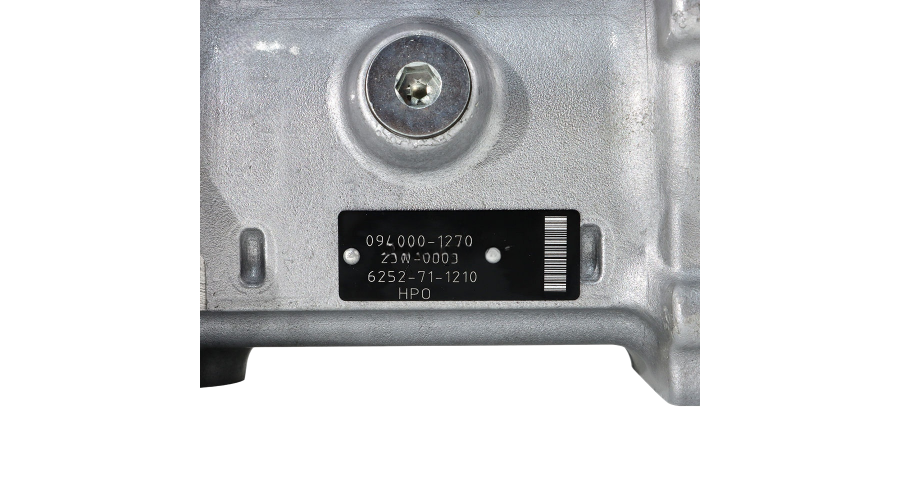

Look for the metal nameplate – it should read “094000-1270” or “Denso HP0 1270”.
Check that your engine has a common rail system (high-pressure rail running along the cylinder head, with injectors connected by steel pipes).
Common Failures & Symptoms
Even high-quality HP0 pumps can fail, especially when exposed to contaminated fuel or poor maintenance. Recognizing early signs can save your entire fuel system.
| Failure Mode | Typical Symptoms | Root Cause |
|---|
| SCV (Suction Control Valve) failure | Erratic idle, intermittent power loss, engine derate (fault codes P0087/P0088), hard starting | Fuel contamination, electrical overvoltage, coil wear, or corrosion |
| Plunger & cam ring wear | Metal particles in return fuel line, low rail pressure under load, long cranking time | Water in fuel, poor lubricity (especially with ULSD without additive), abrasive dirt |
| Internal feed pump wear | Fuel starvation at high RPM, stalling, long crank time, air ingress | Dirt passing through primary filter, tank debris |
| High-pressure head leakage | Visible diesel weep near outlet fittings, pressure drop, fuel smell | O-ring aging, overtightening, thermal cycling |
| Drive spline wear | Rumbling noise from pump area, timing drift, metal dust on timing cover | Misalignment, loose mounting bolts, or worn engine gear train |
| Pressure relief valve stuck | Overpressure (blown rail hose) or underpressure (engine dies under load) | Debris or spring fatigue |
Critical warning: If you find metallic particles (especially steel or brass) in the fuel return line or inside the fuel filter, the high-pressure section of the pump is failing. Replace the pump immediately and flush the entire fuel system – injectors, rail, and lines – to prevent a repeat failure.
Maintenance Recommendations
Maximize the lifespan of your 094000-1270 HP0 pump with these proven practices:
✅ Regular Checks (Every 15,000 – 20,000 km or 400–500 hours)
Visually inspect pump body for external fuel leaks (SCV area, head joints, drive shaft seal).
Listen for unusual whining or knocking – use a stethoscope on the pump housing at idle.
Check SCV electrical connector for corrosion, loose pins, or damaged wiring.
Drain water from the fuel pre-filter and tank sump.
✅ Scheduled Service (Every 50,000 – 60,000 km or 1,200–1,500 hours)
Replace both primary (30 μm) and secondary (5 μm or finer) fuel filters. Never skip this step.
Take a fuel sample to check for water (should be <200 ppm) and particulate contamination (ISO 18/16/13 or better).
Use a diagnostic scanner to monitor rail pressure stability under load (desired: ±50 bar at steady state).
If the pump has exceeded 400,000 km, consider a bench flow test to measure internal leakage.
✅ Fuel Quality & Lubricity (Essential for HP0 longevity)
Always use diesel that meets EN590 or ASTM D975 standards.
For ultra-low-sulfur diesel (ULSD, <15 ppm sulfur), add a lubricity improver (e.g., 2–5% biodiesel, or commercial additive like Liqui Moly, Stanadyne, or Opti-Lube). HP0 pumps are sensitive to fuel lubricity.
Never run the pump on gasoline, kerosene, contaminated fuel, or high-water-content diesel – instant failure.
✅ Long-term Storage
If the vehicle will be idle for more than 3 months, run the engine monthly until fully warm.
Alternatively, fill the pump with a diesel preservative (e.g., Fleetguard Diesel Fuel Anti-Gel & Stabilizer) and seal the inlet/outlet ports.
Disconnect the SCV plug and crank the engine for 10 seconds to fill the pump with clean fuel before long storage.
⚠️ When to Replace the Pump (Do Not Delay)
Metal particles found in fuel return line, filter, or pump housing.
Rail pressure cannot reach target (e.g., required 1600 bar at full load, only 1200 bar achieved).
SCV replacement (a separate serviceable part) does not fix pressure instability.
External leak from drive shaft seal – internal bearing wear is likely the cause.
Pump has exceeded 700,000 km in heavy-duty use – proactive replacement avoids roadside breakdowns and injector damage.
Pro tip: When replacing the HP0 pump, always install new fuel filters and consider having the injectors tested. Contaminated or worn injectors can send debris back to the pump and destroy a new unit within hours.
Why Choose Rsolid Engine Parts for 094000-1270 HP0?
Rsolid engine parts is a trusted global supplier of diesel fuel injection components. Here is why professionals choose us for their HP0 pump needs:
Exact Denso HP0 Compatibility – Our 094000-1270 matches OEM dimensions, spline configuration, SCV electrical characteristics (resistance 3.5–4.5 Ω, PWM frequency 200–300 Hz), and flow curves.
Brand New – No Reman – Every pump is assembled from new components. No core charge, no hidden wear, no risk of premature failure from poor rebuilding.
100% Bench Tested – Each pump is tested on a Bosch EPS 815 or Hartridge AVM2 bench for:
Internal leakage (<1.5 L/min at 1600 bar)
SCV linearity and response time
Pressure buildup curve (0 to 1800 bar within specified time)
Leak-free operation under heat cycling
Plug-and-Play Installation – Pre-calibrated for the target engine families (Hino J08E, Isuzu 6HK1, etc.). No on-site adjustment needed.
Competitive Pricing – 30–50% lower than OEM dealer pricing, with the same or better reliability.
12-Month Warranty – Full coverage against manufacturing defects. Extended warranty options available for fleets.
Fast Global Shipping – Warehouses in Asia (Shanghai), Europe (Rotterdam), and North America (Houston). Express delivery 2–5 business days.
Expert Technical Support – Our team includes former Denso and Bosch fuel injection specialists who can help with pump identification, SCV matching, and troubleshooting.
Ordering Information
Part number: 094000-1270
Also known as: Denso HP0 1270, HP0 pump, 294000-1270 (cross reference)
