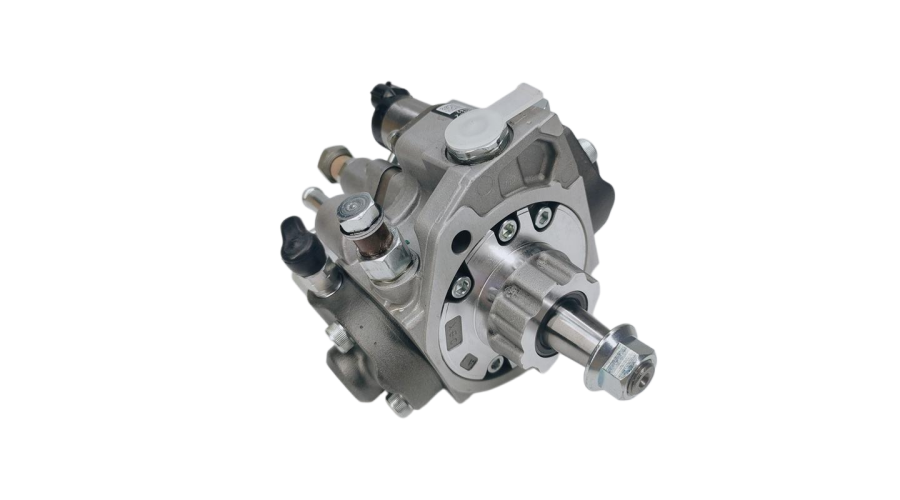

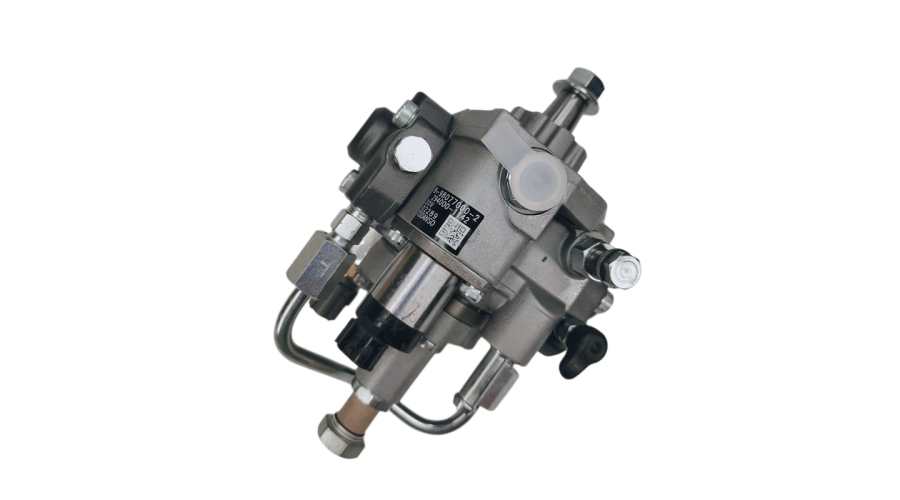

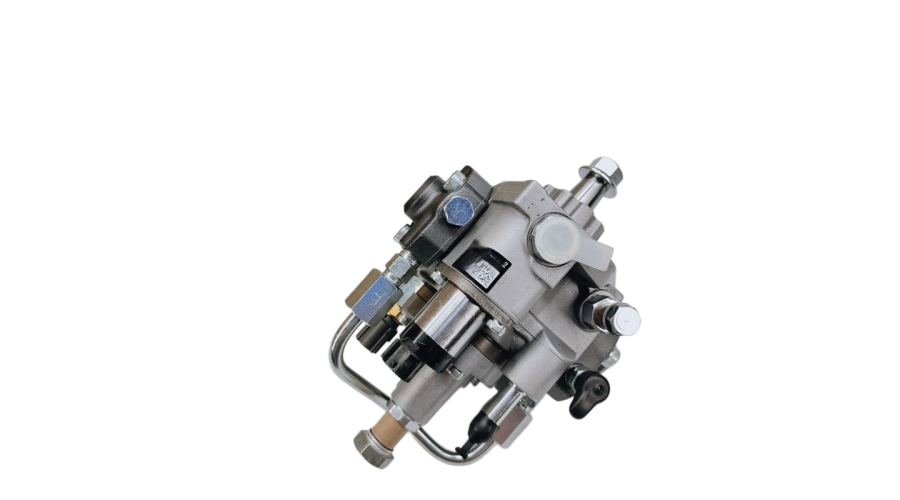

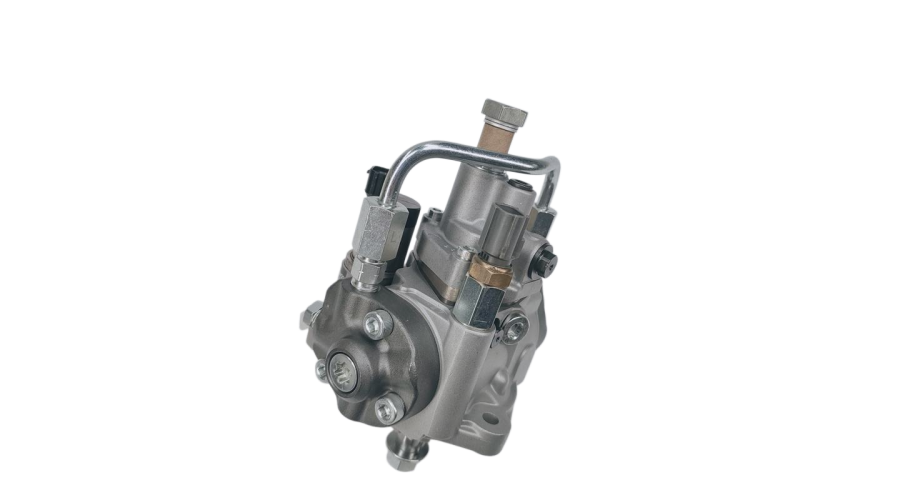

The 294000-1142 Fuel Injection Pump is a high-precision distributor-type diesel pump designed to be compatible with Denso engineering standards, specifically calibrated for the Isuzu 4JJ1 engine. The 4JJ1 is a 3.0-liter, 4-cylinder, DOHC, turbocharged diesel engine widely used in Isuzu’s N-series light-duty trucks, including the NRK85 model (part of the Isuzu Elf / NKR family).
This pump belongs to Denso’s HP0 or HP3 series, delivering injection pressures in the range of 1,200–1,600 bar to support clean combustion and high fuel efficiency. Unlike earlier mechanical pumps, the 294000-1142 often integrates an electronic governor or a mechanical-hydraulic timing device, depending on the emission standard (Euro 3, 4, or 5). For owners of an Isuzu NRK85 truck – used for urban delivery, construction, or farming – this pump is the heart of the fuel system. A failing unit can cause hard starting, loss of power, excessive smoke, and poor fuel economy. Aftermarket alternatives like those from Rsolid engine parts offer identical fit and performance to the genuine Denso unit at a significantly lower cost, often without a core charge.
How Does the 294000-1142 Fuel Injection Pump Work on the Isuzu 4JJ1?
The operating principle of the 294000-1142 injection pump is similar to other Denso rotary pumps, but with specific adaptations for the 4JJ1’s high-pressure common rail–like characteristics (note: some 4JJ1 variants use common rail; this pump is for the mechanical distributor injection system used in earlier 4JJ1 engines). Here is a step-by-step explanation:
Fuel Supply: An integrated vane-type feed pump draws diesel from the tank through a water separator and primary filter. It raises pressure to approx. 2–3 bar to prevent cavitation.
High-Pressure Generation: A single plunger inside the pump head reciprocates driven by an eccentric cam ring. Each stroke compresses fuel to 1,200–1,600 bar – essential for the 4JJ1’s small-bore, high-swirl combustion chamber.
Distribution: A rotating distributor rotor directs the high-pressure fuel to each of the four injectors in the correct firing order (1-3-4-2 for the Isuzu 4JJ1).
Timing Control: The pump uses a hydraulic or electronic timer to advance injection timing as engine RPM increases. On electronic versions, a solenoid or actuator receives signals from the engine ECU (Engine Control Unit) for precise timing maps.
Governor Regulation: A mechanical all-speed governor (or electronic governor on later models) adjusts the fuel rack position to maintain idle speed (approx. 700 rpm) and limit maximum speed (around 4,000 rpm for the 4JJ1).
When the 294000-1142 pump wears out – common after 300,000–400,000 km on an NRK85 – typical failure symptoms include:
Long cranking time before start, especially when hot.
Loss of power above 2,500 rpm.
Black smoke under acceleration.
Erratic idle or stalling.
Replacing it with a quality compatible pump restores the original injection timing and fuel delivery curve.
Advantages of the 294000-1142 Fuel Injection Pump (Compatible with Denso for Isuzu 4JJ1 NRK85)
Why should you choose this specific pump for your Isuzu NRK85? Here are the key benefits backed by real-world performance.
1. Direct Bolt-On Replacement for Isuzu NRK85
The 294000-1142 pump matches the exact mounting flange (3-bolt SAE pattern), drive shaft spline (10-tooth), and fuel line port angles of the original Denso unit. No modifications to the timing gear housing or injector lines are required.
2. Restored Power & Torque of the 4JJ1
The Isuzu 4JJ1 engine produces up to 150 HP and 375 N·m of torque in stock form. A worn pump reduces torque by 15–25%, making hill climbs and loaded starts sluggish. A new 294000-1142 pump restores the original torque curve, especially the critical low-end response (peak torque from 1,600–2,800 rpm).
3. Improved Fuel Economy
Fleet operators report a 12–20% improvement in fuel consumption after replacing a failing pump. For an NRK85 that averages 12–15 L/100km in mixed use, this can save over 2,000 liters of diesel annually per truck.
4. Lower Emissions & Reduced Smoke
The 4JJ1 engine was designed to meet Euro 3, 4, or 5 standards. A worn pump causes over-fueling, leading to black smoke (soot) and failed opacity tests. A properly calibrated pump ensures clean combustion and compliance with roadside emission checks.
5. Cost-Effective Alternative to OEM Denso
Genuine Denso 294000-1142 pumps from Isuzu dealers can cost $1,400–$2,200. High-quality aftermarket versions from Rsolid engine parts offer the same Denso-compatible performance for 40–60% less, with a full warranty and no core deposit.
6. Extended Engine Life
Lean misfire or hydraulic lock caused by a leaking pump can damage pistons, rings, and bearings. A new pump prevents catastrophic engine failure, especially important for high-mileage NRK85 trucks used in demanding delivery routes.
Applications of the 294000-1142 Fuel Injection Pump
This pump is engine-specific for the Isuzu 4JJ1 engine. Which vehicles and applications use that engine? Below is a detailed list:
Isuzu N-Series Trucks (Light-Duty)
Isuzu NRK85 (the primary target – part of the Isuzu Elf / NKR family, GVW 3.5–7.5 tons).
Isuzu NKR85 (similar to NRK85, often with different cab configuration).
Isuzu NPR85 (slightly heavier duty, same 4JJ1 engine).
Isuzu NQR85 (some variants with 4JJ1, though NQR often uses 4HK1 – always verify).
Isuzu Pickup Trucks & SUVs (if equipped with mechanical distributor pump)
Isuzu D-Max (2002–2011 models with 4JJ1-TC or 4JJ1-TCX engine).
Isuzu Rodeo (some markets).
Isuzu MU-7 (SUV based on D-Max).
Industrial & Marine Applications
Isuzu 4JJ1 industrial engines used in generators, welders, and compact loaders.
Small marine diesels based on the 4JJ1 block.
Important cross-reference: The 294000-1142 supersedes or interchanges with: 294000-1140, 294000-1141, 294000-1143, and Isuzu genuine part numbers such as 8-97340869-0, 8-97350870-0, or 8973408690. Always check the original pump’s label for the full Denso number (e.g., 294000-1142 plus a 6-digit calibration code like 093400-xxxx).
Supplier of the 294000-1142 Fuel Injection Pump: Why Rsolid Engine Parts?
When replacing a pump as critical as the 294000-1142, the supplier’s quality control, testing, and support make all the difference. Rsolid engine parts has become a trusted global source for Isuzu 4JJ1 fuel system components. Here are their specific advantages for this pump.
1. 100% Bench-Tested to Denso Specifications
Every Rsolid 294000-1142 pump is tested on a DENSO Eps200 or Bosch EPS 815 test bench. The detailed test report includes:
Delivery volume per cylinder (mm³/stroke) at idle, max torque, and rated speed.
Governor start point and full-load fuel curve.
Timer advance angle versus RPM.
Housing pressure and leakage at 1,600 bar.
2. Exact OEM Fitment for Isuzu NRK85
Rsolid engineers have reverse-engineered the pump using original Denso castings and forgings. The flange bolt pattern, drive spline dimensions, and outlet port angles match the Isuzu 4JJ1 timing gear housing exactly. No modification, shimming, or line bending required.
3. No Core Charge – Keep Your Old Pump
Unlike many rebuilders that require a $300–$500 core deposit, Rsolid supplies new production pumps with no core charge. You can keep your old pump as a spare or scrap it locally.
4. 12-Month Unlimited Mileage Warranty
Rsolid covers any manufacturing defect, seal leak, calibration drift, or premature wear for one full year. This includes free replacement if the pump fails due to internal component failure (excluding contaminated fuel or improper installation).
