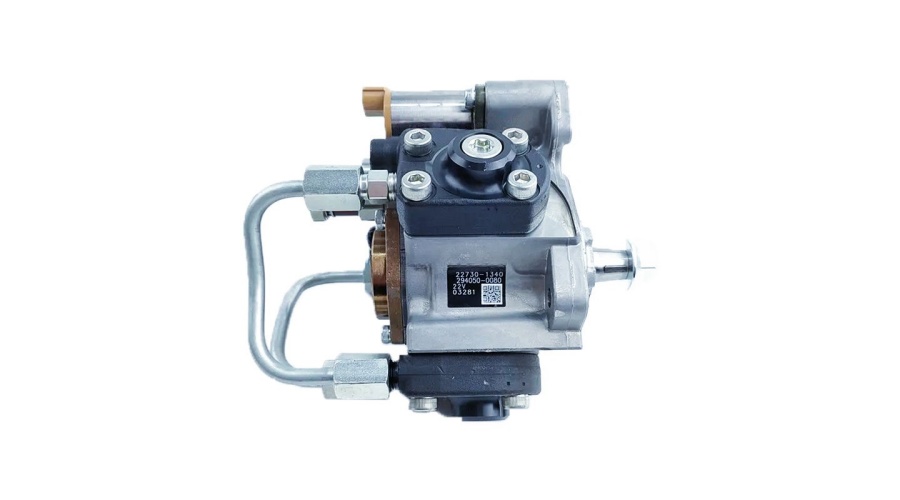

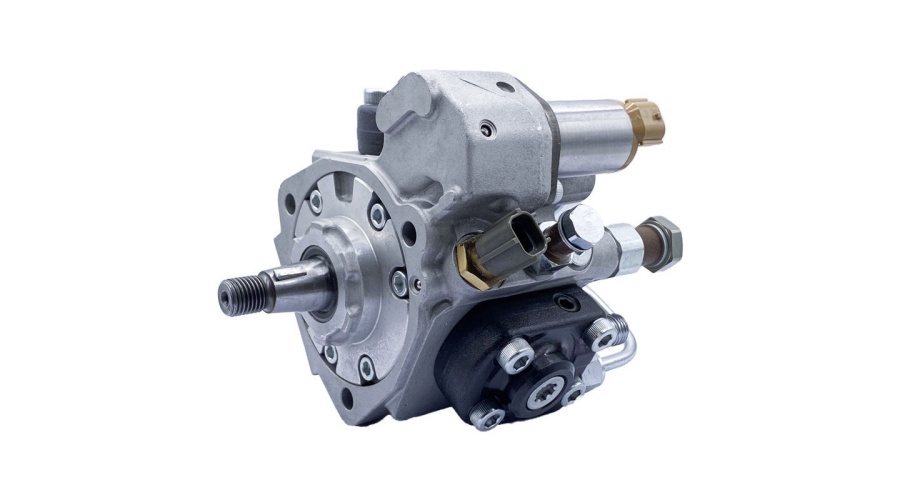

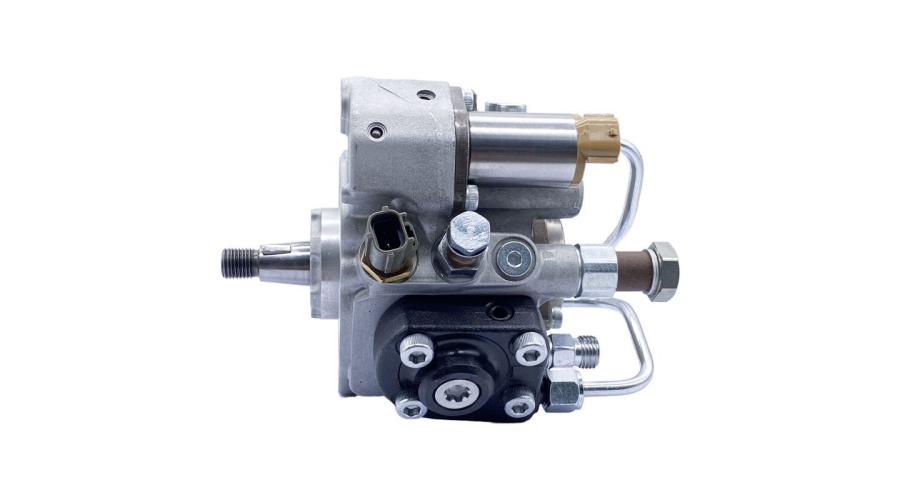

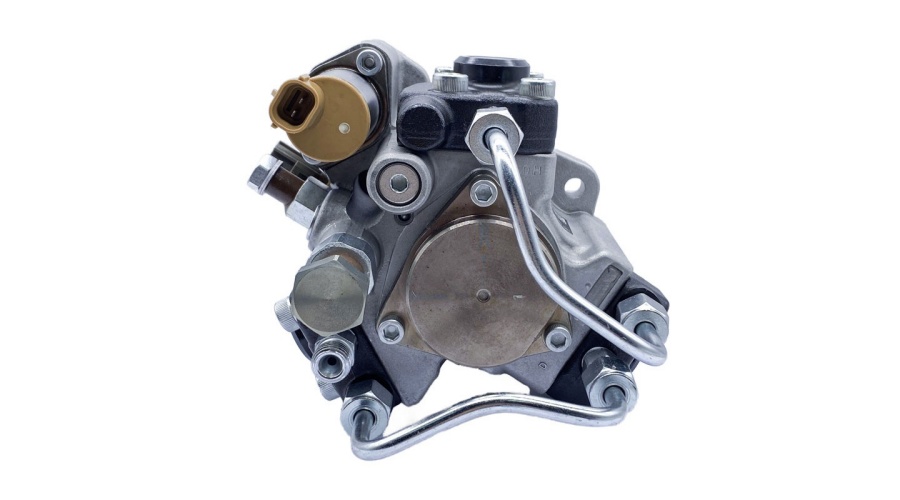

For heavy-duty commercial vehicles powered by the Hino J08E series engine, reliable fuel injection is the backbone of uptime and fuel economy. The Fuel Injection Pump 294050-0080 (Denso compatible) is a high-pressure common rail pump designed specifically for Hino’s 7.7L J08E turbodiesel. Supplied by Rsolid Engine Parts, this pump delivers the durability, precision, and flow capacity required for demanding truck, bus, and construction applications.
Structural Advantages of Fuel Pump 294050-0080
The 294050-0080 is a Denso HP0 (high-pressure) common rail pump adapted for Hino’s J08E engine. It is engineered for high mileage, high load, and continuous operation. Key structural features include:
Two-Plunger Radial Design with High Displacement
Unlike smaller passenger car pumps, this unit uses two large-diameter plungers arranged radially. Each plunger is driven by a precision-machined cam ring, enabling flow rates up to 120 L/h at rated engine speed – sufficient for 7.7L engines producing over 260 hp.
Extreme Pressure Capability
The pump generates rail pressures up to 180 MPa (26,100 psi), ensuring optimal atomization for complete combustion, reduced soot, and lower exhaust gas temperatures – critical for meeting Euro 4/Euro 5 standards.
Heavy-Duty Drive Shaft & Bearing Support
The pump is gear-driven from the engine timing train. It features a double-row ball bearing at the drive end and a needle bearing supporting the cam ring, allowing it to withstand torsional vibrations and side loads from the gear train.
Integrated Suction Control Valve (SCV) with Fast Response
The SCV (also called metering unit) is a proportional solenoid valve that precisely regulates fuel entering the pumping chamber. It responds to ECU commands within milliseconds, enabling smooth rail pressure control during acceleration, deceleration, and PTO (power take-off) operation.
Built-In Fuel Temperature & Pressure Sensors
A combined sensor module provides real-time fuel temperature and inlet pressure data to the engine ECU. This allows adaptive injection timing and protects the pump from overheating under sustained high-load conditions (e.g., hill climbing or fully loaded trucks).
Reinforced Aluminum Housing with Steel Cam Ring
The housing is cast from high-strength aluminum with integrated cooling fins. The internal cam ring is made of case-hardened steel, laser-hardened on the cam lobes for extended wear life even with low-sulfur diesel.
Serviceable Components
The SCV, pressure relief valve, and seal kit can be replaced without removing the pump from the engine – a major advantage for fleet maintenance.
These structural features make the 294050-0080 exceptionally reliable for long-haul trucks, city buses, and construction vehicles where downtime is expensive.
Application Equipment – Which Vehicles Use This Pump?
The Fuel Injection Pump 294050-0080 is designed exclusively for the Hino J08E series engine – a 7.7L inline 4-cylinder or 6-cylinder? Actually J08E is an inline 6-cylinder (7.7L) turbocharged diesel. It is widely used in medium-duty trucks, buses, and specialty vehicles. This pump is a direct OEM replacement for Denso part number 294050-0080 and fits the following Hino models:
| Vehicle Model | Series / Chassis | Engine Code | Typical Years |
|---|
| Hino 500 Series (FL, FM, GH) | Various | J08E | 2005 – 2016 |
| Hino 300 Series (Dutro) – some variants | XZU, XZC | J08E | 2006 – 2015 |
| Hino Rainbow / Blue Ribbon buses | Bus chassis | J08E | 2005 – 2015 |
| Hino Ranger / Profia (light/medium duty) | – | J08E | 2004 – 2014 |
| Hino FD / FE series (North America) | – | J08E | 2005 – 2018 |
Important: Always verify your original pump part number. The 294050-0080 is often stamped with Denso logo and may also be referenced as “095000-0080” in some catalogs. This pump is not compatible with Hino J05E (5L) or J13C (13L) engines.
Whether you operate a Hino 500 flatbed truck, a city transit bus, or a refrigerated box truck, this pump ensures consistent fuel delivery, cold start reliability, and compliance with emission regulations.
Preventive Maintenance Recommendations for 294050-0080
Hino J08E engines are known for high durability – many logging over 500,000 km before major overhaul. The common rail pump, however, is sensitive to fuel contamination. Follow these guidelines to maximize pump life.
1. Adhere to Strict Fuel Filter Change Intervals
Hino specifies primary and secondary fuel filters (10 μm and 5 μm) changed every 20,000 km or 6 months – whichever comes first. In dusty or high-humidity regions, reduce to 15,000 km. A clogged filter causes cavitation that erodes plungers.
2. Use Genuine Hino or High-Quality Diesel
Low-sulfur diesel (50 ppm or less) is mandatory for common rail systems. Avoid biodiesel blends above B5 unless the pump has been upgraded with Viton seals. Regularly drain the water separator – water is the #1 killer of the plunger-barrel interface.
3. Monitor Suction Control Valve (SCV) Health
Common fault codes for J08E include P0087 (rail pressure low) and P0093 (fuel system leak). These often trace to a worn SCV. Replace the SCV every 150,000–200,000 km preventatively – it costs far less than a full pump replacement.
4. Inspect High-Pressure Pipes & Connections
After any pump or injector work, always replace the high-pressure pipes (they are single-use due to cone deformation). Torque pipe nuts to 35 Nm for the pump outlet. Loose connections cause micro-leaks that erode the pump head.
5. Check Pump Drive Gear Lash
The pump is gear-driven from the camshaft. Excessive backlash (wear in the idler gear) can cause timing scatter and metal particles in the oil. Inspect during valve clearance adjustments or timing gear replacement.
6. Perform a Fuel Pump Return Flow Test
Annually, measure the fuel returning to the tank via the spill line. At idle, return flow should be < 50 mL/min for a healthy pump. Higher values indicate internal plunger wear.
7. Replace Shaft Seal and O-Rings at 300,000 km
The drive shaft seal can harden over time, leading to air ingress (hard starting) or external diesel leaks. A complete seal kit (including SCV gasket) should be installed as part of a major overhaul.
8. Use Clean Oil in Engine
Although the pump is fuel-lubricated, the drive cam ring shares a common cavity with engine oil? Actually on most Denso HP0 pumps, the cam ring and plungers are lubricated by diesel fuel, not engine oil. However, the pump shaft bearing may be sealed. Still, engine oil contamination (e.g., from a leaking injector) can degrade fuel quality. Maintain engine oil change intervals.
Why Choose Rsolid Engine Parts as Your Supplier?
Rsolid Engine Parts is a professional aftermarket supplier specializing in Denso-compatible common rail pumps for Japanese commercial vehicles. For the Hino J08E pump 294050-0080, we offer distinct advantages:
OEM Design, Aftermarket Value
Our pump matches Denso’s original engineering specifications – same plunger diameters, cam ring profile, and SCV calibration. No “universal” modifications required.
100% Bench Tested
Every pump undergoes a full test cycle on a common rail test bench, verifying:
Rail pressure build-up from idle to max speed
SCV current vs. flow linearity
Plunger leakage (return flow)
High-pressure seal integrity at 190 MPa (over-pressure test)
New SCV & Seals Included
We supply the pump with a brand new Suction Control Valve and Viton® seal kit – two common failure points on older Denso pumps.
12-Month / 80,000 km Warranty
Rsolid provides a comprehensive warranty covering manufacturing defects. For fleets, extended warranty options are available.
Global Stock & Fast Shipping
With warehouses in Asia, the Middle East, Africa, and Latin America, we can deliver to Hino dealers and independent workshops quickly.
Final Verdict
The Fuel Injection Pump 294050-0080 is a mission-critical component for any Hino J08E engine. Its robust two-plunger design, integrated SCV, and high flow capacity make it ideal for medium-duty trucks, buses, and construction equipment that demand continuous reliability.
When you purchase from Rsolid Engine Parts, you receive a bench-tested, ready-to-install pump with a new SCV and seal kit, backed by a solid warranty and global support. Don’t risk expensive downtime with low-quality replicas – choose Rsolid for your Hino fleet.
📦 Order Your 294050-0080 Pump Today
