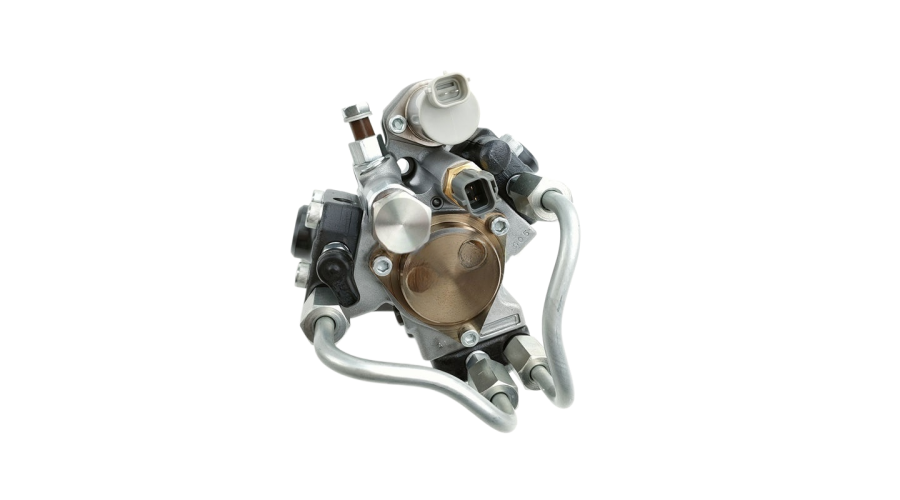

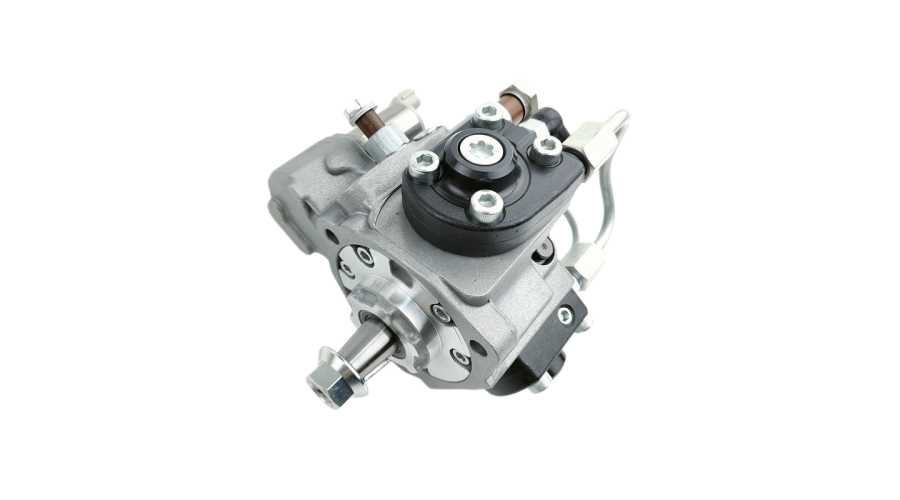

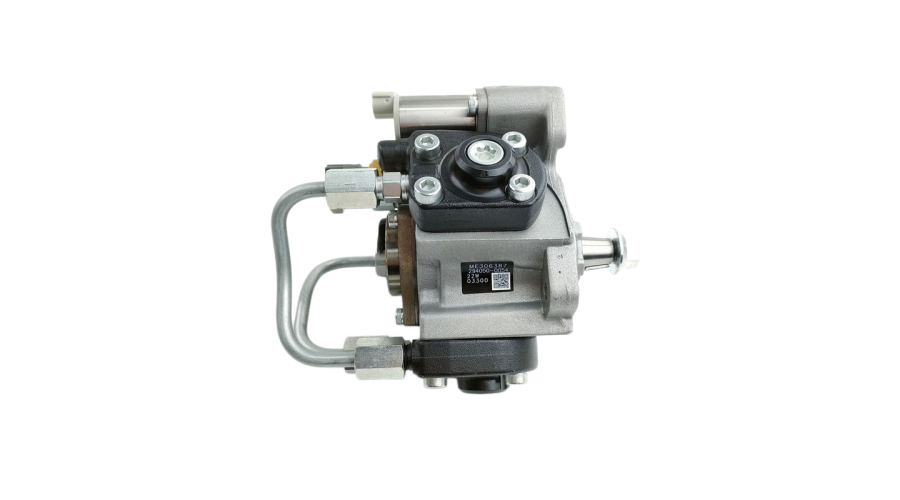

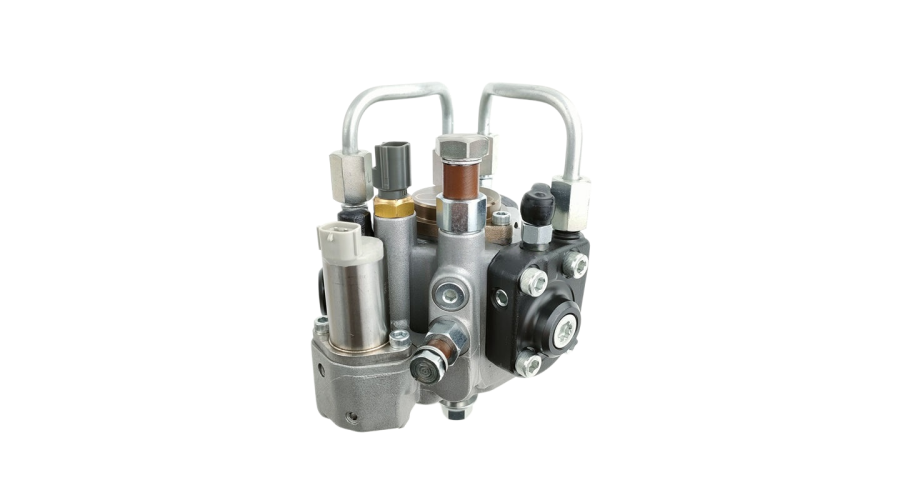

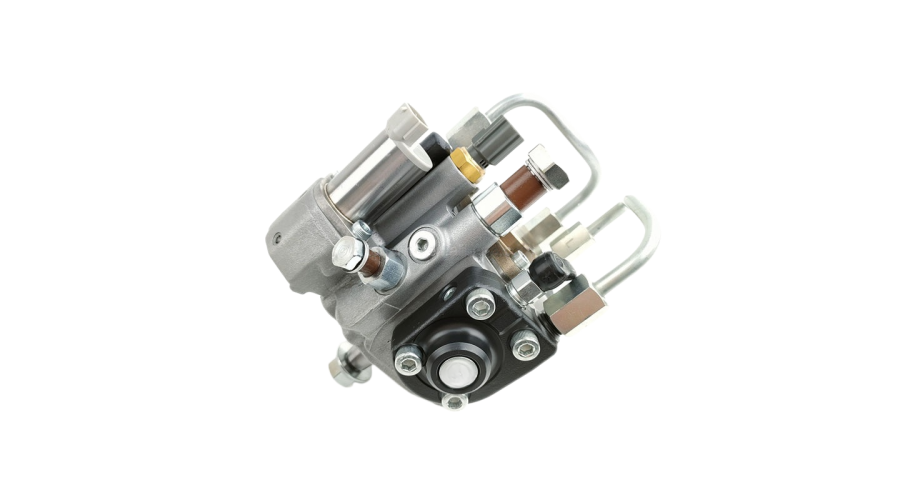

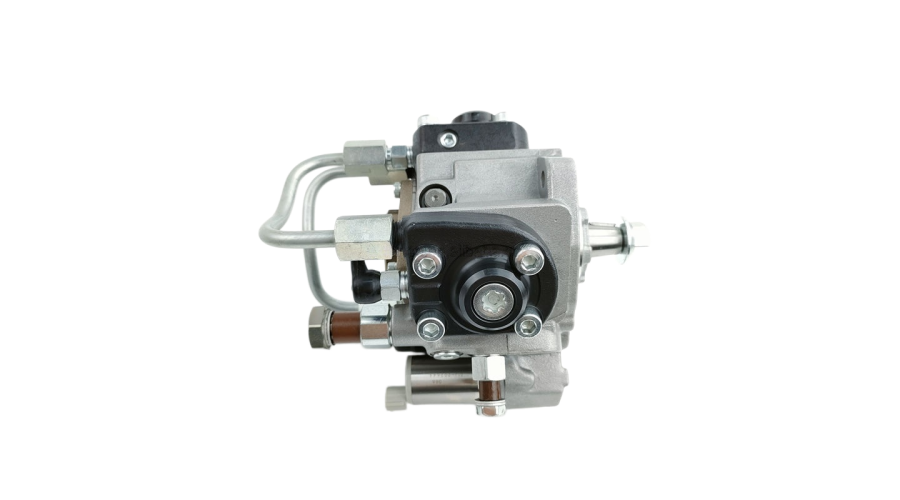

The Denso Fuel Injection Pump 294050-0054 is a high-pressure rotary distributor pump engineered for Mitsubishi’s heavy-duty diesel engines, specifically the 6M60T (6.0L inline-6 turbocharged), as well as the FK and FM truck series (e.g., Mitsubishi Fuso FK/FM). This pump is part of Denso’s HP3 or HP4 family, designed to deliver precise fuel metering and timing for engines requiring up to 1,600 bar injection pressure.
Unlike the N04C pump (four-cylinder), the 294050-0054 serves a 6-cylinder engine with a higher displacement and power output (typically 240–280 HP). It integrates a mechanical all-speed governor, a built-in supply pump, and a timing device that adapts to engine load. Aftermarket alternatives compatible with Denso standards – such as those from Rsolid engine parts – provide the same performance as the original Mitsubishi/Denso unit, often at a lower cost and with no core deposit.
How Does the Denso 294050-0054 Fuel Injection Pump Work?
The operating principle of the 294050-0054 pump follows Denso’s tried-and-tested distributor design but scaled for six cylinders. Here is a clear step-by-step:
Fuel Lifting: A vane-type feed pump (integral to the pump housing) draws diesel from the tank through a primary filter and raises pressure to approx. 2–3 bar.
High-Pressure Generation: A single plunger inside the pump head reciprocates via an eccentric cam ring. Each stroke compresses fuel to 1,200–1,600 bar – typical for Euro 3/4 compliant 6M60T engines.
Distribution: A rotating distributor rotor sends the pressurized fuel to each of the six injectors in the correct firing order (1-5-3-6-2-4 for the 6M60T).
Timing Control: A hydraulic or mechanical timer advances injection timing as engine speed increases. This is critical for the 6M60T’s low-end torque (peak torque at 1,600 rpm).
Governor Regulation: The mechanical all-speed governor adjusts the fuel volume to maintain idle (approx. 650 rpm) and prevent overspeed beyond 3,000 rpm.
When the 294050-0054 pump wears out – common after 400,000–500,000 km – common symptoms include hard starting, rough idle, white/black smoke, and loss of power under load. Replacing it with a quality compatible pump restores factory calibration.
Advantages of the Denso 294050-0054 Fuel Injection Pump (Compatible with Denso for 6M60T/FK/FM)
Why choose this specific pump for your Mitsubishi Fuso? Here are the key benefits:
1. Exact Fit for Mitsubishi 6M60T, FK, FM
The 294050-0054 uses the correct mounting flange (SAE 3-bolt with 6-cylinder timing offset), spline drive (10-tooth), and injector line ports. No adapters or modifications required.
2. Restored Power & Torque
The 6M60T engine relies on precise injection timing for its characteristic low-end grunt. A new pump restores the original torque curve (around 785 N·m), eliminating flat spots during hill climbs.
3. Lower Fuel Consumption
A worn pump can over-fuel or under-fuel cylinders. After replacement, fleet operators typically see a 10–18% improvement in fuel economy – critical for FK/FM trucks that average 20–30 L/100km.
4. Reduced Smoke & Emissions
Mitsubishi 6M60T engines (Euro 3/4) require clean combustion to pass roadside opacity tests. A properly calibrated 294050-0054 pump minimizes black smoke under acceleration and white smoke at cold start.
5. Cost-Effective Alternative to OEM Denso
Genuine Denso units for the FK/FM often exceed $1,800–$2,500. High-quality aftermarket versions from Rsolid offer the same Denso-compatible specifications for 40–60% less, with a full warranty.
Applications of the Denso 294050-0054 Fuel Injection Pump
This pump is engine-specific for the Mitsubishi 6M60T diesel engine. Which vehicles use that engine? Below is the comprehensive application list:
Mitsubishi Fuso FK Series (2005–2010): FK61F, FK62F, FK71F (medium-duty trucks, GVW 8–12 tons).
Mitsubishi Fuso FM Series (2005–2010): FM61F, FM62F, FM65F (heavy-duty trucks, GVW 15–25 tons).
Mitsubishi Canter (some heavy-duty variants – rare): Not to be confused with 4M50 engine. Always verify.
Industrial & Bus Applications: Mitsubishi Rosa buses (with 6M60T), and certain Mitsubishi forklifts or stationary power packs.
Construction Equipment: Some Mitsubishi wheel loaders and excavators that use the 6M60T power unit.
Cross-reference note: The 294050-0054 often replaces or is interchangeable with: 294050-0050, 294050-0052, and Mitsubishi genuine part numbers like ME203456, ME203789 (verify with your VIN). Always match the pump’s calibration code (e.g., 093400-xxxx) printed on the original label.
Supplier of the Denso 294050-0054 Fuel Injection Pump: Why Rsolid Engine Parts?
When replacing a pump as critical as the 294050-0054, the supplier’s quality control and support matter immensely. Rsolid engine parts has become a preferred source for Mitsubishi Fuso owners and repair shops worldwide. Here are their specific advantages for this pump.
1. 100% Bench-Tested to Denso Standards
Each Rsolid 294050-0054 pump is tested on a DENSO Eps200 or Bosch EPS 815 test bench. The test report includes:
Delivery volume per cylinder (mm³/stroke) at idle, max torque, and max speed.
Governor start point (cut-in speed) and full-load position.
Housing pressure curve and timer advance angle.
Leakage test at 1,600 bar.
2. Direct OEM Fitment Guarantee
Rsolid reverse-engineers the pump from original Denso castings and forgings. The flange, drive spline, and outlet port positions match the Mitsubishi timing gear housing exactly. No filing, shimming, or line bending needed.
3. No Core Charge – Keep Your Old Pump
Unlike many rebuilders that charge a $300–$500 deposit, Rsolid’s new production pumps have no core charge. You can keep your old pump for spare parts or scrap it.
4. 12-Month Unlimited Warranty
Rsolid covers any manufacturing defect, seal leak, or calibration drift for one year. This includes free replacement if the pump fails due to internal component failure (excluding contaminated fuel or incorrect installation).
How to Order the Correct 294050-0054 Pump from Rsolid
To avoid compatibility errors, provide the following information when contacting Rsolid:
Engine model: 6M60T (or full engine serial number – e.g., 6M60T-123456).
Vehicle model: Mitsubishi Fuso FK/FM (specify year, e.g., 2007 FM62F).
Original pump number: Look for the Denso label – it will say “294050-0054” plus a calibration code (e.g., 093400-1230).
Injector type: If known (e.g., Denso DN0PDN156 or similar). This helps match the pump’s delivery volume.
Final Verdict
The Denso Fuel Injection Pump 294050-0054 is the heart of the Mitsubishi 6M60T engine found in FK and FM series trucks. When it fails, power drops, fuel consumption rises, and emissions fail. Choosing a high-quality compatible pump from a reputable supplier like Rsolid engine parts ensures you get Denso-level performance at a fair price, with testing, warranty, and no core deposit. Whether you operate a single Fuso or a fleet, replacing this pump with a Rsolid unit keeps your truck productive for hundreds of thousands of kilometers.
*Need a 294050-0054 pump for your Mitsubishi Fuso FK/FM? Request a quote from Rsolid engine parts today – ready to ship with full test report included.
