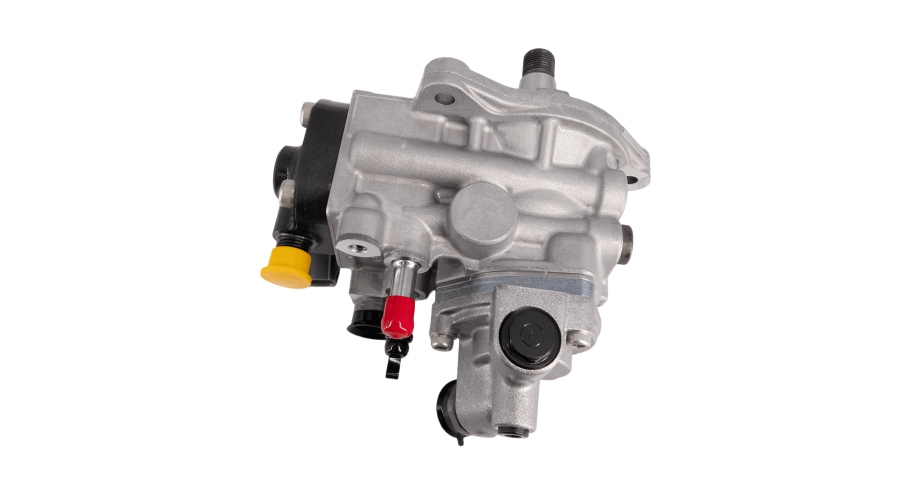

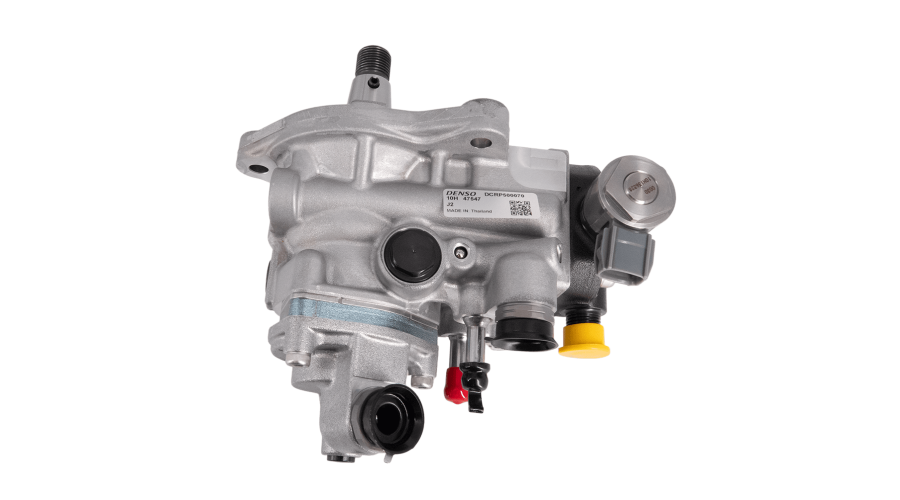

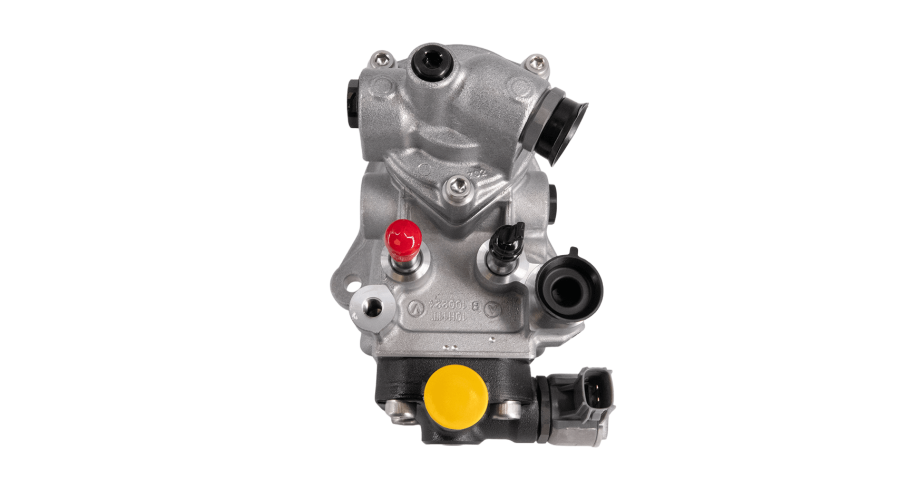

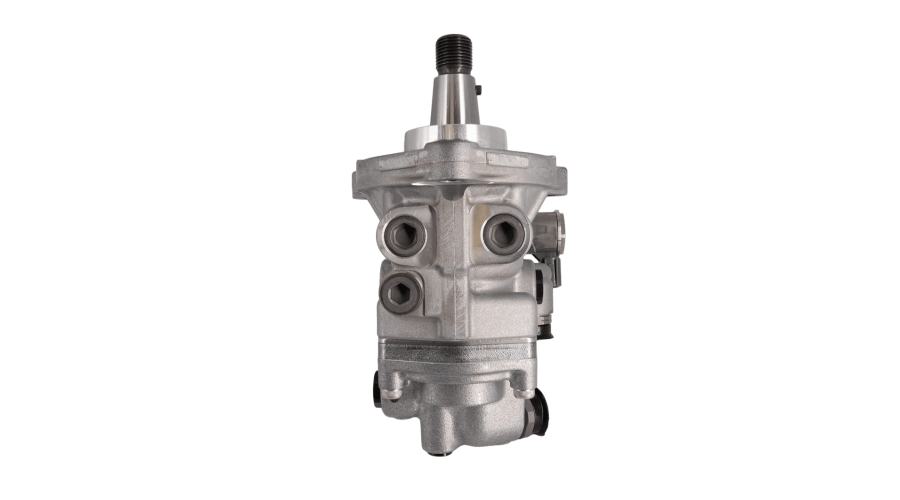

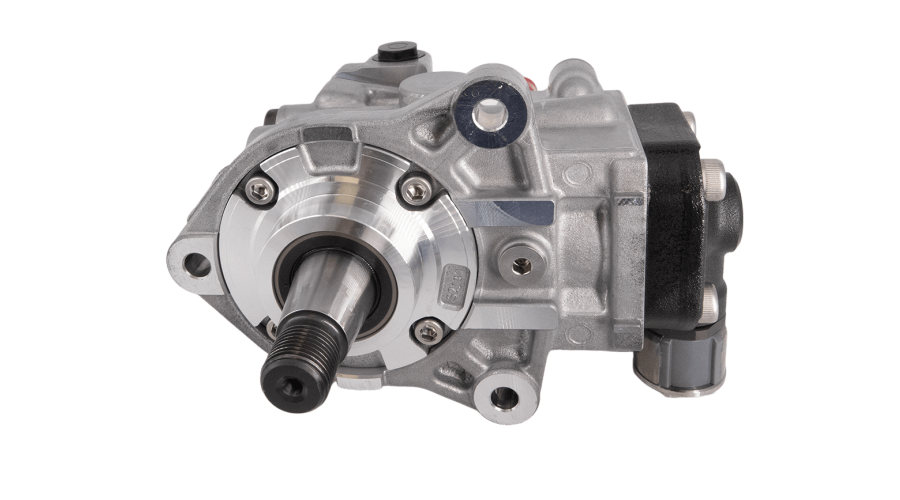

What is DENSO Common Rail Diesel Pump 299000-0070?
The DENSO Common Rail Diesel Pump 299000-0070 is a high-pressure fuel injection pump manufactured by DENSO, a world leader in advanced diesel fuel systems. This pump is a critical component of the common rail fuel system, responsible for drawing fuel from the tank, pressurizing it to extreme levels, and delivering it to the common rail for distribution to the injectors. The 299000-0070 is typically a HP3 or HP4-series radial piston pump, engineered to meet the stringent demands of modern diesel engines. It is widely used in Japanese and European vehicles, providing precise fuel metering, stable rail pressure, and reliable performance across all operating conditions.
How Does DENSO Common Rail Diesel Pump 299000-0070 Work?
The DENSO Common Rail Diesel Pump 299000-0070 operates as a radial piston high-pressure pump with an integrated low-pressure transfer section. Driven by the engine’s timing belt, gear train, or chain, the pump’s internal cam ring actuates multiple radial pistons (typically three) arranged at uniform intervals. Fuel is first drawn from the tank through the low-pressure inlet by an integrated gear-type transfer pump. It then passes through a fuel metering valve (also known as a suction control valve or SCV), which is electronically controlled by the engine control unit (ECU). The ECU modulates the metering valve to precisely regulate the volume of fuel entering the high-pressure pumping chamber. As the radial pistons reciprocate, they compress the fuel to pressures typically up to 1,600–2,000 bar. This high-pressure fuel is discharged into the common rail, where it accumulates and is held ready for the injectors. The pump also incorporates a pressure relief valve to protect the system from over-pressure conditions.
Advantages of DENSO Common Rail Diesel Pump 299000-0070
Choosing the DENSO Common Rail Diesel Pump 299000-0070 offers several key benefits for diesel engine applications:
Precise Fuel Metering: The electronically controlled suction control valve enables the ECU to deliver the exact fuel volume required for any driving condition, resulting in smoother acceleration, improved fuel economy, and reduced emissions.
High-Pressure Capability: Capable of generating pressures up to 2,000 bar, this pump ensures superior fuel atomization, which leads to cleaner combustion, reduced soot formation, and lower particulate emissions.
DENSO Engineering: Built to DENSO’s exacting standards, the pump incorporates advanced materials, precision machining, and rigorous testing to ensure long-term reliability and consistent performance.
Durability: Constructed with hardened internal components and fuel-lubricated bearings, the 299000-0070 pump is designed to withstand the demands of both urban driving and long-distance highway travel.
Quiet Operation: DENSO pumps are renowned for their refined acoustic performance, contributing to lower engine noise and improved cabin comfort.
Application of DENSO Common Rail Diesel Pump 299000-0070
The DENSO Common Rail Diesel Pump 299000-0070 is designed for a wide range of vehicles and equipment that utilize DENSO common rail diesel systems. Common applications include:
Toyota Hilux / Fortuner 3.0 D-4D: Widely used in the 3.0-liter 1KD-FTV engine, a popular application for this pump in pickup trucks and SUVs.
Toyota Land Cruiser Prado 3.0 D-4D: Applied in the Land Cruiser Prado with the 1KD-FTV engine, providing reliable fuel delivery for off-road and heavy-duty use.
Toyota Hiace / Dyna 3.0 D-4D: Used in commercial vans and light trucks that require durability and consistent performance under load.
Nissan Navara / Pathfinder 2.5 dCi: Compatible with certain Nissan YD25DDTi engines that utilize DENSO HP3 pump architecture.
Isuzu D-Max / MU-X 3.0: Found in Isuzu 4JJ1 and 4JK1 engines, where DENSO fuel systems are standard.
Mitsubishi Triton 2.5 / 3.2: Used in Mitsubishi 4D56 and 4M41 engines equipped with DENSO common rail systems.
Industrial and Agricultural Equipment: Applied in compact tractors, generators, and other off-highway equipment that rely on DENSO fuel injection technology.
Specifications (Types) of DENSO Common Rail Diesel Pump 299000-0070
The DENSO Common Rail Diesel Pump 299000-0070 belongs to the DENSO HP3 or HP4 family of common rail pumps. Key specifications include:
Pump Type: High-pressure common rail radial piston pump (DENSO architecture) with integrated gear-type transfer pump.
Number of Pistons: 3 radial pistons arranged at 120 degrees (typical for HP3 series).
Maximum Operating Pressure: Typically 1,600–2,000 bar (23,200–29,000 psi), depending on engine calibration.
Drive Configuration: Flange-mounted, driven by timing belt, gear train, or chain.
Fuel Metering: Electronically controlled suction control valve (SCV) for precise flow regulation.
Low-Pressure Section: Integrated gear-type transfer pump (feed pump).
Inlet Port: Low-pressure inlet compatible with standard fuel filter assemblies.
Outlet Port: High-pressure outlet for connection to the common rail.
Compatibility: OEM replacement for Toyota 1KD-FTV, Nissan YD25, Isuzu 4JJ1/4JK1, Mitsubishi 4D56/4M41, and other applications using DENSO 299000-0070 pump specifications.
Lubrication: Fuel-lubricated; requires clean, high-quality diesel fuel for optimal service life.
Common Failures: Suction control valve wear, contamination from poor fuel quality, and internal component wear can occur; symptoms include difficult starting, loss of power, and erratic rail pressure.
Supplier of DENSO Common Rail Diesel Pump 299000-0070
Sourcing the DENSO Common Rail Diesel Pump 299000-0070 from a trusted supplier is essential to ensure proper fitment, reliable performance, and long service life. Rsolid engine parts has established itself as a premier provider of high-quality fuel injection components, specializing in DENSO, Bosch, and Delphi systems for Japanese and European diesel vehicles.
Rsolid engine parts distinguishes itself through an unwavering commitment to quality control. Every 299000-0070 fuel pump is rigorously inspected and tested to ensure it meets or exceeds original equipment specifications. This includes pressure calibration, flow testing, and verification of the suction control valve response to ensure seamless integration with the engine’s ECU and injectors. For exchange units, the company follows a complete remanufacturing process that includes disassembly, ultrasonic cleaning, inspection, and replacement of all wear components with new OEM-grade parts.
In addition to product excellence, Rsolid engine parts offers comprehensive technical support to assist customers in verifying compatibility by vehicle VIN, engine code, and OEM part number. Their team understands that precise matching is critical for achieving proper fuel system pressure and injector performance. With a robust inventory and efficient global logistics, Rsolid engine parts minimizes downtime for repair shops, fleet operators, and individual vehicle owners. By choosing Rsolid engine parts as your supplier for the DENSO Common Rail Diesel Pump 299000-0070, you benefit from competitive pricing, warranty-backed assurance, and the expertise of a dedicated diesel fuel system specialist.
