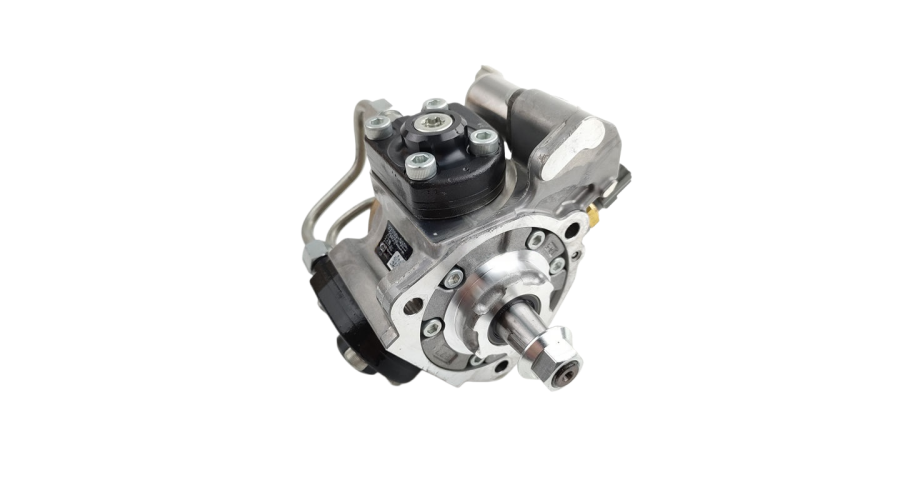

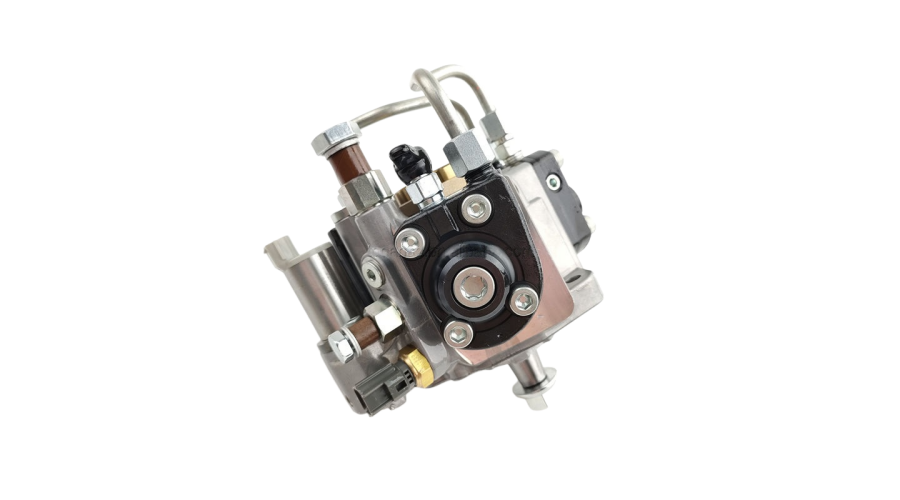

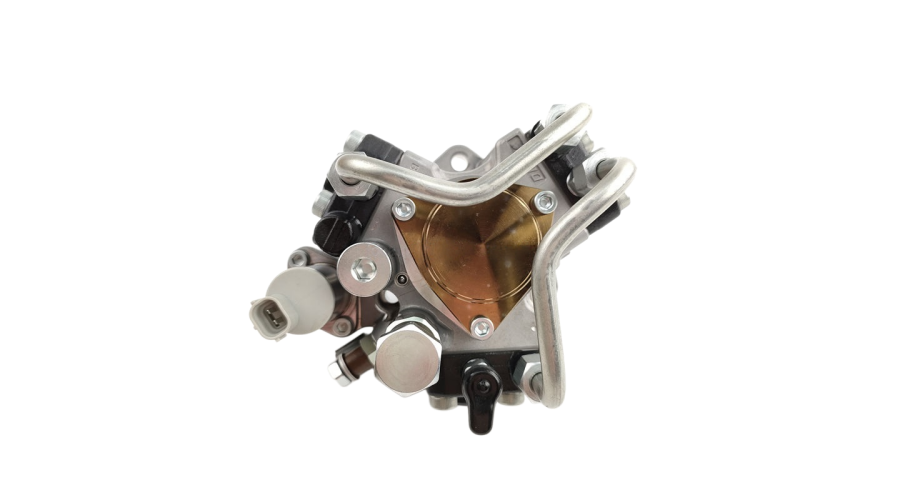

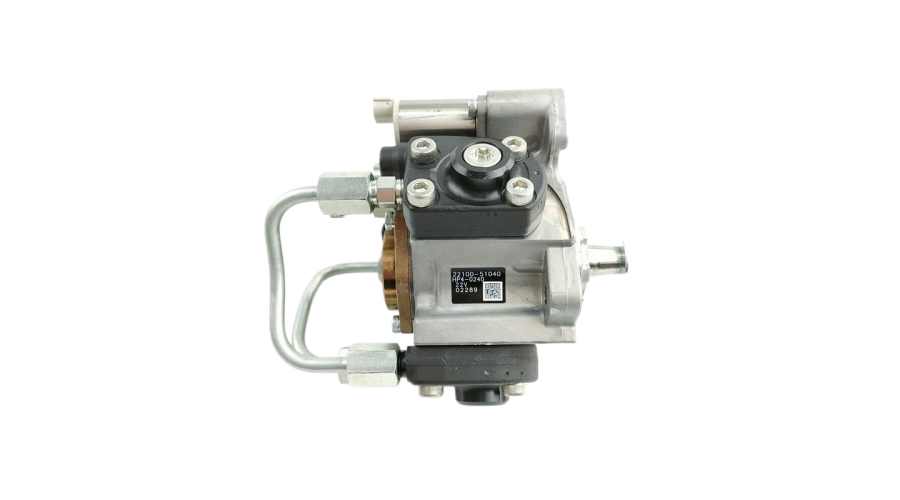

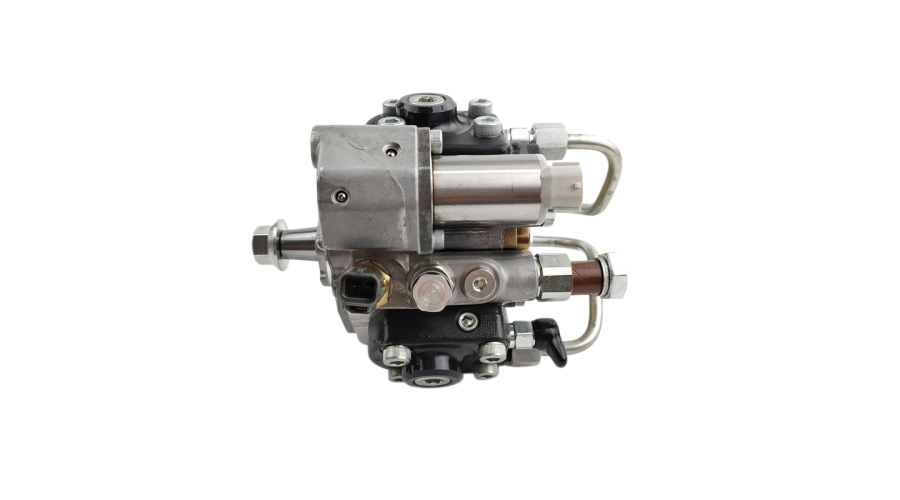

For owners of Toyota’s legendary 1VD-FTV V8 twin-turbo diesel – found in the Land Cruiser 200 Series, 70 Series, and other heavy-duty Toyota models – the fuel injection pump is the heart of the common rail system. The Fuel Injection Pump 294050-0240 (Denso compatible) is the exact high-pressure pump designed for this 4.5L V8 engine. Supplied by Rsolid Engine Parts, this pump delivers the flow, pressure, and durability required for both off-road adventures and highway towing.
Structural Advantages of Fuel Pump 294050-0240
The 294050-0240 is a Denso HP4-series common rail pump, specifically calibrated for Toyota’s 1VD-FTV V8 engine. Unlike pumps for 4-cylinder engines, this unit must supply enough fuel for eight cylinders at high RPM and high load. Key engineering features include:
Two-Plunger Radial Design with Large Displacement
The pump uses two high-capacity radial plungers driven by a precision cam ring. Each plunger stroke delivers a large fuel volume, enabling flow rates up to 140 L/h – sufficient to feed eight injectors at full load (2000+ bar rail pressure).
Ultra-High Pressure Capability
The pump generates rail pressures up to 200 MPa (29,000 psi). This extreme pressure ensures microscopic fuel atomization, resulting in complete combustion, lower exhaust gas temperatures, and reduced particulate emissions – critical for Euro 5 and off-road emission compliance.
Dual Suction Control Valve (SCV) Architecture
Unlike single-SCV pumps, this unit features two independent SCVs (one per plunger) for redundancy and finer flow control. The ECU can modulate each valve separately, enabling smoother rail pressure transitions and faster response during gear shifts or sudden throttle changes.
Integrated Fuel Temperature & Pressure Sensors
A combined sensor module provides real-time feedback to the Toyota engine ECU. The system uses this data to adjust injection timing, duration, and pilot injection events – optimizing power, fuel economy, and cold-start performance.
Heavy-Duty Drive Shaft with Spline Coupling
The pump is gear-driven from the engine timing train. The hardened steel drive shaft features a multi-tooth spline that distributes torque evenly, reducing stress on the pump bearings and timing gears.
Reinforced Aluminum Housing with Integrated Cooling
The housing is cast from high-strength aluminum alloy with internal oil galleries (for the drive shaft bearing) and external cooling fins. This design dissipates heat effectively, even during sustained low-speed, high-load operation (e.g., rock crawling or heavy towing).
Serviceable SCVs and Seals
Both SCVs can be replaced without removing the pump from the engine – a major advantage for overlanding vehicles and remote-area repairs. The shaft seal and O-rings are also field-replaceable with basic tools.
These structural advantages make the 294050-0240 ideal for Toyota Land Cruiser 200 Series, 70 Series V8, and other 1VD-FTV applications where reliability under extreme conditions is paramount.
Application Equipment – Which Vehicles Use This Pump?
The Fuel Injection Pump 294050-0240 is exclusively designed for the Toyota 1VD-FTV 4.5L V8 twin-turbo diesel engine. It is a direct OEM replacement for Denso part number 294050-0240 and fits the following Toyota models:
| Vehicle Model | Chassis / Series | Engine Code | Production Years |
|---|
| Toyota Land Cruiser 200 Series | UZJ200 (later models) | 1VD-FTV | 2007 – 2021 |
| Toyota Land Cruiser 70 Series (V8) | HZJ79, VDJ76, VDJ78, VDJ79 | 1VD-FTV | 2007 – Present |
| Toyota Sequoia (export markets) | – | 1VD-FTV | Limited (non-US) |
Important: Always verify your original pump part number. The 294050-0240 is often stamped with Denso logo and may also be referenced as “095000-0240” in some catalogs. This pump is not compatible with the earlier 1HD-FTE (6-cylinder) or 1KD-FTV (4-cylinder) engines.
Whether you drive a Land Cruiser 200 Series for family overlanding, a 70 Series V8 for remote area work, or a custom expedition vehicle, this pump ensures consistent fuel delivery, cold start reliability, and the power needed for climbing dunes or towing heavy trailers.
Preventive Maintenance Recommendations for 294050-0240
The 1VD-FTV is known for exceptional durability – many examples exceeding 500,000 km without major engine work. However, the common rail pump is sensitive to contamination and wear. Follow these guidelines to maximize pump life:
1. Use OEM or High-Quality Fuel Filters
Toyota specifies a 5-micron secondary fuel filter and a 10-micron primary (water separator). Change both every 20,000 km or 12 months – whichever comes first. In dusty or high-humidity regions, reduce to 10,000–15,000 km. Contaminated fuel is the #1 cause of plunger seizure.
2. Drain the Water Separator Weekly
The 1VD-FTV fuel system includes a water-in-fuel sensor. However, manually drain the water separator every fuel fill-up if operating in humid or rainy conditions. Water emulsification destroys the plunger-barrel interface.
3. Use High-Quality Diesel (Low Sulfur)
Common rail systems require diesel with sulfur content below 50 ppm (EN590 or ASTM D975). Biodiesel blends above B5 can degrade internal seals over time. If B20 is unavoidable, shorten SCV and seal replacement intervals.
4. Monitor Suction Control Valves (SCVs)
Fault codes P0087 (rail pressure low), P0093 (fuel system leak), or P1229 (SCV circuit malfunction) often indicate SCV wear. Replace both SCVs preventatively every 150,000–200,000 km – they are relatively inexpensive compared to a full pump replacement.
5. Perform a Return Flow Test Annually
Measure the fuel returning to the tank via the spill line. At idle, return flow should be < 40 mL/min for a healthy pump. Higher values indicate internal plunger wear or SCV leakage.
6. Inspect High-Pressure Pipes for Leaks
After any pump or injector work, always replace the high-pressure pipes (they are single-use due to cone deformation). Torque pipe nuts to 35 Nm for the pump outlet. Even micro-leaks can erode the pump head over time.
7. Check Pump Drive Gear Backlash
The pump is gear-driven from the camshaft. Excessive backlash can cause timing scatter and metal particles. Inspect during timing belt/chain replacement (1VD-FTV uses a timing chain, but the pump is gear-driven off the cam gear).
8. Replace Shaft Seal at 300,000 km
The drive shaft seal can harden, leading to air ingress (hard starting) or external diesel leaks. A complete seal kit (including SCV gaskets) should be installed as part of a major service.
9. Keep the Fuel Tank Clean
Over time, sediment and algae can accumulate in the fuel tank. Consider a fuel tank cleaning service every 200,000 km to prevent contamination from reaching the pump.
10. Use a Fuel Additive (Optional but Helpful)
High-quality diesel additives with lubricity enhancers (e.g., biodiesel blends or specialized additives) can compensate for low-sulfur diesel’s reduced lubricity. Avoid additives with alcohol or solvents.
Why Choose Rsolid Engine Parts as Your Supplier?
Rsolid Engine Parts is a professional aftermarket supplier specializing in Denso-compatible common rail pumps for Toyota and other Japanese diesel engines. For the 1VD-FTV pump 294050-0240, we offer unique advantages:
OEM-Grade Manufacturing
Our pump matches Denso’s original specifications – same plunger diameter (approx. 8 mm), cam ring profile, SCV calibration, and housing dimensions. No modifications required.
100% Bench Tested
Every pump undergoes a full test cycle on a common rail test bench, verifying:
Rail pressure build-up from idle to 4500 rpm (engine speed)
SCV current vs. flow linearity for both valves
Plunger leakage (return flow) at max pressure
High-pressure seal integrity at 220 MPa (over-pressure test)
New Dual SCVs & Seal Kit Included
We supply the pump with two brand new Suction Control Valves and a complete Viton® seal kit – addressing the most common failure points on high-mileage 1VD-FTV pumps.
12-Month / 80,000 km Warranty
Rsolid provides a comprehensive warranty covering manufacturing defects. For overlanding fleets, extended warranty options are available.
Global Stock & Fast Shipping
With warehouses in Asia, the Middle East, Africa, Australia, and Latin America, we can deliver to Toyota specialists and independent workshops worldwide.
Final Verdict
The Fuel Injection Pump 294050-0240 is the heart of Toyota’s legendary 1VD-FTV V8 diesel. Its dual-SCV architecture, high flow capacity, and robust construction make it capable of delivering reliable performance for hundreds of thousands of kilometers – whether you’re crossing the Simpson Desert, towing a caravan up the Alps, or navigating city traffic.
When you purchase from Rsolid Engine Parts, you receive a bench-tested, ready-to-install pump with two new SCVs and a complete seal kit, backed by a solid warranty and global support. Don’t compromise your Land Cruiser’s reliability with low-quality replicas – choose Rsolid
