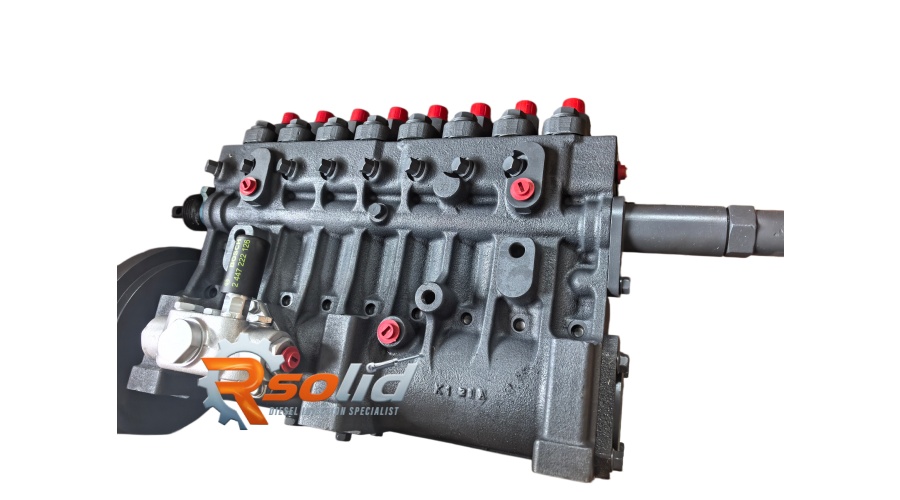

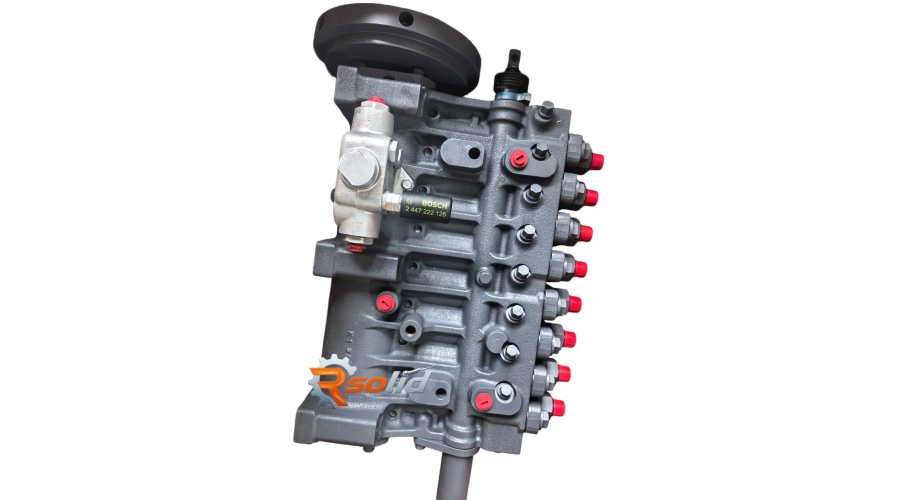

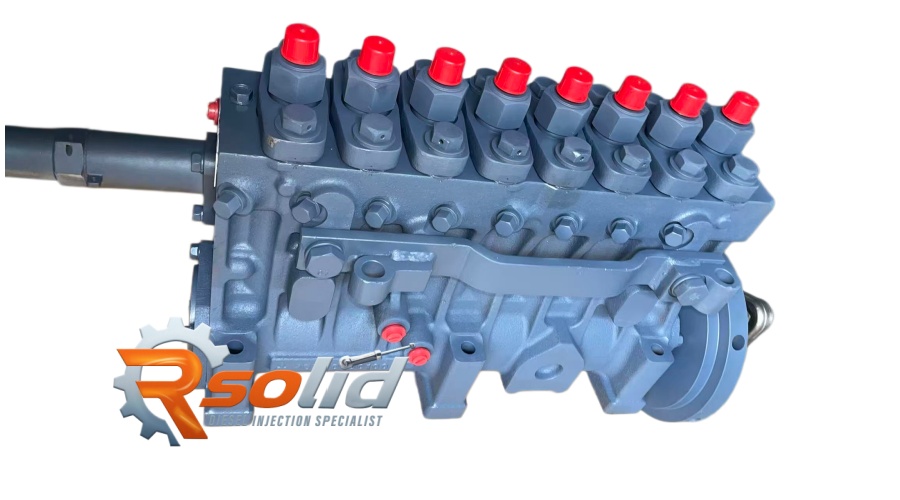

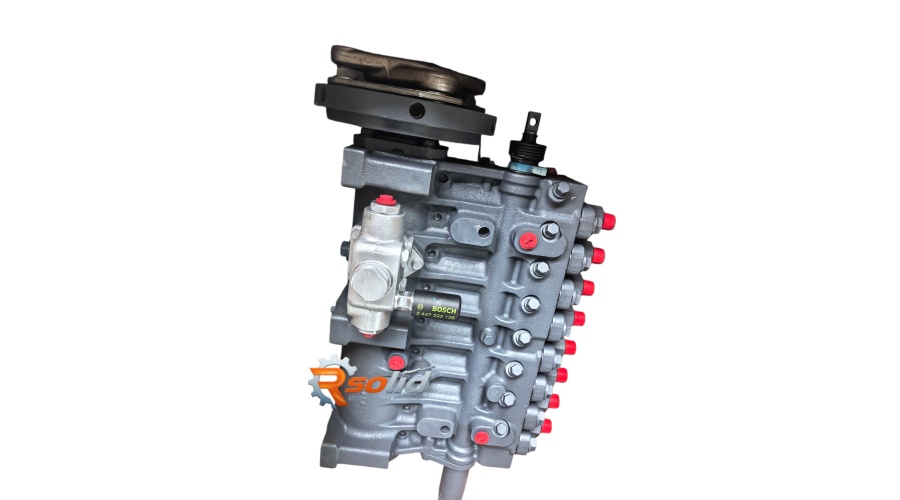

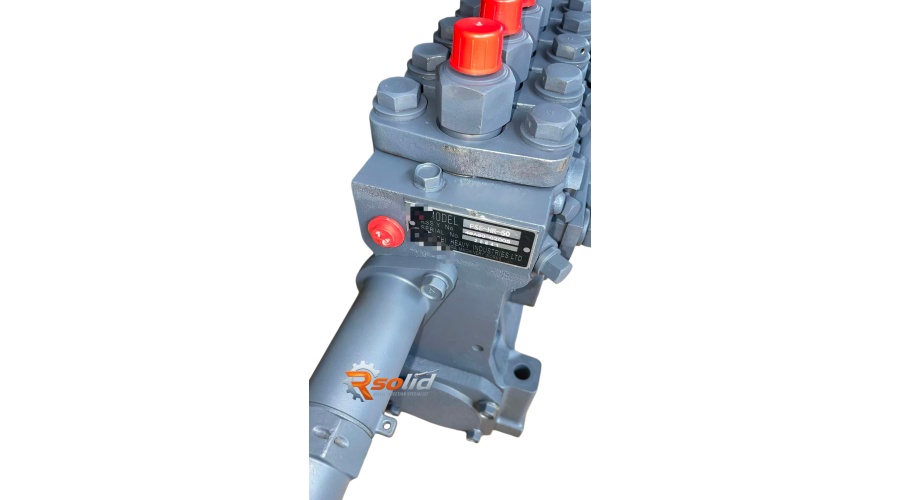

In‑line plunger arrangement – Each engine cylinder has its own plunger and barrel assembly, arranged in a straight row. This provides independent, precise fuel metering for each cylinder.
Mechanical governor – An integral, all‑speed mechanical governor (often with a built‑in torque control) ensures stable speed regulation under varying loads without reliance on electronics.
Camshaft‑driven operation – Driven by the engine’s timing gears, the pump’s camshaft actuates each plunger via roller tappets, generating high injection pressure.
Delivery valve assemblies – Each outlet is equipped with a spring‑loaded delivery valve that maintains residual line pressure and prevents secondary injection or dribbling.
Integral fuel supply and return passages – The pump housing incorporates internal galleries for fuel inlet, spill, and return, simplifying external piping.
Robust cast‑iron housing – Designed to withstand the high mechanical stresses and thermal loads typical of continuous heavy‑duty operation in generator sets and marine applications.
Proven reliability – The PS‑type pump is a mature, mechanically controlled system with decades of field service, offering exceptional durability in harsh environments.
Easy maintenance and serviceability – Individual plunger and barrel units can be replaced or serviced without dismantling the entire pump, reducing downtime. Tuning and timing adjustments are straightforward for qualified technicians.
Excellent fuel adaptability – The mechanical design tolerates a wider range of fuel quality (within specified limits, e.g., sulfur content ≤0.5%) compared to some high‑pressure common‑rail systems, making it ideal for remote or marine operations.
Precise and consistent injection – The independent plunger design ensures uniform fuel delivery across all 16 cylinders, resulting in smooth engine operation, balanced output, and lower exhaust emissions.
Immediate throttle response – Mechanical linkage provides direct, lag‑free response to load changes, which is critical for standby generator sets and propulsion applications.
Long service life – With proper maintenance, the pump delivers high injection pressures over extended intervals, reducing overall lifecycle costs.
