Structural Characteristics & Technical Advantages

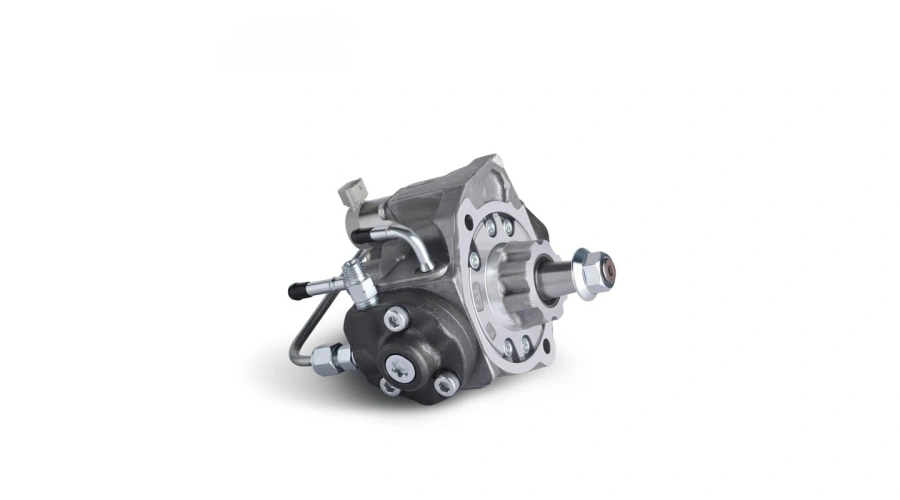

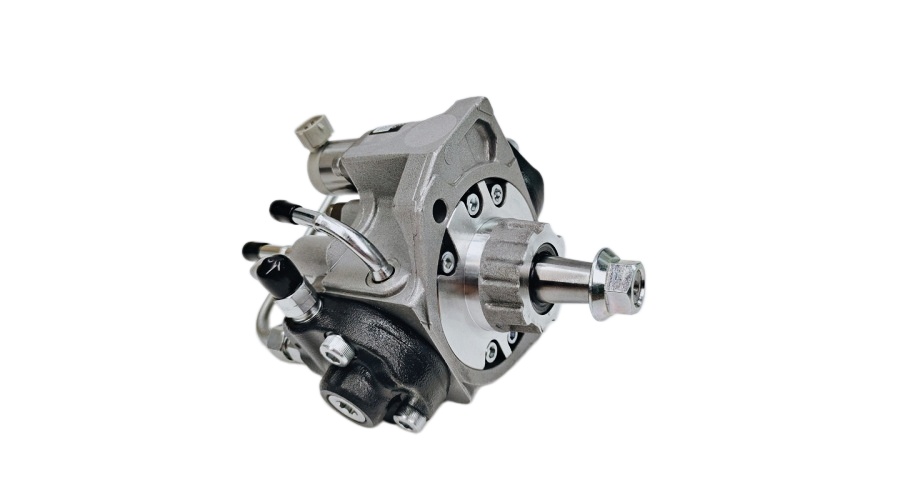

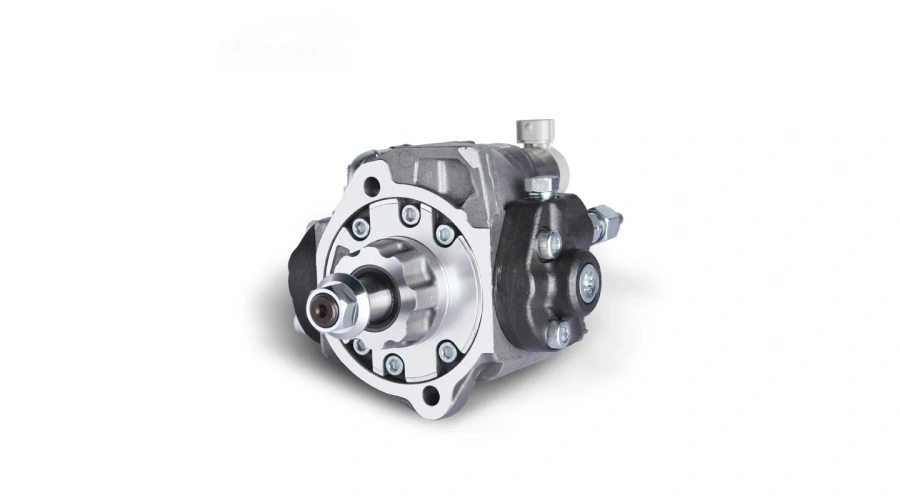

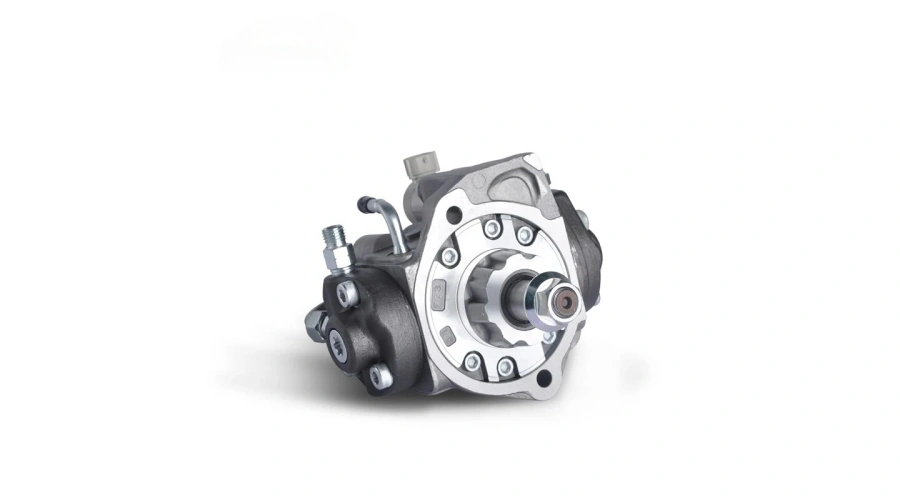

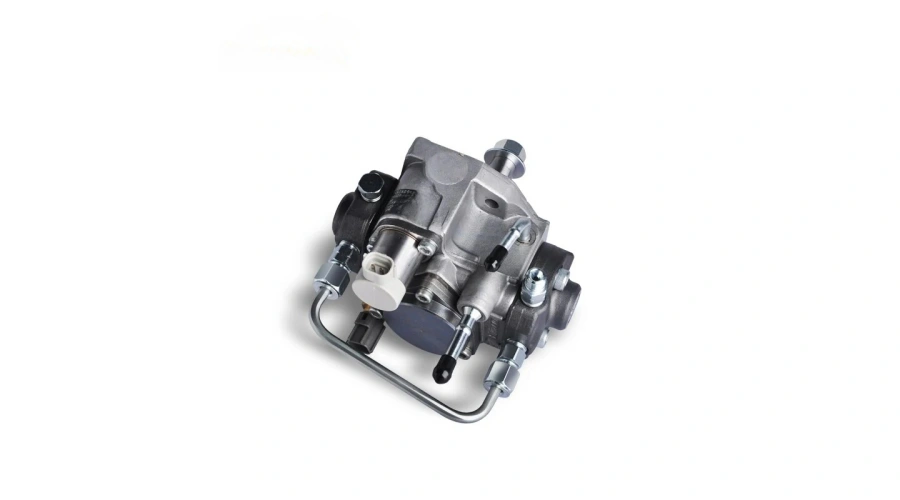

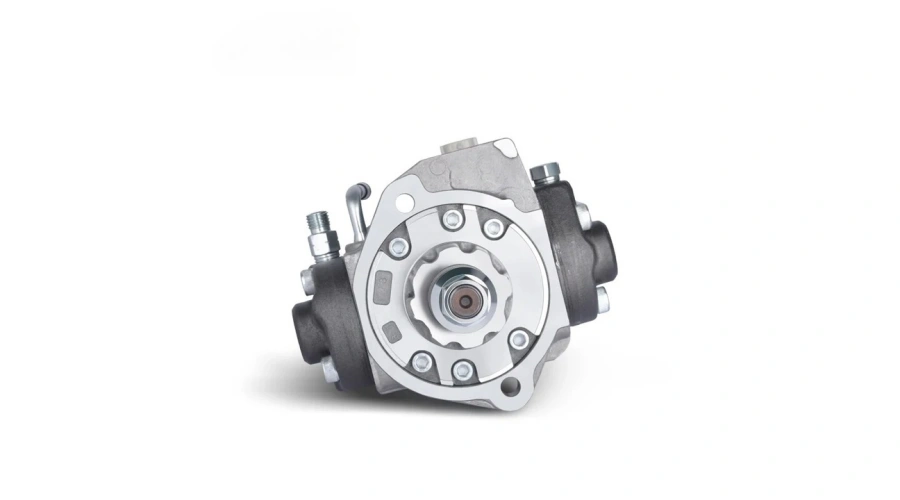

The HP3 pump is a high-pressure common rail fuel pump designed specifically for high-output diesel engines like the Mitsubishi 4N15. Unlike older inline or distributor-type pumps, the HP3 utilizes a radial piston design.
1. Radial Piston Design
The pump features a three-piston radial configuration. The pistons are arranged radially around an eccentric camshaft. This design allows for:
High Pressure Generation: It consistently generates injection pressures exceeding 1,800 bar, which is necessary for the precise atomization required by the 4N15’s combustion chamber.
Flow Stability: The radial design minimizes pressure pulsation, ensuring a steady supply of fuel to the common rail.
2. Integrated Pump Unit
The HP3 unit combines the feed pump (low-pressure section) , the high-pressure pumping section, and the fuel metering valve (SCV) into a compact housing. This integration reduces the risk of external leaks and simplifies installation compared to setups with external gear pumps.
3. Precision Engineering (1460A095 & 294000-2330)
The specific models 1460A095 (Mitsubishi OEM number) and 294000-2330 (Denso industry number) are engineered for the Euro 4, Euro 5, and Euro 6 variants of the 4N15 engine. Key technical features include:
High-strength aluminum housing: Designed for heat dissipation and weight reduction.
Denso SCV (Suction Control Valve): This valve precisely regulates the amount of fuel entering the pumping chamber, reducing parasitic drag on the engine and improving fuel economy.
Main Applications
This HP3 fuel pump is specifically designed for the Mitsubishi 4N15 engine, which is found in:
It is the OEM standard for vehicles requiring high-pressure common rail injection in demanding environments, from off-road terrain to highway hauling.
Common Problems & Symptoms
While the HP3 pump is generally reliable, the 4N15’s fuel system is sensitive to contamination. Here are the most common issues:
1. Suction Control Valve (SCV) Failure
The SCV is the most common failure point. Symptoms include:
Erratic idle: The engine revs fluctuate or stall unexpectedly.
Loss of power: The vehicle enters “limp mode” due to fuel pressure deviations.
Diagnostic Trouble Codes (DTCs): P0087 (Fuel Rail/System Pressure Too Low) or specific SCV circuit codes.
2. Water and Contamination Damage
Because the HP3 pump relies on diesel fuel for lubrication (fuel-bound lubrication), water ingress or contaminated fuel causes catastrophic failure.
Signs: Metallic debris in the fuel filter, hard starting, and eventually, a no-start condition.
Consequence: If the pump fails internally, it sends metal shavings downstream, destroying the injectors and the common rail.
3. Wear and Tear (High Mileage)
Over 150,000 km, the internal cam ring and piston rollers can wear out, leading to reduced rail pressure during acceleration.
Maintenance Best Practices
To maximize the lifespan of your HP3 Fuel Pump 1460A095, adhere to the following maintenance schedule:
Fuel Filter Replacement: Replace the fuel filter every 20,000 km (or sooner if operating in dusty or humid environments). The 4N15 engine uses a high-efficiency filter that separates water. Drain the water separator weekly.
Use High-Quality Diesel: Always source diesel from reputable stations. Low-grade fuel lacks the lubricity required for the HP3’s internal components.
SCV Replacement: If erratic idle occurs, replace the SCV (Suction Control Valve) immediately. Driving with a faulty SCV can lead to metal fatigue in the pump head.
System Flushing: If the pump fails, the entire fuel system (tank, lines, rail, injectors) must be flushed. Replacing only the pump without cleaning the system will result in immediate failure of the new unit.
Why Choose Rsolid Engine Parts as Your Diesel Pump Supplier
When it comes to replacing a precision component like the Denso HP3 (294000-2330), the quality of the supplier is just as important as the quality of the part. Rsolid engine parts stands out in the aftermarket industry for several reasons:
1. Rigorous Quality Control
Rsolid engine parts specializes in diesel fuel systems. Their HP3 units undergo strict testing to ensure they meet or exceed OEM specifications for pressure output and flow rate. Whether you are purchasing a brand-new unit or a remanufactured core, Rsolid ensures that the clearances between the piston and cylinder barrel are within micron tolerances.
2. Warranty and Support
A common pain point for mechanics is “comebacks” caused by faulty aftermarket parts. Rsolid engine parts provides comprehensive warranty coverage on their fuel pumps. They also offer technical support to help diagnose whether the issue is the SCV, the pump head, or an external electrical fault.
3. Market Expertise
Rsolid understands the specific demands of the Mitsubishi 4N15 engine. They ensure that the HP3 pumps supplied are the correct variant (1460A095) for the specific market vehicle, accounting for differences between Euro 5 and Euro 6 emission standards. By choosing Rsolid, you avoid the risk of receiving a “universal” pump that does not match your vehicle’s ECU calibration.
Conclusion
The HP3 Fuel Pump (1460A095 / 294000-2330) is the cornerstone of the Mitsubishi 4N15 engine’s performance. Its radial piston design offers the reliability and pressure required for modern diesel efficiency, but it demands respect in terms of fuel quality and maintenance.
When the time comes for replacement, sourcing this critical component from a trusted supplier like Rsolid engine parts ensures that your diesel system receives a product built to last. Regular maintenance, combined with high-quality replacement parts, will keep your Mitsubishi Triton or Pajero Sport running at peak performance for hundreds of thousands of miles
