For Ford vehicles powered by the Duratorq (Puma) 2.2L and 2.4L diesel engines, the fuel injection system relies on a robust high-pressure pump. The 294000-0400 Denso HP3 pump is a precision-engineered component that delivers fuel at up to 1800–2000 bar to the common rail. This pump is widely used in the Ford Transit, Ford Ranger, Ford Mondeo, and other diesel models.

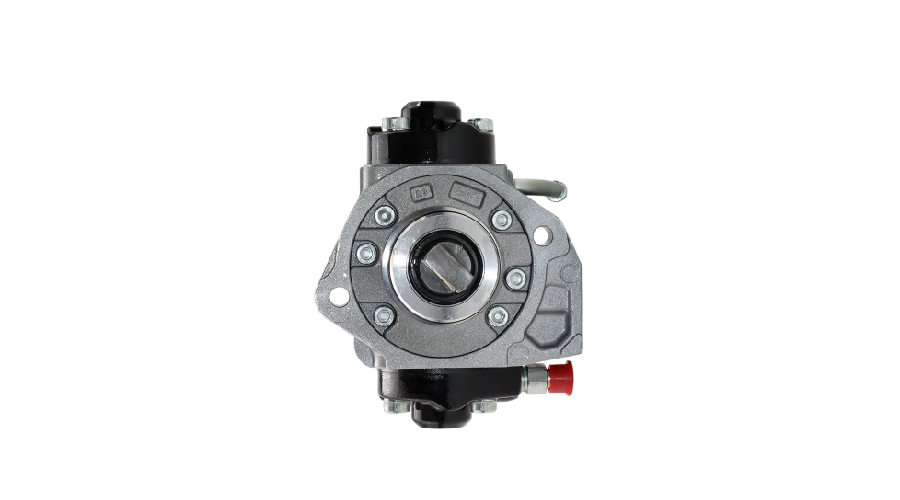

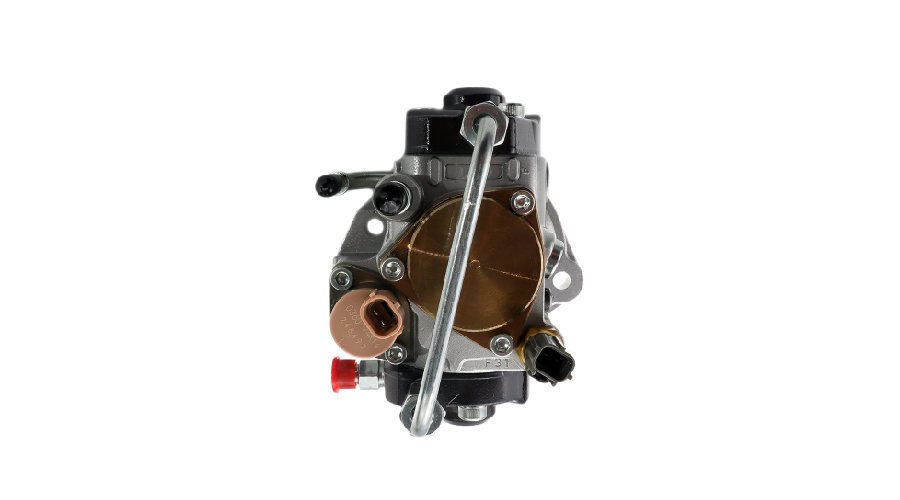

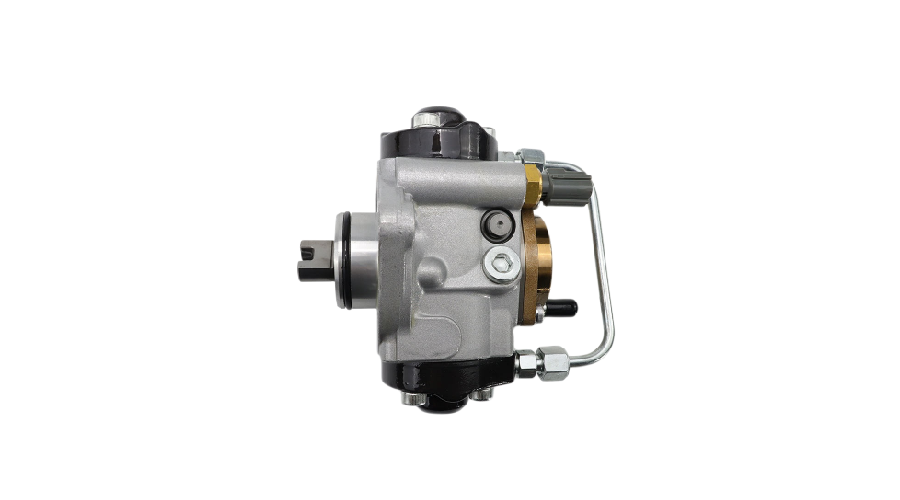

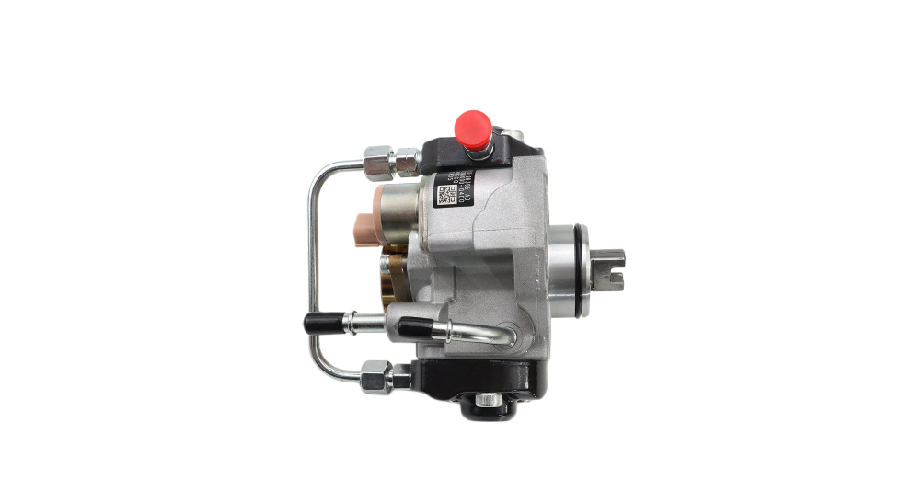

Overview – 294000-0400 Denso HP3 Pump
The 294000-0400 is a Denso HP3-series high-pressure fuel supply pump, designed specifically for smaller displacement (2.0L–2.5L) common rail diesel engines. Unlike the larger HP0 or HP4 pumps, the HP3 is compact, lightweight, and optimized for high-speed operation up to 5000 rpm. It uses a single-plunger (or sometimes two-plunger) radial design with an integrated suction control valve (SCV) and a built-in feed pump. This pump is a direct OEM replacement for Ford engines originally fitted with Denso HP3 systems.
Rsolid engine parts offers this pump as a brand new, bench-tested unit that matches or exceeds original Ford/Denso specifications, ensuring your vehicle returns to peak performance.
Structural Features
The 294000-0400 HP3 pump incorporates compact, high-efficiency engineering:
| Feature | Description |
|---|
| Pump Type | Single-plunger radial high-pressure pump (Denso HP3 architecture) |
| Plunger Configuration | One radial plunger driven by an eccentric cam on the drive shaft (some HP3 variants have two plungers for higher flow – check specific model) |
| Suction Control Valve (SCV) | Built-in proportional solenoid valve (12V) that regulates fuel intake based on ECU demand |
| Low-Pressure Stage | Internal trochoid gear pump (integrated into the housing) draws fuel from the tank |
| High-Pressure Head | Compact steel head with single outlet port to the common rail |
| Cam / Eccentric | Hardened steel eccentric lobe acting on a roller or slipper |
| Housing | Die-cast aluminum alloy with black anti-corrosion coating, very compact |
| Drive Connection | Toothed or splined shaft (typically 3-bolt or 4-bolt flange mount) |
| Pressure Relief Valve | Integrated internal relief valve (set ~2000 bar) |
| Fuel Temperature Sensor | Optional port – often not present on HP3; temperature measured elsewhere |
| Mounting Flange | Direct mount to engine front cover or timing chain housing |
The HP3’s single-plunger design is simpler and more compact than the HP0’s three-plunger layout, making it ideal for passenger cars and light commercial vehicles where space and weight are critical.
Technical Advantages
Choosing the Rsolid 294000-0400 HP3 pump delivers significant benefits for Ford 2.2L / 2.4L diesel engines:
1. High Injection Pressure – Up to 2000 bar
Enables extremely fine fuel atomization, leading to improved combustion efficiency, lower emissions (especially soot), and reduced fuel consumption (typically 3–6% improvement over a worn pump).
2. Compact & Lightweight Design
The single-plunger radial design is significantly smaller and lighter than HP0 pumps, allowing easy installation in tight engine bays (e.g., Ford Transit, Ranger).
3. Precise Electronic Fuel Metering
The SCV responds in milliseconds to the ECU’s commands, adjusting fuel delivery from idle to full load. This provides smooth acceleration, stable idle, and precise rail pressure control (±20 bar).
4. High-Speed Capability
The HP3 pump is designed for engine speeds up to 5000 rpm – well beyond the Ford Duratorq’s redline (4500 rpm), ensuring no fuel starvation at high revs.
5. Excellent Cold Start Performance
The internal feed pump and SCV control ensure reliable starting down to -25°C (with proper glow plugs and battery).
6. Low Noise & Vibration
The HP3 is noticeably quieter than older VP44 or VP30 pumps, with minimal pulsation transmitted to the fuel rail.
7. Long Service Life with Proper Care
With clean fuel and regular maintenance, the HP3 pump can last 200,000 – 300,000 km in typical passenger car or light truck use.
8. New – Not Remanufactured
Rsolid supplies brand new pumps. No core charge, no unknown wear, no risk of premature failure from poor rebuilds.
Application Equipment – Ford 2.2L & 2.4L Engines
The 294000-0400 Denso HP3 pump is specifically designed for Ford Duratorq (Puma) diesel engines. Below is a detailed compatibility table:
| Engine Displacement | Engine Code(s) | Vehicle Models | Years (typical) |
|---|
| 2.2L Duratorq (Puma) | QVFA, QVFB, QVFC, QVFD, PGFA, PGFB | Ford Transit (MK7, MK8), Ford Ranger (T6), Ford Mondeo (MK4), Ford Galaxy, Ford S-Max | 2011–2019 |
| 2.4L Duratorq (Puma) | H9FA, H9FB, H9FC, H9FD, VAFA, VAFB | Ford Transit (MK6, MK7), Ford Ranger (T6 – early models), Ford Defender (2.4L – some markets) | 2006–2015 |
| 2.0L Duratorq (Puma) | (some 2.0L variants also use HP3 – verify pump number) | Ford Focus, Ford C-Max, Ford Mondeo (2.0L diesel) | 2008–2016 |
Important verification: The original pump part number 294000-0400 is stamped on the pump nameplate. Some Ford 2.2L engines use a similar HP3 pump with different SCV calibration (e.g., 294000-0401, 294000-0410). Always check your existing pump number before ordering. Also, Ford 2.2L/2.4L engines may have either Denso HP3 or Bosch CP1/CP3 systems depending on the model year and market. If your engine has a Bosch pump, the Denso HP3 will not fit.
How to confirm on your Ford vehicle:
Locate the high-pressure fuel pump – on the Duratorq engine, it is usually mounted on the front of the cylinder head or on the timing chain cover, driven by the camshaft or timing chain.

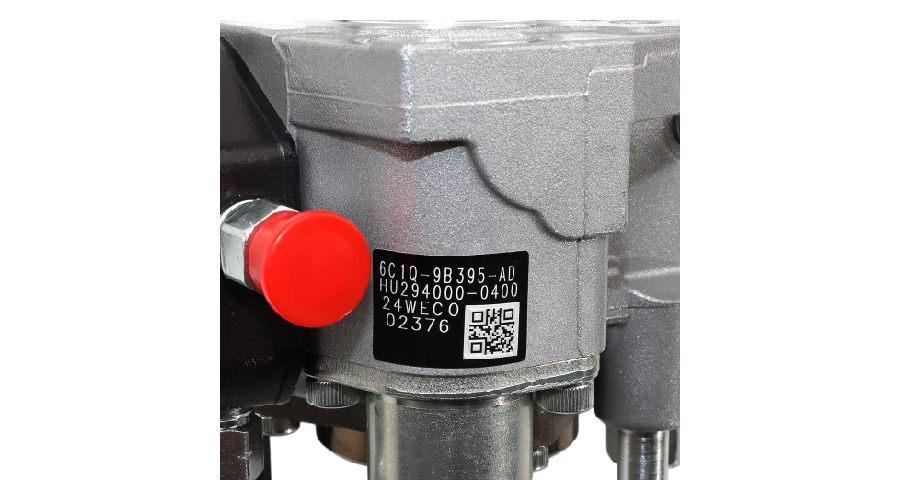

Look for the metal nameplate – it should read “294000-0400”, “Denso HP3”, or “HP3”.
Check that your engine has a common rail (high-pressure rail with steel pipes to injectors). If your engine has a rotary injection pump (like Lucas/CAV DPC), this pump is not compatible.
Common Failures & Symptoms
HP3 pumps are generally reliable, but they can fail, especially due to contaminated fuel or lack of maintenance. Recognizing early signs prevents damage to injectors and the rail.
| Failure Mode | Typical Symptoms on Ford 2.2L/2.4L | Root Cause |
|---|
| SCV (Suction Control Valve) failure | Erratic idle, intermittent power loss, engine derate (fault codes P0087, P0088, P0093), hard starting, black smoke | Contaminated fuel, electrical issues, coil wear, corrosion |
| Plunger & cam wear | Metal particles in return fuel line, low rail pressure under load (e.g., uphill), long cranking time, engine stalls | Water in fuel, poor lubricity (especially with ULSD without additive), abrasive dirt |
| Internal feed pump wear | Fuel starvation at high RPM (e.g., motorway overtaking), stalling, air in system, long crank after filter change | Dirt passing through primary filter, tank debris, degraded fuel |
| High-pressure head leakage | Visible diesel weep near the outlet fitting, pressure drop, smell of fuel in engine bay | O-ring aging, overtightening, thermal cycles |
| Drive coupling / spline wear | Rumbling noise from pump area, timing drift, metal dust on timing cover | Misalignment, loose mounting bolts, worn timing chain tensioner |
| Pressure relief valve stuck | Overpressure (blown rail hose – rare) or underpressure (engine dies under load) | Debris or spring fatigue |
Critical warning: If you find metallic particles (especially steel or brass) in the fuel return line or inside the fuel filter, the high-pressure section of the pump is failing. On HP3 pumps, this often means the cam and plunger are disintegrating. Replace the pump immediately and flush the entire fuel system – injectors, rail, and high-pressure lines – to prevent a repeat failure. Failure to flush will destroy a new pump within minutes.
Maintenance Recommendations for Ford 2.2L / 2.4L & 294000-0400 HP3
Maximize the lifespan of your HP3 pump with these proven practices:
✅ Regular Checks (Every 10,000 – 15,000 km or 6 months)
Visually inspect pump body for external fuel leaks (SCV area, head joint, drive shaft seal).
Listen for unusual whining or knocking – use a stethoscope on the pump housing at idle.
Check SCV electrical connector for corrosion, loose pins, or damaged wiring.
Drain water from the fuel filter (Ford recommends every oil change).
✅ Scheduled Service (Every 30,000 – 40,000 km or 2 years)
Replace the fuel filter (both primary and secondary if separate – Ford uses a single high-efficiency filter). Use only genuine or high-quality aftermarket filters (e.g., Mann, Mahle, Bosch) with 5 μm or finer rating.
Take a fuel sample to check for water (should be <200 ppm) and particulate contamination.
Use a diagnostic scanner (e.g., FORScan) to monitor rail pressure stability under load (desired: ±30 bar at steady state).
If the vehicle has exceeded 150,000 km, consider having the pump flow-tested by a diesel specialist.
✅ Fuel Quality & Lubricity (Essential for HP3 longevity)
Always use diesel that meets EN590 (Europe) or ASTM D975 (global). Avoid high-biodiesel blends (>B7) unless approved by Ford.
For ultra-low-sulfur diesel (ULSD, <15 ppm sulfur), add a lubricity improver (e.g., Stanadyne Performance Formula, Liqui Moly Super Diesel Additive, or 2–5% biodiesel if allowed). HP3 pumps are sensitive to fuel lubricity.
Never run the pump on gasoline, kerosene, contaminated fuel, or high-water-content diesel – instant failure.
Never use starting fluids (ether) – they cause instantaneous seizure of HP3 pumps.
✅ Long-term Storage
If the vehicle will be idle for more than 2 months, run the engine monthly until fully warm (at least 15 minutes).
Alternatively, fill the pump with a diesel preservative (e.g., Fleetguard Diesel Fuel Stabilizer) by disconnecting the inlet line and running the engine briefly on a suction hose from a can of preservative.
⚠️ When to Replace the Pump (Do Not Delay)
Metal particles found in fuel return line, filter housing, or pump drain.
Rail pressure cannot reach target (e.g., required 1600 bar at full load, only 1100 bar achieved) – measured with diagnostic scanner.
SCV replacement (a separate serviceable part) does not fix pressure instability.
External leak from drive shaft seal – internal bearing wear is likely the cause.
Pump has exceeded 250,000 km in heavy-duty use (e.g., frequent towing, urban delivery) – proactive replacement avoids injector damage and breakdowns.
Pro tip for Ford 2.2L/2.4L owners: When replacing the HP3 pump, always replace the timing chain tensioner and drive sprocket bolts if the pump is chain-driven. Also, install new high-pressure fuel lines from pump to rail – old lines can trap debris and contaminate the new pump. Change the fuel filter and, if possible, have the injectors flow-tested. Contaminated injectors can destroy a new pump within hours.
Why Choose Rsolid Engine Parts for 294000-0400 HP3?
Rsolid engine parts is a global leader in diesel fuel injection components. Here is why professionals and DIY owners choose us for their Ford HP3 pump needs:
Exact Denso HP3 Compatibility – Our 294000-0400 matches OEM dimensions, mounting flange pattern, SCV electrical characteristics (resistance 2.5–3.5 Ω, PWM frequency 200–300 Hz), and flow curves for Ford Duratorq 2.2L and 2.4L engines.
Brand New – No Reman – Every pump is assembled from new components. No core charge, no hidden wear, no risk of premature failure from poor rebuilding. This is especially important for HP3 pumps, which are notoriously difficult to remanufacture correctly.
100% Bench Tested – Each pump is tested on a Bosch EPS 815 or Denso test bench for:
Internal leakage (<0.8 L/min at 1800 bar)
SCV linearity and response time
Pressure buildup curve (0 to 1800 bar within specified time)
Leak-free operation under heat cycling to 90°C fuel temperature
Plug-and-Play Installation – Pre-calibrated for Ford Duratorq engines. No on-site adjustment needed. Simply transfer the SCV (if not pre-installed) and mount.
Competitive Pricing – 30–50% lower than Ford dealer pricing, with the same or better reliability.
12-Month Unlimited Mileage Warranty – Full coverage against manufacturing defects. Extended warranty options available for fleets.
Fast Global Shipping – Warehouses in Asia, Europe, and North America. Express delivery 2–5 business days.
Expert Technical Support – Our team includes former Denso and Ford diesel specialists who can help with pump identification, SCV matching, installation tips, and diagnostic troubleshooting.
Ordering Information
Part number: 294000-0400
Also known as: Denso HP3 0400, HP3 pump for Ford, 294000-0400 (original), 294000-0401
