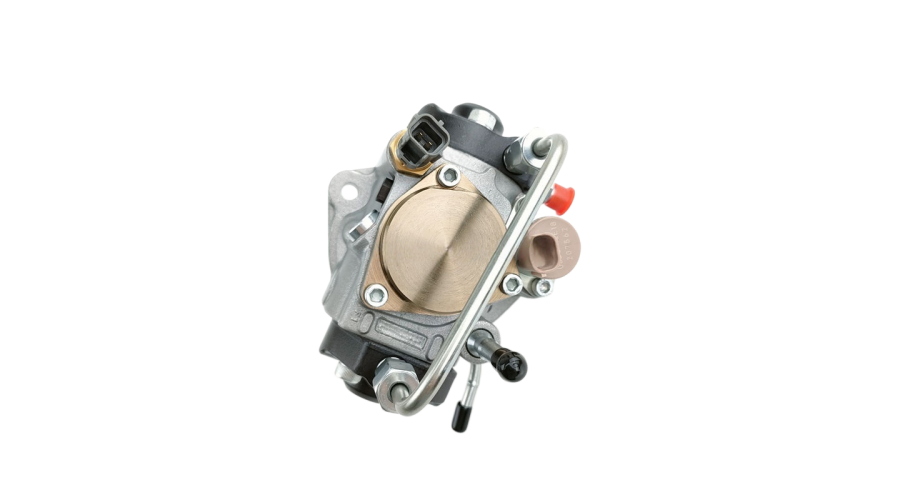

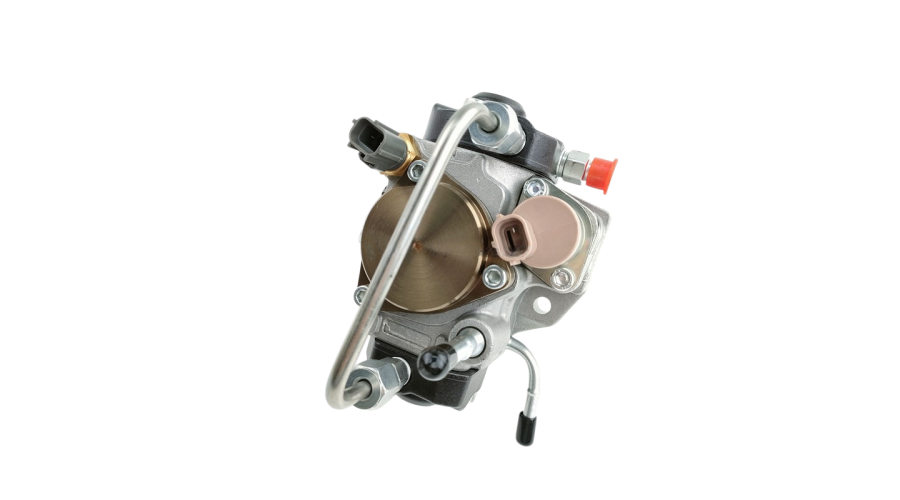

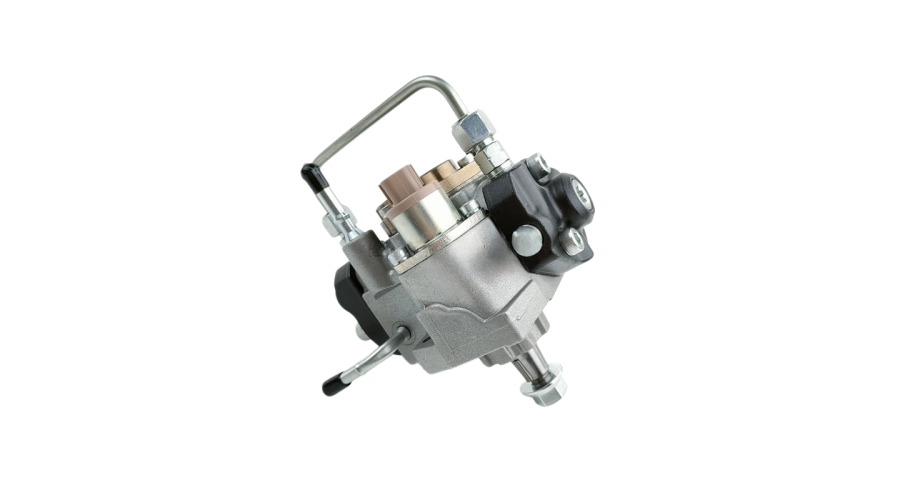

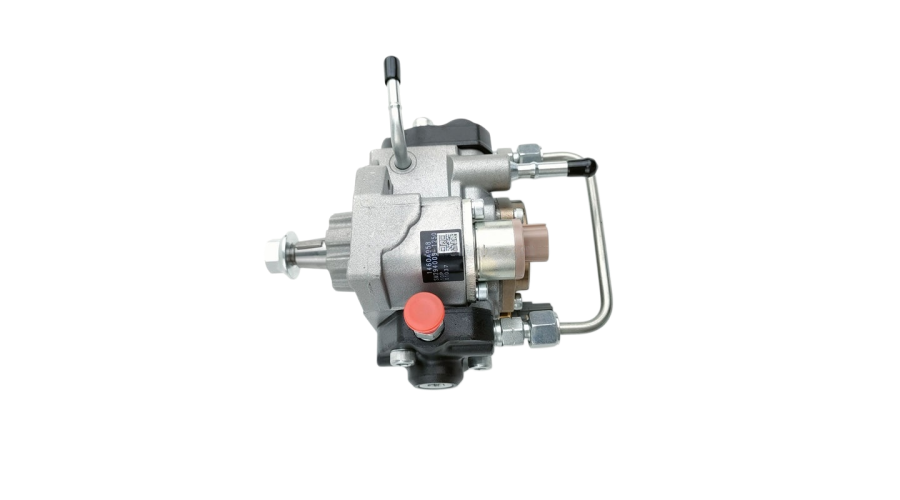

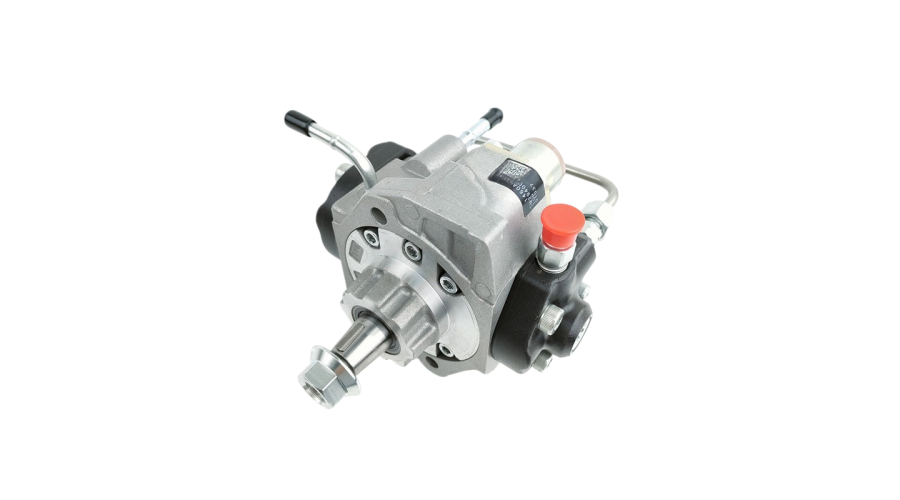

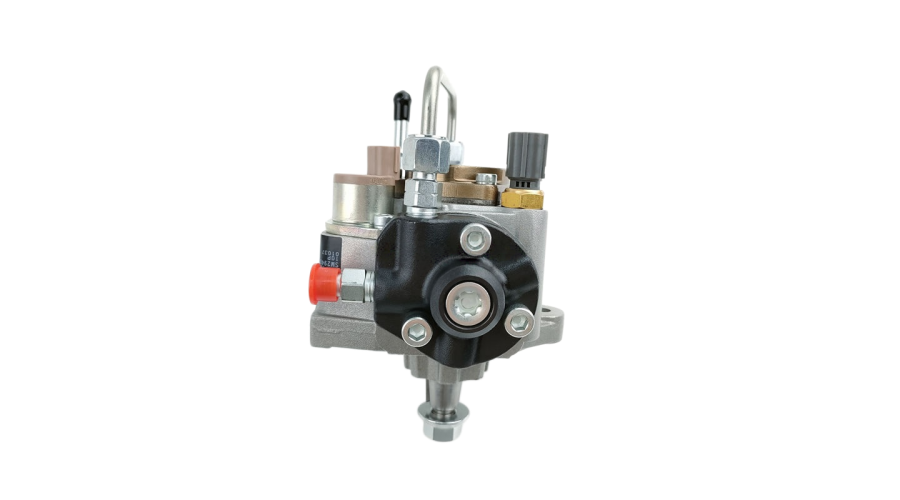

For owners and workshops working on the Mitsubishi Triton (L200) or Pajero (Montero) equipped with the legendary 3.2L 4M41 DI-D diesel engine, a reliable common rail fuel pump is non-negotiable. The Fuel Pump 294000-1250 (Denso compatible) is the exact high-pressure pump designed for this engine family.
Structural Advantages of Fuel Pump 294000-1250
The 294000-1250 is a Denso-generation common rail pump built specifically for Mitsubishi’s 3.2L 4-cylinder turbo diesel. Its engineering focuses on high reliability under heavy load and high ambient temperatures – typical for SUVs and pickups.
Three-Piston Radial Design
Unlike the two-piston unit on smaller engines, this pump features three radial plungers. This delivers smoother fuel flow, higher volume (up to 85 L/h), and allows the engine to achieve 160 MPa (23,200 psi) rail pressure consistently.
Heavy-Duty Drive Shaft & Cam Ring
The pump is driven directly by the engine timing gear. The hardened cam ring with three lobes ensures each plunger is precisely timed, reducing torque ripple and extending drive coupling life.
Integrated Suction Control Valve (SCV)
The SCV (also known as the metering unit) adjusts fuel intake based on ECU demand. It operates with a fast PWM response, enabling precise control over rail pressure during acceleration, deceleration, and idle.
Fuel Temperature Sensor Built-In
A built-in thermistor measures fuel temperature and sends data to the engine ECU, allowing adaptive injection timing and protecting the pump from overheating under sustained heavy loads.
Corrosion-Resistant Internal Coatings
The plungers and barrel are coated with a DLC-like (Diamond-Like Carbon) layer, providing exceptional resistance to low-sulfur diesel wear and water contamination – a common problem in off-road applications.
Modular Serviceability
The pump allows replacement of the SCV, pressure regulator, and seals without dismantling the entire unit – a cost-saving feature for workshops.
These structural advantages make the 294000-1250 ideal for long-distance touring, heavy towing, and dusty environments where Mitsubishi Triton and Pajero are often used.
Application Equipment – Which Vehicles Use This Pump?
The Common Rail Pump 294000-1250 is exclusively designed for the Mitsubishi 4M41 3.2L DI-D (Direct Injection Diesel) engine. It is a direct OEM replacement for Denso part number 294000-1250 and fits the following models:
| Vehicle Model | Chassis/Series | Engine Code | Production Years |
|---|
| Mitsubishi Triton / L200 | KK, KL (3rd & 4th gen) | 4M41 | 2006 – 2015 |
| Mitsubishi Pajero / Montero | V80, V90 series | 4M41 | 2006 – 2016 |
| Mitsubishi Pajero Sport | (First generation) | 4M41 | 2008 – 2015 |
Note: This pump is not compatible with the 2.5L 4D56 engine or later 2.4L 4N15 engines. Always check your original pump part number. The 294000-1250 is sometimes marked as “095000-1250” on Denso units – cross-reference before ordering.
Whether you operate a Triton work ute, a Pajero off-road expedition vehicle, or a Pajero Sport family SUV, this pump ensures cold start reliability, consistent power from 1,500 to 4,000 rpm, and compliance with Euro 4 emission standards.
Preventive Maintenance Recommendations for 294000-1250
The 4M41 engine is known for longevity, but the common rail pump is sensitive to contamination. Follow these preventive steps to achieve 400,000+ km of trouble-free service.
1. Change Fuel Filter Every 10,000–15,000 km
Mitsubishi specifies a 5-micron fuel filter. In dusty or high-humidity areas, reduce interval to 10,000 km. A clogged filter causes cavitation – the fastest way to destroy the three plungers.
2. Use Genuine or High-Quality Diesel
Biodiesel blends above B7 can degrade internal seals over time. If using B20, shorten seal replacement intervals. Always drain water from the fuel filter water trap weekly.
3. Monitor SCV Performance
Fault codes P0093 (fuel leak) or P0087 (rail pressure low) often point to a worn SCV. Replace the SCV every 150,000 km as a preventative measure – it is much cheaper than a full pump.
4. Check Drive Gear Backlash
The pump is gear-driven from the engine. Excessive backlash (wear in the idler gear) can cause pump timing errors and metallic noise. Inspect during timing belt/chain replacement.
5. Perform a Pump Leak-Off Test Annually
Internal leakage past the plungers returns to the tank via the spill line. A simple leak-off test (measuring return flow at idle) can detect wear before failure.
6. Use the Correct High-Pressure Pipe Torque
When reinstalling, tighten the high-pressure pipe nuts to exactly 30 Nm. Over-tightening deforms the sealing cone; under-tightening causes leaks that erode the pump head.
7. Replace Fuel Pump Seal Kit at 200,000 km
O-rings, shaft seal, and SCV gasket should be replaced as a set to prevent air ingress and external diesel leaks.
Pro tip: If your Triton or Pajero experiences hard starting when hot, suspect a worn SCV or fuel pressure relief valve on the rail – but often the pump itself is still fine.
Why Choose Rsolid Engine Parts as Your Supplier?
Rsolid Engine Parts has become a trusted aftermarket source for common rail pumps serving Japanese and Asian diesel vehicles. Here’s why workshops choose us for the 294000-1250 pump:
True OEM Specification
Our pumps match Denso’s original dimensions, material hardness, and internal clearances. No “universal” modifications – direct bolt-on for 4M41 engines.
100% Bench Tested Before Dispatch
Each pump is run on a common rail test bench measuring:
Rail pressure at idle, mid, and full load
SCV solenoid resistance and response time
Plunger leakage (return flow) – must be <30 mL/min
High-pressure seal integrity at 180 MPa
Upgraded SCV and Seals
We supply the pump with a new, pre-calibrated SCV and Viton® seals that resist modern low-sulfur diesel and bio-corrosion.
12-Month / 60,000 km Warranty
Rsolid covers manufacturing defects. We also provide free technical support for installation issues.
Global Logistics
Stock in Asia, Middle East, Africa, and Latin America ensures fast delivery to Mitsubishi specialists worldwide.
Bulk Pricing for Fleets
For transport companies or repair chains, we offer volume discounts and express shipping options.
Final Verdict
The Common Rail Pump 294000-1250 is a critical component for any Mitsubishi Triton or Pajero 3.2L 4M41 engine. Its three-plunger design, integrated SCV, and robust construction ensure the reliable fuel delivery needed for off-road, towing, and daily driving.
When you buy from Rsolid Engine Parts, you receive a bench-tested, ready-to-install pump with an upgraded SCV, full warranty, and expert support.
