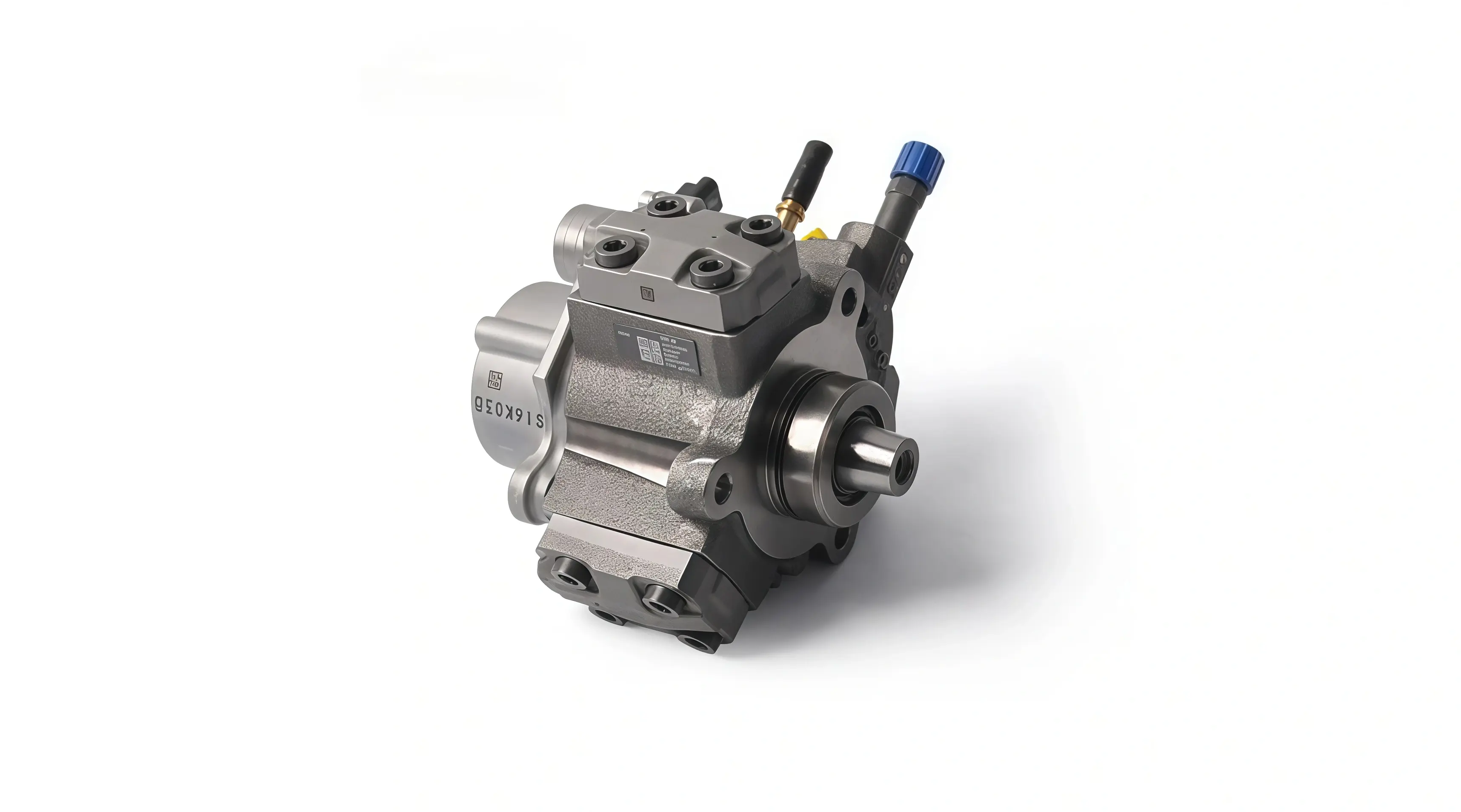

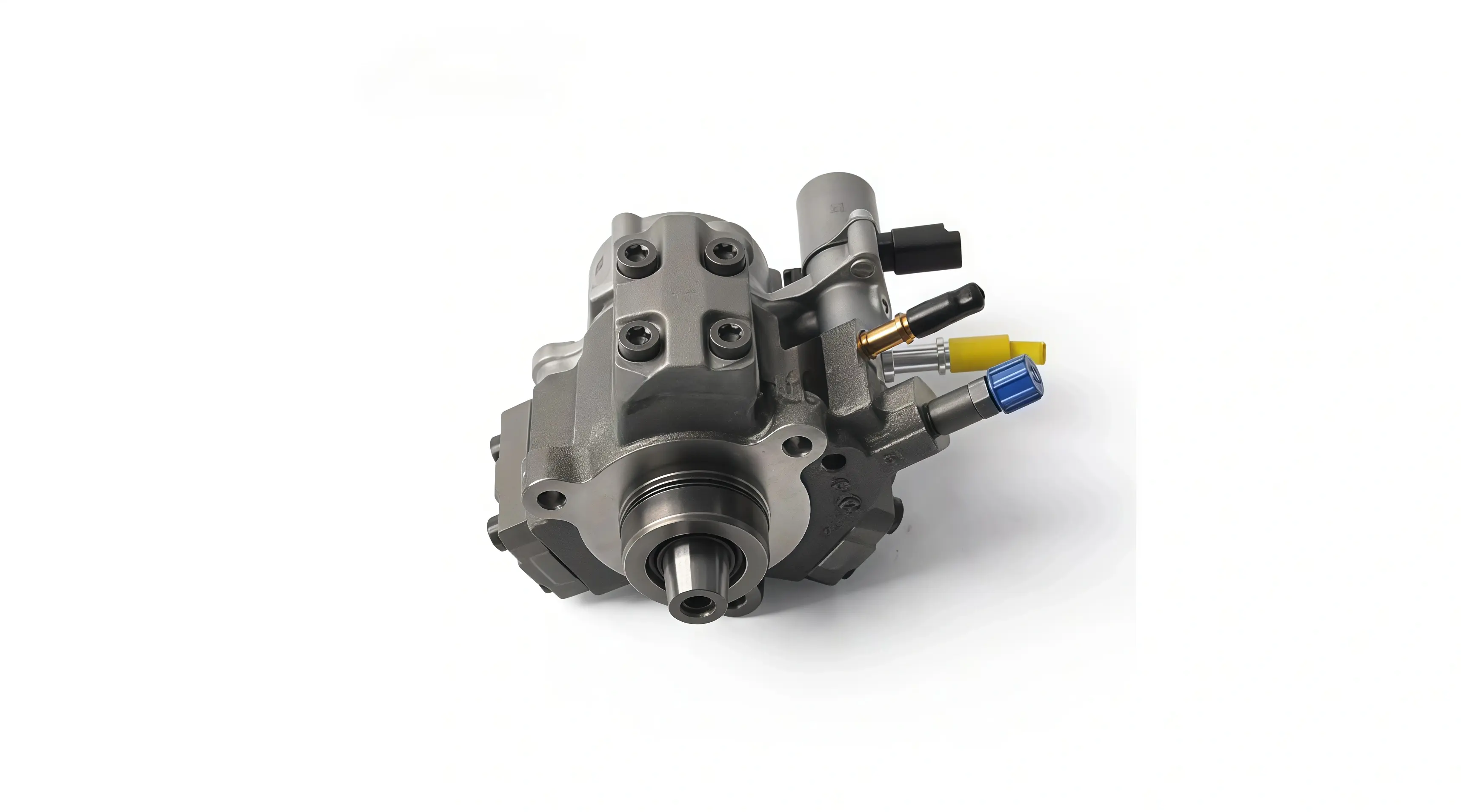

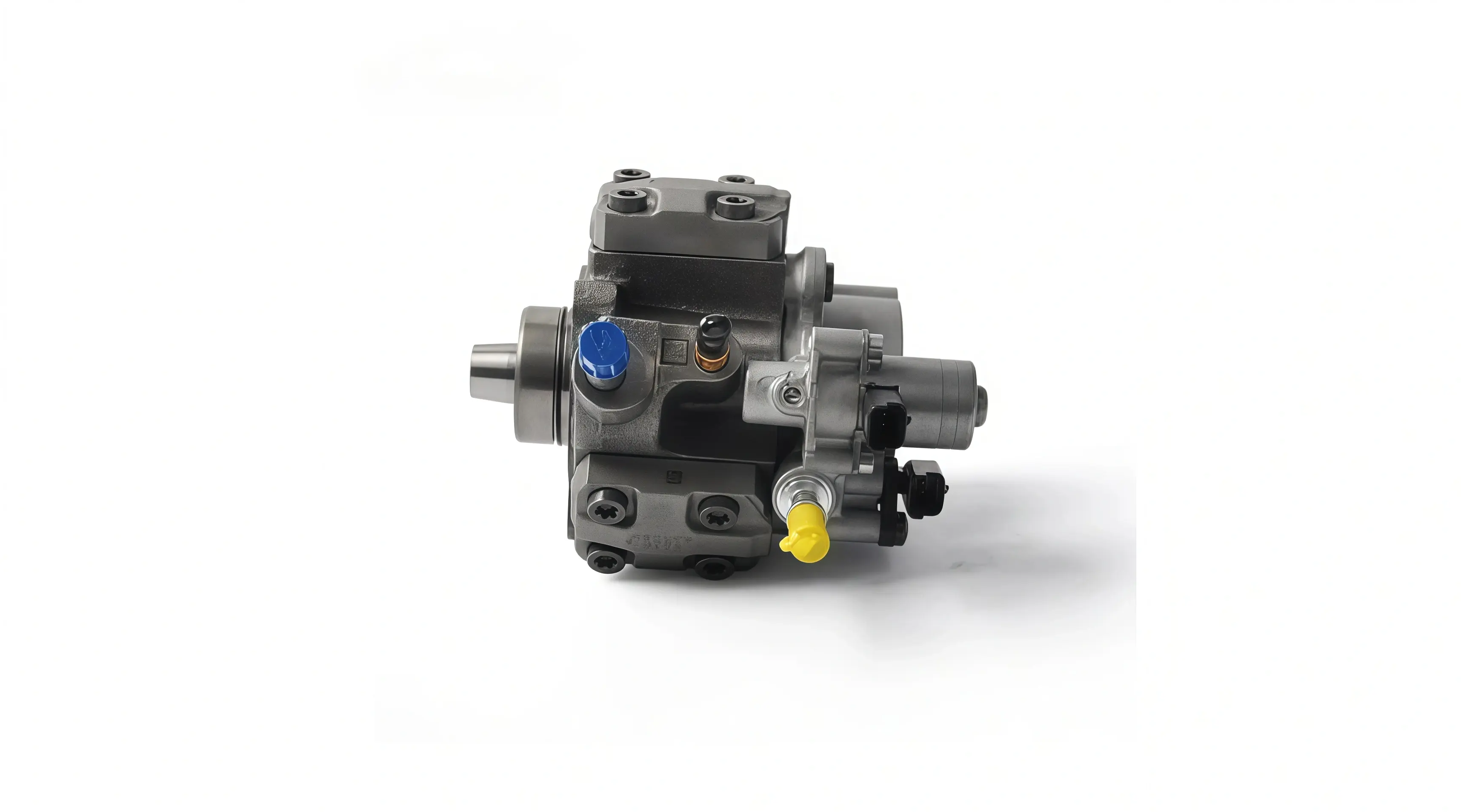

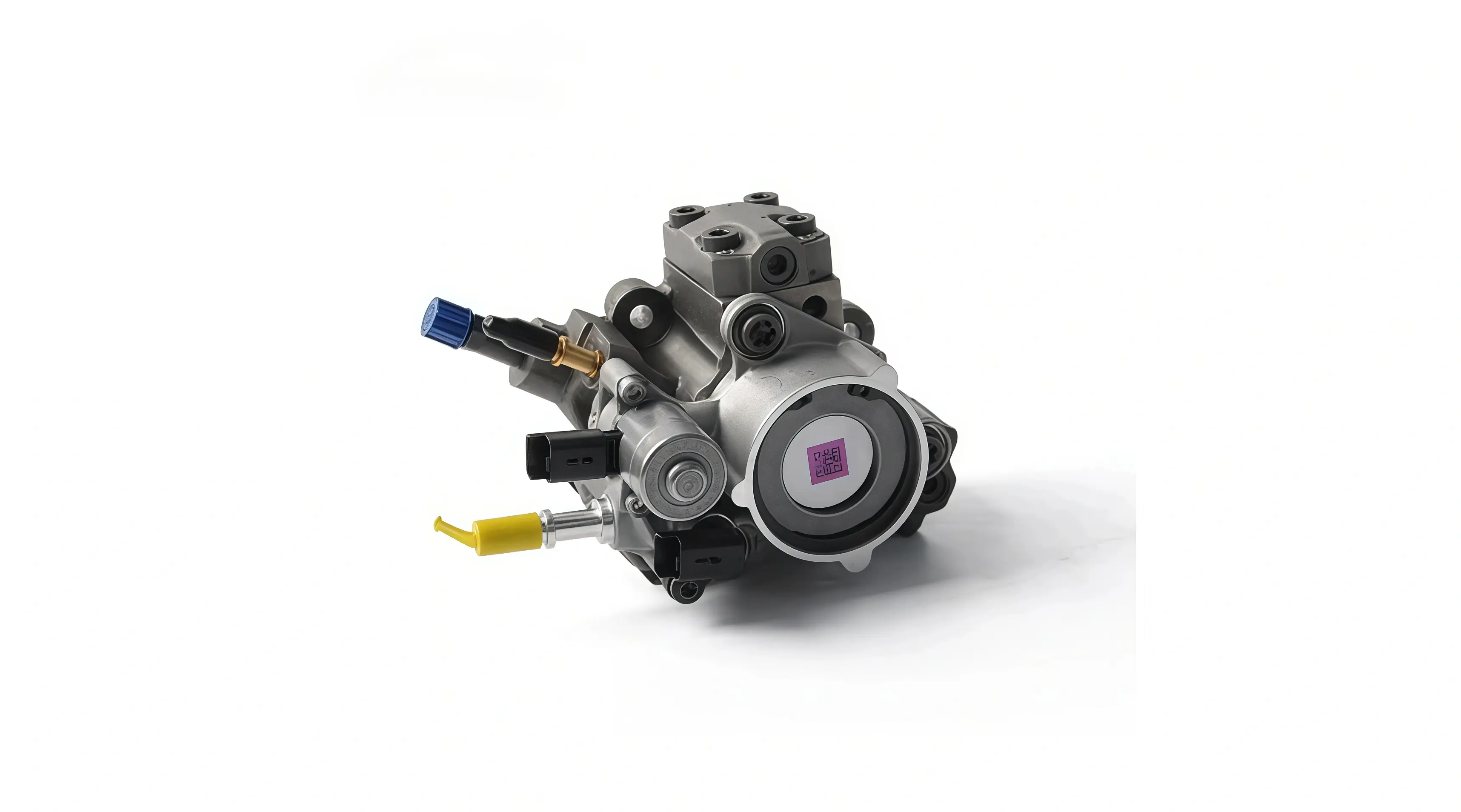

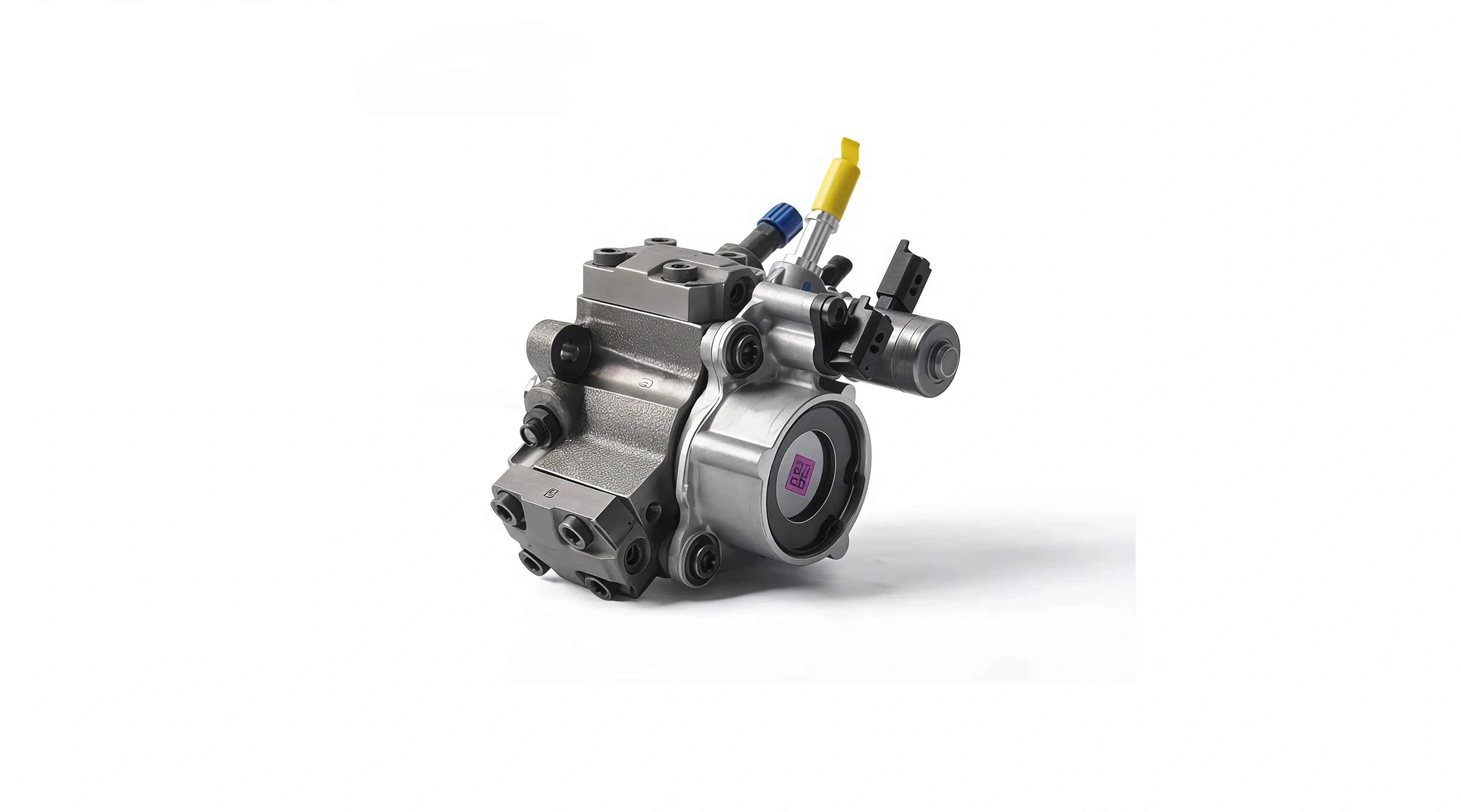

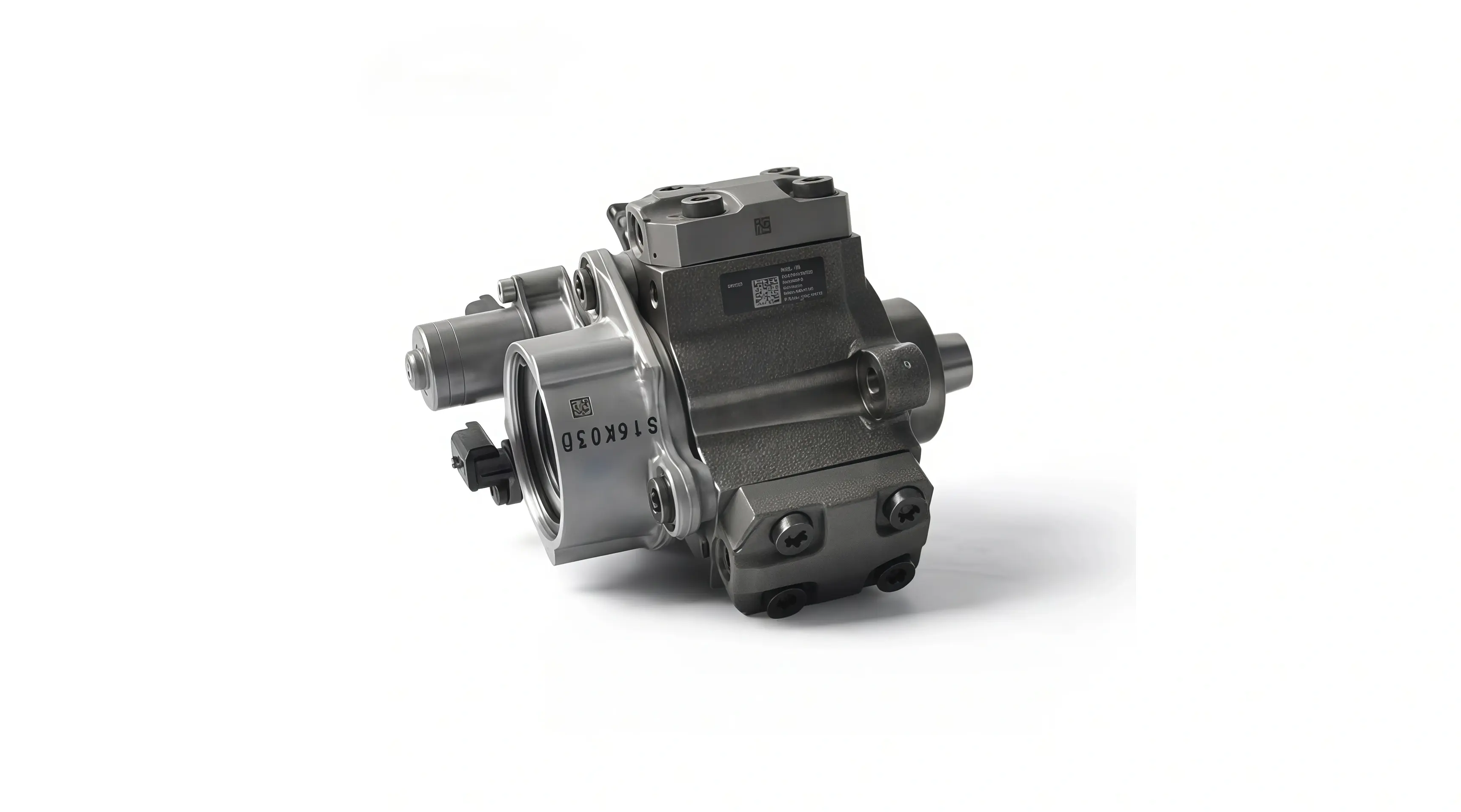

What is Common Rail Fuel Pump A2C96176300?

The Common Rail Fuel Pump A2C96176300 is a high-pressure fuel injection pump manufactured by Bosch, designed specifically for the Ford Transit V348 equipped with the 2.2L Duratorq TDCi diesel engine. This pump is a critical component of the common rail fuel system, responsible for drawing fuel from the tank, pressurizing it to extreme levels, and delivering it to the common rail for distribution to the injectors. The A2C96176300 is typically a Bosch CP1 or CP3-series radial piston pump, engineered to meet the demanding requirements of Ford’s 2.2L diesel engine, which powers one of Europe’s most popular light commercial vehicles. It ensures precise fuel metering, stable rail pressure, and reliable performance under both urban delivery and long-distance driving conditions.

How Does Common Rail Fuel Pump A2C96176300 Work?

The Common Rail Fuel Pump A2C96176300 operates on the principle of a radial piston high-pressure pump with an integrated low-pressure transfer section. Driven by the engine’s timing belt or gear train, the pump’s internal cam ring actuates three radial pistons arranged at 120-degree intervals. Fuel is first drawn from the tank through the low-pressure inlet by an integrated gear-type transfer pump. It then passes through a fuel metering valve (FMV), which is electronically controlled by the engine control unit (ECU). The ECU modulates the metering valve to precisely regulate the volume of fuel entering the high-pressure pumping chamber. As the radial pistons reciprocate, they compress the fuel to pressures typically up to 1,600–1,800 bar. This high-pressure fuel is discharged into the common rail, where it accumulates and is held ready for the injectors. The pump also incorporates a pressure relief valve to protect the system from over-pressure conditions and ensures stable rail pressure across all engine speeds and loads.

Advantages of Common Rail Fuel Pump A2C96176300

Choosing the Common Rail Fuel Pump A2C96176300 for your Ford Transit V348 2.2L offers several key benefits:

• Precise Fuel Control: The electronically controlled fuel metering valve enables the ECU to deliver the exact fuel volume required for any driving condition, resulting in smoother acceleration, improved fuel economy, and reduced emissions.

• High-Pressure Performance: Capable of generating pressures up to 1,800 bar, this pump ensures superior fuel atomization, leading to cleaner combustion, reduced soot formation, and lower particulate emissions.

• Bosch Engineering: Built to Bosch’s exacting standards, the pump incorporates advanced materials, precision machining, and rigorous testing to ensure long-term reliability and consistent performance.

• Durability: Constructed with hardened internal components and fuel-lubricated bearings, the A2C96176300 pump is designed to withstand the demands of commercial vehicle operation, including frequent starts, stop-and-go driving, and heavy loads.

• Direct Fit Compatibility: Engineered specifically for Ford Transit V348 2.2L applications, this pump matches the original equipment specifications, simplifying installation and ensuring proper integration with the engine’s fuel system.

Application of Common Rail Fuel Pump A2C96176300

The Common Rail Fuel Pump A2C96176300 is specifically designed for Ford Transit V348 models equipped with the 2.2L Duratorq TDCi diesel engine. Common applications include:

• Ford Transit V348 (2006–2014): Widely used in the first generation of the V348 platform, covering both standard and long-wheelbase variants, as well as various roof heights.

• Ford Transit V348 (2014–2020): Compatible with the facelifted V348 models that retained the 2.2L Duratorq engine.

• Ford Transit Custom 2.2L: Shared with the Transit Custom models that utilize the same 2.2L diesel engine platform.

• Ford Ranger / Mazda BT-50 2.2L: Used in certain 2.2L Duratorq applications in pickup trucks, though verification by engine code is recommended.

• Commercial Fleets: Ideal for delivery vans, service vehicles, and fleet operations where uptime and fuel efficiency are critical.

• Motorhomes and Camper Vans: Applied in recreational vehicles based on the Ford Transit V348 chassis, requiring reliable performance for long-distance travel.

Specifications (Types) of Common Rail Fuel Pump A2C96176300

The Common Rail Fuel Pump A2C96176300 belongs to the Bosch CP family of common rail pumps, calibrated specifically for Ford 2.2L Duratorq engine requirements. Key specifications include:

• Pump Type: High-pressure common rail radial piston pump (Bosch CP1 or CP3 architecture) with integrated gear-type transfer pump.

• Number of Pistons: 3 radial pistons arranged at 120 degrees.

• Maximum Operating Pressure: Typically 1,600–1,800 bar (23,200–26,100 psi), depending on engine calibration.

• Drive Configuration: Flange-mounted, driven by the engine’s timing belt or gear train.

• Fuel Metering: Electronically controlled fuel metering valve (FMV) for precise flow regulation.

• Low-Pressure Section: Integrated gear-type transfer pump (feed pump).

• Inlet Port: Low-pressure inlet compatible with Ford fuel filter assemblies.

• Outlet Port: High-pressure outlet for connection to the common rail.

• Compatibility: OEM replacement for Ford Transit V348 2.2L Duratorq TDCi (engine codes: Puma, DR/ DV/ DW/ DX series).

• Lubrication: Fuel-lubricated; requires clean, high-quality diesel fuel for optimal service life.

• Common Failures: Fuel metering valve wear, contamination from poor fuel quality, and internal component wear can occur; symptoms include difficult starting, loss of power, DTC codes related to rail pressure, and reduced fuel economy.

Supplier of Common Rail Fuel Pump A2C96176300

Sourcing the Common Rail Fuel Pump A2C96176300 from a trusted supplier is essential to ensure proper fitment, reliable performance, and long service life for your Ford Transit V348. Rsolid engine parts has established itself as a premier provider of high-quality fuel injection components, specializing in Bosch, Denso, and Delphi systems for Ford, Volkswagen, Toyota, and other leading diesel platforms.

Rsolid engine parts distinguishes itself through an unwavering commitment to quality control. Every A2C96176300 fuel pump is rigorously inspected and tested to ensure it meets or exceeds original equipment specifications. This includes high-pressure calibration, flow testing, and verification of the fuel metering valve response to ensure seamless integration with the Ford Transit’s ECU and injectors. For exchange units, the company follows a complete remanufacturing process that includes disassembly, ultrasonic cleaning, inspection, and replacement of all wear components with new OEM-grade parts.

In addition to product excellence, Rsolid engine parts offers comprehensive technical support to assist customers in verifying compatibility by vehicle VIN, engine code (such as DR, DV, DW, DX), and OEM part number. Their team understands that precise matching is critical for achieving proper fuel system pressure and injector performance, especially in commercial vehicles where reliability directly impacts business operations. With a robust inventory and efficient global logistics, Rsolid engine parts minimizes downtime for repair shops, fleet operators, and individual vehicle owners. By choosing Rsolid engine parts as your supplier for the Common Rail Fuel Pump A2C96176300, you benefit from competitive pricing, warranty-backed assurance, and the expertise of a dedicated diesel fuel system specialist.
