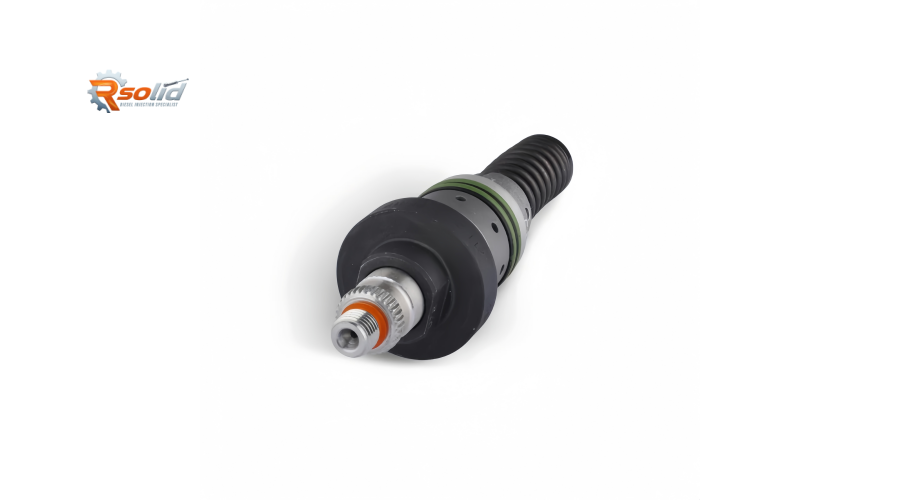

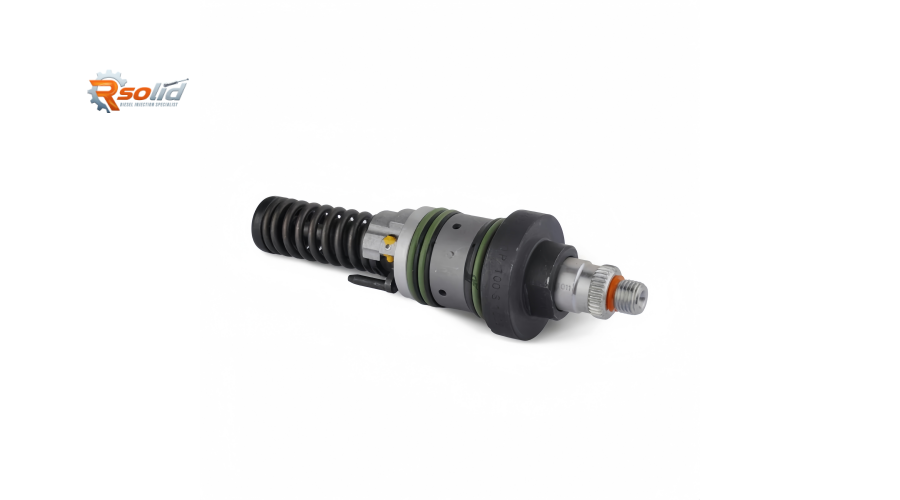

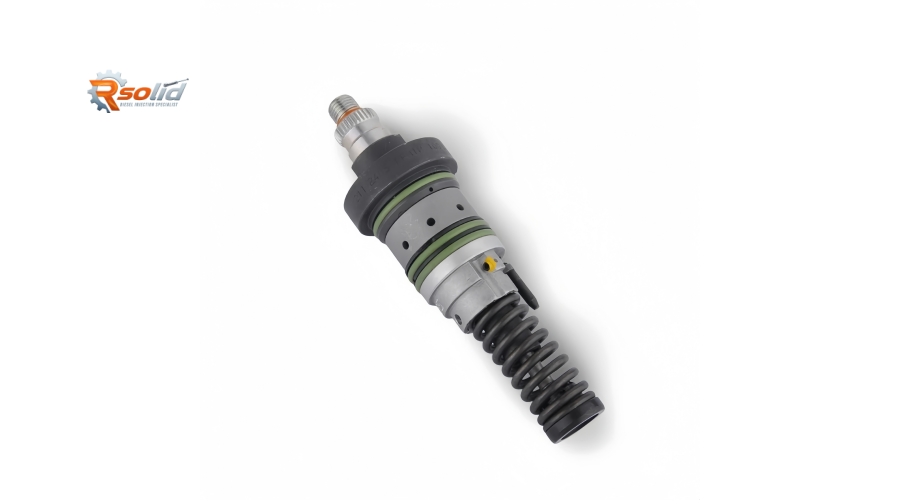

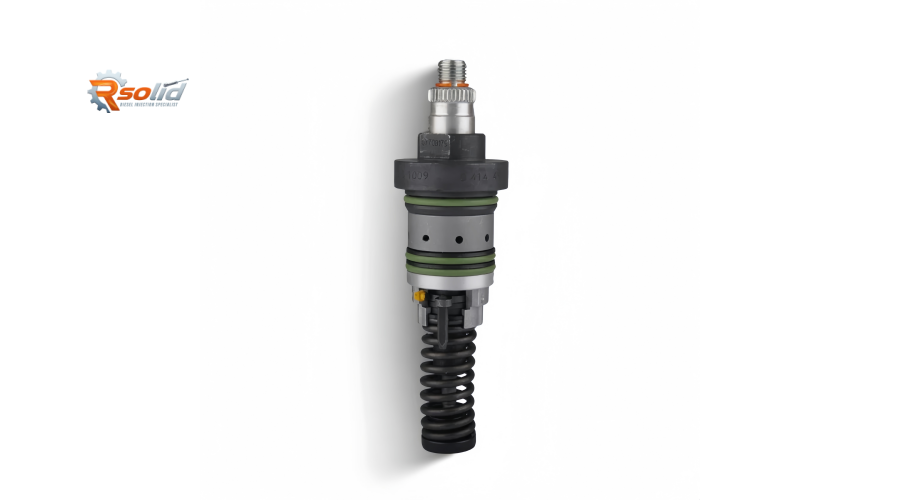

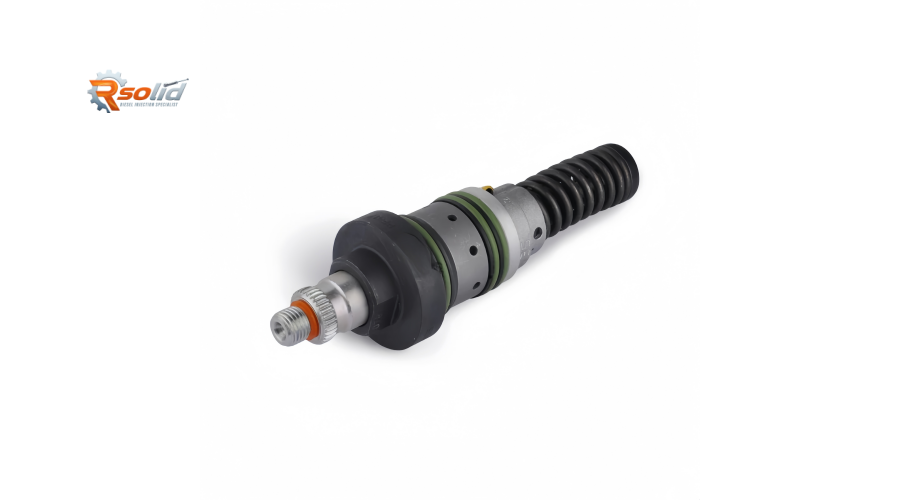

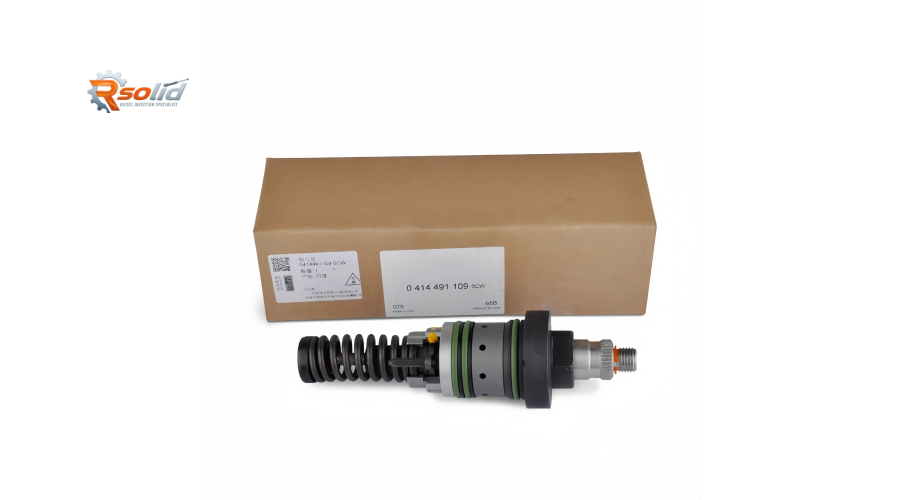

Deutz diesel engines are widely used in construction machinery, agricultural equipment, generators, and industrial applications. The 0414491109 fuel unit pump (also known as an Electronic Unit Pump – EUP) is a high‑pressure injection component, fully compatible with Bosch EUP architecture. It is specifically designed for Deutz engines that rely on individual pump‑per‑cylinder systems, delivering precise fuel quantities at pressures up to 2,000 bar.
Each cylinder has its own unit pump, driven directly by the engine camshaft. The 0414491109 is a direct OE replacement for many Deutz common rail engines, particularly the 2012 and 2013 series. Rsolid Engine Parts supplies this unit pump as a brand‑new, Bosch‑compatible component – 100% tested, and backed by a full 12‑month warranty at competitive pricing.
1. Structural Advantages of the 0414491109 Unit Pump
The 0414491109 is an electronic unit pump (EUP) – a self‑contained, high‑pressure pumping element for one cylinder. Its design offers several key benefits for Deutz industrial engines:
Individual Cylinder Fuel Delivery – Each cylinder has its own dedicated pump, mounted directly in the cylinder head and driven by the camshaft. This allows independent electronic control of injection timing, duration, and quantity for every cylinder, optimising combustion and reducing emissions.
High‑Pressure Plunger & Barrel – Precision‑ground plunger and barrel assembly delivers injection pressures up to 2,000 bar (29,000 psi), ensuring fine fuel atomisation for complete combustion – critical for off‑highway engines that operate under varying loads.
High‑Speed Solenoid Valve – A fast‑acting solenoid (typically 24V for industrial Deutz engines) receives signals from the engine ECU to control the start and end of injection. Response time under 0.5 ms enables multiple injection events per cycle (pre‑injection, main injection, post‑injection).
Reinforced Roller Tappet – The pump features a hardened roller tappet that rides directly on the camshaft lobe. This reduces friction and wear, extending service life even in high‑hour applications.
Wear‑Resistant Coating – Internal components (plunger, barrel, tappet) are coated to resist scuffing and corrosion, particularly important when running on low‑sulphur diesel or biodiesel blends.
Compact, Sealed Housing – The unit pump is designed to fit into a compact bore in the cylinder head. High‑pressure fuel connections and electrical connectors are fully sealed against dirt, moisture, and vibration.
Direct Bosch / Deutz Compatibility – Identical mounting dimensions, plunger diameter, solenoid connector, and fuel ports as the original Bosch 0414491109 and Deutz OEM units. Truly plug‑and‑play replacement.
2. Compatible Deutz Engine & Equipment Models (≤5)
The 0414491109 unit pump is specifically calibrated for Deutz 2012 and 2013 series diesel engines – both 4‑cylinder and 6‑cylinder variants (e.g., TCD 2012 L4, TCD 2013 L6). These engines are common in:
Deutz 2012 Series – 4‑cylinder engines (2.9L, 3.6L, 4.0L) used in compact loaders, forklifts, and generators. Specifically engines: TCD 2012 L4 2V, TCD 2012 L4 4V (Stage IIIA / Tier 3).
Deutz 2013 Series – 6‑cylinder engines (5.7L, 6.0L, 7.2L) used in larger wheel loaders, excavators, agricultural tractors, and industrial gensets. Engines: TCD 2013 L6 2V, TCD 2013 L6 4V (Stage IIIA / Tier 3).
Deutz TCD 2012 / 2013 common rail engines (Euro 3 / Stage IIIA emissions).
Typical equipment brands that use these Deutz engines include:
Atlas Weyhausen wheel loaders (e.g., AR 65, AR 75) with Deutz TCD 2012 engine
Bomag rollers and compactors (BW 213, BW 226) with Deutz TCD 2013
Claas agricultural machinery (some self‑propelled forage harvesters) with Deutz TCD 2012/2013
JCB backhoe loaders and telehandlers (e.g., JCB 3CX, 4CX, 531‑70) with Deutz TCD 2012
Fendt tractors (some older 700 series) with Deutz‑powered engines
Manitou, Merlo, Dieci telescopic handlers with Deutz TCD 2012/2013 engines
Liebherr, Kramer, Wacker Neuson compact construction equipment also widely use these Deutz engines.
✅ Important Fitment Note – Always verify the engine type (TCD 2012 L4, TCD 2013 L6, etc.) and the original Bosch / Deutz part number on your existing unit pump. The 0414491109 is often supplied as a service replacement for numbers like 0414491075, 0414491107, or Deutz OEM 0414491109.
3. Common Failures & Professional Installation/Replacement Advice
3.1 Typical Symptoms of a Failing 0414491109 Unit Pump
Misfiring or rough idle – One or more cylinders not firing correctly, causing uneven running. A cylinder cut‑out test will identify the faulty pump.
Loss of engine power – The engine feels weak, especially under load. Black or white smoke from the exhaust indicates incomplete combustion.
Engine knocking (nailing sound) – Over‑fueling or incorrect injection timing on a specific cylinder, often due to a worn solenoid or stuck plunger.
DTCs specific to a cylinder – ECU codes such as “Cylinder X contribution/balance” or “Injector circuit – pump solenoid” appear on diagnostic tools (Deutz EMR, Bosch KTS, etc.).
Hard starting / extended cranking – Multiple faulty unit pumps reduce overall fuel delivery.
Fuel in the engine oil – Internal seal failure allows diesel to leak past the plunger into the cylinder head gallery and then to the oil sump. Rising oil level with a diesel smell is a red flag.
External fuel leakage – Visible diesel around the base of the pump or at the high‑pressure line connection.
3.2 Professional Installation & Replacement Recommendations
Use a diagnostic tool (Deutz EMR, Bosch ESI[tronic], or generic with Deutz data) to perform a cylinder contribution test and read fault codes. Identify exactly which unit pump(s) have failed. On high‑hour engines (8,000+), it is wise to replace all pumps as a set.
Replace all fuel filters – Install new primary (water separator) and secondary fuel filters. Deutz engines are sensitive to contamination.
Flush the fuel system – Drain and clean the fuel tank, blow out supply and return lines. Unit pump systems are less sensitive than common rail, but debris can still damage new pumps.
Inspect the camshaft and roller tappets – If a pump has failed catastrophically (scored plunger, broken tappet), the camshaft lobe may be damaged. Measure cam lift and inspect for pitting. Replace camshaft if necessary.
Change engine oil and filter – If diesel has leaked into the oil (rising level, diesel smell), change the oil and filter BEFORE installing new pumps.
Lubricate the new pump – Apply clean engine oil to the plunger, roller tappet, and O‑rings. Insert carefully to avoid damaging the camshaft or bore.
Torque the hold‑down bolts – Typically 25–30 Nm for the retaining clamp or flange bolts. Over‑torquing can distort the pump body.
Install new high‑pressure fuel lines or reuse with care – If the line is damaged, replace it. When reusing, ensure the flare nut seats perfectly. Torque the line nut to the pump outlet: usually 25–30 Nm (M14 flare).
Connect the solenoid electrical connector – Ensure clean, dry contacts. Apply dielectric grease. The solenoid resistance should be within spec (typically 0.8–1.5 Ohms).
Prime the low‑pressure circuit – Crank the engine with the stop solenoid deactivated (or with injector lines loosened) until fuel flows without air bubbles.
Clear adaptation values – Use Deutz EMR or a compatible tool to reset learned cylinder balancing values and perform a “pump learn” or “cylinder equalisation” routine.
Perform a leak test – Start the engine and idle. Inspect each pump base, fuel line connection, and solenoid O‑ring for fuel wetness. Use a mirror to see under pumps.
Run a cylinder balance test – After installation, verify that all cylinders contribute evenly. Live data should show correction values within ±5% for all cylinders.
💡 Pro Tip – Unit pumps are sensitive to low battery voltage (especially on 24V systems). Always use a fully charged battery or a booster pack when troubleshooting. Low voltage can cause erratic solenoid operation and false DTCs. For Deutz engines, always use the correct solenoid resistance – aftermarket solenoids may have different characteristics.
4. Why Choose Rsolid Engine Parts as Your Supplier
✅ Exact Bosch EUP Compatibility – Direct replacement for 0414491109 on Deutz TCD 2012 / 2013 engines. No modifications.
✅ 100% Tested – Each unit pump is tested for solenoid resistance, response time, plunger stroke, and leak‑free operation before dispatch. Test reports available.
✅ 12‑Month Warranty – Full warranty against manufacturing defects, even for off‑highway and industrial applications.
✅ Competitive Workshop & Fleet Pricing – Volume discounts available for repair shops, equipment dealers, and large fleets. Buy single units or complete sets of 4/6 pumps.
✅ Fast Worldwide Shipping – Stock ready to ship to Europe, Asia, Africa, the Americas, and the Middle East.
✅ Expert Technical Support – Our diesel specialists help with cylinder identification, diagnostic advice, and installation guidance via WhatsApp or email.
