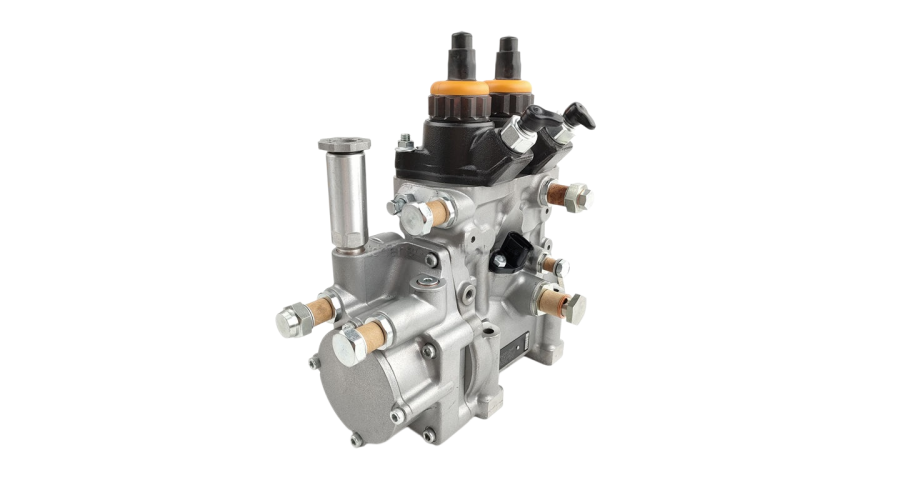

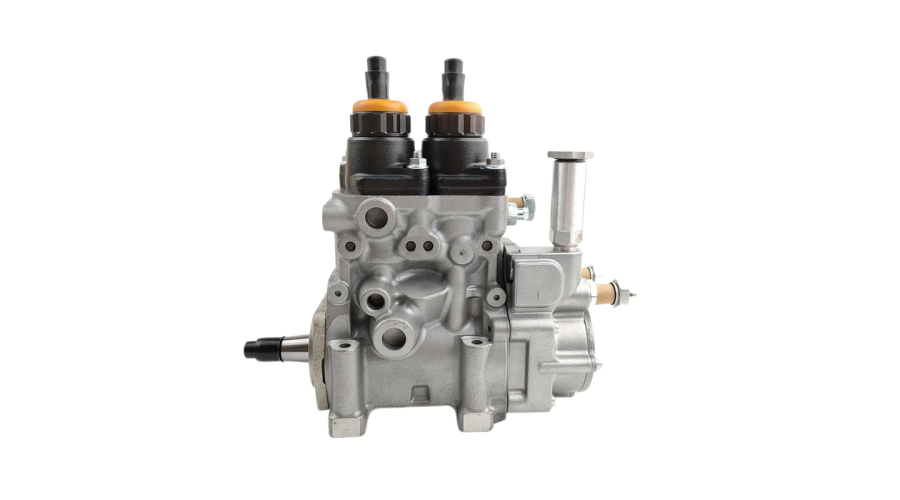

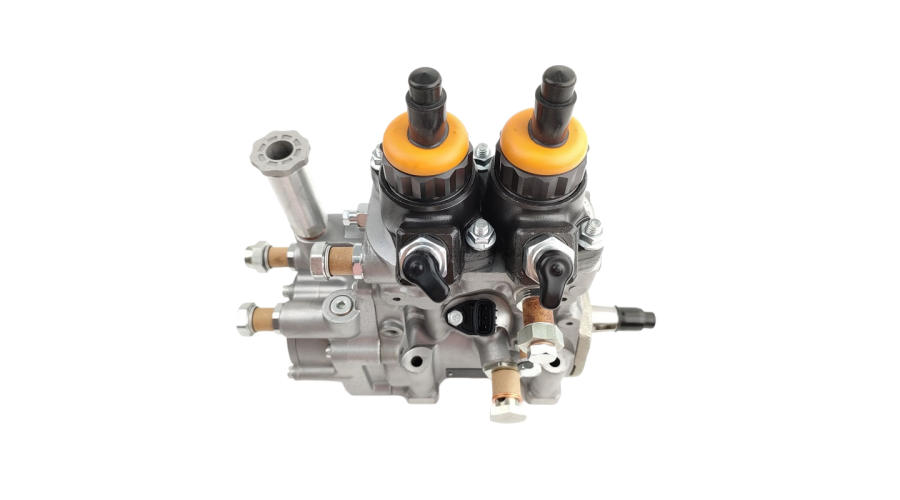

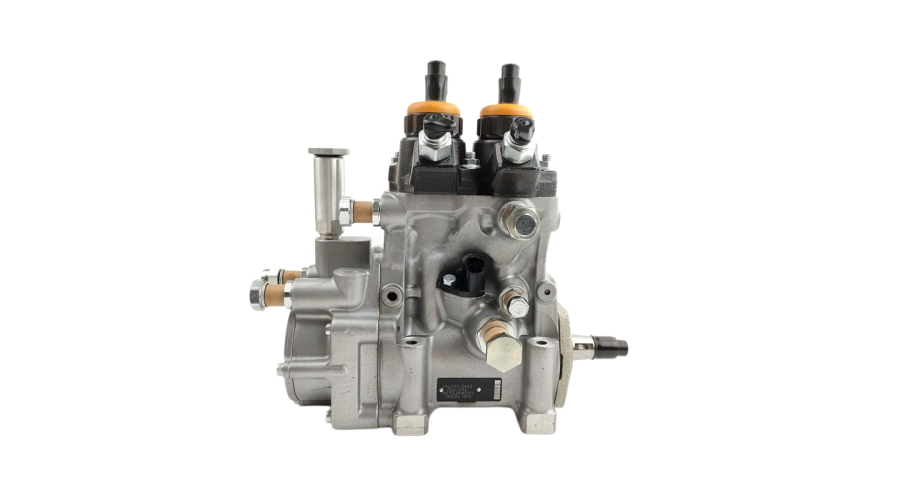

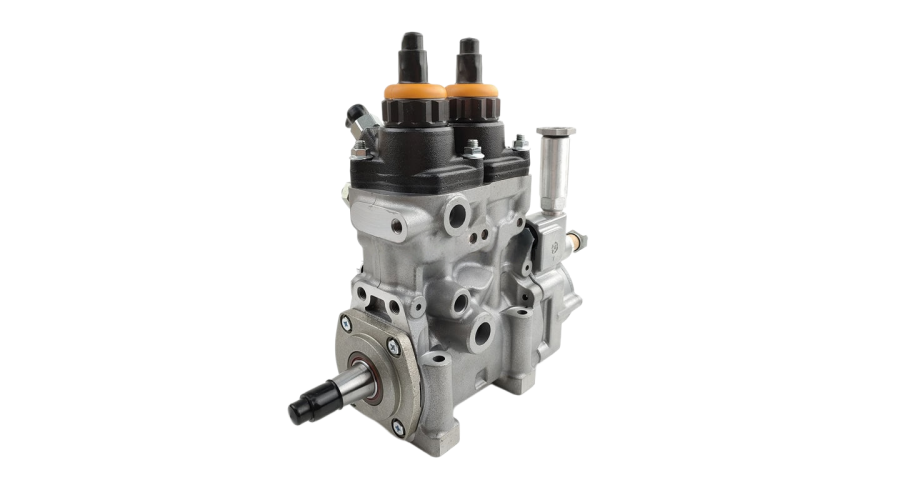

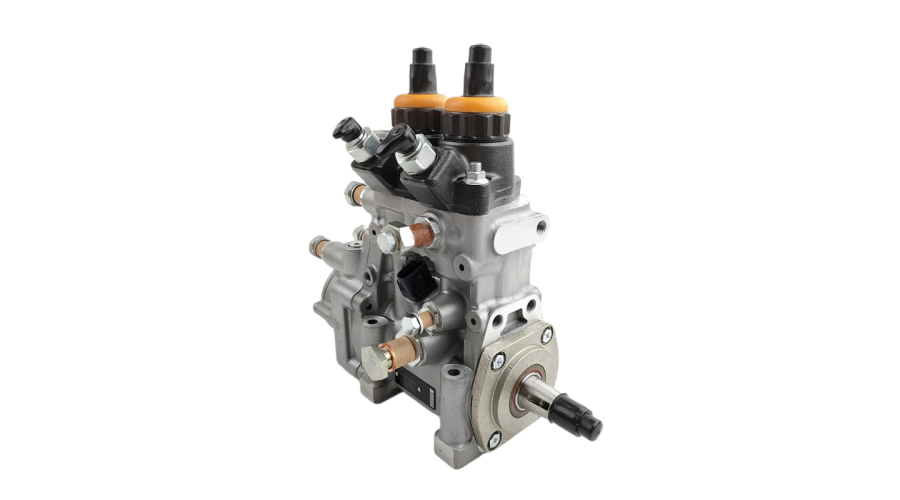

Overview – WD615 & The 094000-0660 HP0 Pump
The WD615 is a 6-cylinder, 9.7L inline diesel engine produced under license from Steyr (Austria) by many Chinese manufacturers including Sinotruk, Weichai, and FAW. In its common rail version (Euro III/IV and above), it often uses a Denso HP0 high-pressure pump. The part number 094000-0660 is the OEM code for this pump, which delivers fuel at up to 1800 bar to the common rail.
Rsolid engine parts offers this pump as a new, aftermarket replacement that matches Denso’s HP0 specifications perfectly, ensuring seamless installation and long service life.
Structural Features
The 094000-0660 HP0 pump for WD615 engines incorporates the following engineering elements:
| Feature | Description |
|---|
| Pump Type | Rotary radial plunger high-pressure pump (Denso HP0 architecture) |
| Plunger Configuration | Three radial plungers arranged at 120° intervals inside a cam ring |
| Suction Control Valve (SCV) | Built-in proportional solenoid valve (12V) that meters fuel inlet based on ECU demand |
| Low-Pressure Stage | Internal trochoid gear pump (feed pump) draws fuel from tank and supplies the high-pressure section |
| High-Pressure Head | Forged steel head with two outlet ports to the common rail |
| Cam Ring | Hardened steel ring with internal cam lobes acting on roller followers |
| Housing | Die-cast aluminum alloy with anti-corrosion coating, lightweight and rigid |
| Drive Connection | Splined shaft (14-tooth involute) matching WD615 front gear train |
| Pressure Relief Valve | Integrated internal relief valve (set ~2000 bar) to protect the system |
| Fuel Temperature Sensor Port | Optional threaded port for sensor (if required by ECU) |
This radial-piston design provides smoother fuel flow, lower noise, and higher volumetric efficiency than older in-line or distributor pumps.
Technical Advantages (for WD615 Engines)
When you install the Rsolid 094000-0660 HP0 pump on your WD615 engine, you gain:
1. High Injection Pressure – Up to 1800 bar
Enables extremely fine fuel atomization, leading to complete combustion, reduced soot, and lower fuel consumption (typically 3–5% better than a worn pump).
2. Precise Electronic Fuel Metering
The SCV responds in milliseconds to the ECU’s commands, adjusting fuel delivery from idle to full load. This eliminates mechanical governor lag and improves drivability.
3. Compatibility with Multiple WD615 Variants
Works on both Euro III and Euro IV/V common rail versions of the WD615. The pump’s flow curve matches Denso HP0 calibration used by Weichai, Sinotruk, and CNHTC.
4. Improved Cold Start Performance
The internal feed pump and SCV control strategy ensure reliable starting down to -30°C with proper glow plugs and battery.
5. No Remanufacturing Risks
Rsolid supplies brand new pumps – not reman units with unknown wear. Every pump is tested on a Bosch EPS 815 or Hartridge AVM2 bench.
6. Quiet Operation
The radial plunger design significantly reduces pumping noise compared to older mechanical pumps – a benefit for driver comfort.
7. Long Service Life
With clean fuel and proper maintenance, the pump can last 600,000 – 800,000 km (typical for line-haul trucks).
Application Equipment – WD615 Diesel Engine Trucks
The 094000-0660 HP0 fuel pump is specifically designed for trucks equipped with the WD615 common rail engine. Common vehicle brands and models include:
| Brand / Manufacturer | Truck Models with WD615 (Denso HP0) |
|---|
| Sinotruk (SINO) | Howo A7, Howo T7H, Steyr (1990s–2000s common rail conversions), Golden Prince |
| Shacman | Delong X3000, F3000, M3000 (WD615.47, WD615.69 variants) |
| FAW | J5, J6 (some export models with WD615 common rail) |
| Dongfeng | Some KL and VL series with licensed WD615 (rare, check pump number) |
| Other OEMs | Lonking, XCMG (off-highway trucks using WD615 common rail) |
Engine cross-reference:
WD615.47 (266 hp), WD615.50 (290 hp), WD615.69 (336 hp), WD615.93 (380 hp) – all with Denso common rail systems.
Important: Not all WD615 engines are common rail. Early WD615 were mechanical inline-pump engines. Verify that your engine has a common rail and a Denso HP0 pump before ordering.
How to identify:
Look for a high-pressure pump with an SCV (wires going to it).
Original pump number on the nameplate: 094000-0660, 294000-0660, or Denso HP0.
Engine ECU present (Bosch EDC7 or similar).
Common Failures & Symptoms (WD615 Specific)
Even robust HP0 pumps develop issues over time. Recognizing early signs on a WD615 engine can prevent expensive injector or rail damage.
| Failure Mode | Typical Symptoms on WD615 | Root Cause |
|---|
| SCV failure | Intermittent power loss, engine derate (fault code P0087/P0088), unstable idle | Contaminated fuel, electrical overvoltage, or coil wear |
| Plunger/cam ring wear | Metal particles in fuel return line, hard starting, rail pressure too low under load | Water in fuel, poor lubricity (low-sulfur diesel without additive) |
| Internal feed pump wear | Long cranking time, stalling at high RPM, fuel starvation codes | Abrasive dirt (poor filtration) |
| High-pressure head O-ring leak | External fuel weep near outlet fittings, pressure drop, smell of diesel | Aging seals, overtightening, thermal cycles |
| Drive spline wear | Rumbling noise from pump area, timing drift, metal dust on timing cover | Misalignment or loose pump mounting |
| Internal pressure relief valve stuck | Overpressure (blown rail hose) or underpressure (engine dies under load) | Debris or spring fatigue |
Critical WD615 note: If you find brass or aluminum particles in the fuel filter, the SCV or feed pump is failing. If you find steel particles, the high-pressure plungers or cam ring are disintegrating – replace the pump immediately and flush the entire fuel system (injectors, rail, lines) to avoid catastrophic failure.
Maintenance Recommendations for WD615 & 094000-0660 HP0
Follow these guidelines to maximize pump life on your WD615 engine:
✅ Regular Checks (Every 20,000 km or 500 hours)
Visually inspect pump for external leaks (especially SCV and head area).
Listen for abnormal whining or metallic knocking at idle – use a mechanic’s stethoscope on the pump body.
Check SCV electrical connector for corrosion or loose pins.
Drain water from fuel pre-filter and tank.
✅ Scheduled Service (Every 50,000 km or 1,200 hours)
Replace both primary (30 μm) and secondary (5 μm or 2 μm) fuel filters without exception.
Take a fuel sample – water content should be <200 ppm, particulate contamination ≤ISO 18/16/13.
Test rail pressure stability with a diagnostic tool (desired: ±50 bar at steady load).
If the engine has >400,000 km, consider having the pump flow-tested.
✅ Fuel Quality & Lubricity (Crucial for HP0)
Use diesel meeting EN590 or ASTM D975 with lubricity (HFRR ≤460 μm).
For ultra-low-sulfur diesel (ULSD, <15 ppm sulfur), add a lubricity improver (e.g., 2–5% biodiesel or commercial additive like Stanadyne).
Never run the pump on gasoline, kerosene, or contaminated fuel – instant death to HP0.
✅ Long-term Storage
If the truck is parked >3 months, run the engine monthly until warm, or fill the pump with a diesel preservative (e.g., Liqui Moly Diesel Schutz).
Alternatively, disconnect the SCV and crank the engine for 10 seconds to fill the pump with clean fuel, then plug the ports.
⚠️ When to Replace the Pump
Metal particles found in fuel return line or filter housing.
Rail pressure cannot reach target (e.g., required 1600 bar at full load, only 1200 bar achieved).
SCV replacement (separate part) does not fix pressure instability.
External leak from drive shaft seal – replacing seal alone is risky; internal wear may have caused it.
Pump has exceeded 700,000 km in heavy-duty use – proactive replacement avoids roadside breakdowns.
Pro tip: When replacing the HP0 pump on a WD615, always replace the fuel filters and inspect the injectors. Contaminated injectors can kill a new pump within hours.
Why Choose Rsolid Engine Parts for 094000-0660 HP0?
Rsolid engine parts specializes in diesel fuel injection components for commercial vehicles. Here is why we are the right choice for your WD615:
Denso HP0 Exact Match – Our pump matches the original 094000-0660 dimensions, spline count, SCV electrical characteristics (resistance 3.5–4.5 Ω), and flow curves.
Brand New – Not Reman – No core charge, no hidden wear. Each pump is assembled from new components.
100% Bench Tested – Every pump undergoes EPS bench testing for internal leakage (<1.5 L/min at 1600 bar), SCV linearity, and pressure buildup curve.
Ready to Install – Pre-calibrated for WD615 common rail; no on-site adjustment required.
Competitive Price – 30–50% less than OEM dealer pricing, with better availability.
12-Month Warranty – Covers manufacturing defects. Extended warranty available for fleets.
Fast Global Shipping – Warehouses in China, Germany, and USA. Express delivery 2–5 days.
Technical Support – Our team includes former diesel injection specialists who can help with diagnosis and installation.
Ordering Details:
Part number: 094000-0660 (also listed as HP0, Denso HP0, 294000-0660)
