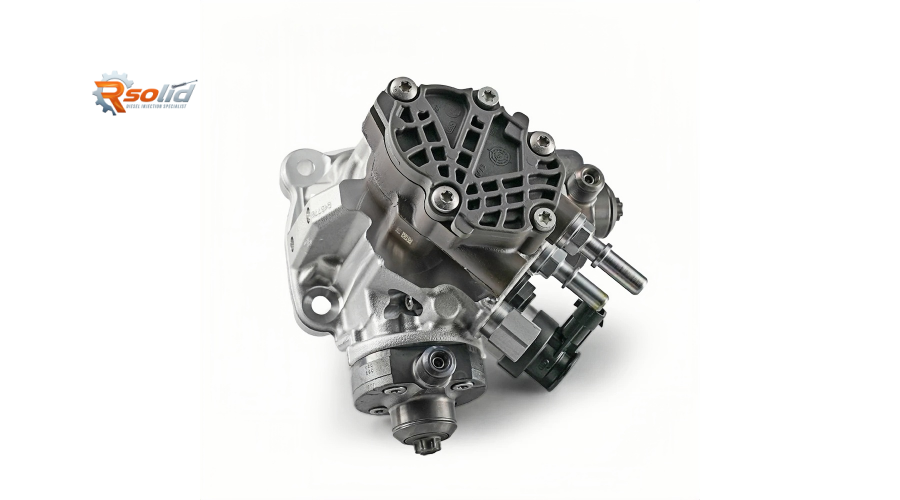

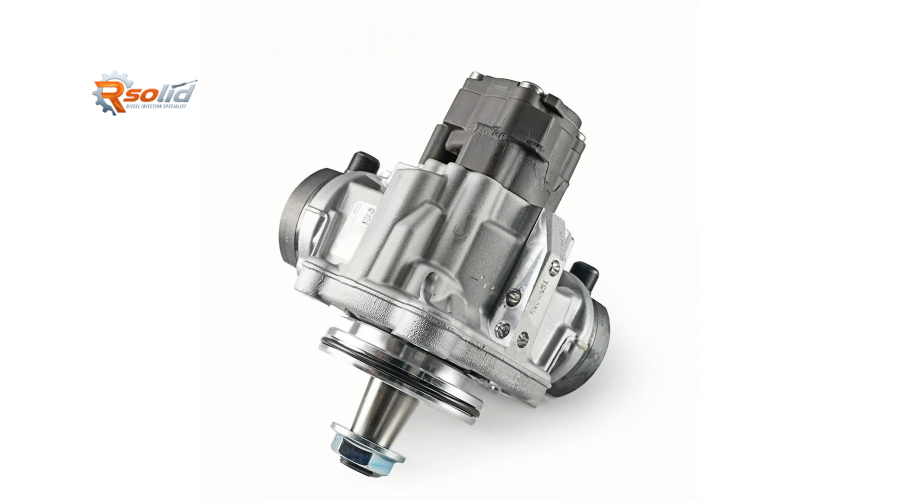

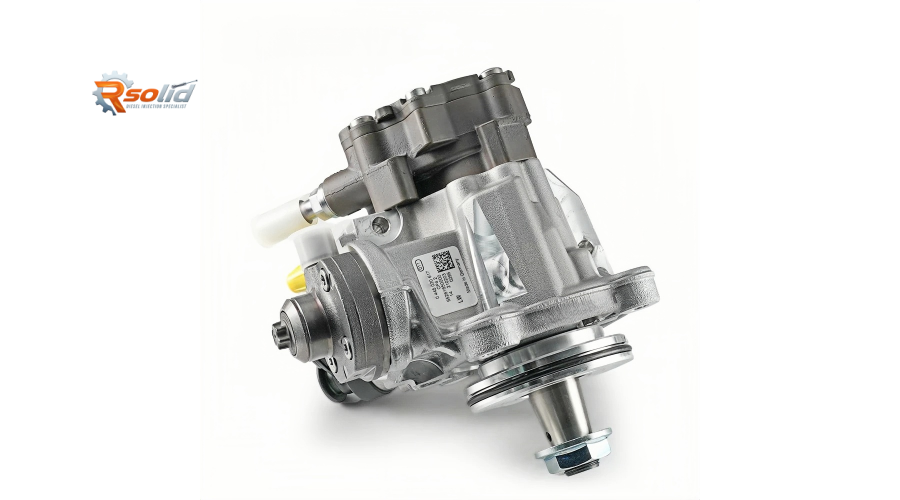

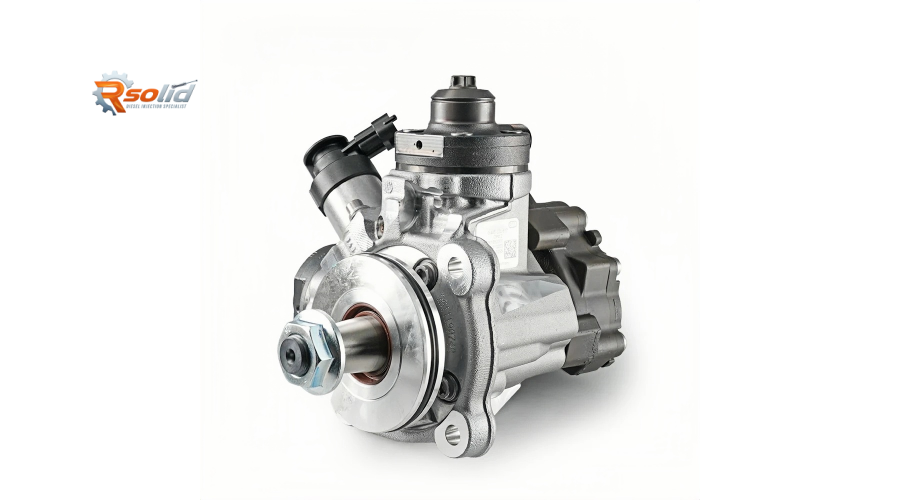

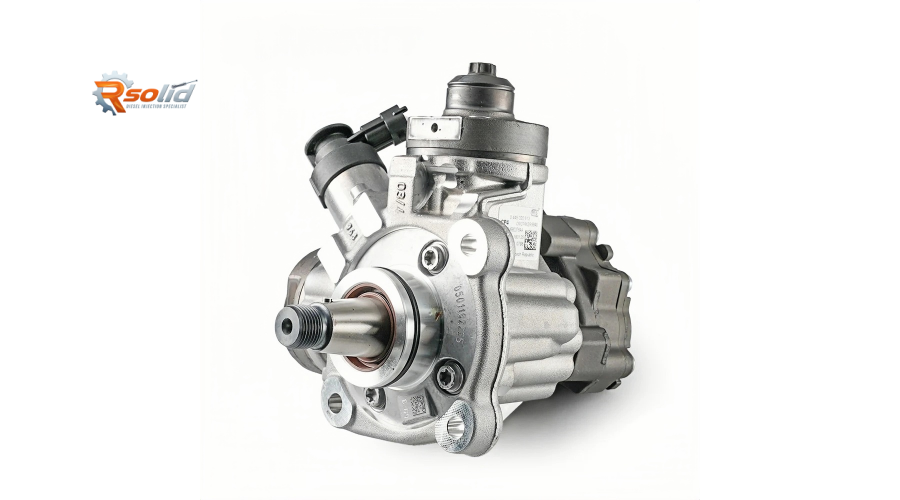

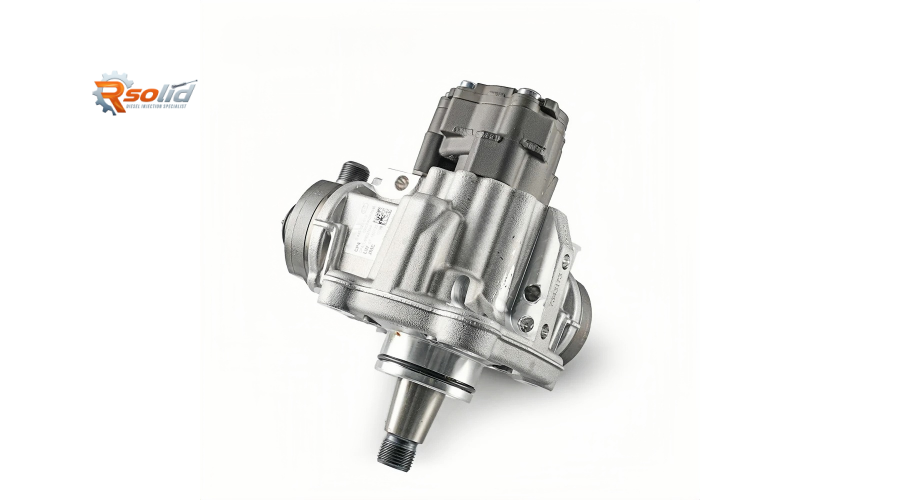

Common Rail Diesel Injection Fuel Pump – Bosch 0445020617 for Cummins ISF4.2 / Cop4.2 Engine | Rsolid Engine Parts

The Cummins ISF4.2 (also known as Cop4.2 in some equipment documentation) is a rugged 4‑cylinder diesel engine used in medium‑duty trucks, buses, agricultural machinery, and industrial equipment. The Bosch 0445020617 common rail injection pump – fully compatible with Bosch CP3 architecture – is a direct OE replacement for this engine family. This pump delivers stable high pressure, improved fuel economy, and reliable performance even under continuous heavy loads. Rsolid engine parts supplies this pump with 100% calibration testing and a 12‑month warranty.

1. Structural Advantages of the Bosch 0445020617 Injection Pump

The 0445020617 is a Bosch CP3‑type pump, optimized for 4‑cylinder diesel engines like the Cummins ISF4.2:

• Three‑Plunger Radial Piston Design – Three plungers deliver exceptionally smooth, high‑volume fuel flow with minimal pressure ripple, reducing vibration and stress on the common rail and injectors – ideal for engines that operate at varying RPMs.

• Integrated Vane‑Type Transfer Pump – Built‑in low‑pressure vane pump ensures consistent fuel supply to the high‑pressure section, eliminating the need for a separate lift pump in most applications.

• Heavy‑Duty Drive Shaft & Bearings – Designed to handle the torque peaks and torsional vibrations of the ISF4.2 engine, ensuring long service life in truck, bus, and industrial applications.

• Durable Cast Iron Housing – Resists corrosion, thermal cycling, and mechanical shock common in off‑highway and commercial vehicle environments.

• Direct Bosch CP3 Compatibility – Identical mounting flange, gear drive interface, high‑pressure outlet ports, and electrical connector as the original Bosch 0445020617. Plug‑and‑play installation with no modifications.

2. Compatible Cummins ISF4.2 / Cop4.2 Applications (≤5)

The 0445020617 pump is calibrated for the Cummins ISF4.2 (also referred to as Cop4.2) – a 4.2L, 4‑cylinder common rail diesel (typically Euro 4 / Euro 5 / Tier 4i). Common applications include:

• Cummins ISF4.2 engine – Used in medium‑duty trucks (e.g., Foton Auman, Dongfeng, JMC)

• Cummins QSF4.2 – Industrial version for generators, compressors, and pumps

• Foton Forland / Foton Ollin trucks with ISF4.2 engine

• Dongfeng Duolika light/medium trucks (ISF4.2 powered)

• JMC (Jiangling Motors) Carrying medium trucks (ISF4.2 common rail)

✅ Always verify your engine serial number (starts with ISF4.2 or QSF4.2) and the Bosch number on your original pump. The 0445020617 is typically stamped on the pump nameplate.

3. Common Failures & Installation/Replacement Advice

Typical Symptoms of a Failing 0445020617 Pump:

• Loss of power under load – Truck struggles on hills or when fully loaded.

• Long cranking time before start – Especially after overnight parking.

• Engine surging or unstable idle – Often accompanied by black or white smoke.

• DTCs P0087, P0088, P0191 – Rail pressure too low/too high / sensor rationality.

• Metal particles in the fuel filter – Indicates internal wear (plungers, cam, or bearings).

• Fuel leak from pump body – Typically from the drive shaft seal or the fuel pressure regulator.

Professional Installation & Replacement Recommendations:

• Replace all fuel filters – ISF4.2 engines have a primary (water separator) and secondary filter. Install new OEM‑quality filters.

• Flush the entire fuel system – Drain and clean the fuel tank. Blow out all supply and return lines with compressed air. Replace rubber hoses if degraded.

• Inspect and flow‑test injectors – High return flow indicates injector issues. Repair or replace injectors before installing the new pump.

• Prime the low‑pressure circuit – Use a hand vacuum pump on the return line to pull bubble‑free fuel through the pump and filters. Never dry‑crank.

• Fill the pump with clean diesel – Remove the high‑pressure outlet fitting and pour clean, lubricious diesel into the pump housing to prevent dry start scoring.

• Torque connections to spec – High‑pressure outlet M14×1.5 cone seal: 40–45 Nm. Low‑pressure inlet M16×1.5: 25 Nm. Drive gear nut: consult Cummins manual (typically 100–120 Nm).

• Reset fuel adaptations – Use Cummins INSITE or a compatible diagnostic tool to clear learned fuel trims and perform a “high‑pressure pump learn” routine.

• Check the fuel pressure regulator (ZME) – If the old pump failed, replace the regulator (on the pump or rail) as a preventive measure.

• Run a leak test – Idle the engine for 10 minutes, then inspect all unions and the pump mounting area for wetness.

💡 Pro Tip: The ISF4.2 engine is sensitive to water contamination. Always drain the water separator daily. For high‑mileage trucks, consider adding a second‑stage 5‑micron fuel filter for extra protection.

4. Why Choose Rsolid Engine Parts?

• Exact Bosch CP3 Compatibility – Direct replacement for Cummins ISF4.2 / Cop4.2 engines.

• 100% Calibration Tested – Each pump is run on a Bosch EPS 200 test bench to verify delivery volume, rail pressure stability, and regulator response. Test report available.

• 12‑Month Warranty – Full coverage against manufacturing defects.

• Competitive Fleet & Dealer Pricing – Volume discounts for truck fleets, workshops, and parts distributors.

• Fast Worldwide Shipping – Stock ready for export to Asia, Africa, South America, the Middle East, and Europe.

• Direct Technical Support – Our diesel specialists provide fitment checks, diagnostic assistance, and installation guidance via WhatsApp or email.
