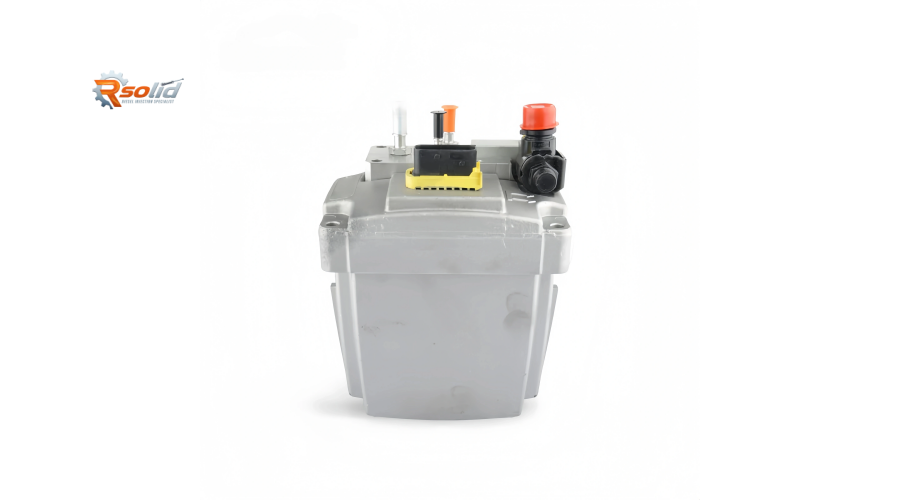

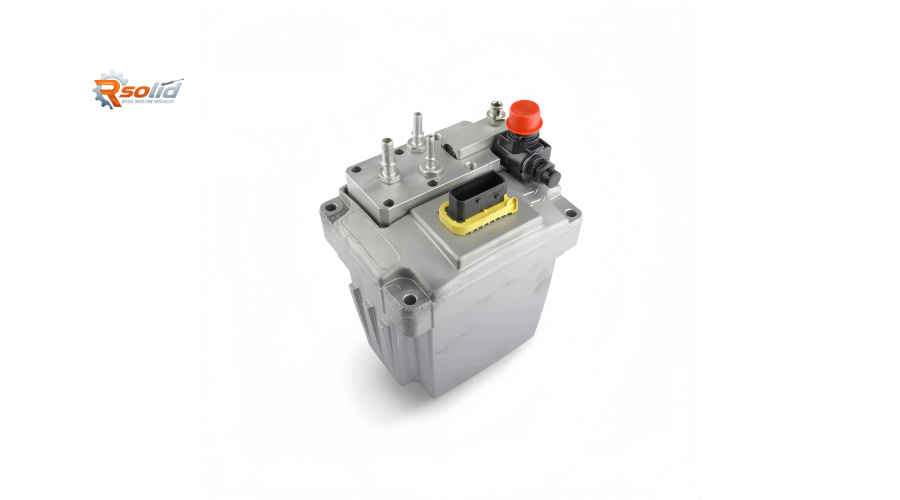

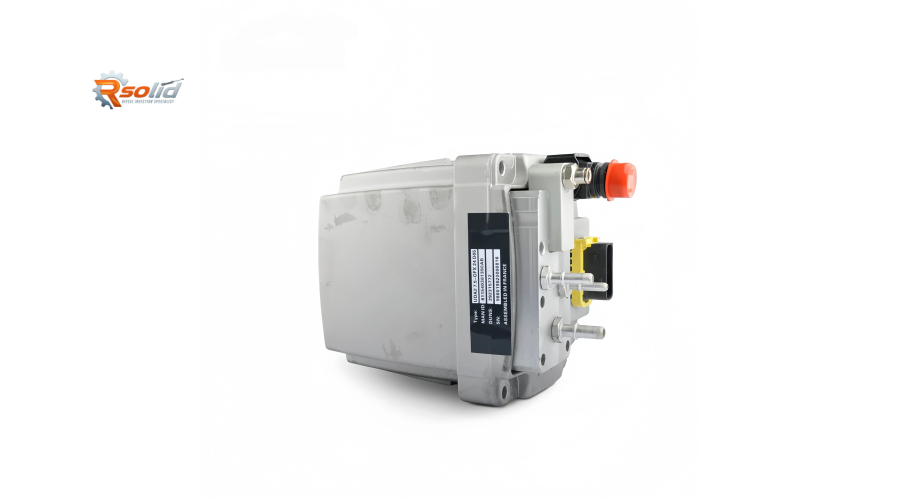

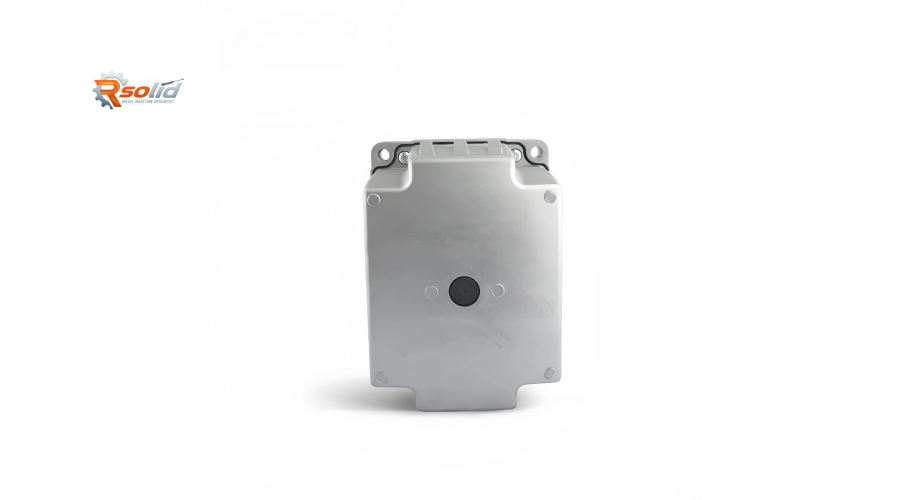

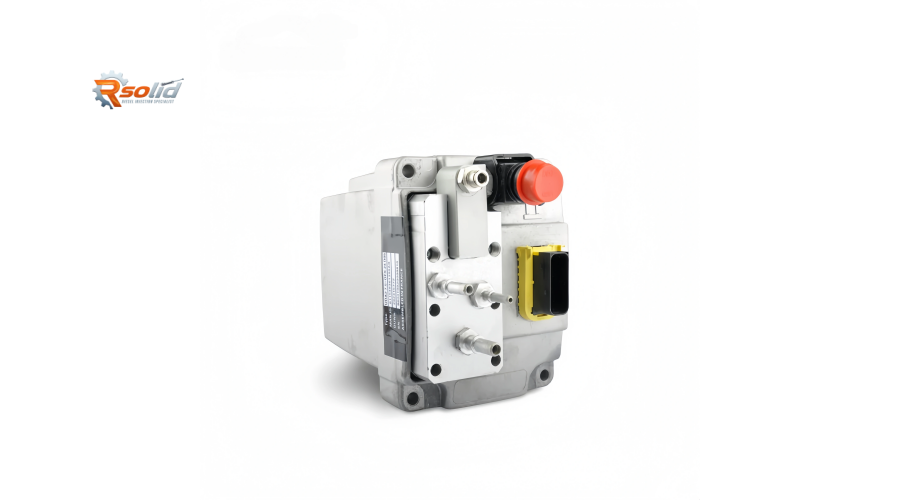

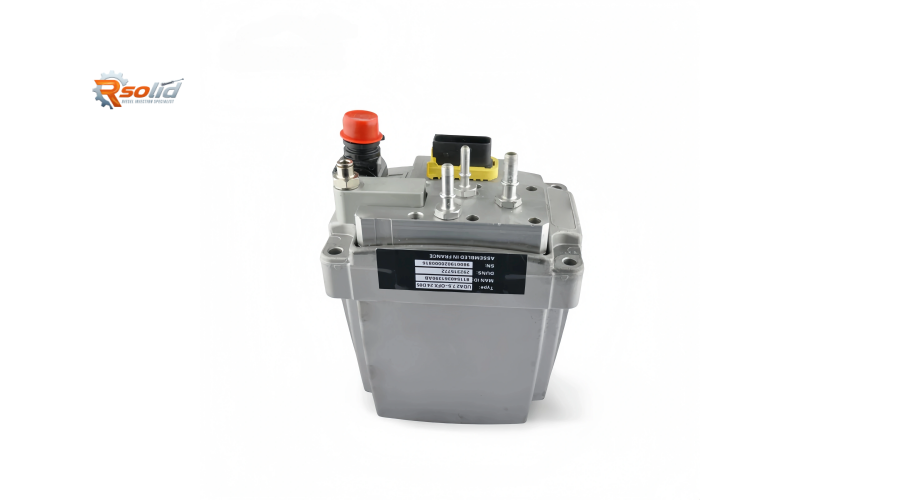

Common Rail Urea Pump 81154036139 – AdBlue Dosing Pump for MAN TGX / TGL Diesel Engines | Rsolid Engine Parts

Modern MAN trucks rely on Selective Catalytic Reduction (SCR) technology to meet Euro 4, Euro 5 and Euro 6 emissions standards. The 81154036139 urea pump (also known as an AdBlue dosing pump or metering pump) is a critical component that injects the precise amount of Diesel Exhaust Fluid (DEF) into the exhaust stream to neutralise harmful NOx gases.

This pump is specifically designed for the MAN TGX (long‑haul) and MAN TGL (light‑duty) truck series, as well as other MAN commercial vehicles. It is fully compatible with the original Bosch or MAN OEM unit – delivering accurate dosing, stable pressure, and reliable performance under all operating conditions.

Rsolid Engine Parts supplies the 81154036139 urea pump as a brand‑new, direct‑fit replacement – 100% function‑tested, and backed by a full 12‑month warranty at highly competitive prices.

1. Structural Advantages of the 81154036139 Urea Pump

The 81154036139 is a diaphragm‑type or piston‑type urea dosing pump, engineered specifically for the aggressive, crystallising nature of AdBlue (32.5% urea solution). Its design offers several key advantages:

• High Chemical Resistance – All internal components (diaphragms, seals, valves) are manufactured from materials that resist corrosion and crystallisation caused by prolonged exposure to AdBlue, ensuring long service life in harsh operating environments.

• Precision Dosing Control – The pump operates under closed‑loop control from the SCR control unit (DCU), delivering exactly the required volume of AdBlue to the injection nozzle. This ensures optimal NOx conversion without overdosing or underdosing.

• Integrated Heater & Temperature Management – Many versions of this pump include an internal electric heater and temperature sensor to prevent AdBlue from freezing in cold climates. The pump will automatically pre‑heat the fluid before starting the dosing process.

• Reverse Flow Capability – The pump is able to reverse its flow direction during the system purge phase, drawing AdBlue back from the injector line into the tank to prevent freezing and clogging after engine shutdown.

• Robust Sealed Housing – The pump casing is fully sealed against moisture, dust and road spray (IP54 or higher), making it suitable for the under‑chassis or frame‑rail mounting typical on MAN trucks.

• Direct MAN / Bosch Compatibility – The 81154036139 matches the original MAN part number and the Bosch/other OEM supplier’s specifications. Electrical connector, inlet/outlet ports and mounting points are identical – true plug‑and‑play replacement.

2. Compatible MAN Truck Models (≤5)

The 81154036139 urea pump is used across a range of MAN truck series equipped with SCR systems, particularly Euro 4, Euro 5 and early Euro 6 engines. Compatible vehicles include:

• MAN TGX – Heavy‑duty long‑haul trucks (Euro 4 / Euro 5, model years approximately 2006–2015, with D20, D26 or D38 engines)

• MAN TGS – Heavy‑duty construction and off‑road trucks (same engine families as TGX)

• MAN TGL – Light‑duty distribution trucks (Euro 4 / Euro 5, with D08 4‑ or 6‑cylinder engines)

• MAN TGM – Medium‑duty trucks (Euro 4 / Euro 5)

• MAN TGA – Older series, but many Euro 4 variants also use this pump (verify fitment)

• MAN Trucks with Common Rail SCR systems – Including MAN TGX 18.440, TGL 8.180, TGS 28.480, etc. with MAN SCR (AdBlue) generation 1 or 2.

✅ Important fitment note – Always check your original pump part number. The 81154036139 may cross‑reference with other numbers such as 51.08105‑0007, 51.27105‑0010, or Bosch numbers like 0444041008 (depending on supplier). Use a parts catalog or consult your dealer to confirm.

3. Common Failures & Installation/Replacement Advice

3.1 Typical Symptoms of a Failing Urea Pump (81154036139)

• Check engine light / SCR warning on dashboard – The ECU detects a fault in the dosing system, often accompanied by DTCs such as P2049 (Urea pump circuit), P203F (Urea level sensor), or P20E8 (Urea pump pressure too low).

• Engine power derate (limp mode) – After a certain number of operating hours with an SCR fault, MAN trucks will reduce power to encourage repair.

• No AdBlue consumption – The fluid level in the tank does not drop over thousands of kilometres, indicating the pump is not delivering.

• Frozen or crystallised pump – In cold weather, if the heater fails or the pump is not purged, AdBlue can freeze and damage the internal diaphragm or valves.

• External leakage – White or blue‑white crystals around the pump body, electrical connector, or hose fittings indicate a leak.

• Unusual noise – The pump normally makes a humming or clicking sound during operation. A constant loud buzzing or no sound at all suggests failure.

3.2 Professional Installation & Replacement Recommendations

• Read fault codes – Use MAN Cat (MAN Diagnostics) or a high‑quality generic OBD tool to read and clear codes before and after replacement. Do not replace the pump without diagnosing the root cause.

• Replace the dosing injector if necessary – A clogged or leaking SCR injector can cause pump failure. If the pump has failed, inspect and replace the injector at the same time.

• Flush the AdBlue tank and lines – Urea can form deposits. If the old pump shed debris, clean the tank and blow out the supply and return lines with low‑pressure compressed air. Replace any hose that shows crystallisation.

• Use only fresh, high‑quality AdBlue – Contaminated or old AdBlue (over 12 months) can damage the new pump. Drain and refill with ISO 22241 certified fluid.

• Check the pump electrical connector – Look for corroded pins or damaged wiring. Repair or replace as needed.

• Prime the system (via diagnostic tool) – After installation, use MAN Cat or a suitable tool to perform an “SCR system prime” or “dosing pump test” to fill the pump and lines with AdBlue before starting the engine.

• Check the heater circuit – If the pump includes a heater, measure its resistance (typically between a few ohms and 50 ohms) and verify the wiring.

• Torque fittings correctly – AdBlue connections are usually plastic or stainless steel. Over‑tightening can crack the ports. Typically 8–12 Nm for banjo bolts; refer to MAN manual.

• Perform a final leak and operation test – Run the engine until the SCR system reaches operating temperature (above 180°C exhaust). Use the diagnostic tool to request a dosing quantity and confirm pump operation. Inspect for leaks.

4. Why Choose Rsolid Engine Parts as Your Supplier

• ✅ Exact Fit for MAN TGX / TGL – Direct replacement for 81154036139 and other cross‑references. No modifications required.

• ✅ 100% Tested – Every urea pump is tested for electrical continuity, heater function (if equipped), fluid passage integrity, and pressure delivery before packing.

• ✅ 12‑Month Warranty – Full warranty covering manufacturing defects, giving you peace of mind.

• ✅ Competitive Fleet & Workshop Pricing – Volume discounts for transport companies, repair shops, and parts distributors.

• ✅ Fast Worldwide Shipping – Stock ready to ship to Europe, Asia, Africa, the Middle East, and the Americas.

• ✅ Expert Technical Support – Our specialists help with diagnostics, fitment confirmation, and installation guidance via WhatsApp or email.
