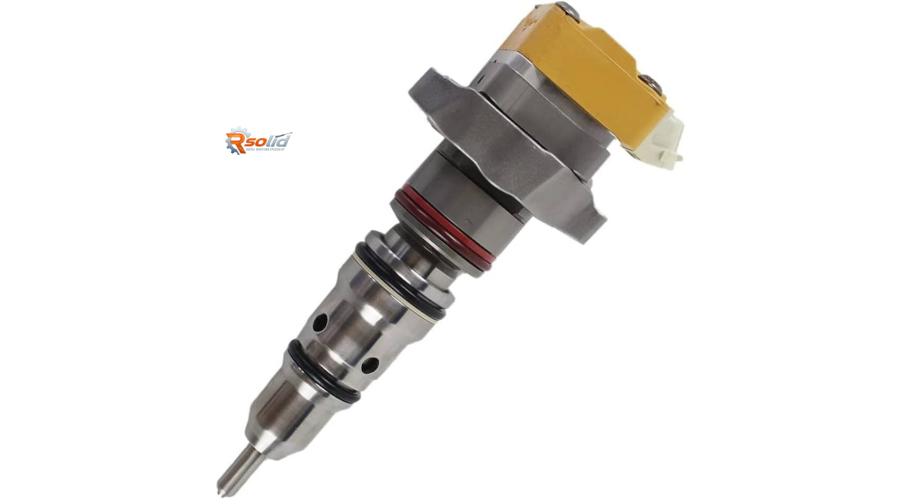

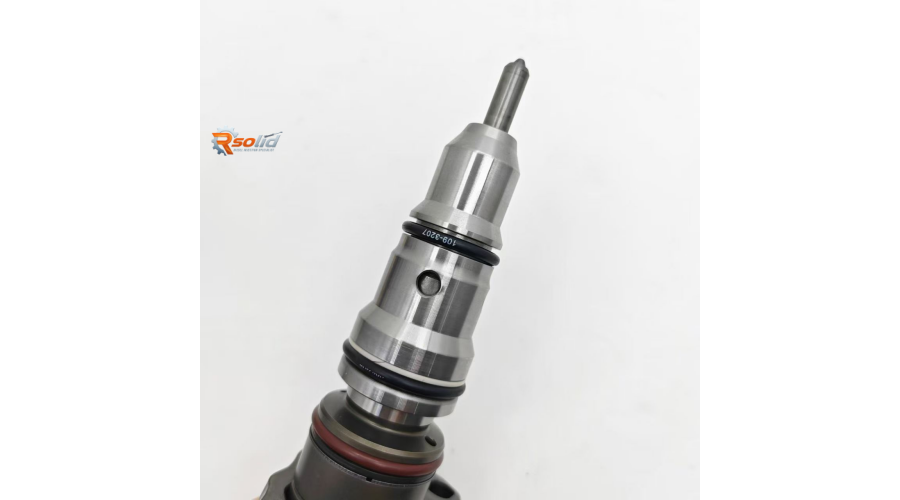

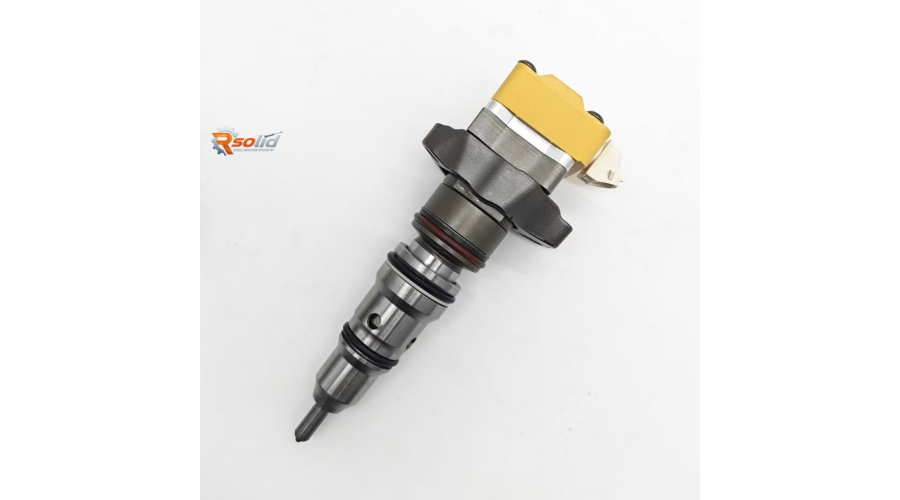

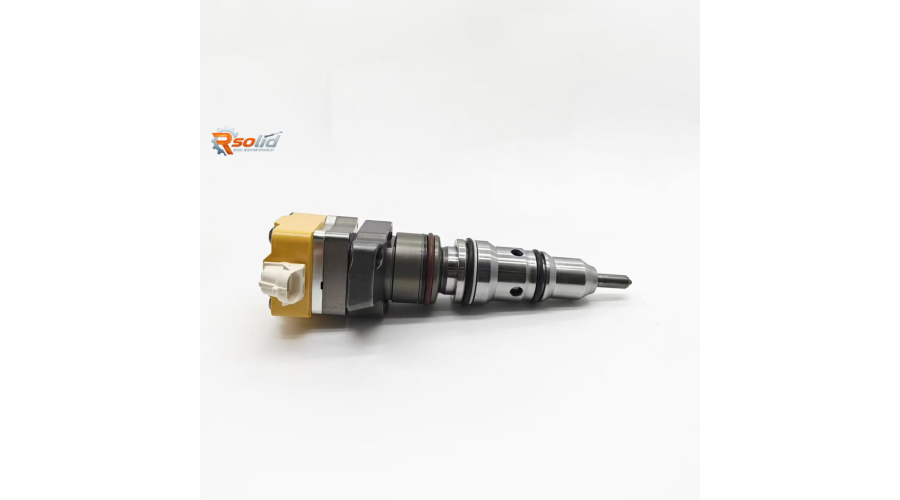

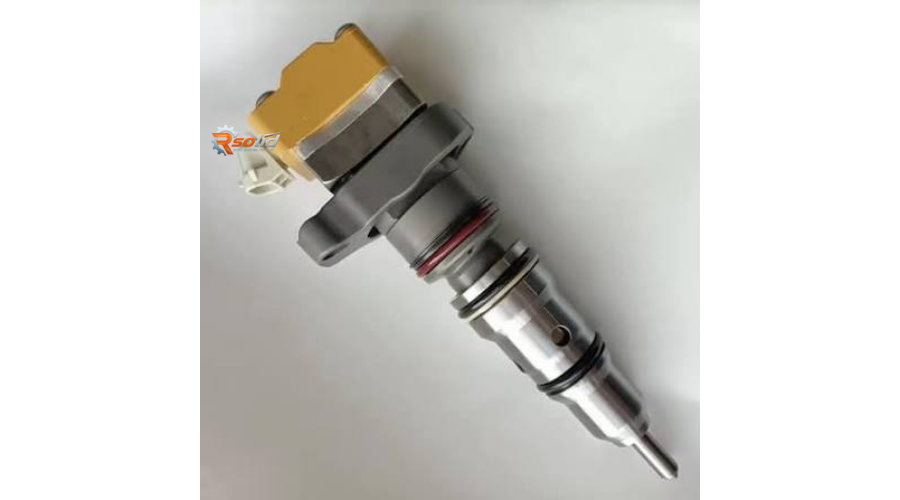

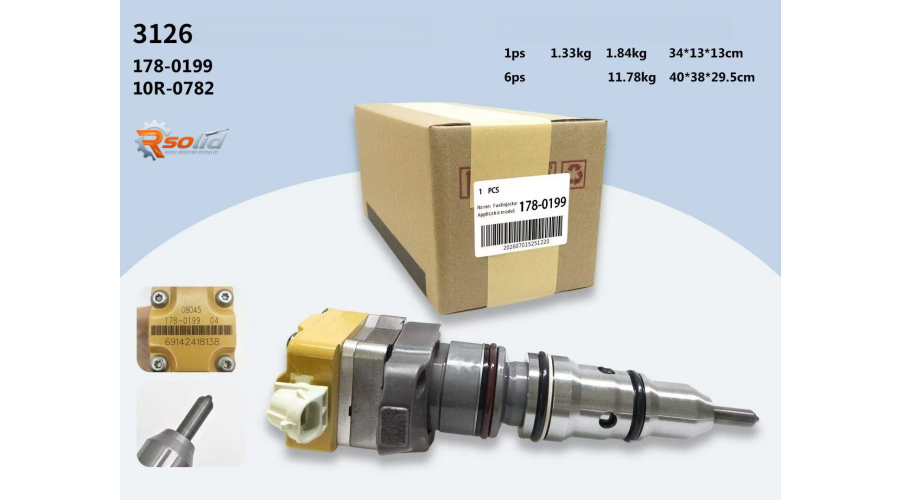

178-0199 Hydraulic Electronic Unit Injector – For Caterpillar 3126 Diesel Engine
For operators of Caterpillar 3126 engines – whether in heavy-duty trucks, transit buses, construction equipment, or generator sets – the fuel injector is the heart of the combustion system. The 178-0199 Hydraulic Electronic Unit Injector (HEUI) is a premium, OEM‑grade replacement engineered specifically for the 3126 platform, delivering the precise fuel metering, injection timing, and atomisation required for optimal power output, fuel economy, and emissions compliance.
As a key component of Caterpillar's HEUI fuel system, the 178-0199 uses engine oil pressure to actuate the fuel injection process, eliminating the need for a high-pressure mechanical fuel pump. This proven technology has powered Cat 3126 engines for decades, offering reliable performance in the most demanding applications. In this comprehensive guide, we examine its advanced engineering, compatible engine models, common failure signs, professional installation best practices, and why Rsolid Engine Parts is the trusted global supplier for Caterpillar fuel injection components.
1. Structural Features & Advantages of the 178-0199 HEUI Injector
The 178-0199 is a Hydraulically actuated Electronic Unit Injector (HEUI) – a self-contained unit that combines fuel pumping, injection, and electronic control into a single component. Its design incorporates several advanced features:
HEUI (Hydraulically actuated Electronic Unit Injector) technology – Unlike conventional mechanical or common-rail injectors, the 178-0199 uses high-pressure engine oil (up to 3,000–4,000 psi) to intensify and inject the fuel. This unique design eliminates the need for a high-pressure fuel pump, simplifies the fuel system, and provides precise control over injection timing and fuel quantity.
Precision-machined intensifier piston – The injector features a precision-ground intensifier piston that multiplies the engine oil pressure to generate injection pressures exceeding 1,200 bar. This ensures ultra-fine atomisation and complete combustion, resulting in improved fuel economy and reduced emissions.
High-speed solenoid actuator – The electronic solenoid provides rapid response times (typically under 2 milliseconds), enabling precise control of injection timing and duration. The ECM (Electronic Control Module) adjusts injection parameters based on engine load, speed, and temperature for optimal performance.
Multi-hole nozzle with optimised spray pattern – The injector tip features carefully engineered spray holes (typically 8–10 orifices) with precisely angled spray patterns to match the 3126 combustion bowl geometry. This ensures proper fuel penetration, optimal air-fuel mixing, and minimal cylinder wall impingement, reducing soot formation and oil dilution.
Hardened alloy steel construction – Manufactured from premium, heat-treated alloy steel with precision-ground internal components (intensifier piston, plunger, barrel, and needle valve). This ensures exceptional durability and resistance to wear, even with varying fuel quality and in harsh operating environments.
Integrated fine-mesh inlet oil and fuel filters – The injector includes filters that protect the sensitive internal components from oil and fuel-borne debris, significantly extending service life and reducing the risk of sticking or premature wear.
OEM-grade calibration with trim code – Each injector is factory-calibrated to deliver the exact fuel quantity vs. energising time (IQ-ET) curve required for Caterpillar 3126 ECMs. A unique trim code is provided for precise programming into the vehicle's ECU.
Operational benefits for fleet operators and workshop technicians:
Fuel savings of 3-5% compared to worn or low-quality injectors, thanks to precise metering and optimised spray patterns.
Reduced exhaust smoke and emissions – Cleaner combustion helps meet emissions standards and reduces DPF clogging (where applicable).
Smoother idle and improved cold starting – Precise electronic control ensures reliable ignition in cold conditions.
Quieter engine operation – Multiple injection events (pilot, main, post) reduce diesel knock and vibration.
Extended injector service life – High-quality materials and precision manufacturing deliver up to 200,000–300,000 miles of reliable service.
100% direct drop-in fit – Identical to the original Caterpillar injector in all critical dimensions – no modifications required.
2. Compatible Engine Models & Typical Applications
The 178-0199 HEUI injector is specifically engineered for the Caterpillar 3126 diesel engine – a 7.2-litre, 6-cylinder, inline, turbocharged engine that was widely used in on-highway and off-highway applications from the late 1990s to the mid-2000s.
| Engine Model | Typical Applications |
|---|
| Caterpillar 3126 (175–330 hp) | Class 6/7/8 trucks (Freightliner, Peterbilt, International, Kenworth), transit buses, motorhomes |
| Caterpillar 3126 (Industrial) | Construction equipment (excavators, wheel loaders, bulldozers), agricultural machinery, generator sets |
| Caterpillar 3126 (Marine) | Auxiliary and propulsion engines for workboats and pleasure craft |
Critical cross-reference: The 178-0199 is the genuine Caterpillar part number for this HEUI injector. It replaces earlier numbers such as 178-0198 and is also listed under 178-0200 for different calibration variants. Always verify your engine serial number (prefixes like 7AS, 7JK, 7MS, etc.) and the existing injector part number before ordering. This injector is supplied as a complete assembly; new O-rings and seals should be installed simultaneously.
3. Common Failure Modes & Installation/Replacement Recommendations
Typical Warning Signs That Your Injector Needs Replacement
Rough idle and engine misfire – Inconsistent fuel delivery from a sticking or worn injector causes cylinder imbalance, felt as a shaky idle or engine stuttering.
Excessive black smoke under acceleration – Over-fuelling or poor atomisation leads to incomplete combustion, producing heavy soot and visible smoke.
Increased fuel consumption – A worn or incorrectly calibrated injector may over-fuel, reducing miles per gallon (MPG).
Hard starting / long cranking – Residual pressure loss due to internal leakage makes cold starts difficult.
Fuel or oil in the engine oil – A leaking injector can allow fuel or oil to contaminate the sump oil, risking bearing damage.
Check engine light / fault codes – Common codes include P0200 (injector circuit), P0261–P0270 (cylinder balance), or P1213 (injector calibration).
Loss of power – A failed injector reduces cylinder contribution, resulting in a noticeable decrease in engine output.
Professional Installation Best Practices
Proper installation is essential for performance and longevity. Follow these steps:
Clean the injector bore – Remove the old injector and thoroughly clean the sealing seat in the cylinder head using a specialised reamer and vacuum. The seat must be free of carbon and debris.
Replace all sealing components – Always install a new O-ring and new copper sealing washer. These are single-use items. Also replace the high-pressure oil line seals if required.
Lubricate O-rings – Lightly coat new O-rings with clean engine oil or a specialised assembly lubricant. Do not use grease or silicone.
Install the injector – Insert the injector carefully, ensuring it seats correctly. Do not force it.
Torque the injector hold-down bolt – Tighten the injector clamp bolt to Caterpillar's specified torque (typically 60–80 N·m – verify with your engine manual).
Reconnect high-pressure oil and fuel lines – Tighten the line fittings to the specified torque (typically 30–40 N·m). Ensure all connections are clean and secure.
Program the injector trim code – Using Caterpillar Electronic Technician (Cat ET) software, enter the new injector's trim code into the ECM. This step is critical for correct fuel calibration.
Prime the high-pressure oil system – After installation, prime the high-pressure oil system by cranking the engine (with the fuel shut-off disabled) to fill the injectors with oil. Follow the engine manual's bleeding procedure.
Check for leaks and perform a cylinder cut-out test – Start the engine and check for fuel and oil leaks. Perform a cylinder cut-out test to confirm even fuel delivery – deviations should be within ±3% of each other.
Test drive / load test – Perform a road test or load bank test to verify engine performance and ensure that the injectors are operating correctly.
4. Why Rsolid Engine Parts Is Your Preferred Global Supplier
Rsolid Engine Parts has been a premier supplier of Caterpillar, Cummins, and other heavy-duty diesel components for over 15 years, serving the trucking, construction, mining, and industrial sectors across six continents. Here is why the 178-0199 HEUI injector from Rsolid is the intelligent choice:
OEM-equivalent quality – Manufactured to ISO 9001:2015 and IATF 16949 standards, using identical high-grade materials and calibration processes as genuine Caterpillar injectors.
100% leak, flow, and spray tested – Every injector undergoes stringent bench testing for internal leakage, opening pressure, spray pattern, and fuel delivery accuracy. Test reports are available upon request.
Complete installation kits – We offer the injector together with new O-rings, copper washers, and seals in a convenient kit – simplifying your ordering and ensuring you have all necessary components.
Global stock and rapid dispatch – Warehouses in Asia, Europe, and North America ensure 3–7 working day delivery worldwide.
Competitive wholesale pricing – Volume discounts for workshops, fleet operators, and bulk buyers.
Free expert technical support – Our in-house Caterpillar specialists provide trim code programming advice, torque specs, and troubleshooting via WhatsApp or email.
Solid warranty – 12 months / 2,000 operating hours against manufacturing defects and premature wear.
Contact Rsolid Engine Parts Today
📧 Email: amy@rinjector.com
📱 WhatsApp: +86 15975376778
Whether you need a single 178-0199 injector or a full set for a complete Caterpillar 3126 engine overhaul, Amy and her team will provide a detailed quotation, stock confirmation, and shipping schedule within 2 hours. We also supply complementary parts – injector hold-downs, copper washers, O-rings, and complete fuel system components – for comprehensive engine rebuilds.
Choose the 178-0199 HEUI injector from Rsolid – engineered to deliver precise fuel metering, reliable power, and long service life for your Caterpillar 3126 engine.
