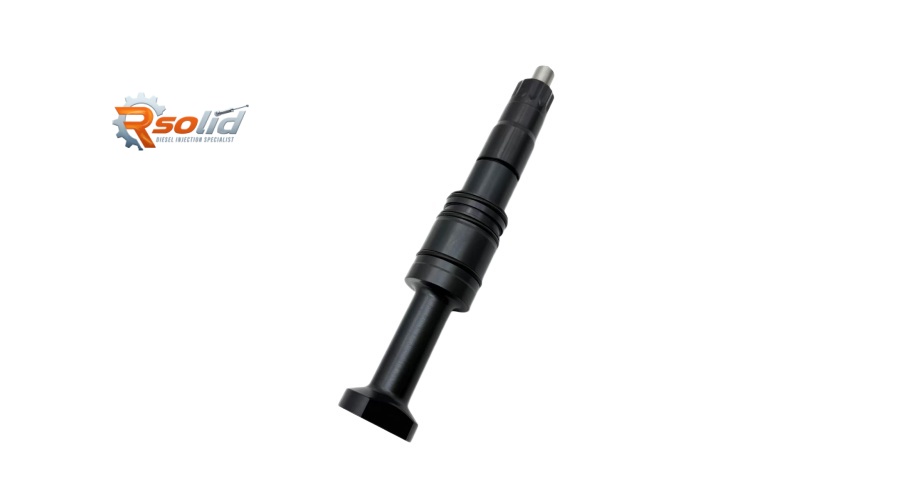

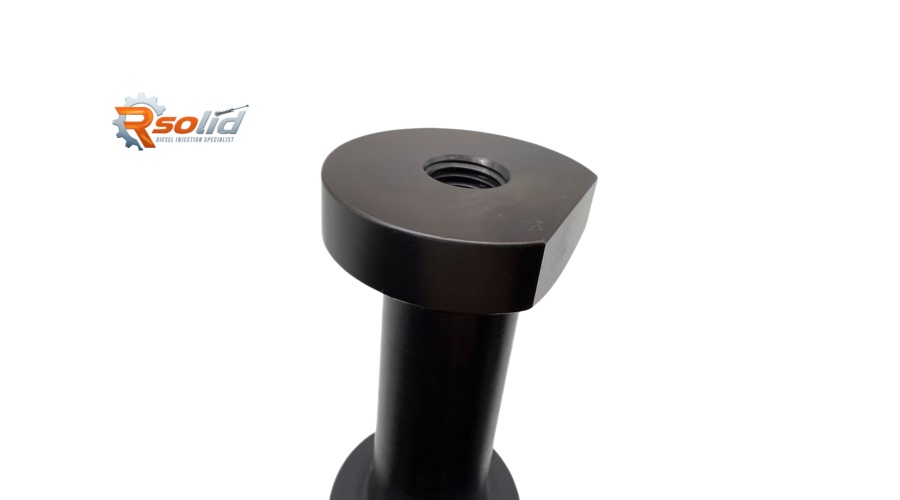

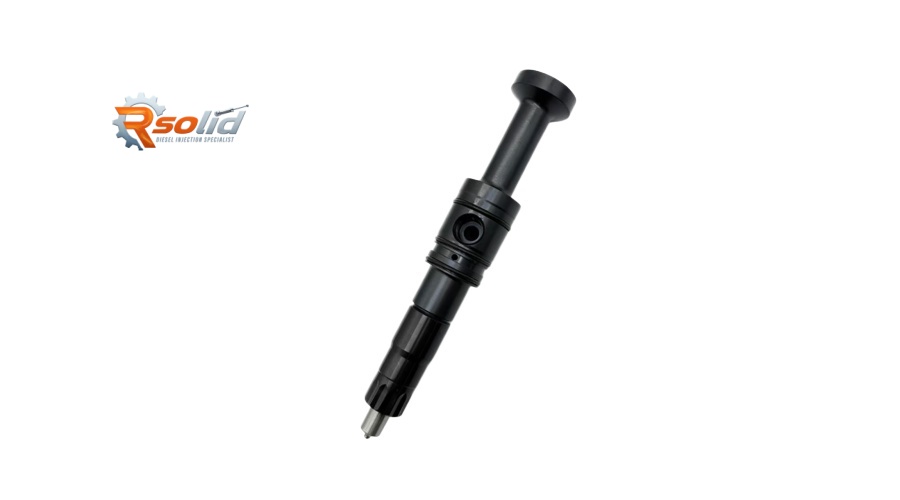

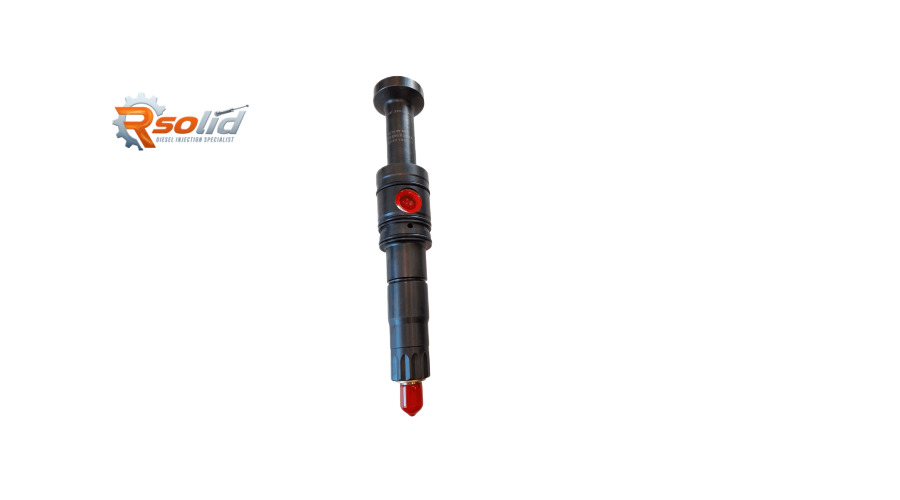

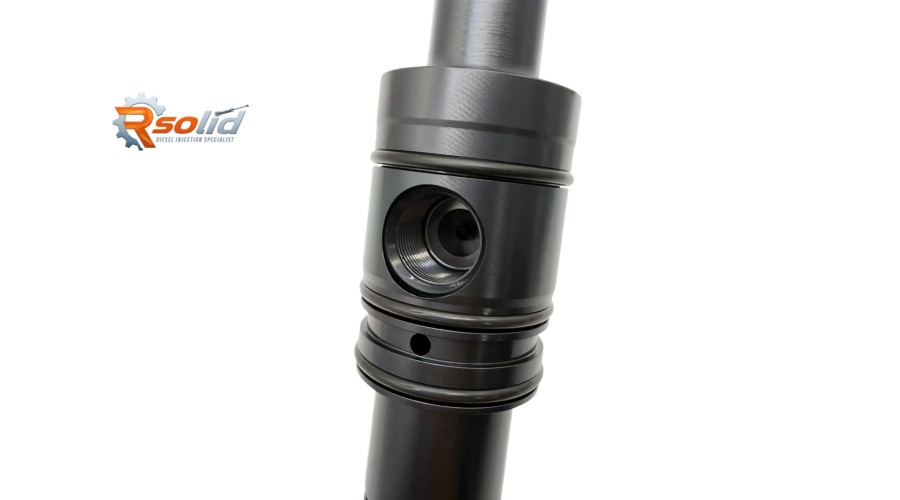

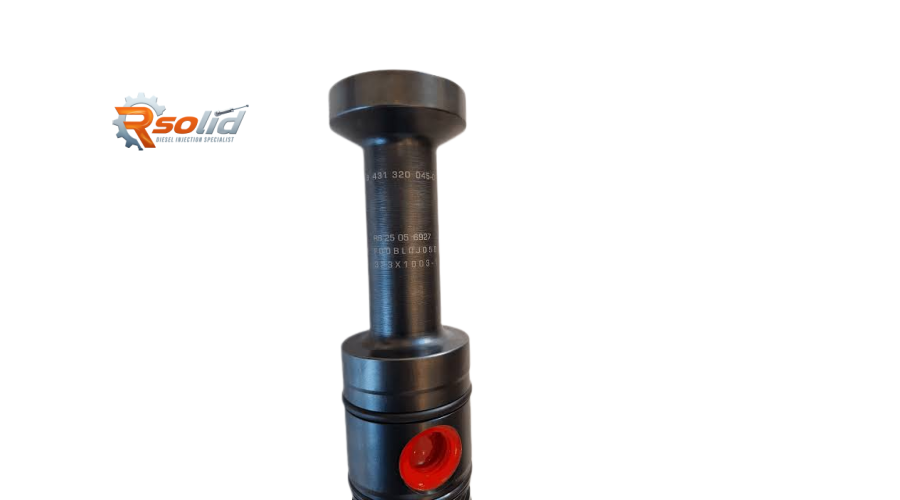

323X1003-1 Diesel Injector – Bosch-Compatible High-Performance Injector for BS-GE Applications
For operators of BS-GE series engines – whether in heavy‑duty industrial equipment, generator sets, marine propulsion, or specialized power units – the fuel injector is a critical component that directly impacts engine performance, fuel efficiency, and emissions compliance. The 323X1003-1 diesel injector is a premium, Bosch‑compatible replacement engineered specifically for BS-GE engine platforms, delivering precise fuel metering, advanced spray characteristics, and consistent performance under demanding operating conditions.
This high‑quality injector is manufactured to meet or exceed Bosch's exacting standards, ensuring seamless integration with BS-GE fuel systems. In this comprehensive guide, we examine its advanced engineering, compatible engine models, common failure signs, professional installation best practices, and why Rsolid Engine Parts is the trusted global supplier for Bosch‑compatible fuel injection components.
1. Structural Features & Advantages of the 323X1003-1 Injector
The 323X1003-1 is a precision‑engineered electronic fuel injector designed to be compatible with Bosch systems used in BS-GE engines. Its design incorporates several advanced features to meet the demands of heavy‑duty, high‑load applications:
High‑pressure common‑rail architecture – The 323X1003-1 is a solenoid‑actuated injector designed for operating pressures typically up to 1,600 – 1,800 bar (depending on engine calibration). This ultra‑high pressure ensures fine atomisation, complete combustion, and improved fuel efficiency, resulting in lower operating costs and reduced emissions.
Precision‑engineered multi‑hole nozzle – The injector tip features carefully designed laser‑drilled orifices (typically 7–9 holes) with optimised spray angles to match the BS-GE combustion bowl geometry. This ensures proper fuel penetration, optimal air‑fuel mixing, and minimal cylinder wall impingement, reducing soot formation and oil dilution.
Fast‑response solenoid actuator – The high‑speed solenoid provides rapid opening and closing times, enabling multiple injection events (pilot, main, post) for quieter operation, reduced NOx emissions, and improved cold‑start performance.
Hardened alloy steel construction – Manufactured from premium, heat‑treated alloy steel with precision‑ground internal components (plunger, barrel, control valve, and needle). This ensures exceptional durability and resistance to wear, even with varying fuel quality and in harsh operating environments.
Integrated fine‑mesh inlet filter – A high‑efficiency inlet filter protects the sensitive nozzle and control valve from fuel‑borne debris, significantly extending service life and reducing the risk of injector sticking or premature wear.
Bosch‑compatible design – The 323X1003-1 is manufactured to Bosch's exacting specifications, ensuring seamless compatibility with BS-GE fuel systems, including the correct electrical connector, fuel fittings, and dimensional tolerances.
OEM‑grade calibration with trim code – Each injector is factory‑calibrated to deliver the exact fuel quantity vs. energising time (IQ‑ET) curve required for BS-GE engine control units (ECUs). A unique trim code (IQA) is provided for precise programming into the vehicle's ECU.
Operational benefits for equipment owners and workshop technicians:
Fuel savings of 3‑6% compared to worn or low‑quality injectors, thanks to precise metering and optimised spray patterns.
Reduced exhaust emissions – Cleaner combustion helps meet applicable emissions standards.
Smoother idle and improved cold starting – Consistent pilot injection ensures reliable ignition in cold weather.
Quieter engine operation – Multiple injection events reduce diesel knock and vibration.
Extended injector service life – High‑quality materials and precision manufacturing deliver long, reliable service.
100% direct drop‑in fit – Identical to the original Bosch/BS-GE injector in all critical dimensions – no modifications required.
2. Compatible Engine Models & Typical Applications
The 323X1003-1 diesel injector is used in BS-GE series engines – a platform that powers a variety of industrial, generator, and marine applications. It is also compatible with other engines using the same Bosch injection system.
| Engine Model / Platform | Typical Applications |
|---|
| BS-GE Series (various power ratings) | Industrial generator sets, marine auxiliary power, compressor drives, pumping stations |
| Bosch‑compatible industrial engines | Heavy‑duty equipment, construction machinery, agricultural equipment |
| Specialty power units | Standby power generation, fire‑pump drives, emergency systems |
Critical cross‑reference: The 323X1003-1 is a Bosch‑compatible part number. It may also be cross‑referenced with Bosch OEM numbers – always verify with your engine serial number and existing injector part number before ordering. This injector is supplied as a complete assembly; new sealing washers, O‑rings, and fuel fittings should be installed simultaneously.
3. Common Failure Modes & Installation/Replacement Recommendations
Typical Warning Signs That Your Injector Needs Replacement
Rough idle and engine misfire – Inconsistent fuel delivery from a sticking or worn injector causes cylinder imbalance, felt as a shaky idle or uneven running.
Excessive black smoke under load – Over‑fuelling or poor atomisation leads to incomplete combustion, producing heavy soot and visible smoke.
Increased fuel consumption – A worn or incorrectly calibrated injector may over‑fuel, increasing operating costs.
Hard starting / extended cranking – Residual pressure loss due to internal leakage makes cold starts difficult.
Fuel in engine oil – A leaking injector can allow fuel to contaminate the sump oil, risking bearing damage and engine failure.
Loss of power and high EGT – A failed injector reduces cylinder contribution, resulting in a noticeable decrease in engine output and elevated exhaust gas temperatures.
Engine warning lights / fault codes – Common codes include injector circuit malfunctions, fuel quantity deviations, or cylinder balance faults.
Professional Installation Best Practices
Proper installation is essential for performance and longevity. Follow these essential steps:
Clean the injector bore and surrounding area – Before removal, thoroughly clean the area around the injector to prevent debris from falling into the combustion chamber. After removing the old injector, use a specialised bore brush and vacuum to clean the injector sleeve and sealing seat in the cylinder head. The sealing seat must be perfectly clean and free of carbon deposits.
Replace all sealing components – Always install a new copper sealing washer and new O‑rings with the injector. These are single‑use items; reusing them will result in combustion gas leakage and poor heat transfer.
Lubricate O‑rings – Lightly coat the new O‑rings with clean diesel fuel or a specialised assembly lubricant. Never use silicone grease or petroleum jelly – these can cause O‑rings to swell, extrude, or degrade.
Install the injector carefully – Carefully insert the injector into the cylinder head bore, ensuring it seats squarely against the copper sealing washer. Do not force it – if it does not seat easily, check for debris, misalignment, or a damaged sealing seat.
Torque the hold‑down bolt – Tighten the retaining bolt to the manufacturer's specified torque (typically 25–30 N·m – consult your engine manual for the exact value). Over‑tightening can distort the injector body; under‑tightening will cause combustion gas leakage.
Reconnect electrical connectors and fuel lines – Ensure all electrical connections are clean, dry, and securely fastened. Tighten fuel line fittings to the specified torque. Replace any high‑pressure line seals if required.
Program the injector trim code – Using the appropriate diagnostic software, enter the new injector's unique trim code into the ECU. This step is critical for correct fuel calibration.
Prime the fuel system – After installation, prime the fuel system to remove any trapped air. Use the hand primer pump or electric lift pump to circulate fuel until no air bubbles are visible.
Perform a leak test and cylinder cut‑out test – Start the engine and check for fuel leaks. Perform a cylinder cut‑out test to verify even fuel delivery across all cylinders – fuel rate deviations should be within ±3% of each other.
Load test and monitor – Apply load to the engine and monitor exhaust temperatures, power output, and fuel consumption to confirm correct operation.
4. Why Rsolid Engine Parts Is Your Preferred Global Supplier
Rsolid Engine Parts has been a premier supplier of Bosch‑compatible, Volvo, Scania, Cummins, and other heavy‑duty diesel components for over 15 years, serving the industrial, marine, power generation, and equipment sectors across six continents. Here is why the 323X1003-1 injector from Rsolid is the intelligent choice:
OEM‑equivalent quality – Manufactured to ISO 9001:2015 and IATF 16949 standards, using identical high‑grade materials and calibration processes as genuine Bosch injectors.
100% leak, flow, and spray tested – Every injector undergoes stringent bench testing for internal leakage, opening pressure, spray pattern, and fuel delivery accuracy. Test reports are available upon request.
Complete installation kits – We offer the injector together with new copper washers, O‑rings, and seals in a convenient kit – simplifying your ordering and ensuring you have all necessary components.
Global stock and rapid dispatch – Strategically warehoused in Asia, Europe, and North America, ensuring 3‑7 working day delivery to most international ports and airports.
Competitive wholesale pricing – Attractive volume discounts for workshops, fleet operators, and parts distributors. Enquire about our bulk order programme for large fleets.
Free expert technical support – Our in‑house diesel specialists provide trim code programming advice, torque specs, and troubleshooting via WhatsApp or email.
Solid warranty – 12 months / 2,000 operating hours against manufacturing defects and premature wear – with a straightforward return and replacement policy.
Contact Rsolid Engine Parts Today
📧 Email: amy@rinjector.com
📱 WhatsApp: +86 15975376778
Whether you need a single 323X1003-1 injector for a running repair or a complete set for a full engine overhaul, Amy and her team will provide a detailed quotation, stock confirmation, and shipping schedule within 2 hours. We also supply complementary parts – injector hold‑downs, copper washers, O‑rings, and complete fuel system components – for comprehensive engine rebuilds.
