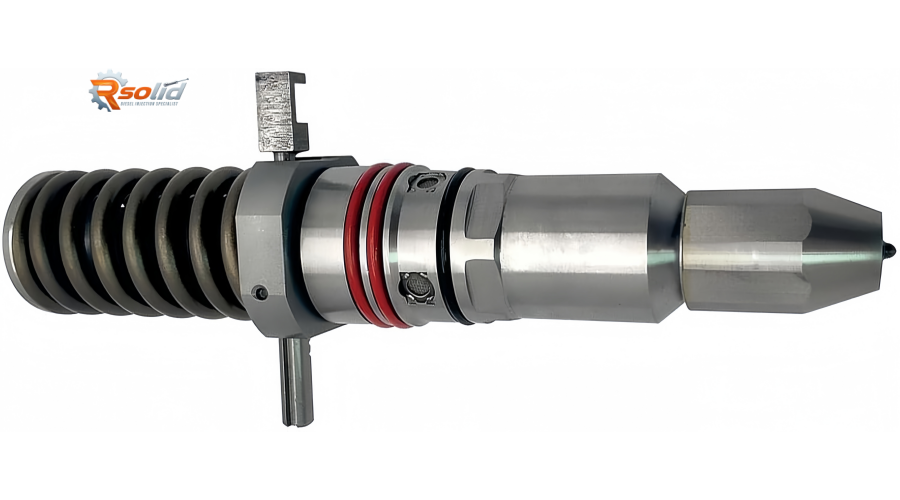

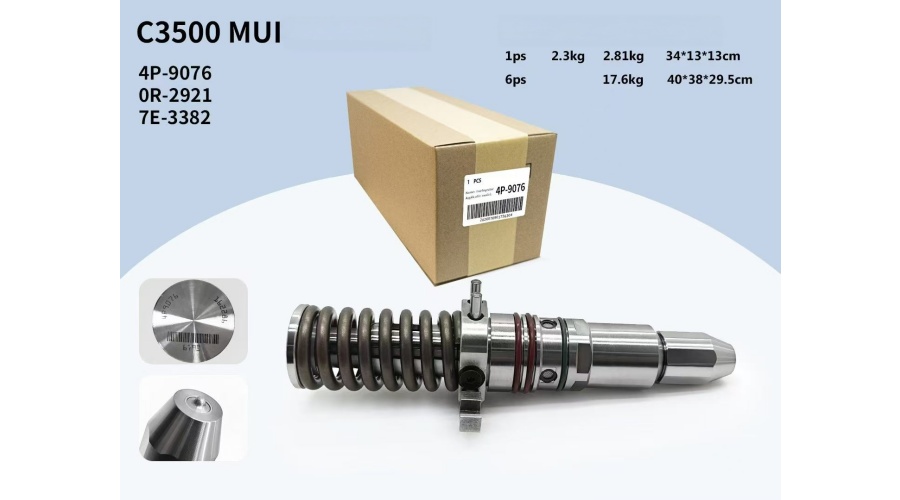

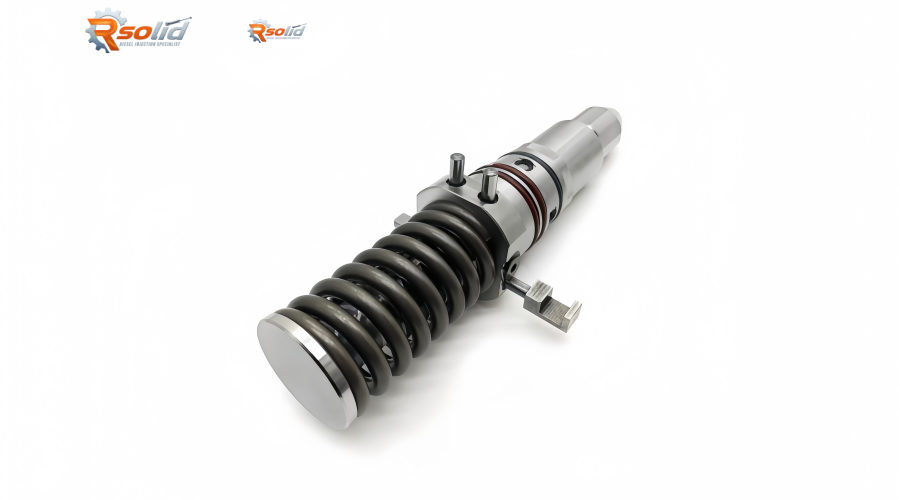

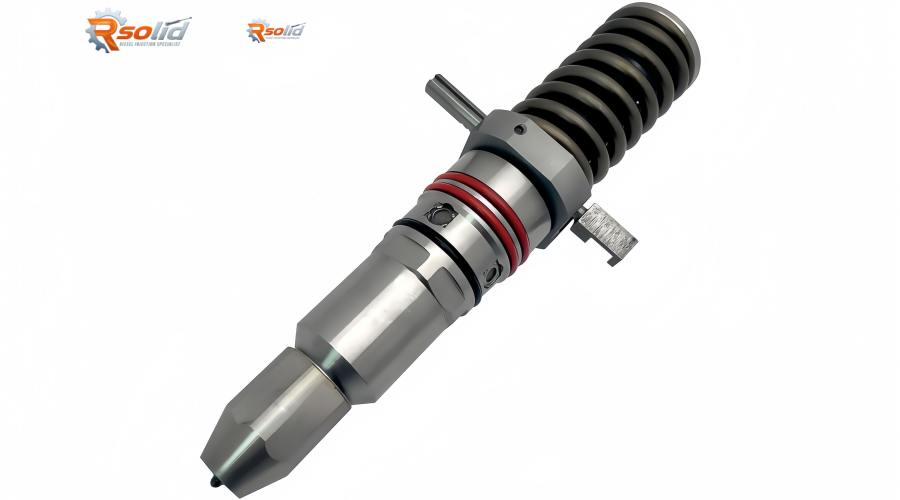

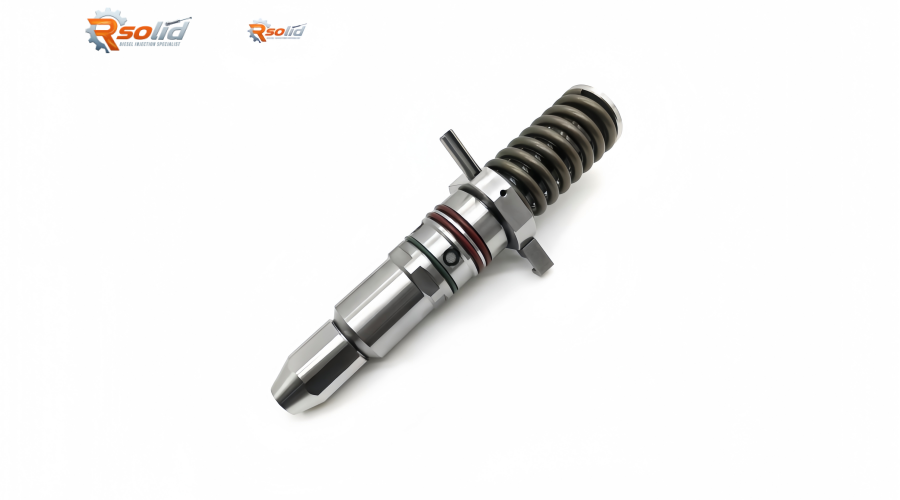

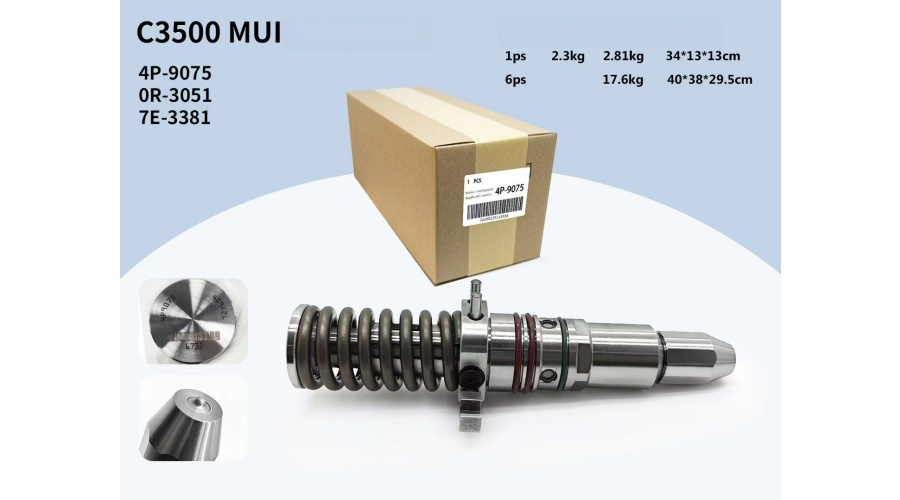

For operators of Caterpillar 3500 series engines – whether in prime power generation, marine propulsion, mining haul trucks, or industrial compressor stations – the fuel injector is the critical component that determines combustion efficiency, power output, and fuel economy. The 4P-9076 mechanical fuel injector is a premium, OEM-grade replacement engineered specifically for Caterpillar's legendary 3508, 3512, and 3516 engines. Unlike electronically controlled injectors, this mechanically actuated unit injector delivers precise fuel metering through a proven, robust design that has powered Cat's heavy-duty platforms for decades.
The 4P-9076 is a direct, drop-in replacement for the original equipment injector, designed to meet or exceed Caterpillar's exacting specifications. It is ideal for engines that operate in remote locations, harsh environments, or applications where simplicity and reliability are paramount. In this comprehensive guide, we examine its robust construction, compatible engine models, common failure signs, professional installation best practices, and why Rsolid Engine Parts is the trusted global supplier for Caterpillar fuel injection components.
1. Structural Features & Advantages of the 4P-9076 Mechanical Injector
The 4P-9076 is a mechanical unit injector (MUI) – a self-contained fuel injection system that combines the pump and injector functions into a single unit. Its design incorporates several heavy-duty features to withstand the extreme demands of continuous high-load operation:
Mechanical unit injector (MUI) design – Unlike common-rail systems, the 4P-9076 uses a mechanical plunger and barrel assembly driven directly by the engine's camshaft. This eliminates the need for high-pressure fuel pumps and electronic controls, offering a simpler, more robust, and highly reliable fuel injection system. Injection timing and fuel quantity are controlled mechanically via the engine's fuel rack and plunger stroke.
Precision-ground plunger and barrel – The heart of the injector is a matched plunger-and-barrel set, lapped to sub-micron tolerances. This precision ensures consistent fuel delivery across all cylinders, minimising cylinder-to-cylinder variation and reducing engine vibration. The plunger is driven by the engine's rocker arm, generating injection pressures up to 1,200 – 1,500 bar.
Multi-hole nozzle with optimised spray pattern – The injector tip features multiple laser-drilled orifices (typically 8–10 holes) with carefully engineered spray angles to match the 3500 series combustion bowl geometry. This ensures fine atomisation, complete air-fuel mixing, and minimises soot formation – critical for maintaining low exhaust temperatures and high thermal efficiency.
Hardened alloy steel construction – Manufactured from premium, heat-treated alloy steel with precision-ground internal components. This ensures exceptional durability and resistance to wear, even with varying fuel quality and in the most demanding operating environments.
Integrated fuel inlet and return connections – The injector features standard Caterpillar fuel ports, allowing direct connection to the engine's fuel supply and return lines without any modifications.
Adjustable fuel rack – The injector includes a mechanical fuel rack that allows for precise adjustment of fuel delivery to match the engine's calibration. This ensures optimal performance across the entire operating range.
Direct fitment – The 4P-9076 is dimensionally identical to the original Caterpillar injector, allowing a simple bolt-on replacement with no modifications. It includes the correct hold-down clamp, fuel fittings, and sealing components.
Operational benefits for fleet operators and plant engineers:
Proven reliability – The mechanical unit injector design has been field-tested for decades in the most demanding applications worldwide.
Fuel savings of 3-5% compared to worn injectors, thanks to precise metering and optimised spray patterns.
Reduced exhaust smoke – Cleaner combustion reduces visible emissions, a key requirement for port entry and environmental compliance.
Simpler diagnostics and maintenance – No electronic controls or ECU programming required – mechanical injectors are easier to service and troubleshoot in remote locations.
Lower operating costs – Mechanical injectors are generally less expensive to purchase, service, and rebuild than electronic common-rail injectors.
100% direct drop-in fit – Identical to the original Caterpillar injector in all critical dimensions – no modifications required.
2. Compatible Engine Models & Typical Applications
The 4P-9076 mechanical injector is specifically engineered for Caterpillar 3500 series engines – a family of V-configuration, 4-stroke, turbocharged diesel engines renowned for their durability and high power density in heavy-duty applications.
| Engine Model | Configuration | Typical Applications |
|---|
| Caterpillar 3508 | V8, 17.5L – 26.5L (depending on variant) | Mining haul trucks, marine propulsion, industrial compressor drives, land-based generator sets |
| Caterpillar 3512 | V12, 26.0L – 34.5L | Offshore supply vessels, prime power generation, large mining equipment, locomotive propulsion |
| Caterpillar 3516 | V16, 34.5L – 46.0L | Marine main engines, heavy-duty power plants, oil & gas pumping stations |
| Caterpillar 3516B / 3516C | High-horsepower V16 variants | Emergency standby power for data centres, marine propulsion for large vessels |
| Fuel System Type | Mechanical unit injector (MUI) – camshaft driven, rack-controlled |
|
Critical cross-reference: The 4P-9076 is the genuine Caterpillar part number for this mechanical unit injector. It is essential for engines that utilise the mechanical fuel system. It may also be listed under alternative numbers such as 4P-9075, 4P-9077, or 4P-9078 for different calibration variants. Always verify your engine serial number (prefixes like 7TA, 8RB, 9NL) and the existing injector part number before ordering. This injector is supplied as a complete assembly; new sealing washers, O-rings, and fuel fittings should be installed simultaneously.
3. Common Failure Modes & Installation/Replacement Recommendations
Typical Warning Signs That Your Injector Needs Replacement
Rough idle and engine misfire – Inconsistent fuel delivery from a worn or sticking injector causes uneven firing, especially noticeable at low RPM.
Excessive black smoke under load – A leaking, sticking, or poorly atomising injector results in incomplete combustion, producing heavy soot.
Increased fuel consumption – A worn or incorrectly calibrated injector may over-fuel or under-fuel, both of which negatively impact BSFC.
Hard starting or extended cranking – Loss of residual injection pressure due to internal leakage or a stuck plunger makes cold starts difficult.
Fuel dilution of engine oil – A leaking injector can allow fuel to run down the cylinder walls and contaminate the sump oil, risking bearing and crankshaft damage.
High exhaust gas temperature (EGT) and power loss – Incomplete combustion leads to afterburning in the exhaust manifold, elevating EGTs and reducing available torque.
Knocking or metallic tapping noise – A worn plunger or valve can cause audible knocking, particularly under load.
Professional Installation Best Practices
Mechanical injector replacement requires meticulous cleanliness and precision. Follow these essential steps:
Clean the injector bore and surrounding area – Before removal, thoroughly clean the area around the injector to prevent debris from falling into the combustion chamber. After removing the old injector, use a specialised bore brush and vacuum to clean the injector sleeve and sealing seat in the cylinder head. The sealing seat must be perfectly clean and free of carbon deposits.
Inspect and replace all sealing components – Always install a new copper sealing washer and new O-rings with the injector. These are single-use items; reusing them will result in combustion gas leakage and poor heat transfer.
Lubricate O-rings – Lightly coat the new O-rings with clean diesel fuel or a specialised assembly lubricant. Never use silicone grease or petroleum jelly – these can cause O-rings to swell, extrude, or degrade.
Set the injector timing / plunger stroke – Mechanical injectors require precise setting of the plunger stroke. This is typically achieved by adjusting the rocker arm clearance or using shims. Consult Caterpillar's service manual (SENR or RENR) for the exact procedure and clearance specifications for your specific engine model.
Adjust the fuel rack – After installation, adjust the fuel rack to ensure the injector delivers the correct fuel quantity at all operating speeds. This is typically done by setting the rack stop screws and using a dial indicator for precise measurement.
Torque the injector hold-down clamp – Tighten the retaining clamp to Caterpillar's specified torque (typically 60–80 N·m – consult your engine manual for the exact value for 3500 series). Over-tightening can distort the injector body and cause plunger binding; under-tightening will cause combustion gas leakage.
Reconnect fuel lines – Ensure all connections are clean and secure. Replace any high-pressure line seals if required. Tighten the fuel line fittings to the specified torque (typically 30–40 N·m).
Prime the fuel system – After installation, prime the fuel system to remove any trapped air. Use the hand primer pump or electric lift pump to circulate fuel until no air bubbles are visible.
Check for leaks and perform a cylinder cut-out test – Start the engine and check for fuel leaks around the injector and fuel lines. Perform a cylinder cut-out test to verify even fuel delivery across all cylinders – fuel rate deviations should be within ±3% of each other.
Adjust the engine timing and load test – After installation, verify the engine's injection timing using a timing pin and timing gauge (for mechanical injection systems). Perform a load test to ensure the engine reaches full rated power and that exhaust temperatures are within specifications.
4. Why Rsolid Engine Parts Is Your Preferred Global Supplier
Rsolid Engine Parts has been a premier supplier of Caterpillar, Cummins, MTU, and other heavy-duty diesel components for over 15 years, serving mining, marine, power generation, and industrial sectors across six continents. Here is why the 4P-9076 mechanical injector from Rsolid is the intelligent choice:
OEM-equivalent manufacturing – Produced in ISO 9001:2015 and IATF 16949 certified facilities, using identical high-grade alloy steel, precision lapping, and calibration processes as genuine Caterpillar injectors. Every batch is tested for flow, spray pattern, and leakage.
100% leak and performance tested – Each injector undergoes stringent bench testing for internal leakage, opening pressure, and fuel delivery accuracy. Test reports are available upon request.
Complete installation kits – We offer the injector together with the required copper sealing washers, O-rings, and fuel fittings in a convenient kit, simplifying your ordering process and ensuring you have everything needed for a reliable installation.
Global inventory and rapid dispatch – Strategically warehoused in Asia, Europe, and North America, ensuring 3-7 working day delivery to most international ports and airports.
Competitive wholesale pricing – Attractive volume discounts for workshops, fleet operators, and parts distributors. Enquire about our bulk order programme for large mining or marine fleets.
Free expert technical support – Our in-house diesel engineers provide installation guides, timing specifications, rack setting instructions, and troubleshooting advice via WhatsApp or email.
Solid warranty – 12 months / 2,000 operating hours against manufacturing defects, premature wear, and material failures – with a straightforward return and replacement policy.
Contact Rsolid Engine Parts Today
📧 Email: amy@rinjector.com
📱 WhatsApp: +86 15975376778
Whether you need a single 4P-9076 injector for a running repair or a complete set (8, 12, or 16 injectors) for a full Caterpillar 3500 series overhaul, Amy and her team will provide a detailed quotation, stock confirmation, and shipping schedule within 2 hours. We also supply complementary parts – injector hold-downs, copper washers, fuel fittings, and complete fuel system components – for comprehensive engine rebuilds.
Choose the 4P-9076 mechanical injector from Rsolid – engineered to deliver precise fuel metering, reliable power, and long service life for your Caterpillar 3508 / 3512 / 3516 engines.
