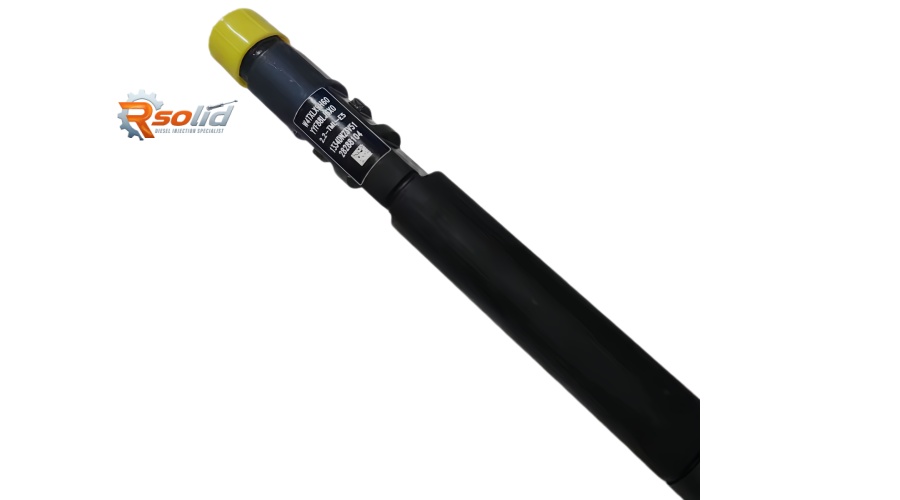

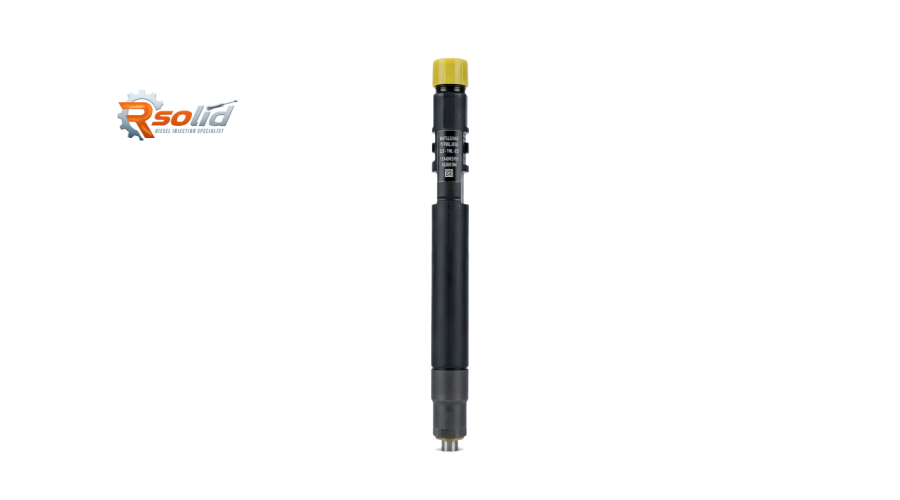

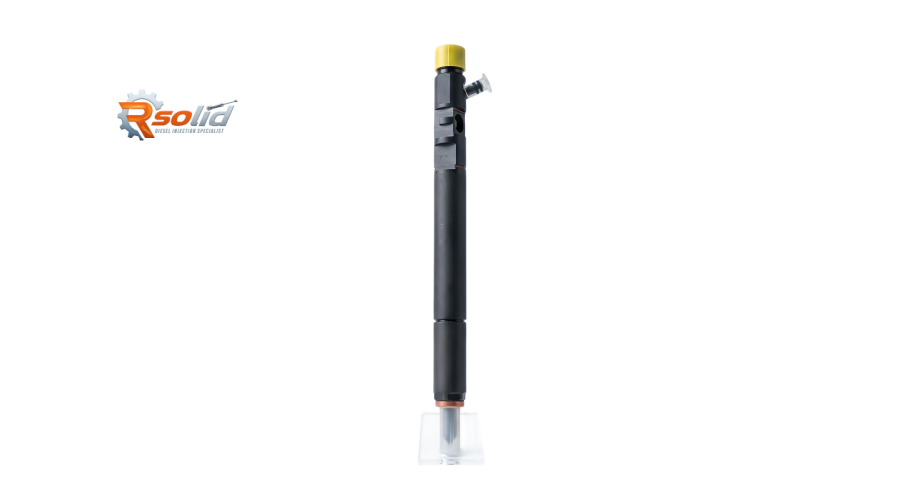

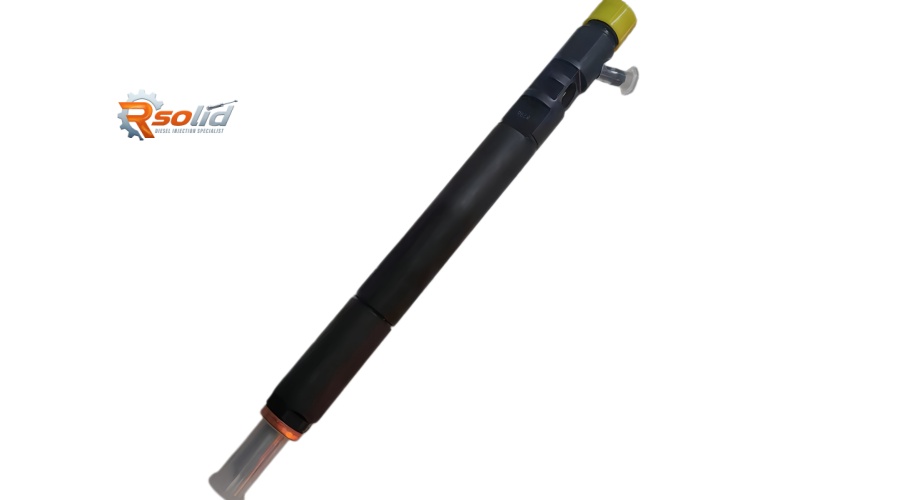

Delphi 28288104 Common Rail Diesel Injector – Full Guide, Specs & Expert Repair Tips
If you are dealing with a 3.0L or 2.5L diesel engine from Isuzu, JMC, Ford, or GM, you have almost certainly come across the Delphi 28288104 injector. This electromagnetic‑valve injector is a workhorse of the DCR (Digital Common Rail) family, known for its reliability – but like all high‑pressure components, it requires proper handling, correct IQA coding, and quality replacement parts.
In this guide, we cover everything from basic identification and vehicle fitment to technical parameters, common failure modes, replacement do’s and don’ts, and why Rsolid Engine Parts is your trusted global partner for this injector.
1. Basic Information – What is 28288104?

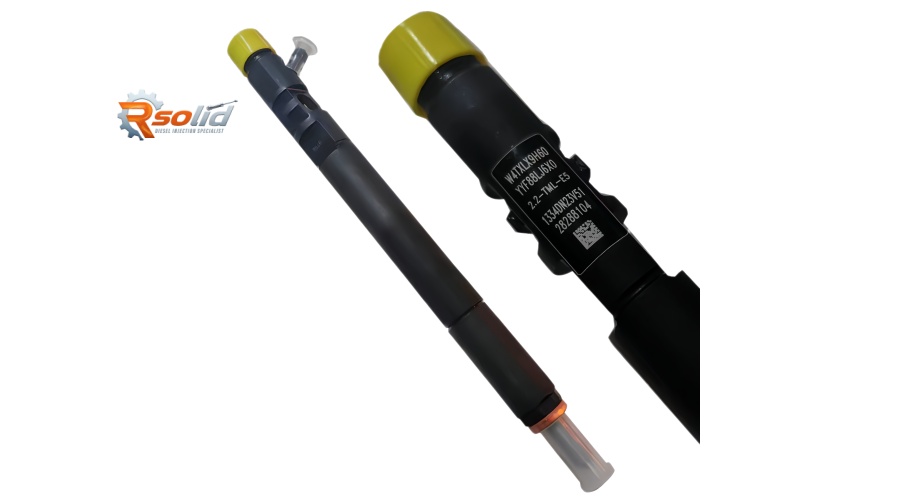

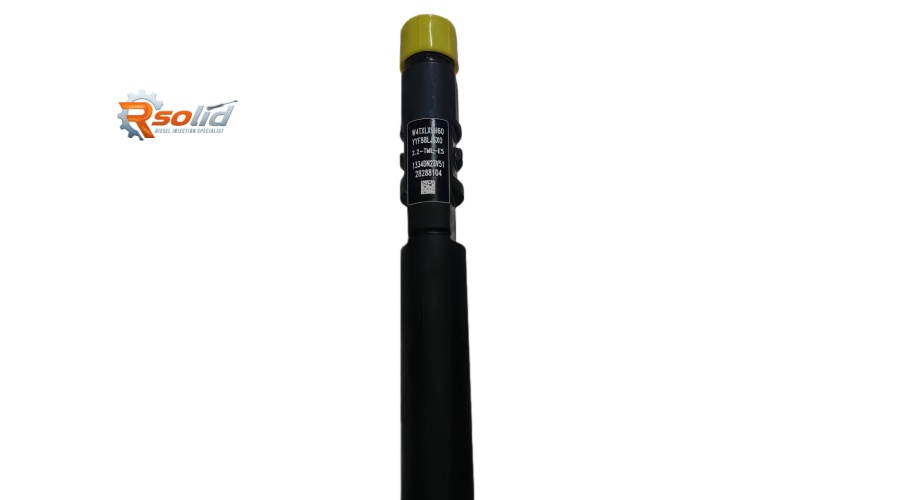

The 28288104 is a Delphi (now BorgWarner) solenoid‑type injector designed for high‑pressure common rail systems. It uses a high‑resistance coil and a precision‑machined valve assembly to deliver fuel at pressures up to 1800 bar. Each injector carries a unique IQA (Individual Quality Adjustment) code – a 25‑ or 30‑digit number laser‑engraved on top – which must be programmed into the engine ECU after installation to ensure smooth idle, correct fuel trim, and optimal emissions.
2. Common Vehicle & Engine Applications
This injector is widely used in the following platforms:
| Make | Model / Engine |
|---|
| Isuzu | D‑MAX (3.0T 4JJ1), MU‑X |
| JMC | Yuhu 3/5/7 (2.4T), Baodian (common‑rail versions) |
| Ford | Transit Classic (2.4T DI diesel) |
| GM | Colorado / Canyon (2.8L & 3.0L diesel, overseas) |
Always verify the injector part number on the body – visually similar injectors may have different spray angles or flow rates.
3. Key Technical Specifications
Below is a quick‑reference table of the most critical parameters. (The HTML table code for your CMS is provided after the article.)
| Parameter | Specification |
|---|
| Part Number | 28288104 |
| Type | Solenoid‑actuated (high‑resistance) |
| Coil Resistance (20°C) | 0.6 – 0.9 Ω (use precision multimeter) |
| Max Operating Pressure | 1600 – 1800 bar |
| Spray Angle | 148° or 156° (check nozzle marking) |
| IQA Coding | Mandatory – write new code via diagnostic tool |
| Tightening Torque (nozzle nut) | 70 – 80 N·m |
4. Common Faults & Symptoms
Excessive return fuel – the most frequent failure. If the return line gets hot or return volume is high, the injector may bleed pressure, causing hard starting (especially hot) and poor acceleration.
Hot start issues – worn valve components leak more when fuel viscosity drops, making restart difficult.
White / black smoke – poor atomisation due to stuck needle or worn nozzle, often linked to fuel quality.
Error codes – P0200‑series (injector circuit) may appear if the solenoid coil fails or wiring is damaged.
5. Repair & Replacement Guidelines
Do not tamper with internal settings – valve lift and spring preload are factory‑set. Only certified Bosch / Delphi service centres should perform mechanical overhauls.
Replace the nozzle – if the needle is worn, you can install a genuine Delphi nozzle, but torque must be strictly 70–80 N·m. Over‑tightening locks the needle; under‑tightening causes leaks.
IQA coding is mandatory – after fitting a new injector, use a diagnostic tool (X431, JMC VDS, or Isuzu IDS) to enter the new IQA code. If you use a used / uncoded unit, copy the old code or perform an IQA learn function.
Beware of counterfeits – genuine parts have a fine inlet screen, clear Delphi logo on the solenoid top, and consistent laser marking. Prices below ~$120–150 per unit often indicate poor quality.
6. Why Choose Rsolid Engine Parts as Your Global Supplier?
Rsolid Engine Parts specialises in high‑quality diesel fuel injection components, and we are a trusted source for the Delphi 28288104 injector. Here’s what sets us apart:
Genuine & OEM‑grade availability – we supply new, original‑spec injectors with full IQA codes, as well as premium remanufactured units tested on advanced bench equipment.
Strict quality control – every injector is leak‑tested, spray‑pattern checked, and coil‑resistance verified before shipment.
Competitive pricing & fast delivery – with global logistics, we serve workshops, fleets, and distributors worldwide.
Technical support – our team provides installation guidance, IQA programming assistance, and troubleshooting advice – no matter where you are.
Bulk & wholesale options – we can meet large orders with consistent batch quality.
📱 Contact us today on WhatsApp: +86 15975376778 for quotes, stock availability, or any technical questions.
