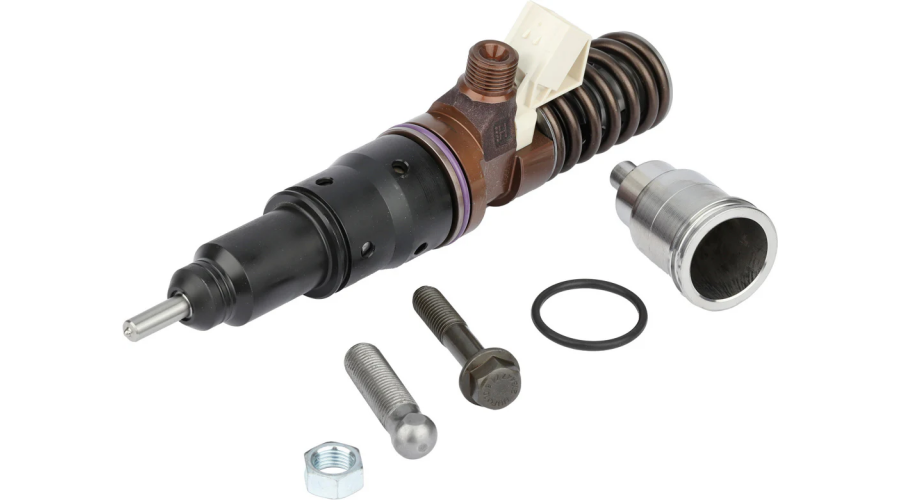

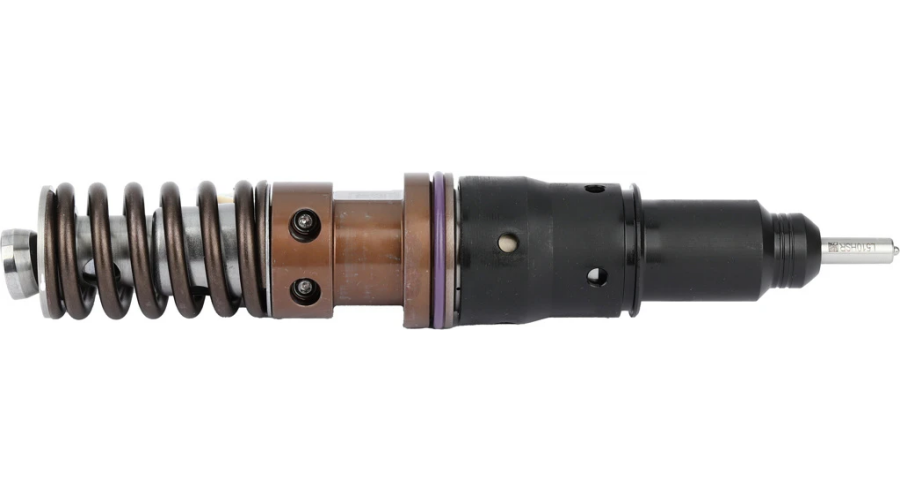

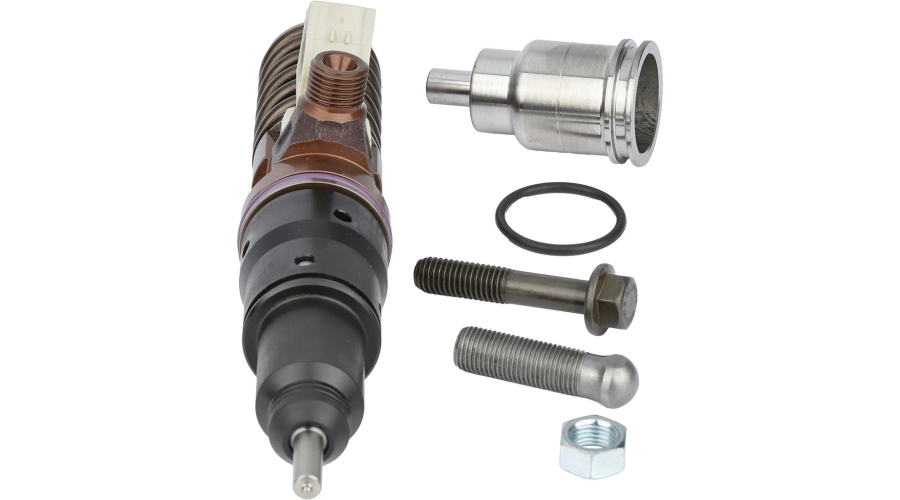

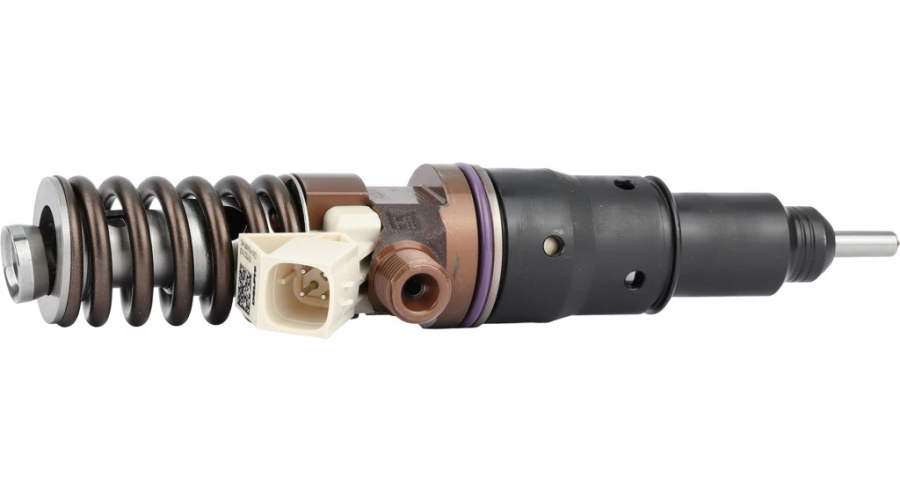

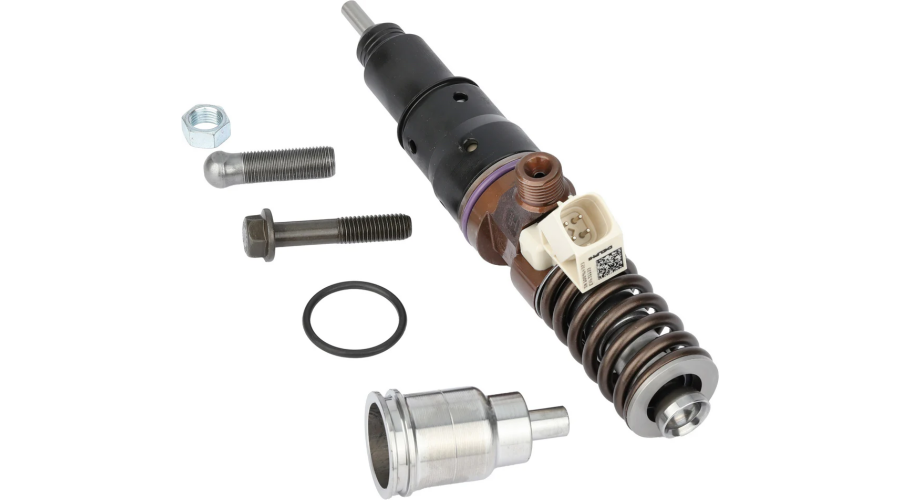

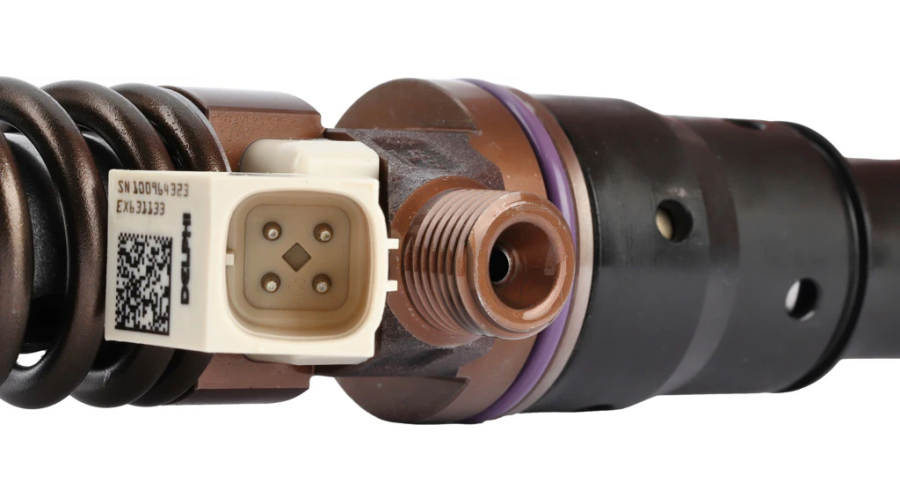

The EX631133 is a hydraulically actuated, electronically controlled unit injector (EUI) used in Volvo D13 engines (EPA 2007–2013, prior to common rail). Its design and operating principles offer several distinct structural characteristics and technical advantages.

Structural Characteristics

1. Integrated Unit Injector Design

• Combines high-pressure pump, plunger, and nozzle into a single, self-contained assembly mounted directly in the cylinder head.

• No external high-pressure fuel lines between pump and injector, eliminating leak paths and improving packaging.

2. Solenoid-Actuated Control Valve

• A high-speed solenoid valve governs the start and duration of injection.

• The solenoid opens a spill valve; when closed, pressurization begins; when opened, injection ends. This allows extremely precise timing control independent of engine speed.

3. Cam-Driven Plunger

• The injector is mechanically driven by the engine camshaft via a rocker arm, generating injection pressures up to approximately 1,800 bar (26,000 psi).

• The plunger and barrel are precision-machined to maintain consistent fuel delivery and withstand high mechanical loads.

4. Integrated Fuel Filtration

• An internal fine-mesh screen protects the injector’s internal orifices and control valve from debris, critical for reliability in heavy-duty applications.

5. Trim Code Calibration

• Each injector carries a unique trim code (programmed into the ECU) to compensate for manufacturing variations, ensuring uniform cylinder balancing.

Technical Advantages

1. High Injection Pressure

• The cam-driven mechanism produces very high injection pressures regardless of engine speed, enabling finer atomization, better air-fuel mixing, and improved combustion efficiency. This results in increased power output and lower particulate emissions.

2. Flexible Injection Timing

• Electronic control allows multiple injection events (pilot, main, post) per cycle. This reduces combustion noise, optimizes fuel economy, and supports exhaust aftertreatment by managing in-cylinder temperatures for DPF regeneration.

3. Simplified Fuel System Architecture

• With no high-pressure pump (aside from the engine’s cam-driven mechanism) and no common rail, the system reduces potential leak points and parasitic losses compared to some common-rail designs. Serviceability is improved because each injector can be replaced individually without disturbing high-pressure plumbing.

4. Durability and Reliability

• Designed for high-mileage heavy-duty applications, the injector features hardened internal components and robust sealing. The integrated design minimizes external fuel leaks, a key safety and reliability consideration in commercial vehicles.

5. Diagnostic Capability

• The ECU continuously monitors injector performance via feedback from crankshaft acceleration (cylinder balance) and can detect faults, trigger misfire codes, or automatically disable a faulty injector to protect the engine.

6. Aftertreatment Compatibility

• Precise fuel delivery enables accurate post-injection for active DPF regeneration, allowing the engine to meet strict EPA emissions standards without a dedicated hydrocarbon doser.
