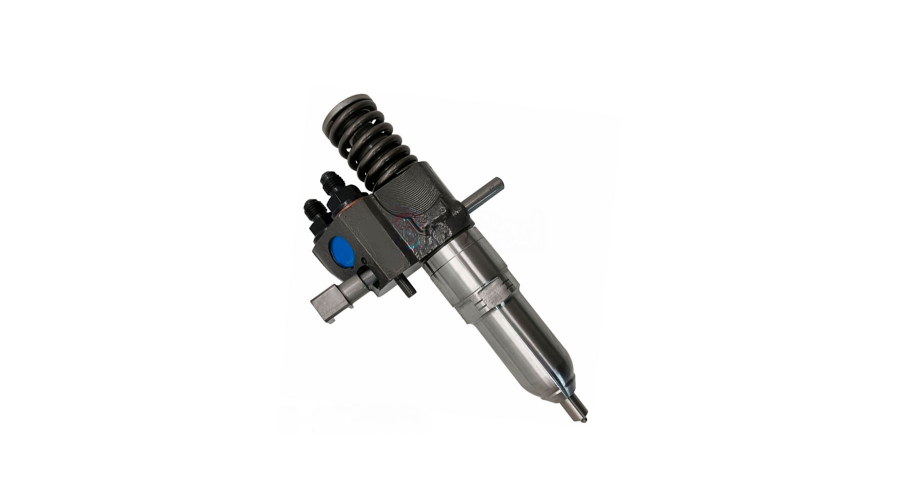

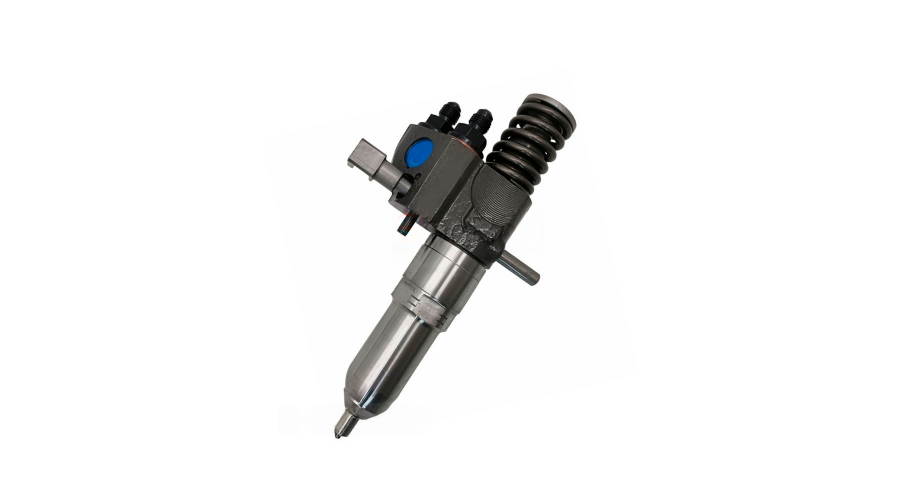

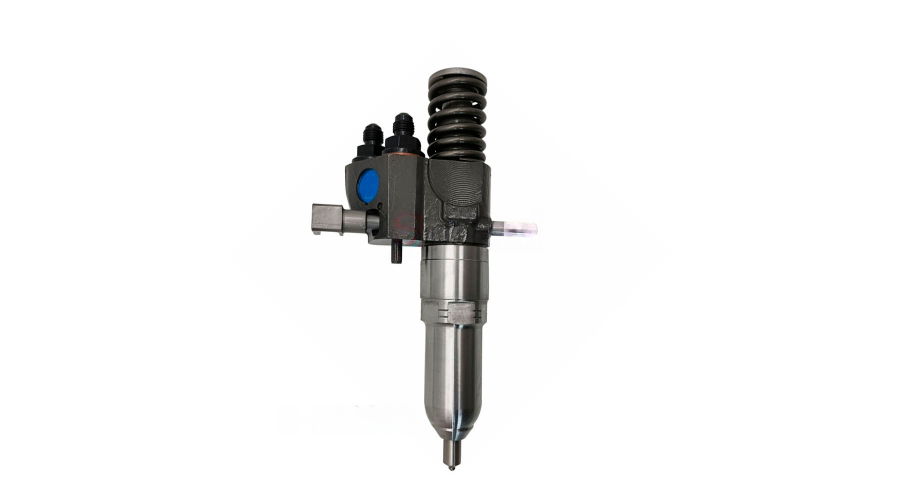

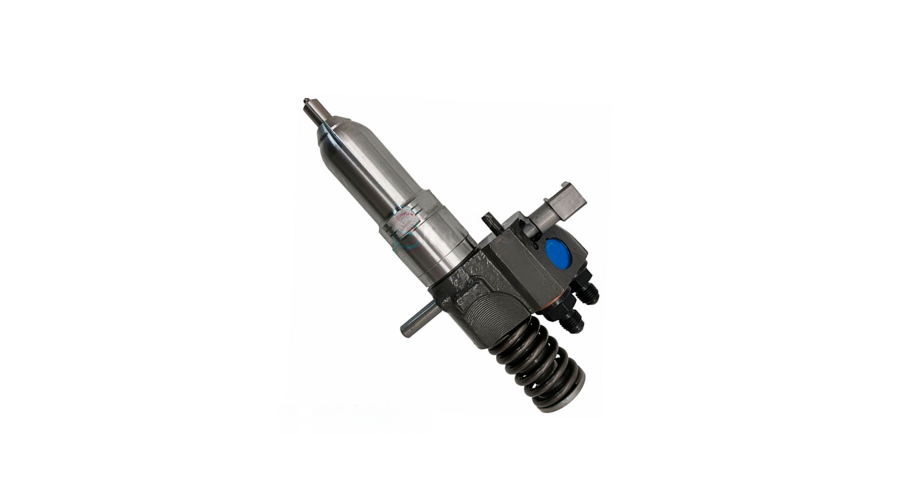

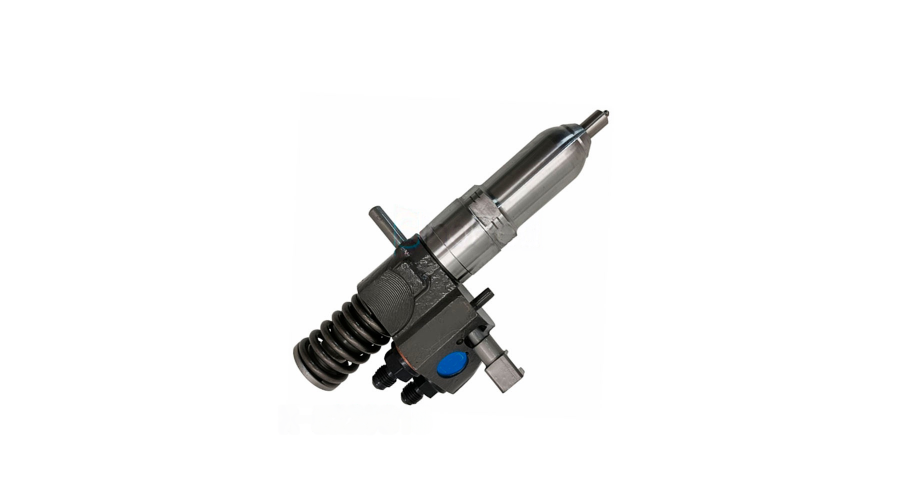

R5299815 is the Detroit Diesel Genuine part number for a complete fuel injector assembly used in the Series 60 12.7L and 14L engines.

Core Specifications & Application:

• Engine Application: Primarily used in Detroit Diesel Series 60 engines (12.7L & 14L displacement). This engine was hugely popular in highway trucks (Freightliner, Kenworth, Peterbilt, Volvo, etc.) from the early 1990s through the 2000s.

• Injector Type: Electronic Unit Injector (EUI). The injector is mechanically actuated by the engine's camshaft and electronically controlled for fuel metering.

• Horsepower Ratings: Commonly found in engines rated from 365 to 600 HP, depending on the specific engine calibration.

Here is a concise, point-by-point breakdown for the Detroit Diesel R5299815 injector.

1. Structural Characteristics & Technical Advantages

Structural Characteristics:

• Electro-Hydraulic Unit Injector (EUI): Combines a high-pressure mechanical pumping plunger (cam-driven) with a solenoid-controlled spill valve.

• Integrated Design: Pump, valve, and nozzle are a single unit installed directly in the cylinder head.

• Camshaft Actuated: The engine's camshaft provides the high force needed to create injection pressure (up to ~30,000 psi).

• Solenoid Spill Valve: An electronically controlled solenoid valve precisely determines the timing and duration of fuel injection by closing/opening the fuel spill port.

Technical Advantages:

• High Injection Pressure: Creates excellent fuel atomization for efficient combustion and lower emissions.

• Precise Electronic Control (DDEC): Enables optimized timing and fuel quantity for each cylinder, improving power, fuel economy, and diagnostics.

• Robust & Proven: Simple mechanical actuation combined with electronic control resulted in a reliable, industry-standard design for heavy-duty applications.

• Cylinder-Specific Calibration: The 5-digit Fuel Rate Code allows the ECM to precisely calibrate for minute manufacturing variances in each injector.

2. Main Application Scenarios & Equipment

• Primary Application: Detroit Diesel Series 60 12.7L and 14L engines.

• Equipment & Vehicles:

• Class 8 Highway Trucks: Freightliner (Century Class, Columbia), Peterbilt, Kenworth, Volvo, Mack (with Series 60 engine).

• Stationary Power: Generator sets and industrial power units.

• Marine: Some marine propulsion applications.

• Era: Dominant in trucks from the early 1990s through the late 2000s. It is a cornerstone of the "pre-EGR" heavy-duty truck era.

3. OEM Cross Reference Number

The primary OEM manufacturer was Standadyne (Zexel). The direct cross-reference is:

• Standadyne Number: RE5281 or RE5281A

• Bosch Number: R5281 is also a common OEM equivalent.

(Note: The original Detroit Diesel Genuine number is R5299815)

4. Daily Maintenance & Installation Suggestions

Maintenance:

• Fuel Filtration: Use high-efficiency primary and secondary fuel filters (2-micron absolute rating recommended). Clean fuel is the #1 factor in injector longevity.

• Regular Oil Changes: Contaminated engine oil can affect the injector's lower actuation mechanism.

• Monitor Performance: Pay attention to symptoms like hard starting, misfires, excessive smoke, or increased fuel consumption. Use DDEC diagnostics to check for injector fault codes and balance rates.

Critical Installation Steps:

1. Record the Fuel Rate Code: Write down the 5-digit code from the new injector before installing it.

2. Cleanliness: Ensure the injector bore in the cylinder head is immaculately clean. Debris can cause immediate failure.

3. Replace the Injector Cup/Sleeve: It is strongly recommended to replace the copper injector cup whenever servicing injectors to prevent costly coolant/fuel mixing.

4. Use Correct Torque & Sequence: Follow the service manual exactly for torquing the injector hold-down clamp and rocker lever assembly. Overtightening is a common cause of damage.




5. Prime the Fuel System: After installation, prime the system to remove air before starting the engine.
