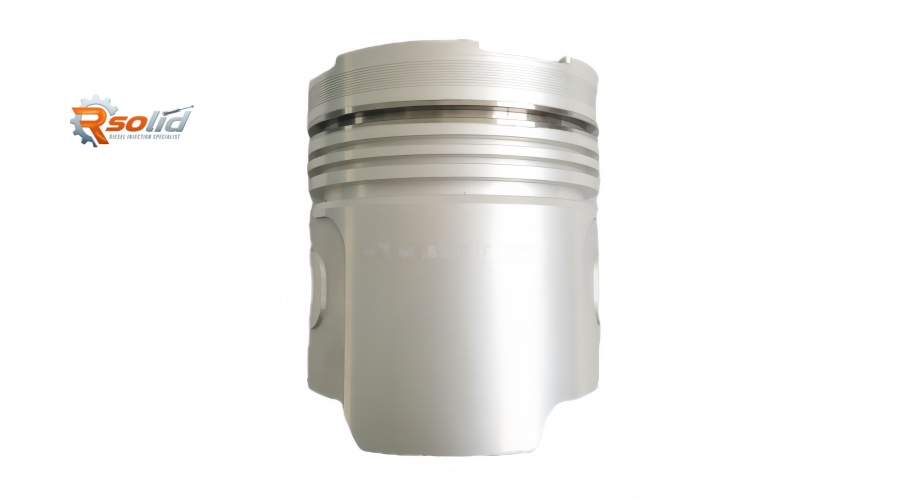

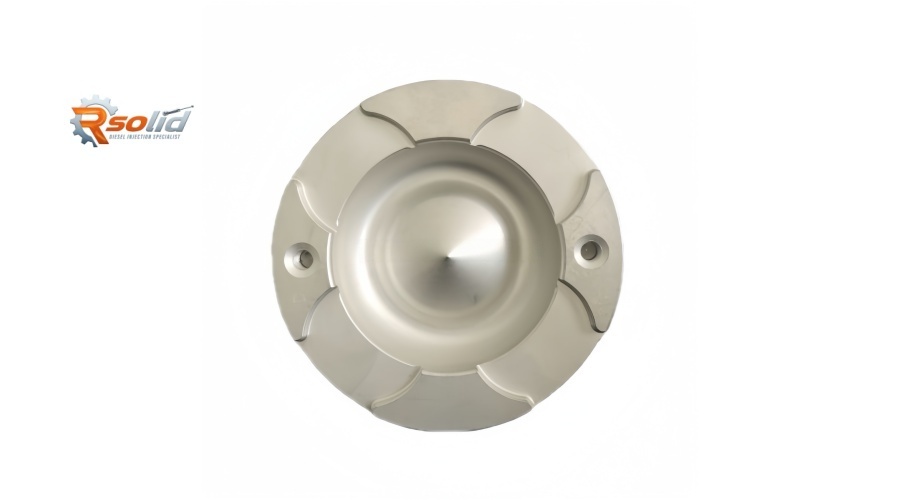

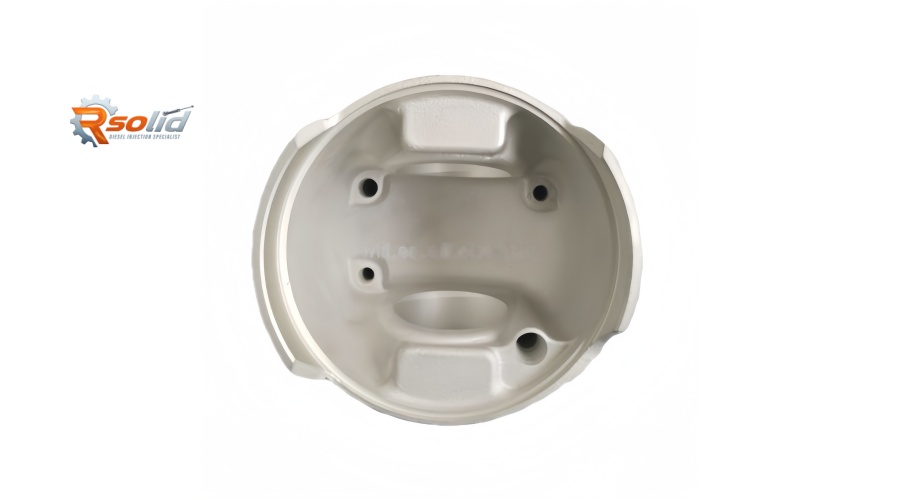

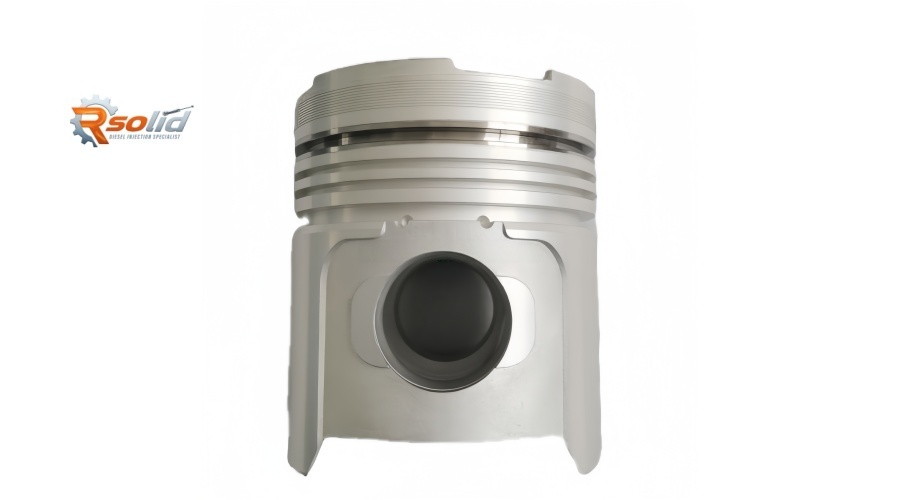

High Efficiency Durable and Reliable Piston 726635-22723 – For Yanmar 6HA Marine Diesel Engine
In the demanding world of marine propulsion and auxiliary power, the Yanmar 6HA series has earned a reputation for rugged dependability and fuel‑efficient performance. Whether you are navigating coastal waters, operating a fishing trawler, or running a standby generator set, the engine’s ability to sustain full‑load operation for thousands of hours depends on one critical internal component – the piston. The 726635-22723 piston is a premium, high‑efficiency replacement engineered specifically for Yanmar 6HA marine diesel engines, offering exceptional durability, consistent compression, and reduced oil consumption.
Designed to meet or exceed original Yanmar specifications, this piston is available as a bare unit or as part of a complete repair kit. In this comprehensive guide, we examine its advanced construction, compatible engine variants, common failure signs, professional installation protocols, and why Rsolid Engine Parts is your trusted global supplier for Yanmar marine spares.
1. Structural Features & Advantages of the 726635‑22723 Piston
The 726635‑22723 is not a generic aftermarket casting – it is a precision‑engineered component that incorporates several heavy‑duty design features to withstand the rigours of continuous marine duty:
High‑grade eutectic aluminium‑silicon alloy – Manufactured from a premium Al‑Si12CuMgNi alloy, this material offers an optimal balance of lightweight construction, excellent thermal conductivity, and low thermal expansion. The high silicon content (12‑13%) provides outstanding scuff resistance, preventing piston‑to‑cylinder galling during cold starts and sudden load changes – a common challenge in marine environments.
Ni‑Resist® austenitic ring groove insert – The top compression ring groove is reinforced with a high‑nickel cast iron insert that resists micro‑welding and groove wear at peak firing temperatures (exceeding 2,000°C). This critical feature maintains proper ring seating and combustion sealing over thousands of operating hours, preventing blow‑by and power loss.
Optimised skirt profile with anti‑friction coating – The piston skirt features a computer‑modelled ovality and barrel shape to accommodate thermal expansion uniformly. It is coated with a molybdenum disulphide (MoS₂) or graphite‑based solid lubricant layer, which reduces friction during the initial break‑in period, minimises scuffing risk, and promotes rapid ring seating for immediate oil control.
Integral oil cooling gallery – An enclosed oil channel is cast directly beneath the piston crown. During operation, pressurised engine oil is sprayed from the connecting rod or crankcase jets into this gallery, actively dissipating combustion heat. This reduces the piston crown temperature by as much as 25‑30°C, significantly extending fatigue life and reducing the risk of thermal cracking – particularly important in sustained high‑load marine applications.
Precision‑weight matched sets – Each piston is machined to a strict weight tolerance of ±5 grams within a factory‑matched set. This ensures perfect dynamic balance across all six cylinders, reducing crankshaft torsional vibration, minimising bearing wear, and delivering smoother operation – a critical advantage for generator sets requiring stable frequency output.
Premium piston pin compatibility – The pin bore is precision‑honed to accept a fully floating piston pin (sold separately). Some variants include a bronze or tin‑indium bushing to provide an additional bearing surface, reducing pin noise and ensuring long‑term durability.
Operational benefits for marine engineers and vessel owners:
Up to 20% reduction in oil consumption compared to worn or low‑quality aftermarket pistons, thanks to optimal ring groove geometry and anti‑wear coatings.
Improved fuel economy – Restored compression ratios and precise crown height translate to better thermal efficiency and lower specific fuel consumption.
Extended overhaul intervals – With proper fuel, air filtration, and coolant maintenance, this piston reliably delivers 8,000 – 12,000 hours of service life.
Smoother, quieter operation – Weight‑matched sets and the anti‑scuff skirt coating reduce engine vibration and mechanical noise.
100% direct drop‑in fit – Identical to the original Yanmar piston in all critical dimensions – no block machining or custom modifications required.
2. Compatible Engine Models & Typical Applications
The 726635‑22723 piston is specifically engineered for the Yanmar 6HA series – a family of 6‑cylinder, inline, 4‑stroke, water‑cooled diesel engines widely used in marine propulsion and stationary power generation.
| Engine Model | Typical Applications |
|---|
| Yanmar 6HA (naturally aspirated) | Main propulsion for fishing vessels, coastal freighters, harbour tugs |
| Yanmar 6HA‑W | Pleasure yachts, dive boats, ferry services |
| Yanmar 6HA‑T (turbocharged) | High‑output marine gensets, emergency fire‑pump drives, dredgers |
| Yanmar 6HA‑Genset | Prime and standby power generation on offshore platforms and land‑based plants |
Critical cross‑reference: The 726635‑22723 is the genuine Yanmar service part number for standard‑size pistons in the 6HA series. It supersedes older references such as 726635‑22720 or 726635‑22722. Oversize pistons are available (+0.25mm, +0.50mm, +0.75mm, +1.00mm) with corresponding part number suffixes – confirm your cylinder liner bore measurement and engine serial number (e.g., 6HA‑****) before ordering. This piston is typically supplied as a bare unit; piston rings, pin, and circlips are ordered separately or as part of a complete repair kit.
3. Common Failure Modes & Installation/Replacement Recommendations
Typical Warning Signs Your Piston Needs Replacement
Excessive blow‑by – Pressurised gases escaping into the crankcase, causing oil mist from the breather tube and reduced engine power.
High oil consumption with blue exhaust – Continuous blue smoke at operating temperature indicates worn ring grooves, a scored skirt, or a cracked ring land allowing oil to enter the combustion chamber.
Piston slap / metallic knocking – A hollow, metallic tapping noise, especially noticeable during cold starts, points to excessive piston‑to‑cylinder clearance due to skirt wear or ovality.
Loss of compression / hard starting – Difficulty starting the engine, rough idle, and reduced load‑carrying capacity signal a cracked piston crown or severely worn rings.
Metal particles in the oil – Finding aluminium or iron debris in the oil filter or sump indicates a piston in the early stages of catastrophic failure – immediate investigation is required.
Professional Installation Best Practices
Installing a new 726635‑22723 piston requires meticulous preparation and precise execution. Follow these essential steps:
Thorough cylinder bore inspection – Before installation, measure the cylinder liner bore at top, middle, and bottom positions (both in the thrust and non‑thrust axes) using a dial bore gauge. Verify that the bore is within service limits and that the correct oversize piston matches the existing bore. The piston‑to‑cylinder clearance for the Yanmar 6HA is typically 0.10 – 0.18 mm – confirm with your engine manual.
Piston ring end‑gap verification – Install the new rings into the cylinder bore (without the piston) and measure the ring end gaps using a feeler gauge. Typical compression ring gap is 0.30 – 0.45 mm. If the gap is too small, carefully file the ends with a ring filing tool. Never file rings on a used piston – always use the rings intended for the new piston.
Ring installation – Use a proper ring expander to fit the rings onto the piston. Never roll the rings over the piston skirt – this can scratch the MoS₂ coating. Ensure the ring markings (such as "TOP", a dot, or a coloured stripe) face upward towards the combustion chamber. Stagger the ring gaps at 120° intervals, ensuring they are positioned away from the thrust sides of the piston.
Lubrication – Coat the piston skirt, rings, and cylinder bore with clean engine oil or a high‑quality assembly lubricant (e.g., Lubri‑plate). Lightly lubricate the piston pin and pin bore as well.
Connecting rod assembly – Attach the piston to the connecting rod using the piston pin. If using a fully floating pin, install new circlips (snap rings) and ensure they are fully and securely seated in their grooves. Never reuse circlips – they lose their tension after removal.
Piston installation into cylinder – Use a high‑quality ring compressor to uniformly compress all rings. Gently tap the piston into the cylinder bore using a soft‑faced mallet or a wooden hammer handle. The piston should slide smoothly – if excessive force is required, stop and check for ring misalignment or incorrect ring gap.
Connecting rod bolt torque – Tighten the connecting rod bolts to the manufacturer's specified torque. For the Yanmar 6HA, typical torque is 45 – 55 N·m plus a 90° angle‑tighten (confirm with your manual). Always use a torque wrench and angle gauge for accuracy.
Break‑in procedure – After complete reassembly, start the engine and run at low idle (no load) for 15‑20 minutes to allow the rings to seat. Gradually apply load over the next 8‑10 hours, avoiding prolonged full‑load operation. Change the engine oil and filter after the initial break‑in period to remove any assembly debris.
4. Why Rsolid Engine Parts Is Your Preferred Global Supplier
Rsolid Engine Parts has been a trusted supplier of Yanmar, Mitsubishi, and Caterpillar diesel components for over 15 years, serving marine fleets, power plants, and workshops across six continents. Here is why the 726635‑22723 piston from Rsolid is the intelligent choice:
OEM‑equivalent manufacturing – Sourced from ISO 9001:2015 and IATF 16949 certified foundries, using the identical aluminium‑silicon alloy chemistry, Ni‑Resist ring groove materials, and cooling gallery designs as genuine Yanmar service pistons.
100% dimensional and weight inspection – Every piston is measured for diameter, ovality, ring groove height, and weight using advanced CMM equipment. We supply pistons in weight‑matched sets (typically within ±5g) to guarantee perfect engine balance and smooth operation.
Complete repair kit options – We offer this piston as a bare unit, with premium ring sets (German or Japanese steel), or as a full overhaul kit including pistons, rings, pins, circlips, connecting rod bearings, and gaskets – saving you time and sourcing hassle.
Global inventory and rapid dispatch – Strategically warehoused in Asia, Europe, and North America, ensuring 3‑7 working day delivery to most international ports and airports.
Competitive wholesale pricing – Attractive volume discounts for workshops, fleet operators, and parts distributors. Enquire about our bulk order programme and consolidated shipping options.
Free expert technical support – Our in‑house marine diesel engineers provide illustrated installation guides, torque specifications, ring gap calculations, and troubleshooting advice via WhatsApp or email.
Solid warranty – 12 months / 2,000 operating hours against casting defects, premature wear, and material failures – with a straightforward return and replacement policy.
Contact Rsolid Engine Parts Today
📧 Email: amy@rinjector.com
📱 WhatsApp: +86 15975376778
Whether you need a single 726635‑22723 piston for a running repair or a full set of six pistons for a complete Yanmar 6HA overhaul, Amy and her team will provide a detailed quotation, stock confirmation, and shipping schedule within 2 hours. We also supply complementary parts – piston rings, cylinder liners, connecting rods, bearing shells, and gasket sets – for comprehensive engine rebuilds.
Choose the 726635‑22723 piston from Rsolid – engineered for uncompromised durability, reduced oil consumption, and reliable power for your Yanmar 6HA marine engine.
