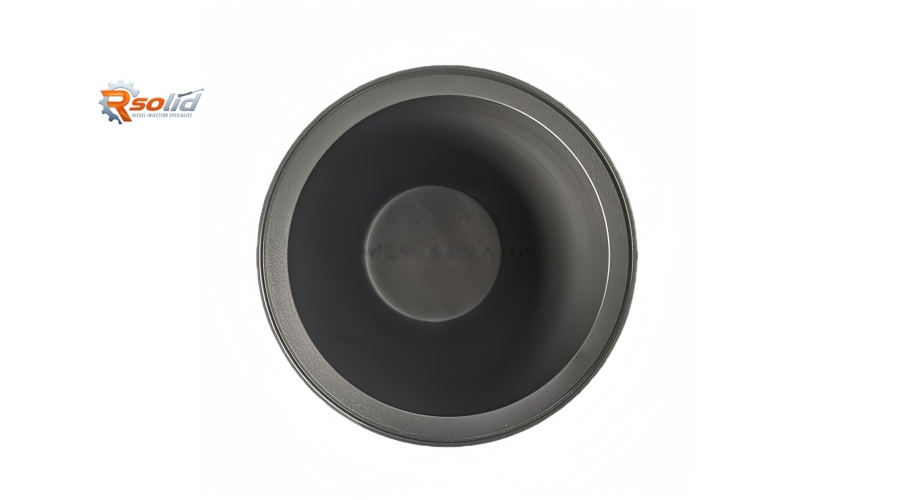

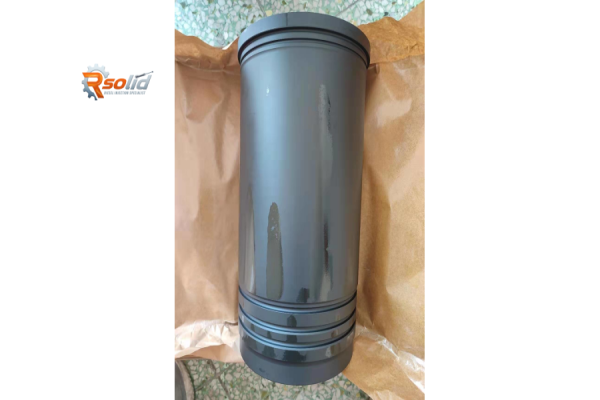

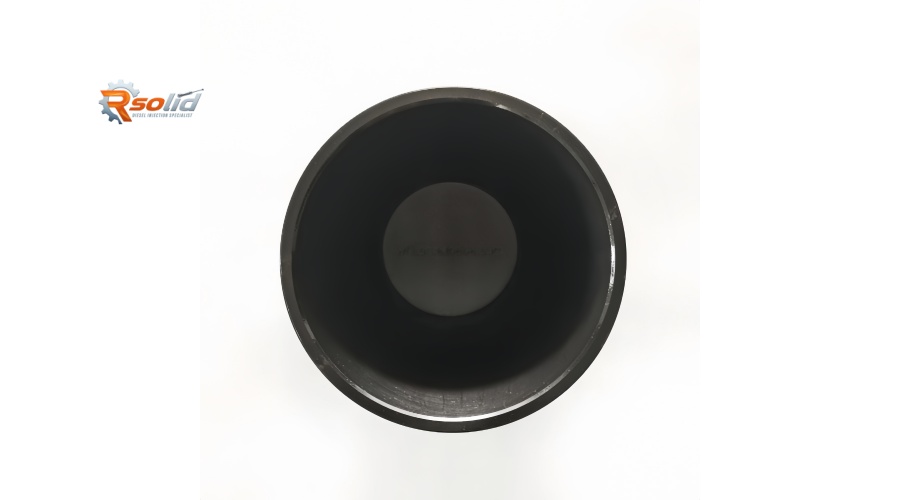

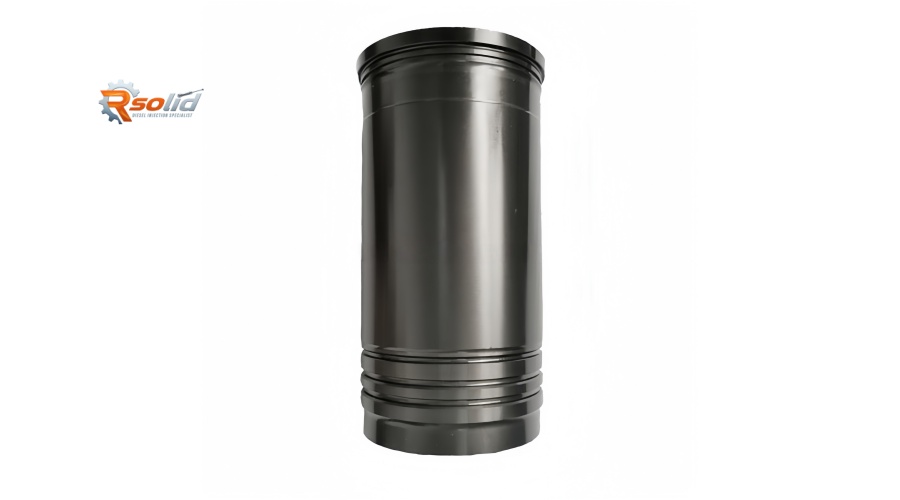

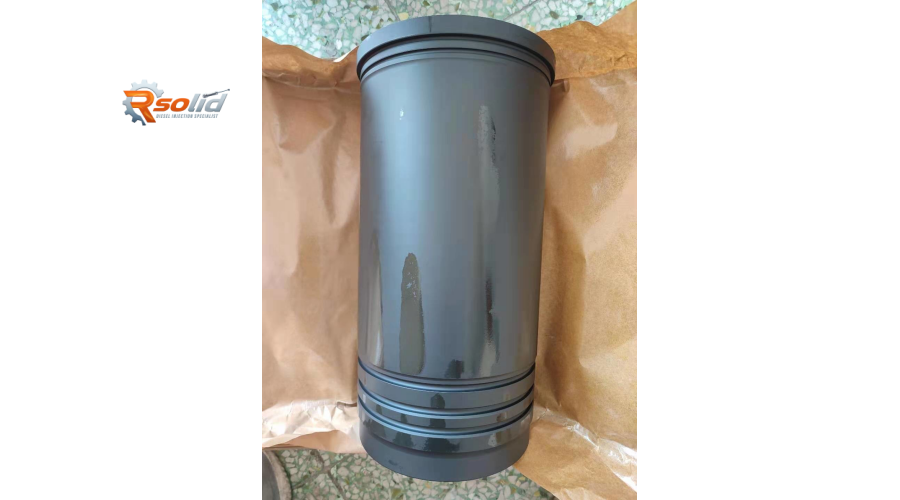

The Mitsubishi S6R2 engine is a six‑cylinder, inline heavy‑duty diesel workhorse, trusted worldwide for marine propulsion, auxiliary power generation, and industrial pumping applications. At the heart of its combustion efficiency and long‑term durability lies the cylinder liner – a critical component that forms the wear surface for the piston rings, seals the combustion chamber, and transfers heat to the coolant. The 37507-55600 cylinder liner is the exact OEM‑specification replacement part designed to restore your S6R2 engine to factory‑fresh performance.
Unlike low‑quality aftermarket alternatives, the genuine‑grade 37507‑55600 liner delivers superior scuff resistance, optimal oil retention, and extended service intervals. In this comprehensive guide, we examine its robust metallurgy, exact fitment for S6R2 variants, common failure indicators, step‑by‑step installation protocols, and why Rsolid Engine Parts is the preferred global supplier for Mitsubishi heavy‑duty spares.
1. Structural Features & Advantages of the 37507‑55600 Cylinder Liner
The 37507‑55600 cylinder liner is not a simple cast‑iron tube – it is a precision‑engineered component that withstands extreme mechanical and thermal stresses. Its design incorporates several heavy‑duty features:
Centrifugal cast alloy iron construction – Manufactured using advanced centrifugal casting techniques, this process ensures a dense, uniform grain structure with superior tensile strength and fatigue resistance. The material is specifically formulated to withstand the high cylinder pressures (up to 180 bar) and peak firing temperatures (exceeding 2,000°C) common in S6R2 combustion cycles.
Hardened and precision‑honed inner bore – The bore surface is induction‑hardened to achieve a minimum hardness of HRC 52‑56, providing exceptional resistance to adhesive wear (scuffing) and abrasive wear from combustion by‑products. The final plateau‑honing process creates a cross‑hatch pattern that optimises oil film retention – ensuring immediate piston ring seating during break‑in and reducing oil consumption over the liner's service life.
Wet liner design with integrated O‑ring grooves – The S6R2 uses a wet‑type liner, meaning the outer surface is directly exposed to engine coolant. The 37507‑55600 features precisely machined grooves at the lower section for high‑temperature FKM (Viton®) O‑rings. These seals prevent coolant leakage into the crankcase and maintain a positive seal against combustion gases migrating past the piston.
Precision‑machined top flange – The upper flange seats securely against the cylinder block deck, providing a rigid clamping surface for the cylinder head. The flange thickness and flatness are held to micron tolerances, ensuring correct liner protrusion – a critical factor for achieving a leak‑free head gasket seal and maintaining proper compression ratios.
Corrosion‑resistant internal coating – The water‑contact areas (outer liner surface) are treated with a protective anti‑corrosion layer to resist cavitation erosion and pitting caused by coolant vibration and chemical attack, significantly extending service intervals in marine environments.
Operational advantages for fleet operators and engineers:
Reduced oil consumption – The precision‑honed plateau finish reduces ring wear and minimises oil passing into the combustion chamber, cutting top‑up frequency by up to 20%.
Extended overhaul intervals – With proper maintenance and quality fuel, the 37507‑55600 can deliver 15,000 – 20,000 hours of reliable service – comparable to genuine Mitsubishi factory liners.
Improved heat transfer – The consistent wall thickness and high thermal conductivity cast iron ensure efficient heat dissipation, reducing the risk of thermal cracking and piston seizure.
Lower exhaust emissions – By maintaining a perfect cylinder seal, the liner preserves optimal compression ratios, leading to cleaner combustion and reduced smoke opacity.
100% direct fit – Matches OEM dimensions exactly, requiring no machining or shimming. Drop‑in replacement for original 37507‑55600 liners.
2. Compatible Engine Models & Typical Applications
The 37507-55600 cylinder liner is specifically engineered for the Mitsubishi S6R2 engine family. The S6R2 is a 6‑cylinder, inline, 4‑stroke, water‑cooled diesel with a displacement of approximately 24.5 litres. Below are the compatible engine variants and their common uses:
| Engine Model | Typical Applications |
|---|
| Mitsubishi S6R2‑PTA | Prime power gensets (50/60Hz), harbour tugs, fishing vessels |
| Mitsubishi S6R2‑MPTA | Marine propulsion for medium‑sized workboats, coastal freighters |
| Mitsubishi S6R2‑YPTA | Standby generator sets for hospitals, data centres, offshore platforms |
| Mitsubishi S6R2 (High‑Boost) | Fire‑pump drives, large compressor units, irrigation pump systems |
3. Common Failure Modes & Installation/Replacement Recommendations
Typical Warning Signs That Your Cylinder Liner Needs Replacement
Excessive blow‑by – Pressurised combustion gases escaping past the piston rings into the crankcase, indicating a worn bore or scuffed liner surface.
High oil consumption – Blue exhaust smoke and frequent oil top‑ups suggest the cross‑hatch wear pattern has been lost, preventing proper oil film retention.
Coolant contamination / loss – Evidence of coolant in the engine oil (milky emulsion) or dropping coolant levels without visible external leaks points to failed O‑rings or a cracked liner.
Knocking or abnormal combustion noise – A scored liner can cause piston slap, resulting in a metallic knocking sound at idle or under load.
Poor engine performance – Loss of compression due to ovality or wear reduces power output and increases fuel consumption.
Professional Installation Best Practices
Installing a new 37507‑55600 liner requires meticulous attention to detail. Follow these steps for a reliable, long‑lasting result:
Thorough cleaning of the cylinder block – Remove the old liner and thoroughly clean the liner bore in the block using a suitable solvent and a lint‑free cloth. Remove all old O‑ring residue, carbon deposits, and rust. The liner seat must be perfectly clean and dry.
Inspect the liner bores – Check the block's counterbore for damage, pitting, or excessive wear. Measure the protrusion height of the new liner (typically 0.05 – 0.15 mm above the block deck – verify with your manual) to ensure correct head gasket clamping.
Lubricate O‑rings properly – Lightly coat the new FKM O‑rings (supplied with the kit or separately) with clean engine oil or a specialised assembly lubricant. Never use silicone grease or petroleum jelly – they can prevent proper seating and cause coolant leaks.
Install the liner carefully – Use a dedicated liner puller or a press tool to insert the liner evenly into the block bore. Never use a hammer directly on the liner flange, as this can distort the precision‑honed bore.
Check liner protrusion – After seating, use a dial gauge to measure the liner's height above the block deck at multiple points. The variance must be within ±0.03 mm across all measurements to ensure an even head gasket seal.
Install new piston rings and pistons – When fitting the piston assembly, ensure the ring gaps are correctly staggered and the piston is oriented according to the engine manual. Use a ring compressor to avoid scoring the fresh liner surface.
Torque the cylinder head correctly – Tighten the cylinder head bolts to the manufacturer's specified torque (typically 150 – 180 N·m for S6R2 – consult your manual) using a staged, progressive tightening sequence. Re‑torque after the engine has reached operating temperature.
Run‑in procedure – After reassembly, start the engine and run it at low idle (no load) for 15‑20 minutes to allow the O‑rings to seat. Gradually apply load over the next few hours, avoiding prolonged high‑load operation during the initial break‑in period.
4. Why Rsolid Engine Parts Is Your Preferred Global Supplier
Rsolid Engine Parts has been a trusted supplier of Mitsubishi, Caterpillar, and other heavy‑duty diesel components for over 15 years. Here is why the 37507‑55600 from Rsolid is the smart choice for your S6R2 engine:
OEM‑equivalent manufacturing – Sourced from ISO 9001:2015 and IATF 16949 certified foundries, using the identical cast iron alloy chemistry, heat treatment, and honing specifications as genuine Mitsubishi service parts.
100% dimensional inspection – Every liner is checked for bore ovality, straightness, flange thickness, and surface finish using coordinate measuring machines (CMM). We guarantee fitment to OEM tolerances.
Supplied with premium O‑rings – Our kits include high‑quality FKM (Viton®) seals, pre‑tested for compression set and coolant resistance – no need to source them separately.
Global stock and rapid delivery – Warehouses in Asia, Europe, and North America ensure 3‑7 working day delivery to most international ports and airports.
Competitive wholesale pricing – Volume discounts available for workshops, fleet operators, and parts distributors. Ask about our bulk order discounts and container shipping options.
Expert technical support – Our in‑house diesel engineers provide free installation guidance, torque specifications, and troubleshooting assistance via WhatsApp or email.
Solid warranty – 12 months / 2,000 operating hours against casting defects, premature wear, and material failures – with a straightforward return and replacement process.
Contact Rsolid Engine Parts Today
📧 Email: amy@rinjector.com
📱 WhatsApp: +86 15975376778
Whether you need a single 37507‑55600 liner for a scheduled overhaul or a full set of six liners for a complete S6R2 rebuild, Amy and her team will provide a detailed quotation, stock availability, and shipping schedule within 2 hours. We also supply complementary parts – piston assemblies, ring kits, connecting rod bearings, gasket sets, and cylinder head components – for complete engine rebuilds.
