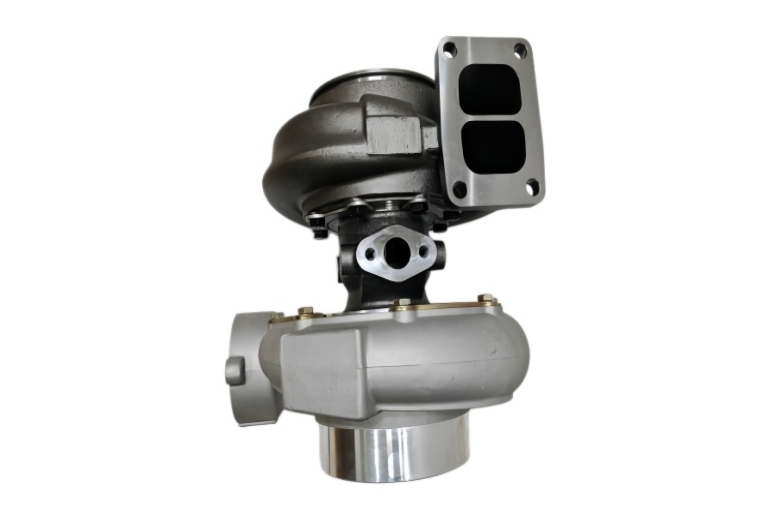

49182-06010 Turbocharger TD13 Suitable for MITSUBISHI S6R S12R S16R: Complete Technical Guide

Following the success of our previous guide, today we continue with another critical engine component. If you operate Mitsubishi heavy-duty diesel engines from the S6R, S12R, or S16R series, you already know that forced induction is the key to power and efficiency. At the heart of this system lies the 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R – a precision-engineered forced induction device that dramatically increases engine output. In this comprehensive article, we will explore every aspect of this turbocharger, from its basic definition and working mechanism to its advantages, applications, technical specifications, and why Rsolid Engine Parts is your best supplier.

1. What Is the 49182-06010 Turbocharger TD13 Suitable for MITSUBISHI S6R S12R S16R?

The 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R is a genuine specification turbocharger designed specifically for Mitsubishi’s renowned S-series engines. These engines – the S6R (6-cylinder inline), S12R (12-cylinder V-configuration), and S16R (16-cylinder V-configuration) – are widely used in power generation, marine propulsion, industrial pumping, and heavy construction equipment. The TD13 model refers to a particular frame size and aerodynamic design within Mitsubishi’s turbocharger family.

But what exactly is a turbocharger? In simple terms, a turbocharger is an exhaust-driven air compressor. It captures waste energy from the engine’s exhaust gases and uses it to force more air into the combustion chambers. The 49182-06010 turbocharger TD13 is built to handle the specific exhaust flow, pressure ratios, and mounting configurations of Mitsubishi S6R, S12R, and S16R engines. Unlike generic turbos, this unit has matched turbine and compressor wheel geometries that align with the engine’s displacement, valve timing, and fuel injection characteristics.

This turbocharger is commonly found on engines ranging from 300 kW to over 1,500 kW. Whether your Mitsubishi S6R powers a standby generator in a hospital or an S16R propels a large fishing vessel, the 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R ensures that the engine breathes efficiently at all loads. It is a direct replacement part, meaning no modifications to exhaust manifolds, oil lines, or intake piping are required when you purchase a quality aftermarket or remanufactured unit.

2. How Does the 49182-06010 Turbocharger TD13 Work?

To understand why the 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R is so effective, let’s break down its operating principles into clear steps. A turbocharger may seem complex, but its core function is elegantly simple.

Step 1: Exhaust Gas Entry
As your Mitsubishi S6R, S12R, or S16R engine runs, it expels hot exhaust gases (typically 600–800°C) from each cylinder. These gases merge into the exhaust manifold and are directed toward the turbocharger’s turbine housing. The 49182-06010 turbocharger TD13 features a divided turbine housing (twin-scroll) to minimize pulse interference between cylinders, which is especially important for V12 and V16 engines.

Step 2: Turbine Wheel Rotation
Inside the turbine housing, the exhaust gases strike a nickel-chromium alloy turbine wheel. The shape of the blades converts the velocity and pressure of the gas into rotational force. The 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R uses an advanced aerofoil design that extracts maximum energy across a wide exhaust flow range – from low idle to full load. This wheel can spin at over 100,000 RPM, supported by fully floating or ball bearings (depending on the variant).

Step 3: Compressor Wheel Air Compression

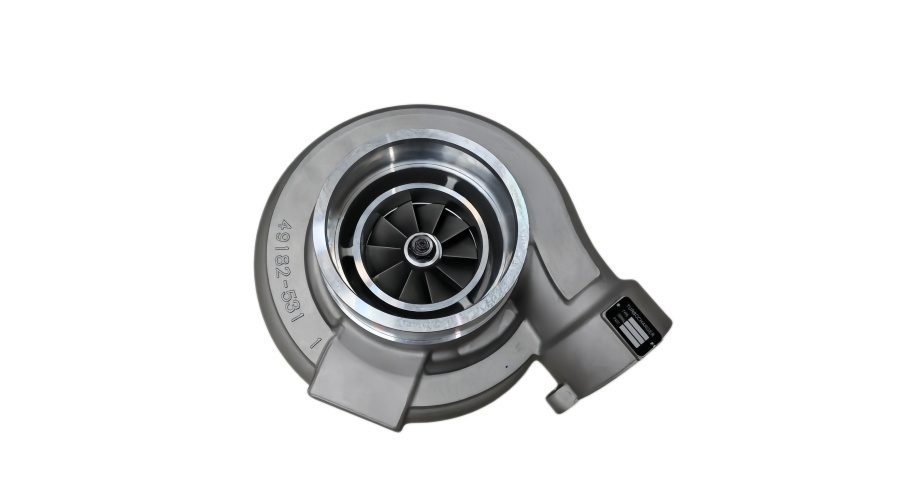

A common shaft connects the turbine wheel to the compressor wheel at the opposite end of the turbocharger. As the turbine spins, it drives the compressor wheel inside the compressor housing. The compressor wheel draws in ambient air through an air filter, then flings it outward at high speed. The velocity energy is converted into pressure in the volute (scroll) of the compressor housing. The 49182-06010 turbocharger TD13 typically achieves a pressure ratio of 2.5 to 3.5:1, meaning it can supply air at 2.5 times atmospheric pressure.

Step 4: Intercooling and Combustion
The compressed air exits the turbocharger and passes through an aftercooler (intercooler) before entering the engine’s intake manifold. Cooling the air increases its density, providing more oxygen molecules per cylinder fill. With the 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R, the engine can burn more fuel per stroke, producing significantly more power – typically 30-50% more than a naturally aspirated version of the same engine.

Step 5: Wastegate or VG Control (If Equipped)
Some variants of the 49182-06010 turbocharger TD13 include a wastegate actuator or variable geometry (VG) vanes to control boost pressure and prevent overspeed. The wastegate bypasses exhaust gas around the turbine when the target boost is reached, protecting the engine from overboost. This feature is especially important for Mitsubishi S6R engines used in generator sets requiring stable voltage and frequency.

3. Key Advantages of the 49182-06010 Turbocharger TD13 for Mitsubishi Engines

Installing a genuine or high-quality equivalent 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R brings a host of tangible benefits. Here are the most important advantages you will experience:

A. Significant Power Increase
The most obvious benefit is raw power. A Mitsubishi S6R that produces 250 kW naturally aspirated can produce over 350 kW when properly turbocharged with the 49182-06010 turbocharger TD13. For S16R engines, the gain can exceed 500 kW. This means you can accomplish more work – whether generating electricity, moving a ship, or driving a pump – with the same engine displacement.

B. Improved Fuel Efficiency
Because the turbocharger recycles waste exhaust energy, it improves the engine’s thermal efficiency. The 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R enables leaner air-fuel mixtures at part load, reducing specific fuel consumption (SFC) by 5-10%. Over thousands of operating hours, this translates to substantial fuel savings.

C. Reduced Emissions
Better combustion efficiency means lower particulate matter (PM) and carbon monoxide (CO) emissions. The 49182-06010 turbocharger TD13 supplies ample excess air to ensure complete burning of fuel, especially important for engines that must meet EPA or IMO emissions standards. Many S12R and S16R engines in marine applications rely on this turbocharger to achieve Tier II or Tier III compliance.

D. Enhanced High-Altitude Performance
At high altitudes, air density drops, robbing naturally aspirated engines of power. The 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R compensates by spinning faster to maintain sea-level equivalent manifold pressure. This is critical for mining equipment in the Andes or generator sets in mountainous regions.

E. Quiet Operation and Lower Exhaust Temperature
A properly matched turbocharger acts as a silencer, smoothing out exhaust pulses. Operators report that the 49182-06010 turbocharger TD13 reduces exhaust noise by 3-5 dB compared to non-turbo configurations. Additionally, by extracting energy from exhaust gases, it lowers the temperature at the exhaust outlet, which extends the life of downstream piping and silencers.

F. Long Service Life with Proper Maintenance
Mitsubishi designed the TD13 series for industrial durability. The 49182-06010 turbocharger suitable for MITSUBISHI S6R S12R S16R uses high-temperature bearings, heat-resistant seals, and balanced rotating assemblies that typically last 8,000–12,000 hours before a rebuild is needed. With clean oil and proper cooldown procedures, many users exceed 15,000 hours.

4. Applications of the 49182-06010 Turbocharger TD13

The 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R is found across a diverse range of industries. Below are the primary applications where this turbocharger proves indispensable:

Power Generation (Diesel Gensets)
Mitsubishi S6R engines are widely used in prime and standby generator sets from 300 kVA to 600 kVA. S12R and S16R gensets cover 800 kVA to 2,000 kVA. The 49182-06010 turbocharger TD13 ensures rapid load acceptance (e.g., starting a large motor) without voltage dip. Hospitals, data centers, telecom towers, and manufacturing plants rely on these gensets – and a failed turbocharger can cause a blackout. Rsolid Engine Parts stocks this turbo to keep critical power online.

Marine Propulsion and Auxiliary Power
Fishing vessels, tugboats, cargo ships, and pleasure yachts often use Mitsubishi S6R, S12R, and S16R engines as main propulsion units. The 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R is resistant to salt corrosion (with proper coating) and can handle continuous high load. Auxiliary gensets on ships also use this turbo to ensure reliable hotel loads.

Industrial Pumping and Compressor Drives
Water treatment plants, oil pipelines, and irrigation systems use Mitsubishi S-series engines to drive large centrifugal pumps or air compressors. The 49182-06010 turbocharger TD13 delivers consistent torque across a wide RPM range, which is essential for maintaining constant flow rates.

Heavy Construction and Mining
Although less common than in stationary applications, some off-highway dump trucks, excavators, and drill rigs use Mitsubishi S6R engines. The 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R is built with heavy-duty bearing housings to withstand vibration and shock loads.

Agricultural Irrigation
Large center-pivot irrigation systems often use diesel-driven pump sets. The turbocharged S6R with the 49182-06010 turbocharger provides the torque needed to start and run high-flow pumps while sipping fuel. In remote agricultural regions, reliability is paramount – and this turbocharger delivers.

5. Specifications and Variants of the 49182-06010 Turbocharger TD13

When purchasing the 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R, understanding the exact specifications is essential. Below is a detailed technical table based on Mitsubishi’s original design parameters and common aftermarket equivalents.

Important Variants:
While the 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R is the primary number, Mitsubishi and aftermarket manufacturers offer slight variations:

• Standard version (49182-06010-01): For most S6R industrial and marine engines without wastegate.

• High-boost version (49182-06010-02): For S12R and S16R engines requiring higher pressure ratios (up to 3.5:1). Includes a reinforced compressor wheel.

• Marine version (49182-06010-03): Features a special coating on the compressor housing and stainless steel hardware to resist saltwater corrosion.

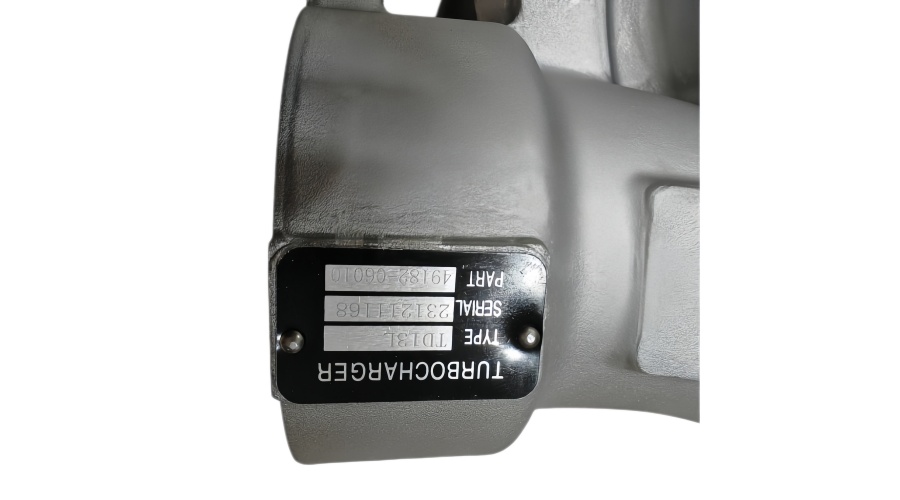

Always verify your engine’s serial number and original turbocharger data plate before ordering. Rsolid Engine Parts can help you cross-reference to ensure you receive the correct 49182-06010 turbocharger for MITSUBISHI S6R S12R S16R.

6. Why Rsolid Engine Parts Is the Best Supplier for 49182-06010 Turbocharger TD13

Selecting a reliable supplier for the 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R is as critical as choosing the turbo itself. Counterfeit or poorly rebuilt turbos can destroy your engine. Rsolid Engine Parts has earned a reputation for excellence in the diesel engine parts industry. Here’s why you should trust Rsolid for this turbocharger:

Rigorous Quality Testing
Every 49182-06010 turbocharger sold by Rsolid Engine Parts undergoes a strict multi-step validation process. First, all components are inspected for cracks, wear, or casting defects. Then, the rotating assembly is balanced on a VSR (Vibration Stress Relief) machine to within ISO G2.5 grade – a standard many rebuilders ignore. Finally, each completed turbocharger is hot-tested on a supercharger test bench that simulates actual exhaust gas temperatures and flow rates. You receive a certified test report showing boost pressure, oil pressure, and vibration levels.

OEM-Spec or Better Components
Instead of using generic repair kits, Rsolid sources genuine Mitsubishi-spec cartridges or manufactures to original drawings using Japanese and European raw materials. The 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R from Rsolid includes high-temperature piston rings, K27-grade bearings, and Viton O-rings that withstand aggressive engine oils. No shortcuts – only parts engineered to last.

Exact Fitment Guarantee
Rsolid Engine Parts understands that Mitsubishi S6R, S12R, and S16R engines have subtle differences based on emission tier (Tier 1, 2, or 3) and application. When you order the 49182-06010 turbocharger, a dedicated parts specialist will ask for your engine serial number, turbocharger plate information, and even photographs of the old unit if available. This eliminates the risk of receiving a mismatched turbocharger with the wrong turbine housing A/R ratio or oil drain flange.

Competitive Pricing Without Surprises
Turbocharger pricing can be opaque, with core charges, separate gasket kits, and hidden shipping fees. Rsolid Engine Parts offers all-inclusive pricing for the 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R. What you see is what you pay – including new mounting gaskets, oil supply tube washers, and even return shipping labels for your core if you opt for a remanufactured unit. Prices are typically 25-35% lower than authorized dealer lists.

Fast Global Logistics
Downtime costs money – sometimes thousands of dollars per hour. Rsolid maintains regional warehouses in Houston (USA), Rotterdam (Netherlands), Shanghai (China), and Dubai (UAE). For urgent orders, the 49182-06010 turbocharger can be shipped via DHL Express or FedEx Priority, with delivery in 2–5 business days to most industrial regions. Rsolid also offers emergency airfreight for offshore or remote mine sites.

Expert Technical Support
Not sure how to remove a stuck turbocharger, inspect for oil coking, or perform a post-installation cooldown procedure? Rsolid’s in-house diesel engineers are available 6 days a week via phone, email, or WhatsApp. They can walk you through:

• Proper pre-lubrication of the 49182-06010 turbocharger TD13 before first start.

• Torque specs for mounting bolts (typically 45–55 Nm for the flange nuts).

• Diagnosing boost leaks or shaft play after installation.
  This level of support is unmatched by large online retailers.

Warranty and Return Policy
Rsolid Engine Parts offers a 12-month / 2,000-hour warranty (whichever comes first) on every 49182-06010 turbocharger suitable for MITSUBISHI S6R S12R S16R. The warranty covers bearing failure, seal leakage, wheel damage, and even consequential damage if the turbocharger causes an engine issue (subject to inspection). In the rare event of a defect, Rsolid sends a replacement immediately and covers return shipping. No lengthy claim processes.

Remanufacturing for Sustainability
For environmentally conscious operators, Rsolid offers a certified remanufactured version of the 49182-06010 turbocharger TD13. Your old core is remanufactured using only reusable housings – all internal rotating parts are brand new. This reduces waste and lowers cost. Plus, Rsolid plants one tree for every reman turbo sold, as part of their green initiative.

Summary: Why the 49182-06010 Turbocharger TD13 Is Essential for Your Mitsubishi Engine

The 49182-06010 turbocharger TD13 suitable for MITSUBISHI S6R S12R S16R is much more than an air pump – it is a power multiplier, a fuel saver, and an emissions reducer. We have walked through what this turbocharger is, how it converts exhaust gas into boost pressure, its many advantages (more power, lower fuel consumption, better high-altitude performance), its broad applications across gensets, marine vessels, and industrial pumps, and the critical specifications you need to match your engine.

Most importantly, we have introduced you to Rsolid Engine Parts – a supplier that stands behind every turbocharger with industry-leading quality control, perfect fitment guarantees, transparent pricing, fast global shipping, expert technical support, and a robust warranty. Whether you need a new, remanufactured, or core-exchange 49182-06010 turbocharger TD13, Rsolid is your trusted partner.

Do not wait until your Mitsubishi S6R loses power, emits black smoke, or suffers from oil leakage from the turbocharger seals. Contact Rsolid Engine Parts today, submit your engine details, and get a quote for the 49182-06010 turbocharger suitable for MITSUBISHI S6R S12R S16R. Restore your engine’s performance and keep your operations running smoothly.
