Difficulty starting the engine due to diesel pump malfunction

If you are experiencing difficulty starting your engine and suspect a diesel pump malfunction, it’s important to approach the problem systematically. Diesel engines rely on high-pressure fuel delivery, ignition (glow plugs), and air compression to start.

Here is a step-by-step guide to help you diagnose and potentially address the issue

⚠️ CRITICAL SAFETY WARNING

• High Pressure: Modern diesel fuel systems (Common Rail) operate at extremely high pressures (up to 30,000+ PSI). Never loosen a fuel line while the engine is running or being cranked, as the fuel spray can penetrate the skin and cause serious injury.

• Fire Hazard: Diesel is flammable. Keep sparks and open flames away from the engine bay.

Step 1: Confirm the Symptoms

Before assuming the pump is the root cause, verify the symptoms of a pump malfunction:

• Engine cranks (turns over) but won't start: This is the most common sign of fuel delivery failure.

• No smoke from exhaust while cranking: If you see white or grey smoke while cranking, fuel is reaching the cylinders, meaning the pump is likely working (the problem may be glow plugs or compression). If there is zero smoke, fuel may not be reaching the cylinders.

• Engine starts then dies: This often indicates the pump is building pressure initially but cannot maintain it.

• Whining noise from fuel tank (for lift pumps): A loud whine can indicate a failing electric fuel pump.

Step 2: Perform Basic Checks (Eliminate Other Causes)

Don't replace the pump yet. Check these three things first:

1. Fuel Level: Sounds obvious, but ensure you actually have fuel. If you ran it dry, the system simply needs to be primed.

2. Battery Health: Diesel starters require massive amperage. If the engine isn't cranking fast enough (sounds sluggish), the pump won't spin fast enough to build the required rail pressure.

3. Glow Plugs: If it's cold outside, the engine may not start due to faulty glow plugs, not the pump.

Step 3: Check the Fuel Supply System

The high-pressure pump cannot push what it doesn't receive. Check the "LP" (Low Pressure) side:

1. Fuel Filters: A clogged fuel filter is the #1 culprit for "crank, no start" conditions. Diesel fuel grows algae (diesel bug) and waxes in cold weather, blocking the filter.

2. Primer Bulb/Lever: Locate the manual primer (usually a rubber bulb or a plunger on top of the filter housing).

• Pump it. If it feels spongy or offers no resistance, air is getting into the system (bad seal or leak).

• If it feels rock hard immediately, the system is likely bled, but the high-pressure pump may be failing.

3. Lift Pump: If your vehicle has an electric lift pump (common in Ford Powerstroke, Duramax, Cummins), listen for it when you turn the key to "ON" (without starting). It should whir for 2-3 seconds. If it's silent, it may be dead.

Step 4: Bleed the System (If Air is Suspected)

If you suspect you have air in the lines (due to running out of fuel or a filter change), you must bleed it.

1. Locate the manual primer.

2. Locate the bleed screw (usually on top of the fuel filter housing or injection pump).

3. Loosen the bleed screw.

4. Pump the primer until fuel squirts out without bubbles from the bleed screw.

5. Tighten the bleed screw while pressing the primer (to prevent air being sucked back in).

Step 5: Identify the Type of Pump Failure

There are two main types of pumps; diagnosis differs slightly:

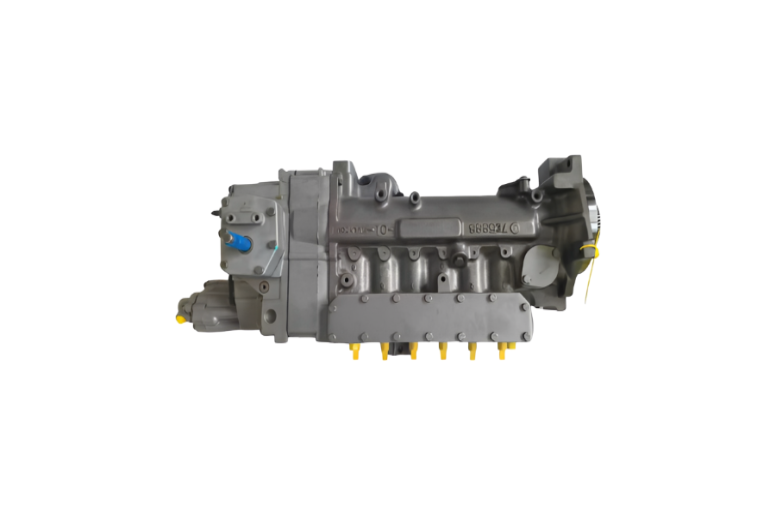

1. Mechanical Injection Pump (Older Vehicles - 80s, 90s)

• Visual Check: Look for fuel leaks around the pump seals.

• Throttle Linkage: Ensure the lever on the pump is actually moving when you press the accelerator.

• Fuel Shut-Off Solenoid: These pumps have a solenoid that cuts fuel to stop the engine. If this solenoid fails electrically, no fuel will flow. You can often hear a "click" from the pump when the key is turned on/off. If no click, it may be faulty.

2. High-Pressure Common Rail Pump (Modern Vehicles)

• ECU Scan Required: You almost certainly need an OBD2 scanner. A failing CP4 pump (common in many modern diesels) will send metal shavings through the system. If this happens, it often destroys the entire fuel system (injectors, rails, lines).

• Warning: If you suspect a CP4 failure, do not keep cranking the engine. You risk circulating metal debris and turning a $1,200 repair into a $10,000+ one.

Step 6: What To Do Next

Based on your findings, here are your options:

• If the filter is clogged: Replace it, prime the system, and try to start.

• If there is air in the lines: Find the leak (cracked hose, loose clamp), repair it, and bleed the system.

• If the lift pump is dead (electric): Replace the lift pump (usually located in or near the fuel tank).

• If the injection pump is leaking or mechanical pump is dead:

• Old Vehicle: You may be able to find a rebuild kit or a replacement pump.

• Modern Vehicle: This is a job for a professional diesel mechanic. The pump timing often needs to be calibrated electronically or mechanically, which requires special tools.

• If you suspect metal contamination (common rail): Do not start the engine. Call a tow truck and take it to a specialist. The entire fuel system (tank, lines, rails, injectors) may need to be flushed and rebuilt.
