Engine Rebuild Kit for Caterpillar C9 Diesel Engine – Complete In‑Frame Overhaul Solution
  • May 03,2026

Engine Rebuild Kit for Caterpillar C9 Diesel Engine – Complete In‑Frame Overhaul Solution

F3851657 Engine Rebuild Kit for Caterpillar C9 Diesel Engine – Complete In‑Frame Overhaul Solution

1. Basic Specifications & Key Parameters

The F3851657 engine rebuild kit is a complete in‑frame overhaul solution designed specifically for the Caterpillar C9 diesel engine – a compact, high‑power density 8.8‑liter, inline 6‑cylinder engine widely used in medium‑duty trucks, construction equipment, buses, and industrial applications. This kit allows a full rebuild while the engine remains in the chassis, saving significant labor time and reducing downtime.

Base Engine Specifications (Caterpillar C9 – ACERT / Pre‑ACERT):

  • Displacement: 8.8 L (537 cu in)

  • Bore × Stroke: 112 mm × 149 mm (4.41″ × 5.87″)

  • Cylinder configuration: Inline 6‑cylinder, 4‑stroke, turbocharged & aftercooled

  • Fuel system: HEUI (Hydraulically actuated Electronic Unit Injection) – electronic

  • Compression ratio (stock): 16.5:1 – 17.0:1 (depending on rating)

  • Power range: 250 – 350 hp (186 – 261 kW) in truck applications; up to 375 hp in industrial

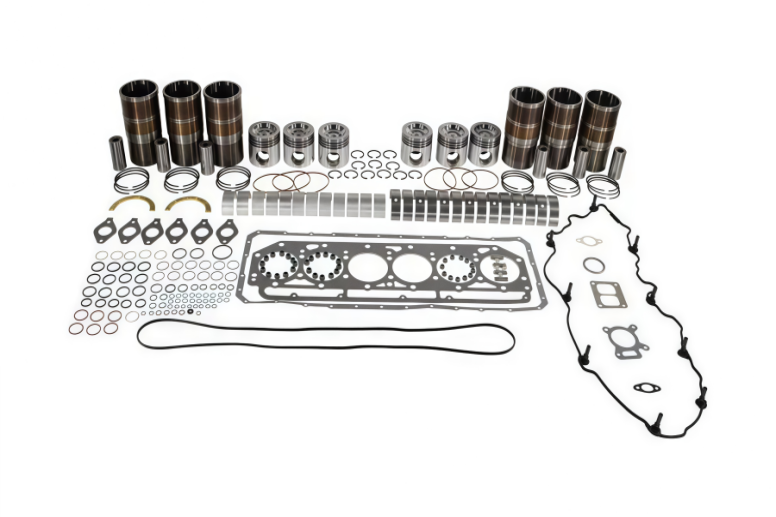

What the F3851657 In‑Frame Rebuild Kit Includes:

  • 6 x wet‑type cylinder liners (centrifugally cast gray iron, induction‑hardened bore, precision plateau cross‑hatch finish)

  • 6 x forged aluminum pistons (with internal cooling gallery and reinforced ring lands)

  • 6 x piston ring sets (plasma moly top ring, tapered second ring, 3‑piece steel oil ring with expander)

  • Piston pins (wrist pins) and retaining rings

  • Main bearings (tri‑metal – steel back, copper‑lead, tin‑babbitt) – standard or undersize

  • Connecting rod bearings (tri‑metal)

  • Thrust washers (crankshaft end‑play control)

  • Camshaft bearings

  • Full upper & lower gasket set – MLS (multi‑layer steel) cylinder head gasket, valve cover, oil pan, intake/exhaust manifold, turbocharger, timing cover, water pump seals, all O‑rings, HEUI injector seals, copper washers, front & rear crankshaft seals

  • Piston cooling jets (oil spray nozzles)

  • Valve stem seals

  • Connecting rod bolts (torque‑to‑yield – must be replaced)

Important Notes:

  • Part number F3851657 is the OEM / aftermarket reference for the complete C9 in‑frame kit. Always verify your engine serial number prefix (e.g., C9-###, LGK, LHX, LJC, etc.) before ordering.

  • The C9 uses aluminum pistons (not steel) – do not confuse with C13 steel piston kits.

  • Bearing oversizes available: standard, 0.010″, 0.020″, 0.030″.

  • The C9 is sometimes confused with the C7 (7.2L) – ensure correct displacement.

2. Compatible Vehicles & Equipment

The Caterpillar C9 diesel engine is widely used across medium‑duty and heavy‑duty applications. The F3851657 rebuild kit is suitable for any application powered by a C9 engine.

Medium‑Duty & Heavy‑Duty Trucks

  • Peterbilt 325, 330, 335, 340, 348, 365 (C9 option)

  • Kenworth T270, T370, T380, T440, T470 (C9 powered)

  • Freightliner M2 106, M2 112 (with C9)

  • International DuraStar 4300, 4400, 7300 (C9 available)

  • Western Star 4700 (C9 option)

Buses & Coaches

  • Thomas Built Buses (C9 powered school & transit)

  • Blue Bird All American, Vision (C9)

  • Motorcoaches (MCI, Prevost, Van Hool – some with C9)

Construction Equipment

  • Caterpillar excavators (322C, 325C, 330C – some use C9)

  • Caterpillar wheel loaders (924H, 928H, 930H, 938H – C9 powered)

  • Caterpillar backhoe loaders (432E, 442E, 446D, 450E – some use C9)

  • Caterpillar motor graders (120M, 12M, 140M, 160M – early M series with C9)

  • Caterpillar telehandlers (TH360, TH460, TH560)

  • Caterpillar compactors and scrapers

Industrial & Stationary

  • Generator sets (C9 industrial engines, 150–300 kW prime power)

  • Industrial pumps, air compressors, drill rigs, crushers

  • Material handlers

Agricultural

  • Large tractors and self‑propelled harvesters (C9 repower)

Fire & Emergency

  • Fire trucks, rescue vehicles, airport crash trucks (many custom chassis use C9)

Marine

  • Small workboats, patrol vessels, auxiliary power (C9 marine)

Verify your engine serial number prefix – Common C9 prefixes: C9-### (early), LGK, LHX, LJ, LJC, LHN, etc. Contact Rsolid Engine Parts with your engine serial number or arrangement (AR) number for exact fitment.

3. Performance Advantages & Functional Improvements

Installing the F3851657 complete in‑frame rebuild kit restores the Caterpillar C9 engine to factory‑fresh operating condition. Here are the key performance gains:

✅ Restored Compression & Full Power Recovery
New cylinder liners, pistons, and rings seal combustion gases completely. Cranking compression returns to factory spec (typically 380–450 psi depending on compression ratio). The engine regains its rated horsepower (250–350 hp) and corresponding torque – no more power loss on hills or under heavy loads.

❌ Elimination of Blow‑by
Worn rings and polished liners cause excessive crankcase pressure, a common issue on high‑hour C9 engines. New plasma‑moly top rings (with optimized radial tension) reduce blow‑by to near zero. You will see no more vapor from the oil fill tube, breather, or dipstick tube.

⛽ Drastically Reduced Oil Consumption
A worn C9 can burn 1 quart of oil every 100–200 miles or 50–80 hours. After a quality rebuild using the F3851657 kit, oil consumption drops to less than 0.5 quart per 500 miles (or 0.25 quart per 100 hours). Blue exhaust smoke disappears, and you no longer need frequent top‑ups.

📈 Improved Fuel Economy
Restored compression and proper combustion chamber sealing increase thermal efficiency by 10–15%. Many owners report fuel savings of 0.5–1.0 mpg in truck applications, quickly recovering the cost of the rebuild kit.

🔧 Healthy Oil Pressure
New main and rod bearings restore oil clearances (typically 0.002–0.004″). Hot idle oil pressure rises from a concerning 10–15 psi to a robust 25–35 psi. At working RPM (1,800–2,200), pressure returns to 45–65 psi – protecting the turbocharger, HEUI pump, camshaft, and crankshaft.

🔇 Smooth & Quiet Operation
New pistons, rings, bearings, and gaskets eliminate knocking, rapping, and uneven running. The C9 runs with a steady, balanced cadence – reducing operator fatigue, cab vibration, and noise levels.

⏳ Extended Service Life
A proper in‑frame rebuild using a high‑quality kit like F3851657 can extend the life of your Caterpillar C9 by 8,000–12,000 operating hours or 400,000–600,000 miles in on‑highway use, depending on maintenance and operating conditions.

🛠️ HEUI System Compatibility
The kit includes high‑quality injector seals, O‑rings, and gaskets specifically designed for the HEUI fuel system. Proper sealing prevents high‑pressure oil leaks (which can damage the HEUI pump) and ensures consistent injection pressure for optimal combustion.

Rsolid Engine Parts – Your Trusted Supplier for Caterpillar C9 Rebuild Kits

Rsolid Engine Parts is a leading global supplier of diesel engine rebuild kits, fuel injectors, turbochargers, and heavy‑duty components. Our F3851657 engine rebuild kit for the Caterpillar C9 is manufactured to meet or exceed original equipment specifications, offering exceptional value for truck fleets, owner‑operators, construction companies, and rebuild shops.

Why Choose Rsolid Engine Parts?

  • OEM Quality – All components are sourced from ISO‑9001 certified factories that supply to major OEMs. Each part is dimensionally verified against Caterpillar engineering standards.

  • Complete Kits – Every kit is assembled, inspected, and counted before shipment – no missing gaskets, seals, or bearings. You receive exactly what you need for a full in‑frame rebuild.

  • Perfect Fitment Guarantee – We verify engine serial numbers (LGK, LHX, LJC, etc.) and arrangement (AR) numbers to ensure 100% compatibility. If it doesn’t fit, we will replace it.

  • Aluminum Pistons Confirmed – We supply the correct forged aluminum pistons that the C9 requires – no risk of mixing with steel piston kits from larger engines.

  • Flexible Options – Standard and oversize bearing sets (0.010″, 0.020″, 0.030″) available. Upgraded ring packs for extended drain intervals also available.

  • Fast Worldwide Shipping – Our large inventory is ready for immediate dispatch, minimizing your equipment downtime.

  • Expert Technical Support – Our team includes experienced Caterpillar diesel mechanics who can assist with installation, torque specifications, HEUI priming, and troubleshooting.

  • Competitive Pricing – Direct sourcing cuts out middlemen, passing significant savings to you.

Contact Rsolid Engine Parts today:

Request a free quote, check stock availability, or get professional installation advice. Keep your Caterpillar C9 running stronger, cleaner, and more efficiently with Rsolid Engine Parts.
