How to troubleshoot and provide solutions for diesel engines that experience decreased power and unstable idle speed
When a diesel engine experiences decreased power and unstable idle speed, it typically points to issues with fuel delivery, air intake, compression, or electronic controls. A systematic troubleshooting approach helps identify the root cause efficiently. Below is a step-by-step guide to diagnose and resolve these problems.
1. Preliminary Checks
Visual Inspection: Look for obvious leaks (fuel, oil, coolant), damaged wiring, loose connections, or physical damage to components.
Fluid Levels: Check engine oil, coolant, and fuel levels. Low fuel can cause air ingestion.
Warning Lights: If the engine has an electronic control unit (ECU), check for diagnostic trouble codes (DTCs) using an OBD scanner.
2. Fuel System Diagnosis
Fuel issues are the most common cause of power loss and rough idle.
a. Fuel Filters
Symptoms: Clogged filters restrict flow, causing starvation at higher loads and uneven idle.
Check: Replace fuel filter(s) if maintenance interval exceeded or if there’s visible contamination. Water-in-fuel sensors may indicate water presence.
Solution: Replace filter and prime the system to remove air.
b. Air in Fuel System
Symptoms: Bubbles in fuel lines, erratic idle, hard starting.
Check: Inspect fuel lines for cracks or loose connections. Use a clear hose on the return line to check for air bubbles.
Solution: Tighten connections, replace damaged lines, bleed the system using the primer pump or by cracking injector lines.
c. Fuel Quality
Symptoms: Contaminated or old fuel (water, algae) can cause poor combustion.
Check: Drain a sample from the filter or tank. Look for water separation or discoloration.
Solution: Drain tank, replace fuel, and clean the system. Use biocides if algae present.
d. Fuel Pump (Lift Pump)
Symptoms: Low fuel pressure at the injection pump.
Check: Measure fuel pressure at the pump inlet (specs vary by engine). On mechanical pumps, check for leaks or weak diaphragm.
Solution: Repair or replace the lift pump.

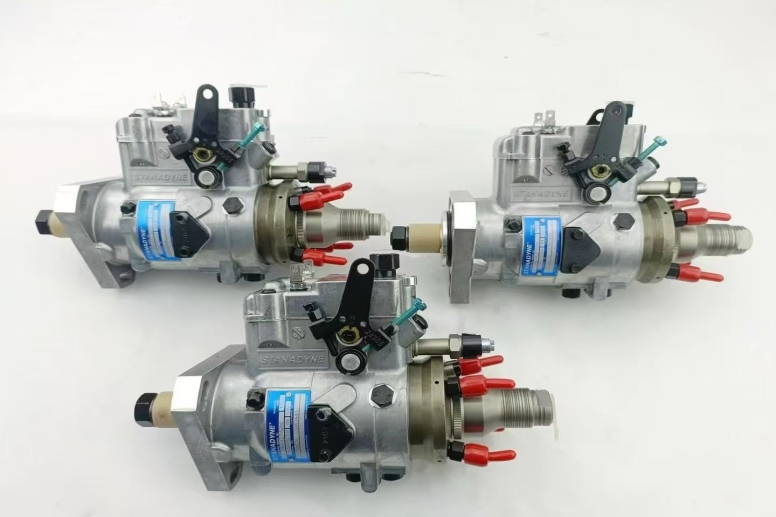

e. Injection Pump
Symptoms: Incorrect timing, internal wear, or governor issues can cause power loss and unstable idle.
Check: For mechanical pumps, check timing marks and dynamic timing with a strobe light (if possible). For electronic pumps, scan for codes.
Solution: Adjust timing, rebuild or replace pump if worn. This is often a job for a specialist.
f. Injectors
Symptoms: Clogged, worn, or sticking injectors lead to poor atomization, misfires, and rough idle.
Check: Perform a cylinder cut-out test (disable each injector to see if idle changes). Listen for irregular knocking. On common-rail systems, use a scanner to check injector balance rates.
Solution: Clean injectors professionally or replace them. Ensure proper pop pressure and spray pattern.
3. Air Intake System
Restricted airflow reduces combustion efficiency.
a. Air Filter
Symptoms: Black smoke (incomplete combustion), sluggish acceleration.
Check: Inspect filter element; replace if dirty.
Solution: Replace air filter.
b. Intake Manifold and Hoses
Symptoms: Leaks cause unmetered air, lean mixture, and rough idle.
Check: Inspect hoses for cracks or loose clamps. Listen for hissing sounds.
Solution: Repair or replace damaged hoses.
c. Turbocharger (if equipped)
Symptoms: Low boost pressure, excessive smoke, whistling noise.
Check: Check for shaft play, wastegate operation, and boost hose leaks. Use a boost gauge.
Solution: Repair or replace turbo, fix wastegate, or tighten boost pipes.
d. EGR System
Symptoms: Clogged EGR valve can cause rough idle and power loss.
Check: Remove EGR valve and inspect for carbon buildup. Check vacuum lines or electrical connections.
Solution: Clean or replace EGR valve.
4. Exhaust System
Restrictions increase backpressure, reducing power.
Symptoms: Engine feels "choked," excessive heat, poor fuel economy.
Check: Inspect exhaust pipes for crushing, clogged catalytic converter (if applicable), or diesel particulate filter (DPF) blockage. Use a backpressure gauge.
Solution: Replace clogged components or clean DPF.
5. Compression Issues
Low compression in one or more cylinders causes misfires and power loss.
Symptoms: White/blue smoke, rough idle, hard starting.
Check: Perform a compression test (specs vary by engine). Low readings indicate worn piston rings, cylinder liners, valves, or head gasket.
Solution: Depending on cause: valve adjustment, rebuild cylinder head, or engine overhaul.
6. Electronic Controls (Modern Engines)
ECU sensors and actuators play a crucial role.
a. Crankshaft/Camshaft Position Sensors
Symptoms: Erratic idle, stalling, no-start.
Check: Scan for codes, measure sensor resistance and signal.
Solution: Replace faulty sensor.
b. Mass Air Flow (MAF) or Manifold Absolute Pressure (MAP) Sensor
Symptoms: Incorrect air measurement leads to poor fueling.
Check: Clean sensor with appropriate cleaner, check voltage readings.
Solution: Replace if faulty.
c. Throttle Position Sensor (if applicable)
Symptoms: Unresponsive throttle, idle issues.
Check: Scan for codes, check signal voltage.
Solution: Adjust or replace.
d. Fuel Pressure Regulator/Sensor
Symptoms: Low or erratic fuel pressure.
Check: Use scanner to monitor fuel pressure.
Solution: Replace regulator or sensor.
7. Mechanical Timing
Incorrect valve or injection timing affects power and idle.
Symptoms: Poor performance, smoke, hard starting.
Check: Verify timing belt/chain alignment, injection pump timing marks.
Solution: Adjust timing to specifications.
8. Additional Checks
Glow Plugs (cold start): If faulty, can cause rough idle when cold.
Battery and Charging System: Low voltage can affect ECU and sensors.
Engine Mounts: Worn mounts can cause vibrations that feel like rough idle.
Summary of Troubleshooting Steps
Start with basics: Visual check, fluids, codes.
Fuel system: Filters, air in fuel, pump, injectors.
Air intake: Filter, leaks, turbo, EGR.
Exhaust: Blockages, DPF.
Compression: Test cylinders.
Electronics: Sensors, ECU.
Timing: Verify mechanical timing.
Always refer to the engine manufacturer’s service manual for specific procedures and specifications. If the problem persists after these checks, consult a professional diesel mechanic.
